What storage options are available on the GIGABYTE B760 DS3H AC motherboard?

The motherboard features 4 SATA 6Gb/s connectors and 2 M.2 connectors that support PCIe 4.0 x4/x2 SSDs.

What types of CPUs are supported by the GIGABYTE B760 DS3H AC motherboard?

The GIGABYTE B760 DS3H AC motherboard supports Celeron, Intel Core 12th Gen, Intel Core 13th Gen, Intel Core 14th Gen, and Pentium Gold processors.

$79^.99

This item is not returnable

Limit 5 per customer.

Add to PC build list

Sold by Newegg

Shipped by Newegg

Price alert

Add to Wish List

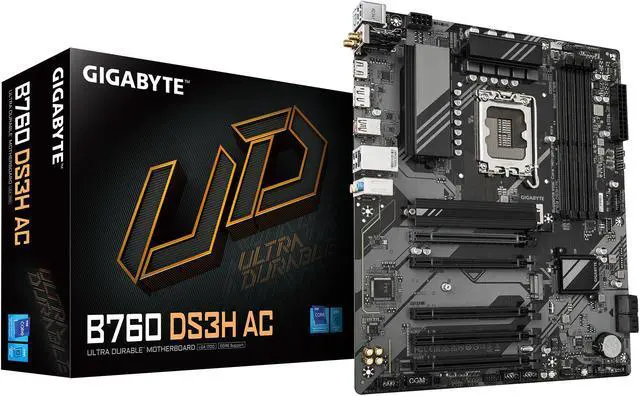

Main image of GIGABYTE B760 DS3H AC LGA 1700 Intel B760 ATX Motherboard with DDR5, M.2, PCIe 4.0, USB 3.2 Gen 2 Type-A, WiFi BLUETOOTH 5.1 SATA 6Gb/s

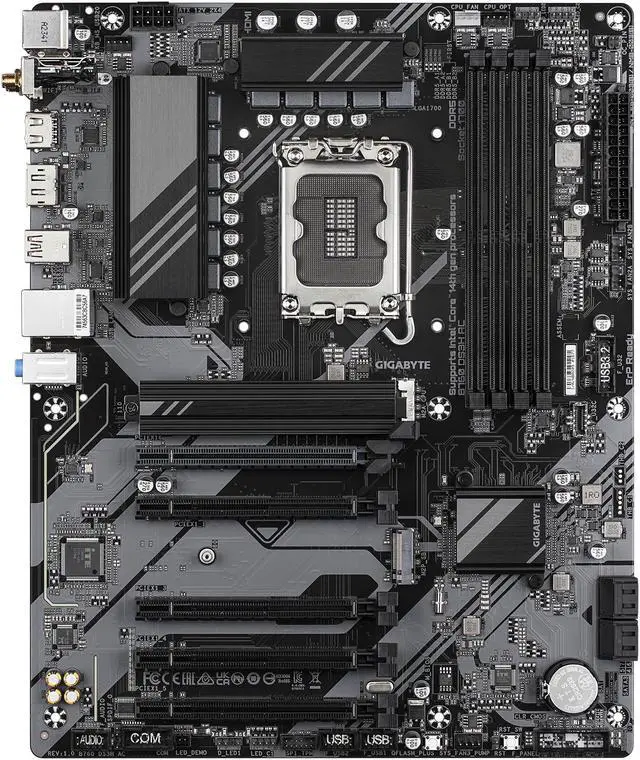

Alt view image 2 of 5 - GIGABYTE B760 DS3H AC LGA 1700 Intel B760 ATX Motherboard with DDR5, M.2, PCIe 4.0, USB 3.2 Gen 2 Type-A, WiFi BLUETOOTH 5.1 SATA 6Gb/s

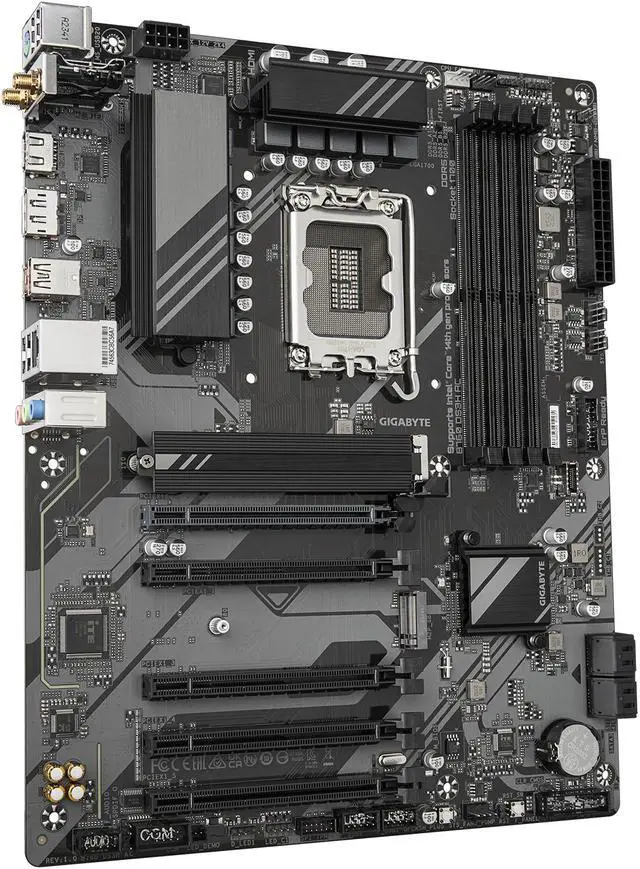

Alt view image 3 of 5 - GIGABYTE B760 DS3H AC LGA 1700 Intel B760 ATX Motherboard with DDR5, M.2, PCIe 4.0, USB 3.2 Gen 2 Type-A, WiFi BLUETOOTH 5.1 SATA 6Gb/s

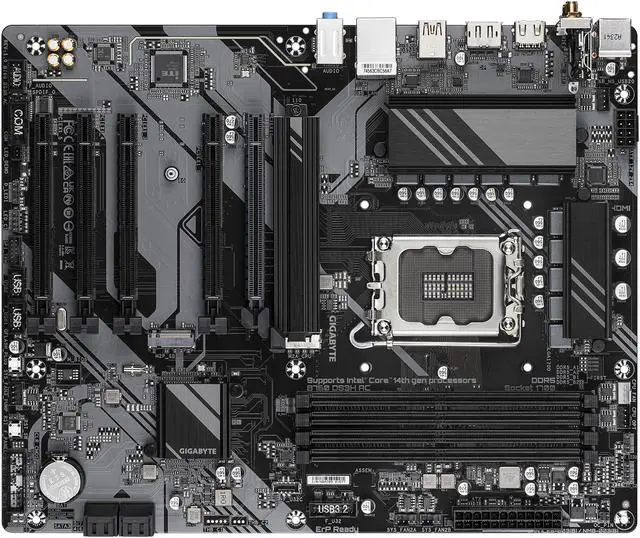

Alt view image 4 of 5 - GIGABYTE B760 DS3H AC LGA 1700 Intel B760 ATX Motherboard with DDR5, M.2, PCIe 4.0, USB 3.2 Gen 2 Type-A, WiFi BLUETOOTH 5.1 SATA 6Gb/s

Alt view image 5 of 5 - GIGABYTE B760 DS3H AC LGA 1700 Intel B760 ATX Motherboard with DDR5, M.2, PCIe 4.0, USB 3.2 Gen 2 Type-A, WiFi BLUETOOTH 5.1 SATA 6Gb/s

Images from RETAIL item, box contents may vary.

Shop All GIGABYTE Products

GIGABYTE B760 DS3H AC LGA 1700 Intel B760 ATX Motherboard with DDR5, M.2, PCIe 4.0, USB 3.2 Gen 2 Type-A, WiFi BLUETOOTH 5.1 SATA 6Gb/s

OPEN BOX

Supports Intel Core 14th/ 13th /12th processors
Unparalleled Performance: Hybrid 8+2+1 Phases Digital VRM Solution
Dual Channel DDR5:4*DIMMs XMP Memory Module Support
Next Generation Storage:2xPCIe 4.0 x4 M.2 Connectors
EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design
Fast Networks: GbE LAN & Wi-Fi 802.11ac
Extended Connectivity: Rear USB-C 20Gb/s, DP, HDMI
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

The Open Box Product Disclaimer applies to this product. Please note that this product is non-returnable and non-refundable.

Overview

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	GIGABYTE
Model	B760 DS3H AC

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold

Chipsets
Chipset	Intel B760

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 4800
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
Memory Feature	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

Expansion Slots
PCI Express 4.0 x16	CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 3.0 x16	Chipset: 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5)

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
SATA RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Onboard Audio
Audio Channels	7.1 Channels

Onboard LAN
Max LAN Speed	1Gbps
Wireless LAN	Wi-Fi 802.11 ac

Rear Panel Ports
Back I/O Ports	1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Features
Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
