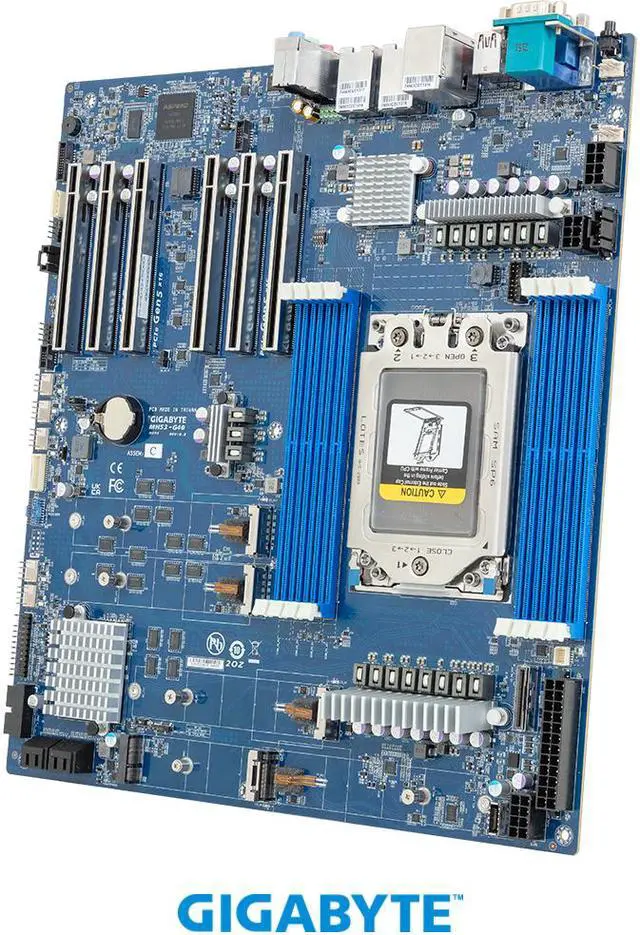

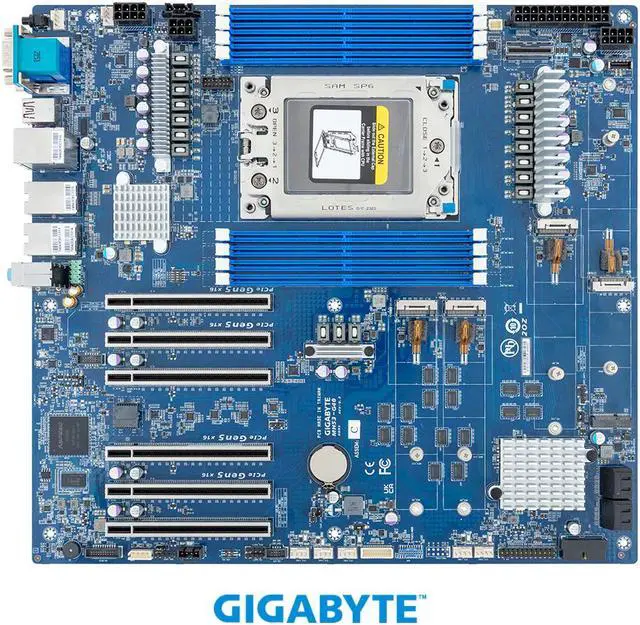

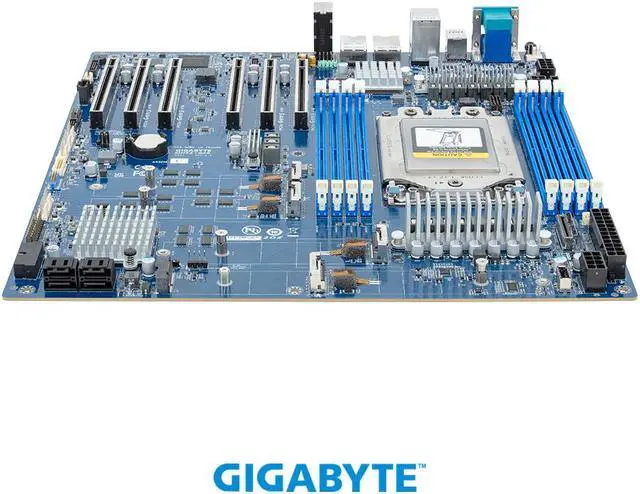

GIGABYTE MH53-G40 Motherboard - AMD Ryzen™ Threadripper™ PRO 7000 WX - E-ATX UP
OPEN BOX Product Type
- Single AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors
- 8-Channel DDR5 RDIMM, 8 x DIMMs
- AMD WRX90 Chipset
- 2 x 10Gb/s LAN ports via Broadcom® BCM57416
- 1 x MCIO 8i connector for 2 x Gen5 NVMe or 8 x SATA 6Gb/s
- 4 x SATA 6Gb/s ports
- 4 x M.2 slots with PCIe Gen5 x4 interface
- 1 x M.2 slot with PCIe Gen3 x1 interface for Wi-Fi add-in cards
- 6 x PCIe Gen5 x16 expansion slots
+
+
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE MH53-G40
| Best Seller Ranking | #77 in Server Motherboards |
|---|
| Brand | GIGABYTE |
|---|---|
| Model | MH53-G40 |
| CPU Socket Type | Socket sTR5 |
|---|---|
| CPU Type | AMD Ryzen Threadripper PRO 7000 WX-Series Processors |
| Number of Processor Support | 1 |
| CPU Features | Single processor, TDP up to 350W |
| North Bridge | AMD WRX90 |
|---|
| Memory Slots | 8 x DDR5 288-pin |
|---|---|
| Memory Standard | DDR5 5200 |
| Channel Supported | Eight Channel |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express 5.0 x16 | Slot_7: PCIe x16 (Gen5 x16) Slot_6: PCIe x16 (Gen5 x16) Slot_5: PCIe x16 (Gen5 x16) Slot_3: PCIe x16 (Gen5 x16) Slot_2: PCIe x16 (Gen5 x16) Slot_1: PCIe x16 (Gen5 x16) |
|---|---|
| Other Slots | 1 x MCIO 8i (Gen5 x8 or SATA) |
| SATA | 4 x SATA, from FCH |
|---|---|
| M.2 | 4 x M.2 (2280/22110), PCIe Gen5 x4, from CPU |
| Onboard Video Chipset | Aspeed AST2600 |
|---|
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Broadcom BCM57416 |
|---|---|
| LAN Speed | 10Gbps |
| Max LAN Speed | 2 x 10Gbps |

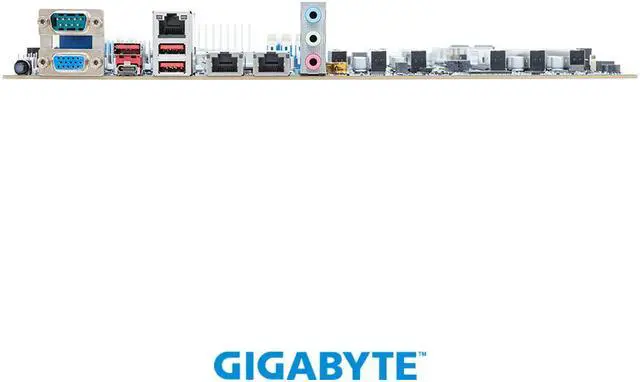

| Back I/O Ports | 1 x USB 3.2 Gen 2x2 port (Type-C) (from FCH) 3 x USB 3.2 Gen 2 ports (Type-A) (from CPU) 1 x VGA port 1 x COM port 2 x RJ45 ports 1 x MLAN port 3 x Audio jacks (Audio in/Audio out/Mic) 1 x ID button with LED |
|---|
| Onboard USB | 1 x USB 3.2 Gen2 header (from FCH) 1 x USB 3.2 Gen1 header (from FCH) |
|---|---|
| Other Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x 6-pin ATX 12V power connector 1 x CPU fan header 6 x System fan headers 1 x Front audio header 4 x M.2 slots for storage 1 x M.2 slot for Wi-Fi 1 x MCIO 8i connector 4 x SATA connectors 1 x Front panel header 1 x Backplane board header 1 x PMBus header 1 x IPMB header 1 x TPM header |
| Form Factor | Extended ATX |
|---|---|
| Dimensions (W x L) | 12" x 13" |
| First Listed on Newegg | November 14, 2024 |
|---|
