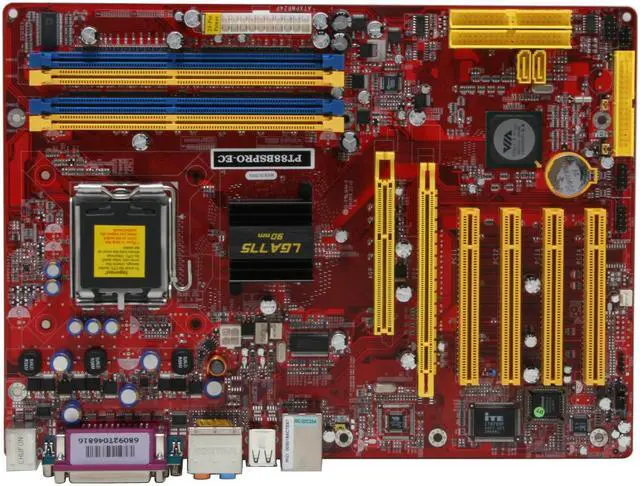

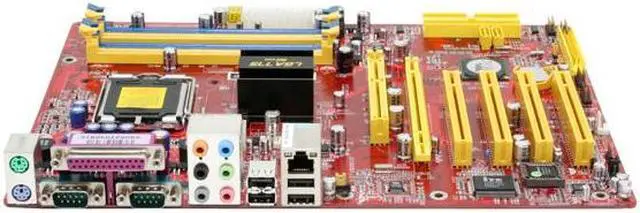

JetWay PT88BSPRO-EC LGA 775 VIA PT880 PRO ATX Intel Motherboard
- VIA PT880 PRO
- Pentium 4 / Celeron
- DDR 400
Specs
Reviews (21)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the JETWAY PT88BSPRO-EC
| Brand | JetWay |
|---|---|
| Model | PT88BSPRO-EC |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Pentium 4 / Celeron |
| FSB | 800/533 MHz |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | VIA PT880 PRO |
|---|---|
| South Bridge | VIA VT8237 |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| AGP Slots | VIA Dual GFX Express AGP |
|---|---|
| PCI Express x16 | 1 x PCI Express x16 |
| PCI Slots | 4 x PCI Slots |
| PATA | 2 x ATA100 4 Dev. Max |
|---|
| Audio Chipset | AC97 Codec |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | VIA VT6106 |
|---|---|
| Max LAN Speed | 100Mbps |

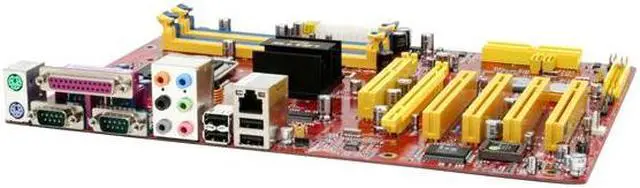

| Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 2 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Power Pin | 24 Pin |

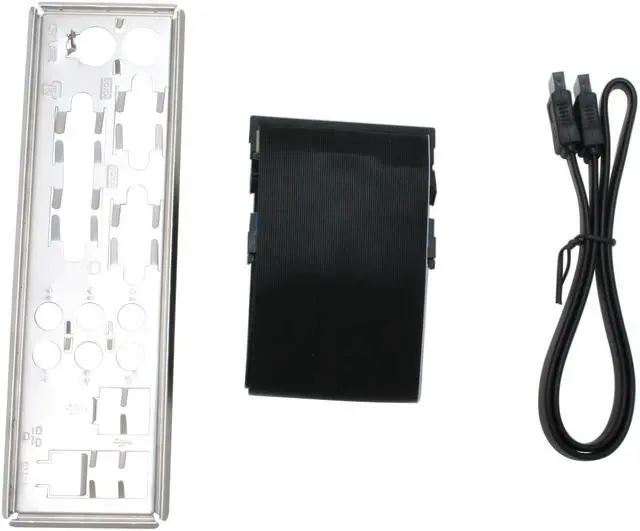

| Package Contents | PT88BSPRO-EC Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable SATA Cable |
|---|
| First Listed on Newegg | March 14, 2007 |
|---|
