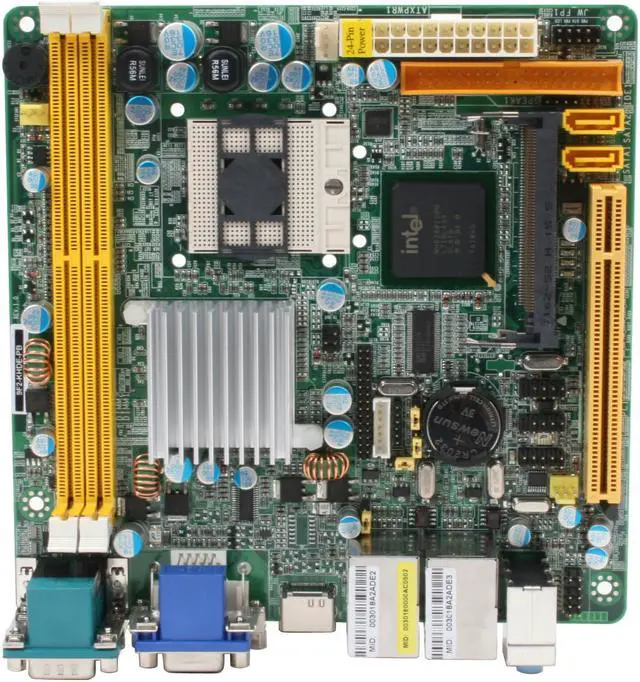

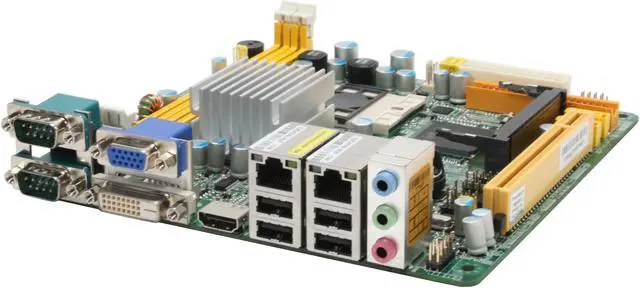

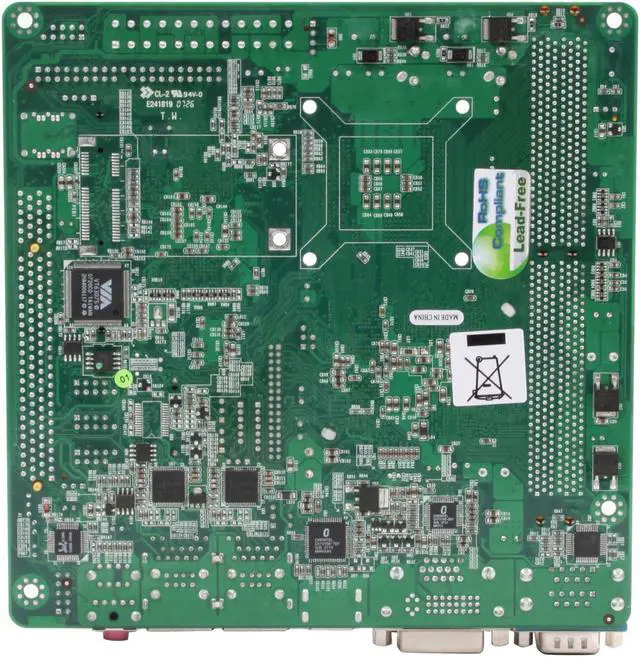

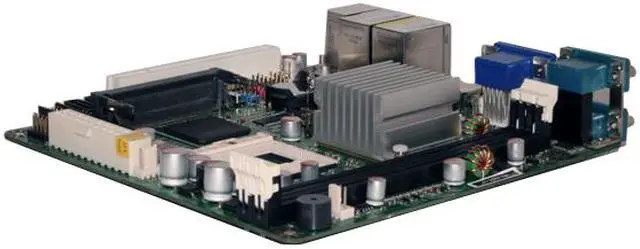

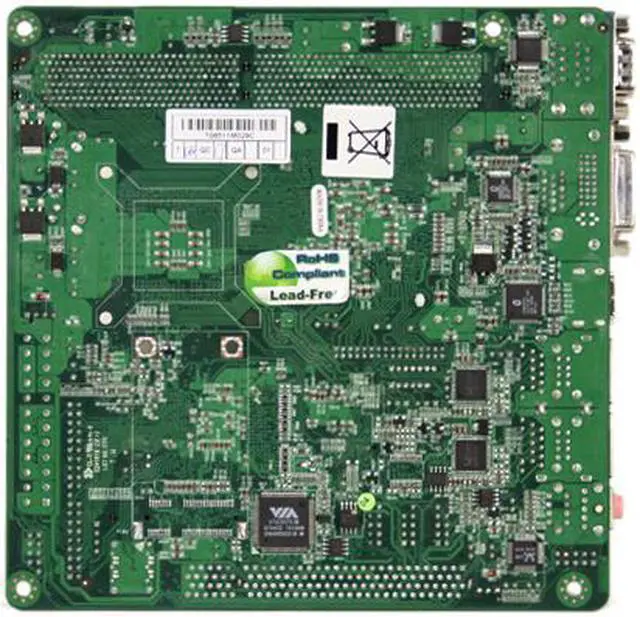

JetWay J9F2-KHDE-PB Socket M Intel 945GM HDMI Mini ITX Intel Motherboard

OUT OF STOCK.
  • Intel 945GM
  • Core 2 Duo / Core Duo / Core Solo Mobile
  • DDR2 667
Specs
Reviews

Learn more about the JETWAY J9F2-KHDE-PB

Model
Brand JetWay
Model J9F2-KHDE-PB
Supported CPU
CPU Socket Type Socket M
CPU Type Core 2 Duo / Core Duo / Core Solo Mobile
FSB 667/533 MHz
Chipsets
Chipset Intel 945GM
South Bridge Intel ICH7-M
Onboard Video
Onboard Video Chipset Intel GMA 950
Memory
Number of Memory Slots 2×240pin
Memory Standard DDR2 667
Maximum Memory Supported 2GB
Channel Supported Dual Channel
Expansion Slots
PCI Slots 1 x PCI Slot
Storage Devices
SATA 3Gb/s 2 x SATA 3Gb/s
Onboard Audio
Audio Chipset Realtek ALC888
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8111B
Max LAN Speed 10/100/1000Mbps

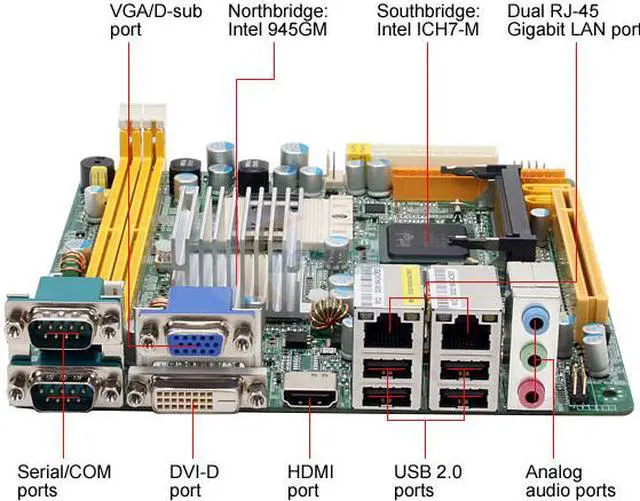

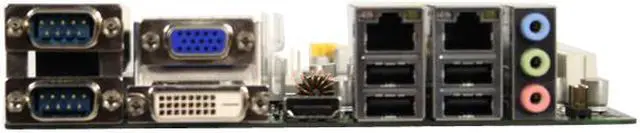

Rear Panel Ports
COM 2
Video Ports D-Sub + DVI
HDMI 1 x HDMI
USB 1.1/2.0 4 x USB 2.0
Internal I/O Connectors
Onboard USB 2 x USB 2.0
Onboard 1394 1 x 1394a
Physical Spec
Form Factor Mini ITX
Dimensions (W x L) 6.7" x 6.7"
Power Pin 24 Pin

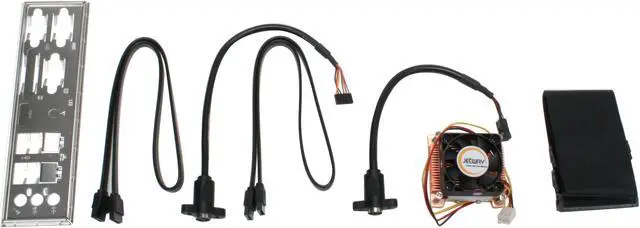

Packaging
Package Contents J9F2-KHDE-PB
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
SATA Cable
Additional Information
Date First Available August 17, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
  • Read full details

Return Policies

  • Return for refund within: 30 days
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy
