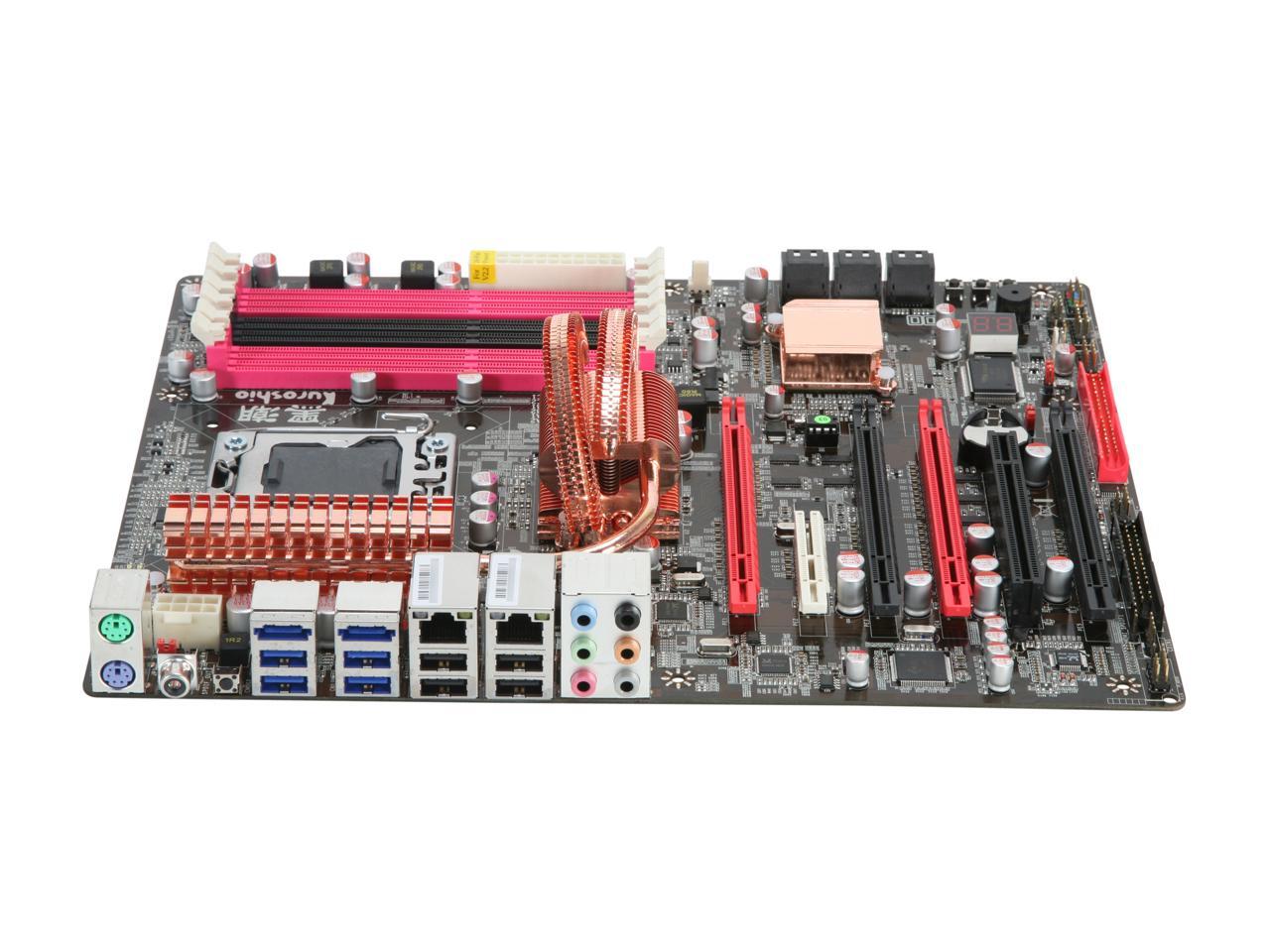

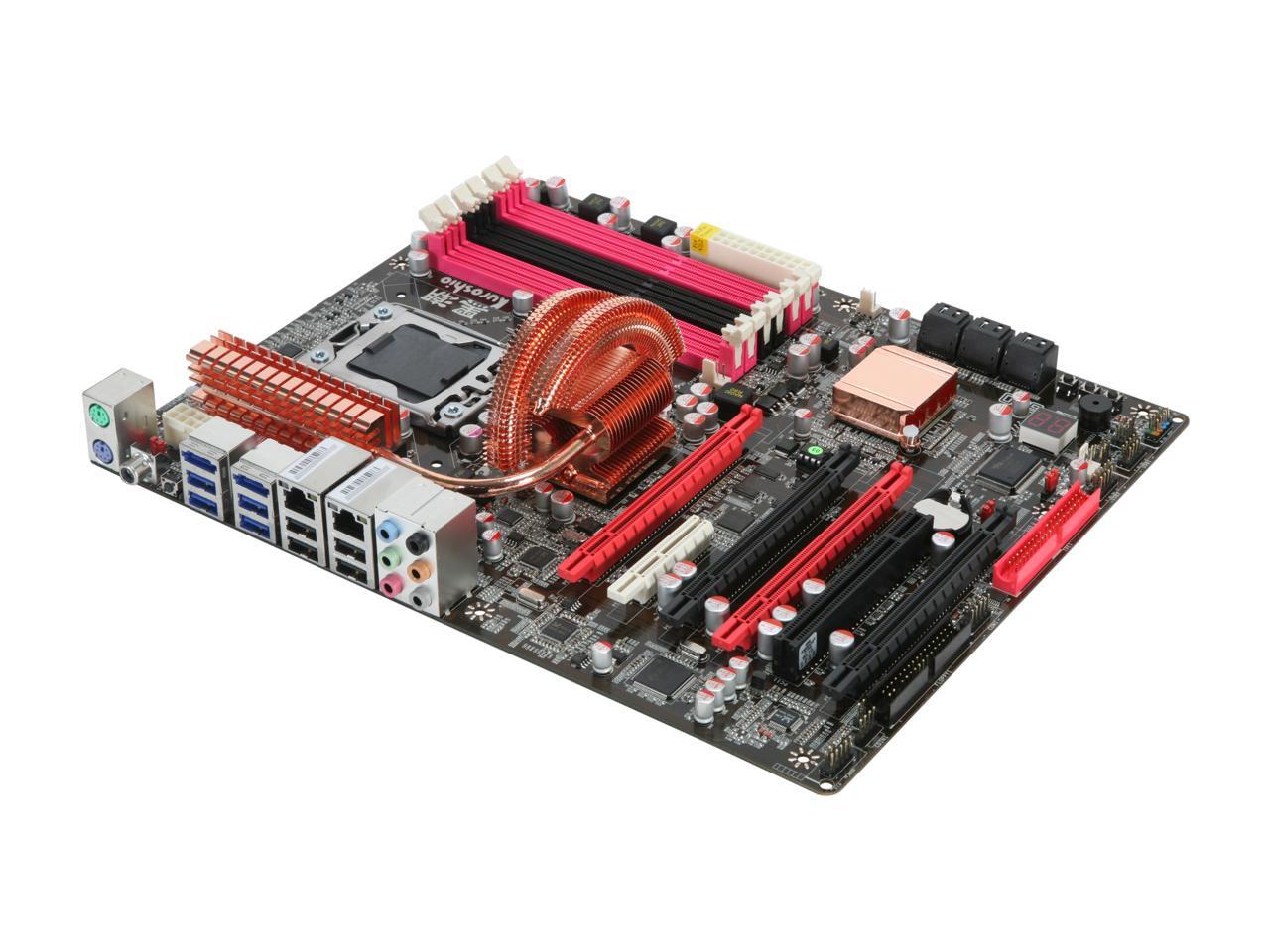

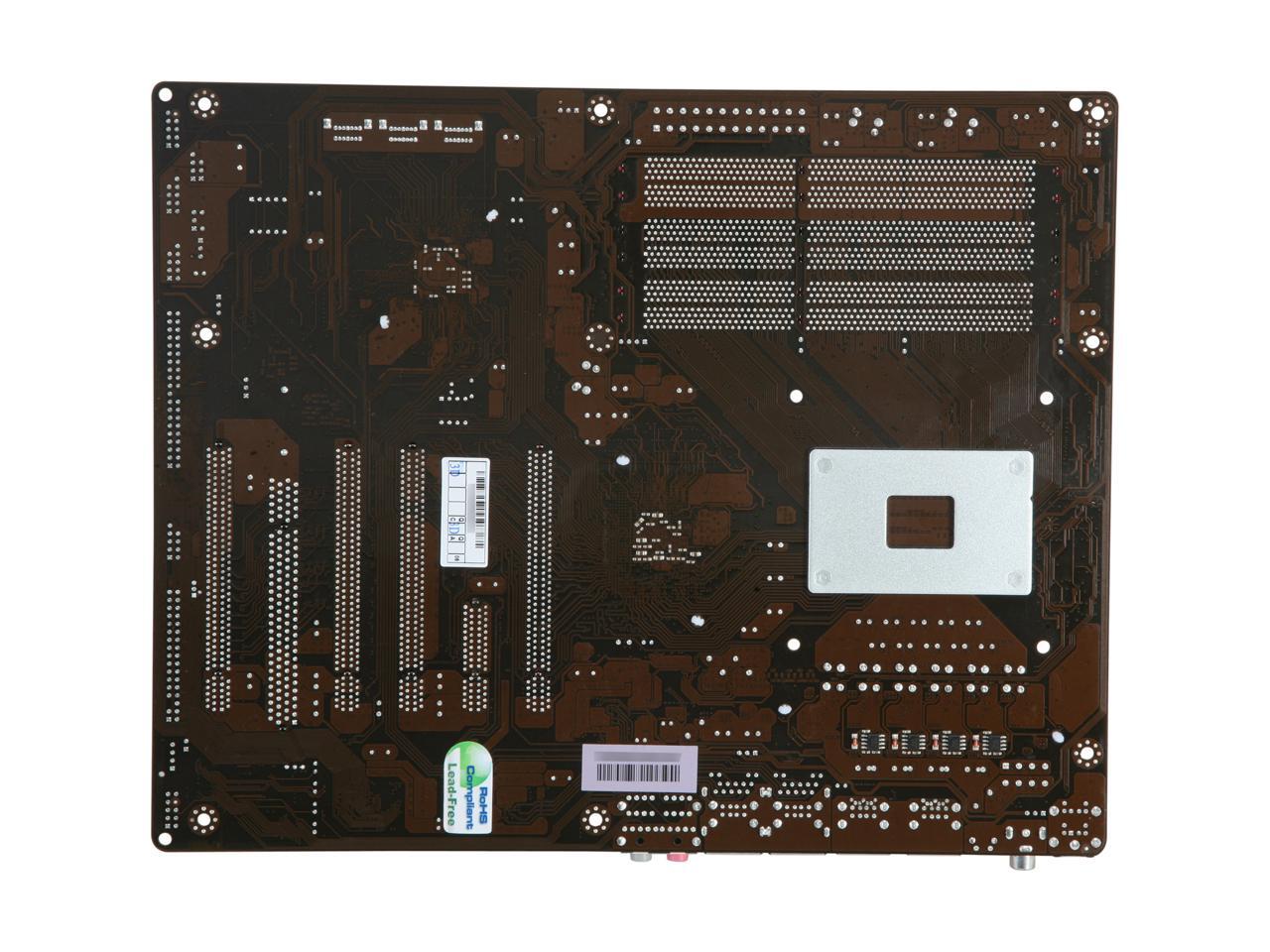

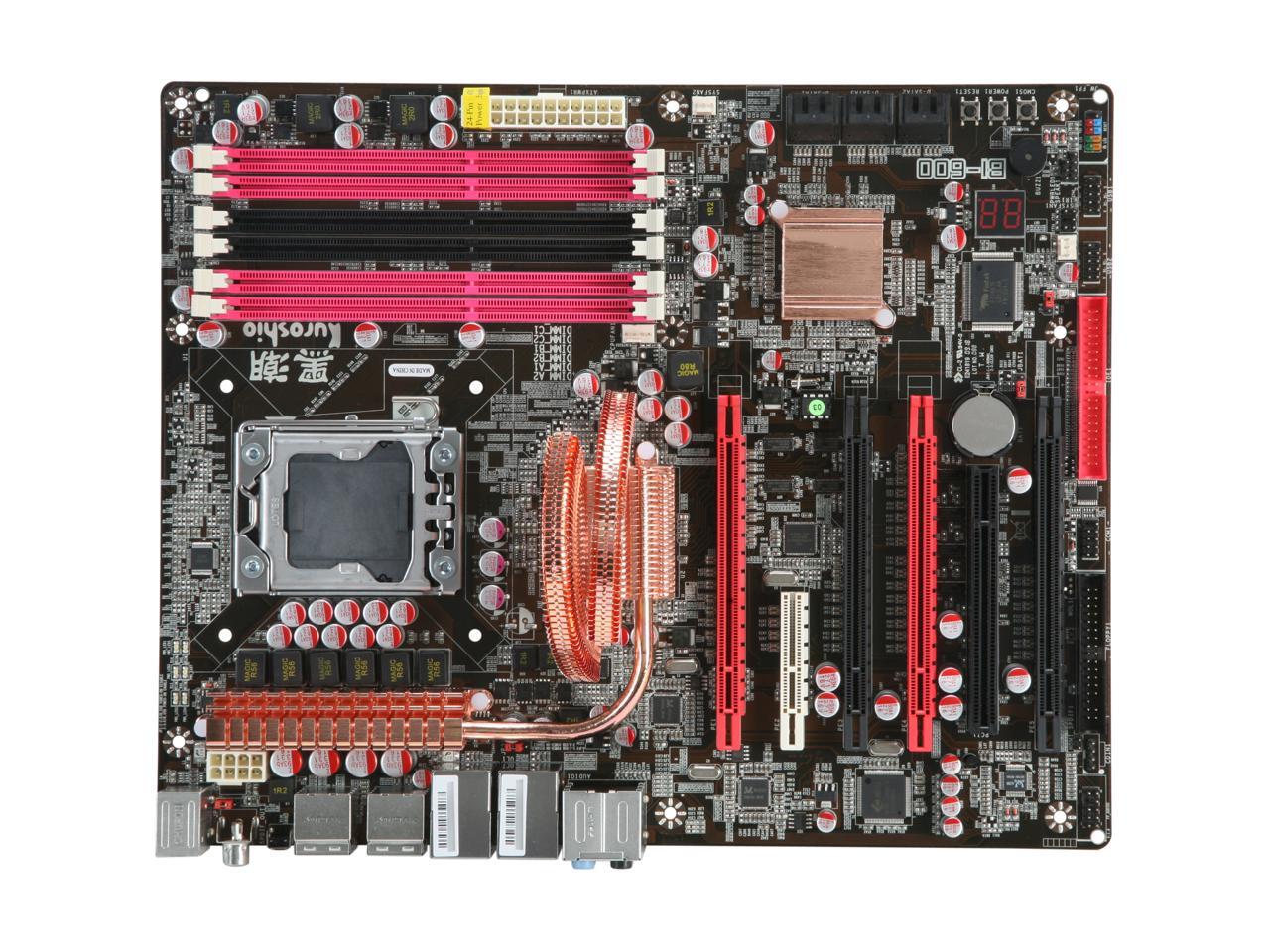

JetWay JBI-600-LF LGA 1366 Intel X58 ATX Intel Motherboard
OUT OF STOCK.
- Intel X58
- Core i7 (LGA1366)
- DDR3 1600/1333
Specs
Reviews
Learn more about the JETWAY JBI-600-LF
| Brand | JetWay |
|---|---|
| Model | JBI-600-LF |
| CPU Socket Type | LGA 1366 |
|---|---|
| CPU Type | Core i7 (LGA1366) |
| FSB | QPI 6.4GT/S |
| Chipset | Intel X58 |
|---|---|
| South Bridge | Intel ICH10R |
| Number of Memory Slots | 6×240pin |
|---|---|
| Memory Standard | DDR3 1600/1333 |
| Maximum Memory Supported | 24GB |
| Channel Supported | Dual / Triple Channel |
| PCI Express 2.0 x16 | 4 x PCI-Express x16 slot by 8-lane slots |
|---|---|
| PCI Express x4 | 1 x PCI Express x4 |
| PCI Slots | 1 x PCI Slot |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA 3Gb/s | 6 x SATA 3Gb/s |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC888 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek RT8111CVC |
|---|---|
| Second LAN Chipset | Realtek RT8111CVC |
| Max LAN Speed | Dual 10/100/1000Mbps |
| PS/2 | 2 |
|---|---|
| USB 1.1/2.0 | 8 x USB 2.0 |
| eSATA | 2 x eSATA 3Gb/s |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 2.0/1.1 headers for 4 USB 2.0/1.1 ports |
|---|
| Form Factor | ATX |
|---|---|
| Power Pin | 24 Pin |
| Features | "IMAGE IT!" System Backup Software and "ProMagicPLUS!" System Recovery System Debug port & DIY Cool & DIY Switch x4 |
|---|
| Date First Available | June 03, 2009 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 2 years
- Limited Warranty period (labor): 2 years
- Read full details
Return Policies
- Return for refund within: Non-refundable
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Replacement Only Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-510-857-0130
- Support Email: tech@jetwaycomputer.com
- Support Website
- View other products from JETWAY
LOADING...
LOADING...

















Pros: Bought this board when it was on sale, free shipping and 10% discount promotion. I like these features: 6 SATA, 2 eSATA, 2 RJ-45, SPDIF-OUT, PWR Reset/On and CMOS Reset buttons. The 2nd CMOS reset button on the back panel helps a lot during the OC setting. OC is not great but is acceptable. I was able to reach 3.4 GHz and stable with 12 gig/1333, cpu/1.35V and VDIMM/1.65. No problem with Vista Ultimate, Win 7 RC1, W2K8 Server and CentOS 5.3. All 64-bit OS. Both RAID 0 and 1 work well
Cons: HW monitor util MyGuard and LAN driver won't work on Win 7 RC1, but not my concern at this moment. JMicron driver for IDE is a bit slower. Therefore get a SATA DVD drive if possible. ATI cross file is supported, but not for nVidia SLI supported.
Overall Review: To get installation and setup ASAP, I always use only 1 stick (2 GB) and the defualt settings. OC is proceeded only after OS and the drivers are installed. i7 920 COOLER MASTER Hyper N 520 OCZ XMP DDR3 1600 HIS Radeon 4679 IceQ Turbo 512 Antec Earthwatts EA500 500W Antec Sonata Designer 500
