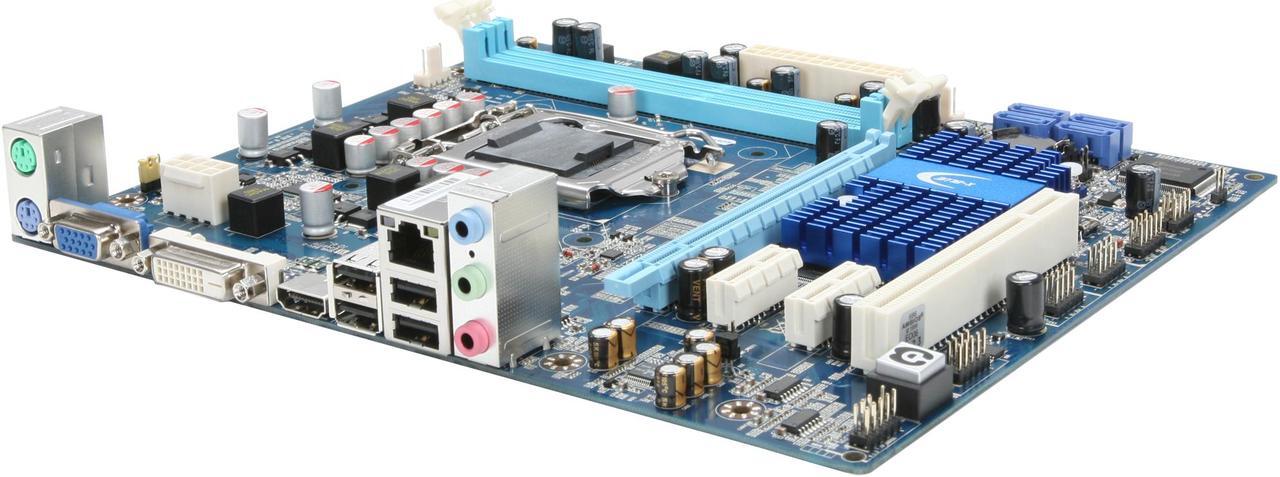

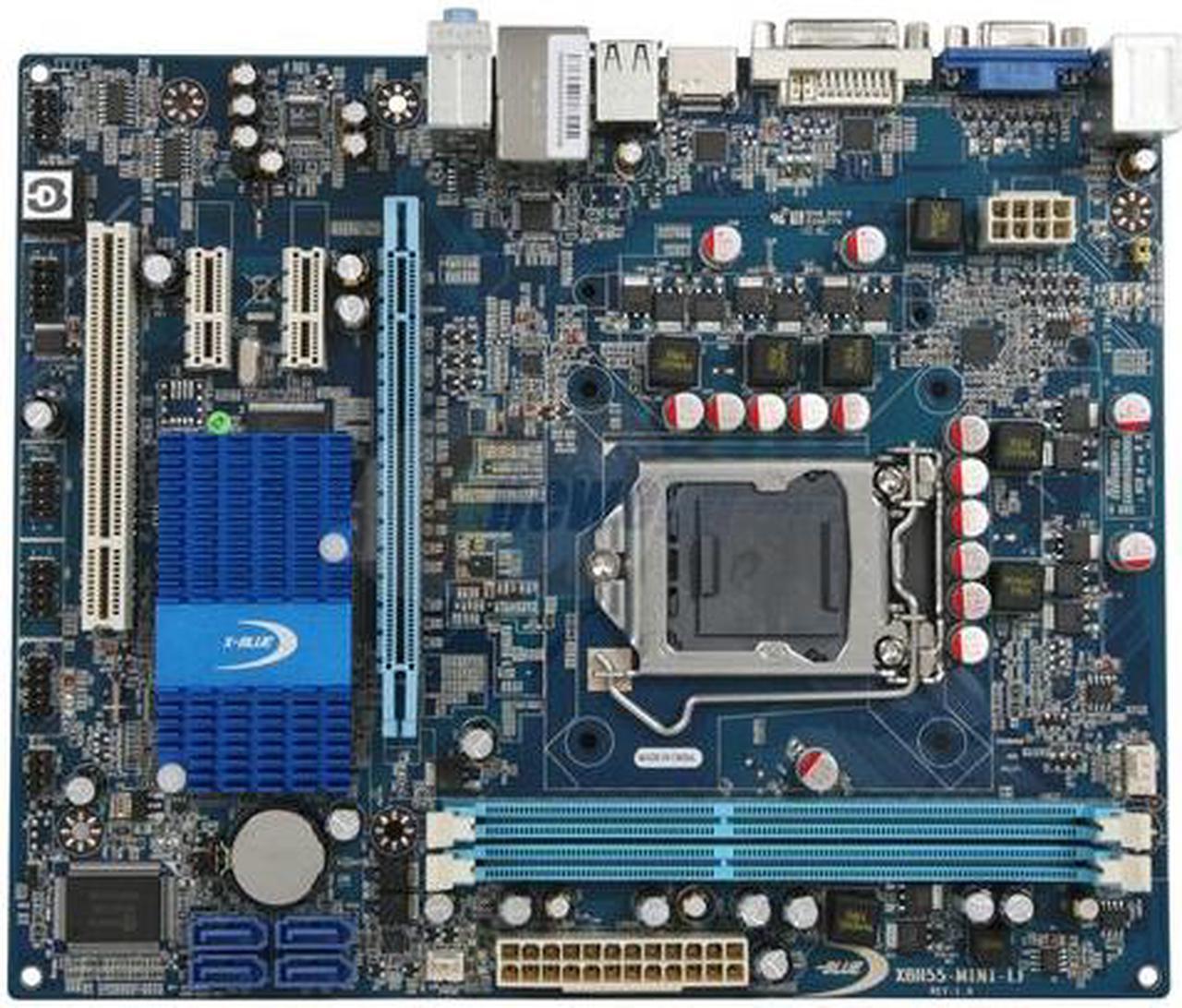

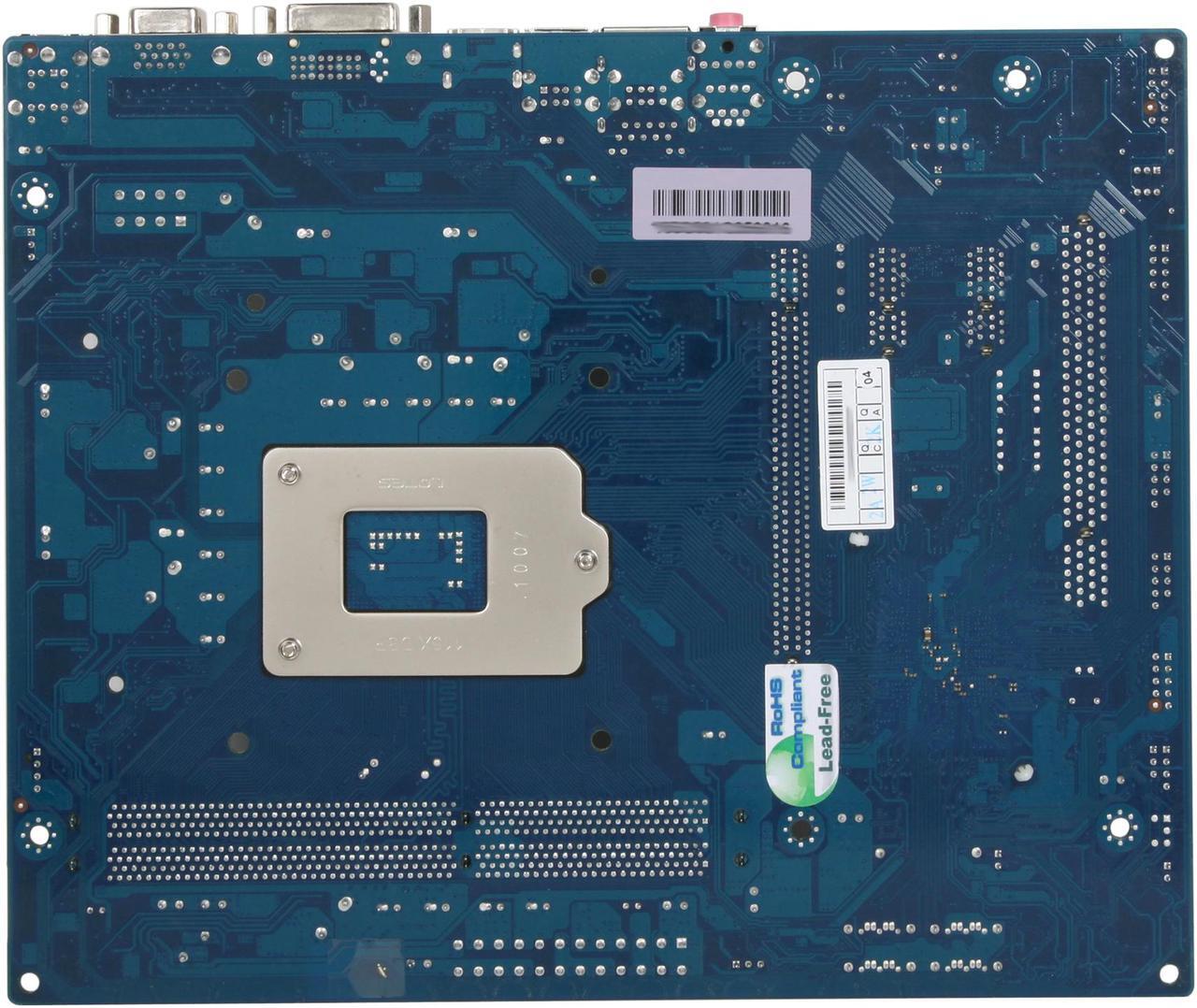

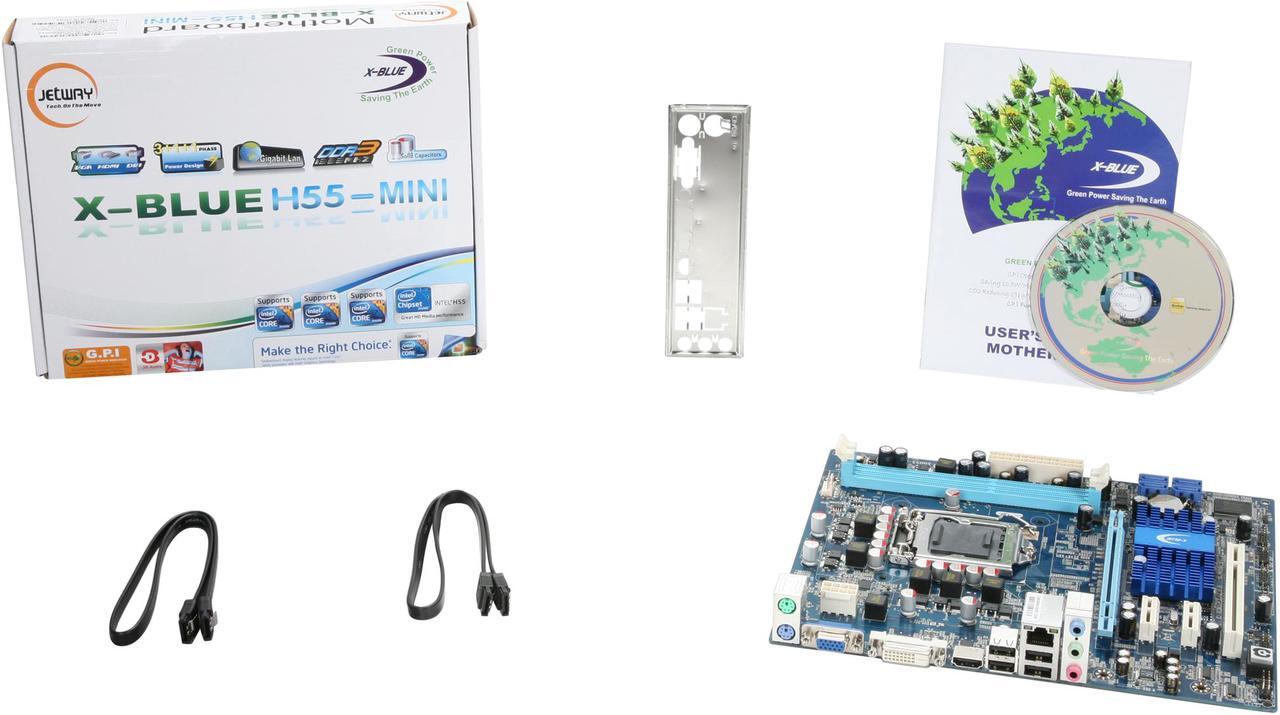

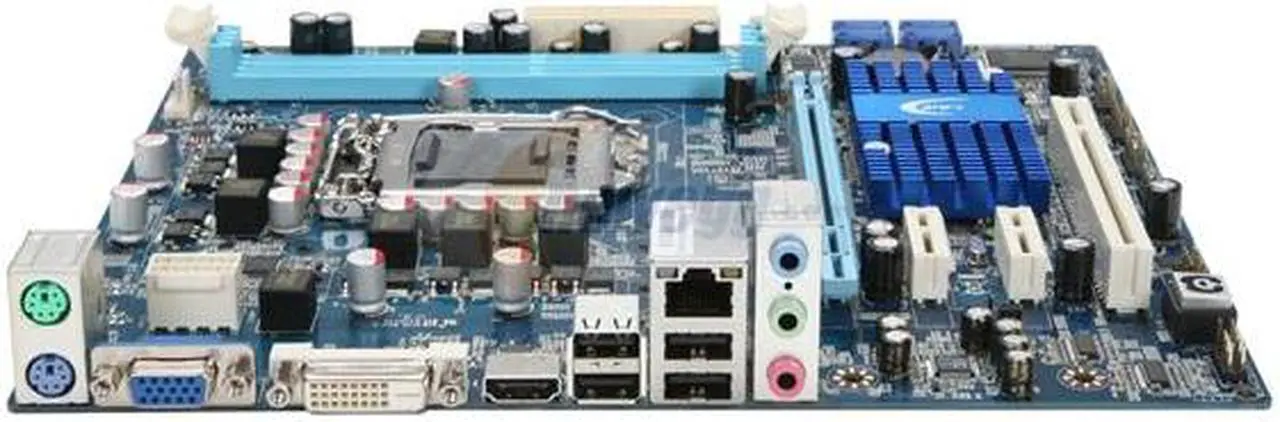

JetWay JXBLUE-H55-MINI-LF LGA 1156 Intel H55 HDMI Micro ATX Intel Motherboard
- Intel H55
- Core i7 / i5 / i3 / Pentium (LGA1156)
- DDR3 1333/1066
Specs
Reviews
Learn more about the JETWAY JXBLUE-H55-MINI-LF
| Brand | JetWay |
|---|---|
| Model | JXBLUE-H55-MINI-LF |
| CPU Socket Type | LGA 1156 |
|---|---|
| CPU Type | Core i7 / i5 / i3 / Pentium (LGA1156) |
| Chipset | Intel H55 |
|---|
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 1333/1066 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 1 x PCI Slot |
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8111DL |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x HDMI / 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 headers for 4 USB 2.0 ports |
|---|---|
| Other Connectors | CPU / Chassis Fan connectors 1 x 8-pin ATX 12V Power connector 1 x 24-pin ATX Power connector 1 x COM port 1 x HDMI_SPDIF header |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 7.9" |
| Power Pin | 24 Pin |
| Features | INTEL H55 Express Chipset Support INTEL LGA1156 Processors Supports PCI-Express 2.0 Supports Dual Channel DDR3 1333/1066 Onboard Gigabit LAN Integrated ALC662 HD Audio CODEC with 6.0 CH Support all solid-state electric capacity Support 3D Audio Technology Support G.P.I Technology Ready for Windows 7 U-ATX Form Factor(200mm X 245mm) |
|---|
| Date First Available | June 14, 2010 |
|---|
