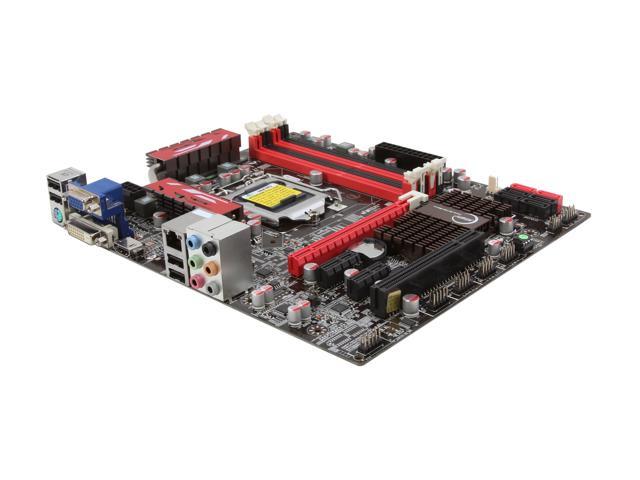

JetWay JTIZ68MG LGA 1155 Intel Z68 HDMI SATA 6Gb/s Micro ATX Intel Motherboard
- Intel Z68
- Core i7 / i5 / i3 / Pentium / Celeron (LGA1155)
- DDR3 1600/1333/1066
Specs
Reviews
Learn more about the JETWAY JTIZ68MG
| Brand | JetWay |
|---|---|
| Model | JTIZ68MG |
| CPU Socket Type | LGA 1155 |
|---|---|
| CPU Type | Core i7 / i5 / i3 / Pentium / Celeron (LGA1155) |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel Z68 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 1600/1333/1066 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 1 x PCI Slot |
| SATA 3Gb/s | 4 x SATA 3Gb/s |
|---|---|
| SATA 6Gb/s | 2 x SATA 6Gb/s |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111E |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x HDMI / 1 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 6 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|---|
| Other Connectors | CPU / Chassis Fan connectors 1 x 8-pin ATX 12V Power connector 1 x 24-pin ATX Power connector 1 x COM port 1 x HDMI_SPDIF header 1 x Front panel audio header |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.65" x 8.27" |
| Power Pin | 24 Pin |
| Features | INTELZ68 Express Chipset Support for 2nd generation Intel Core processor family Support PCI-Express 2.0 Support Serial ATA3 Support Dual Channel DDR3 1333/1066 Onboard Gigabit LAN Integrated HD Audio CODEC with 8.0 CH Support Intel Smart Response Technology Compliance with ErP standards 3+1+1 Phase CPU Power Support M-ATX Form Factor(210mm X 245mm) |
|---|
| Date First Available | January 19, 2012 |
|---|
