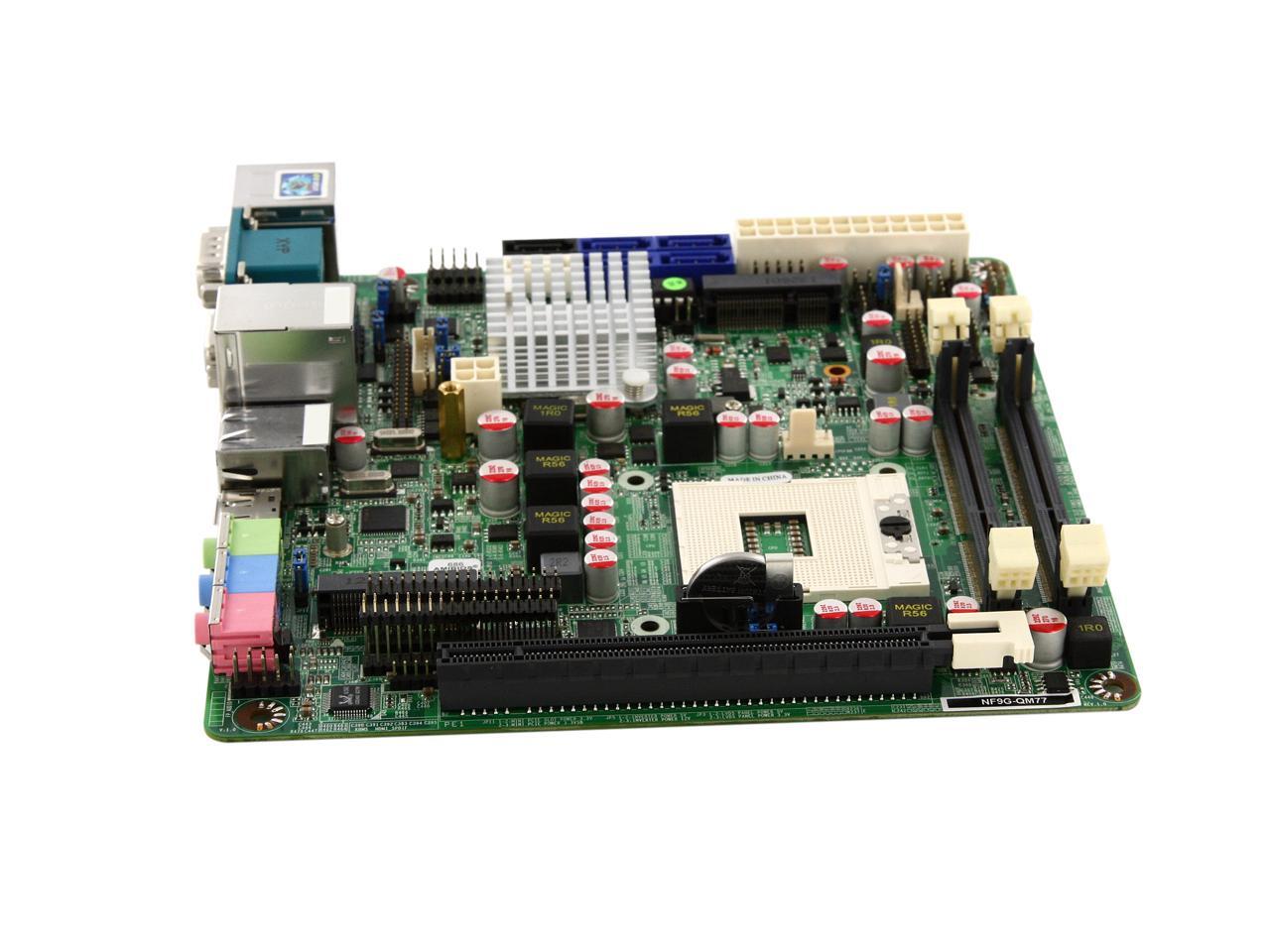

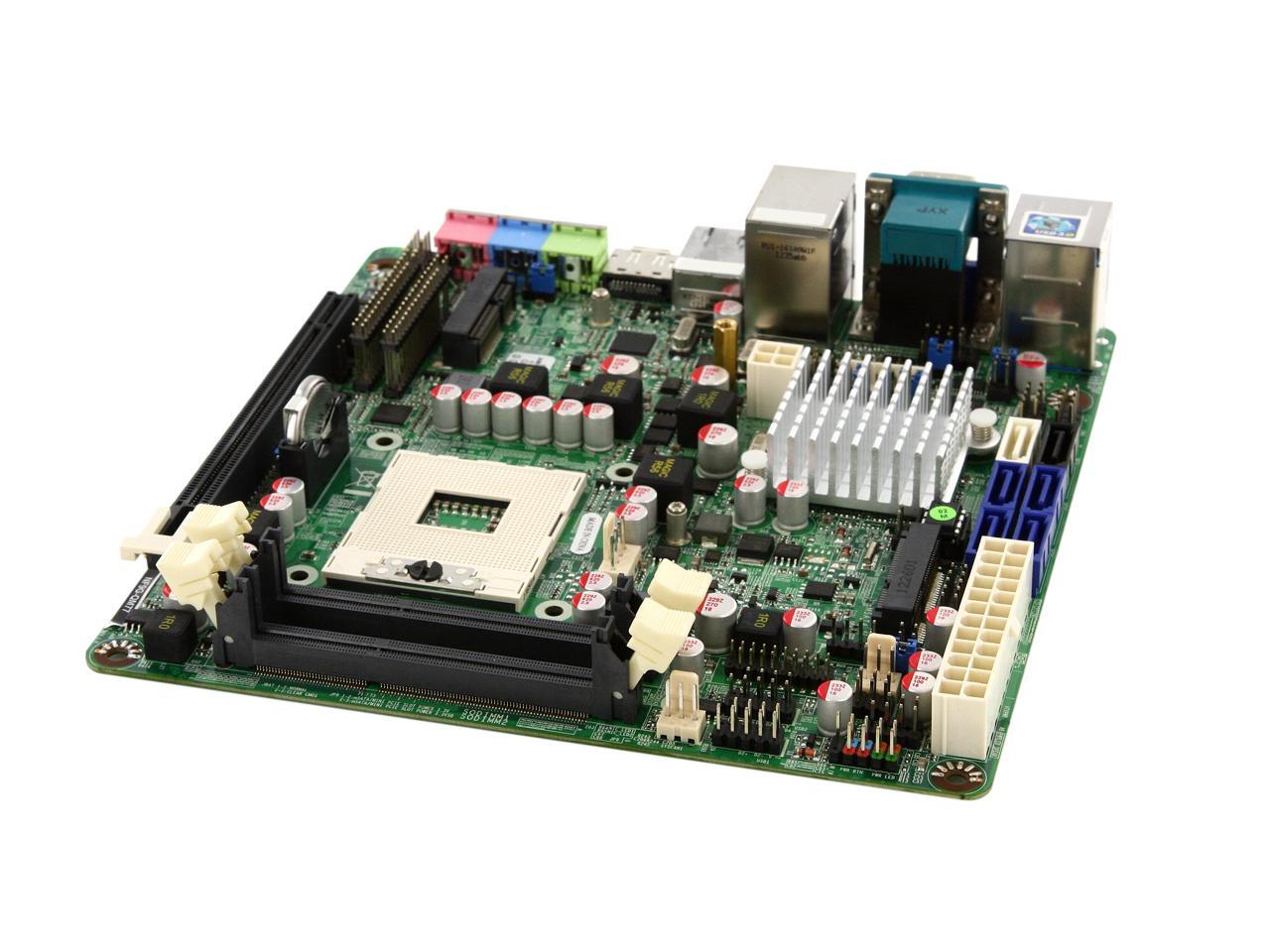

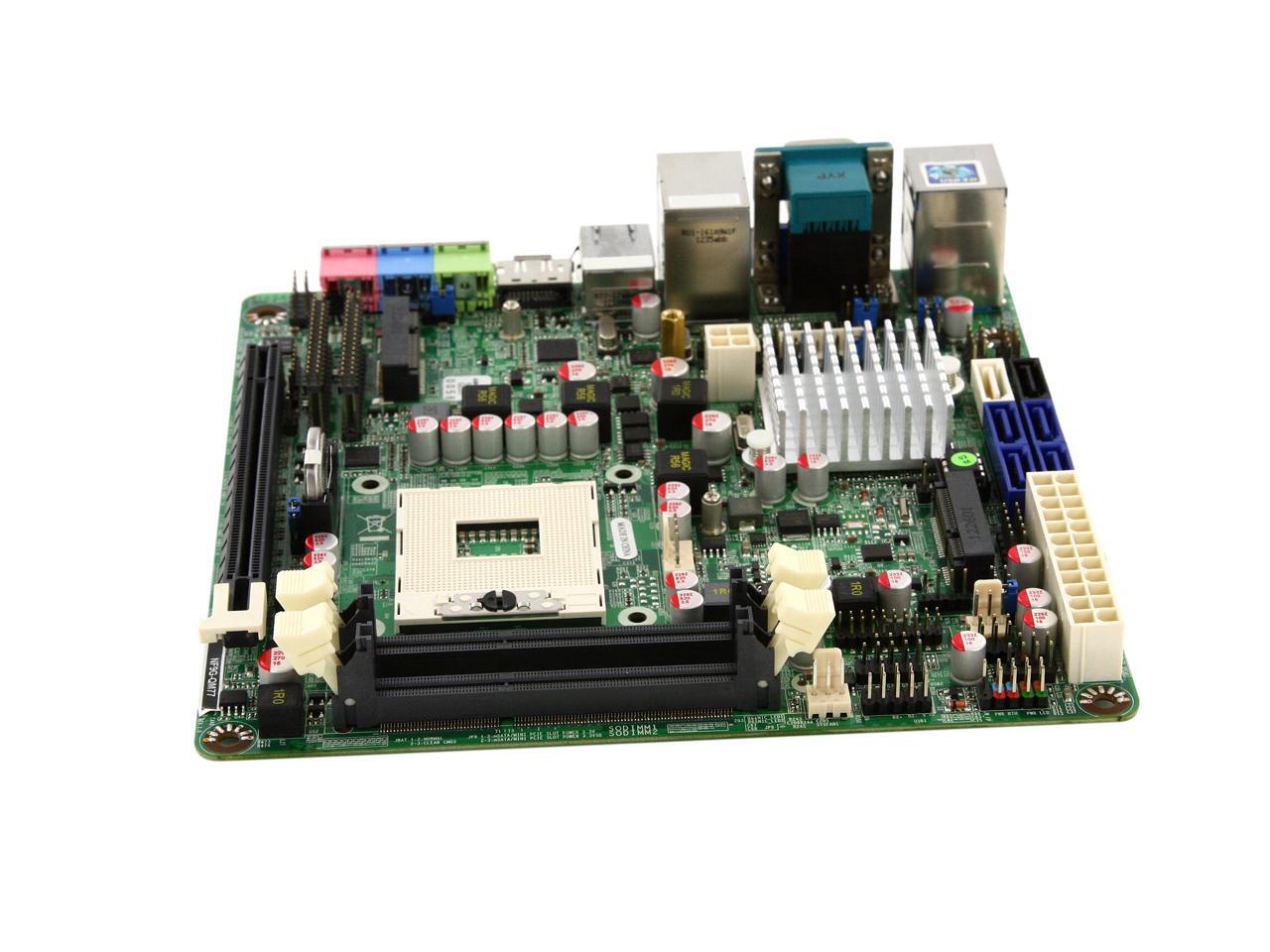

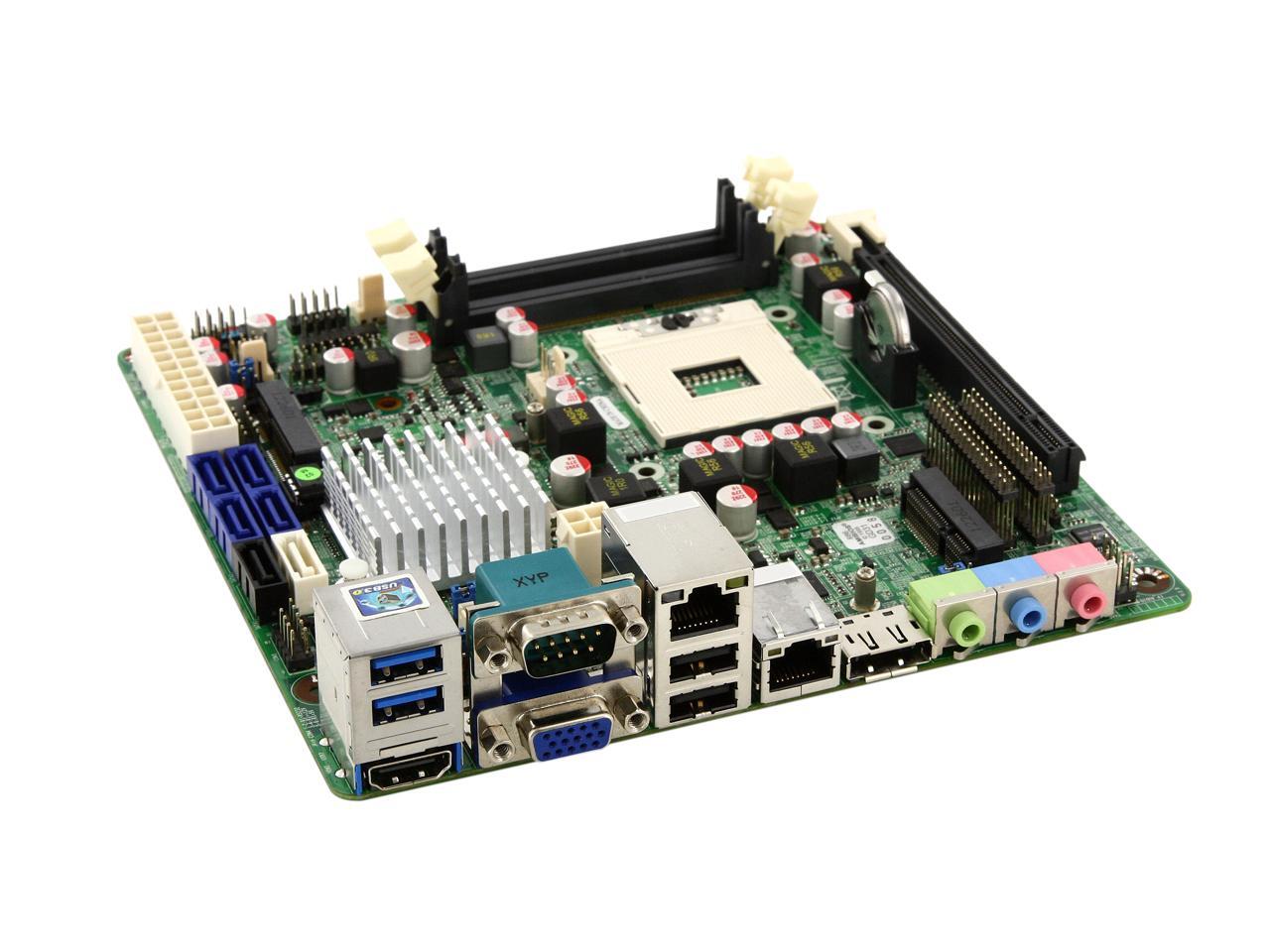

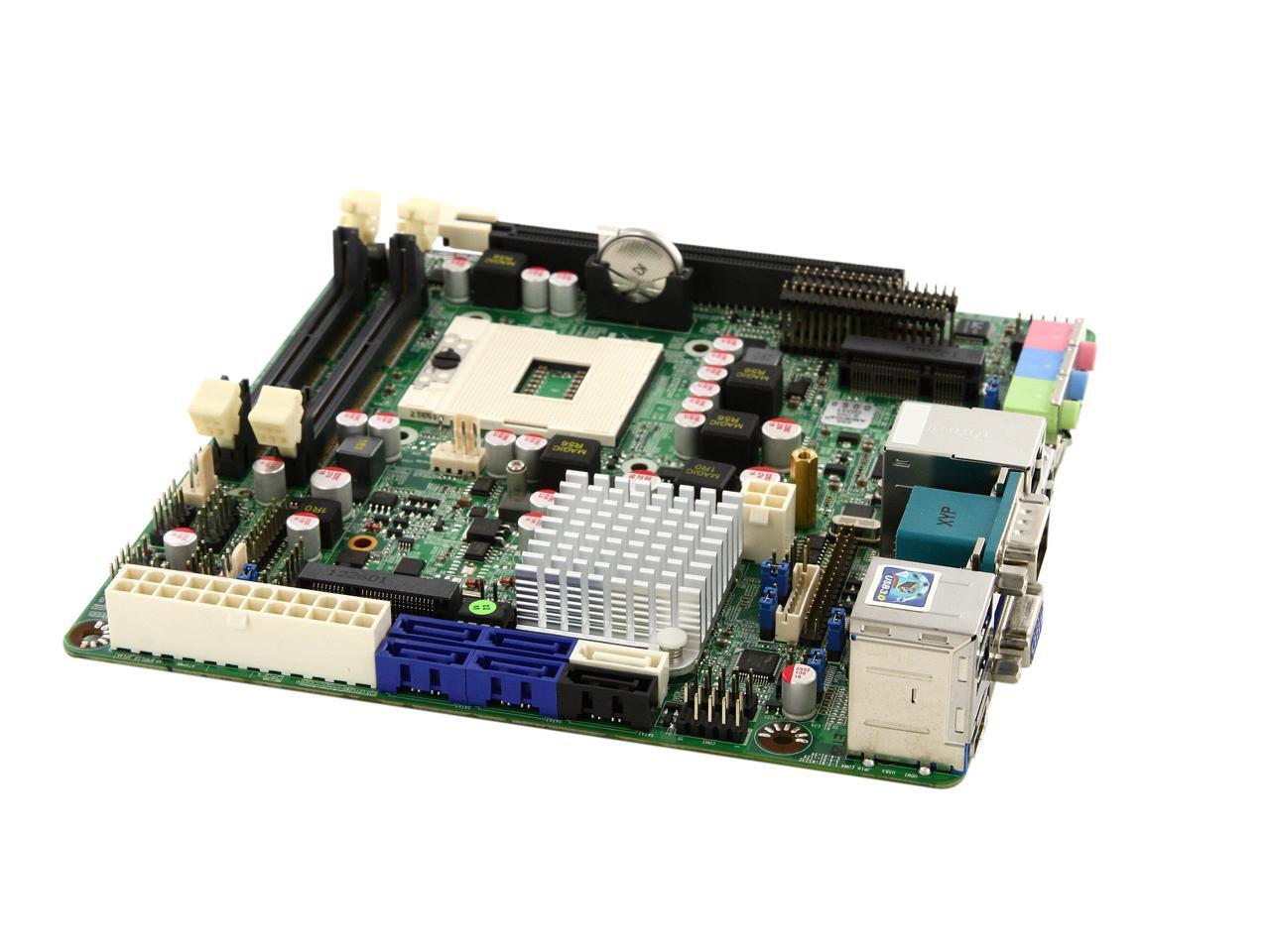

JetWay JNF9G-QM77 Socket G2 (rPGA 988B) Intel QM77 HDMI SATA 6Gb/s USB 3.0 Mini ITX Intel Motherboard

OPEN BOX

Intel QM77
Intel Core i3, i5, i7 mobile processors, Socket G2 (Ivy Bridge and Sandy Bridge)
DDR3 1333

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

The Open Box Product Disclaimer applies to this product. Please note that this product is non-returnable and non-refundable.

Specs

Learn more about the JETWAY JNF9G-QM77

Model
Brand	JetWay
Model	JNF9G-QM77

Supported CPU
CPU Socket Type	Socket G2 (rPGA 988B)
CPU Type	Intel Core i3, i5, i7 mobile processors, Socket G2 (Ivy Bridge and Sandy Bridge)

Chipsets
Chipset	Intel QM77

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express 3.0 x16
Mini Card Slots	2 x Mini PCIe (one half, one for mSATA/mini-PCIE)

Onboard Audio
Audio Chipset	Realtek ALC662
Audio Channels	6 Channels

Internal I/O Connectors
Onboard USB	2 x USB 3.0 + 4 x USB 2.0
Other Connectors	3 x Serial Headers (2 x RS232, 1 x RS232/422/485) 1 x 24-bits Dual Channel LVDS connector/Inverter 1 x Jetway Daughter Board Gen2 Connector 1 x Chassis Intrusion Header 1 x 9-pin Audio header 1 x GPIO header 1 x CIR header 1 x PS2 Keyboard/Mouse header 1 x Front Panel header 3 x Fan headers 1 x 24-pin ATX Power Connector 1 x 4-pin 12V ATX Power Connector

Features
Features	Intel QM77 Express Chipset Supports Supports 3rd Generation Intel Core i3, i5, i7 Mobile Processors, Socket G2, Ivy Bridge and Sandy Bridge Integrated Intel HD Graphics Support Supports up to up to 3 independent Displays Display HDMI, VGA, 24bit LVDS,Video Outputs 2 x DDR3 -1333 up to 16GB 2 x SATA3 6Gb/s, 4 x SATA2 3Gb/s , RAID 0, 1, 5, 10 Dual Intel Gigabit LAN, iAMT 8.0, HD Audio, 4 x Seria Ports PCI Express 3.0 x16,Watchdog Timer, GPIO, USB 3.0 Supports Jetway Daughter Boards Gen2 Mini-ITX

Additional Information
Date First Available	January 06, 2016
