ASRock ALiveXFire-eSATA2 AM2 ATI CrossFire Radeon Xpress 1600 ATX AMD Motherboard
- ATI CrossFire Radeon Xpress 1600
- Athlon 64 X2 / Athlon 64 FX / Athlon 64
- DDR2 800
Specs
Reviews (24)
Learn more about the ASRock ALiveXFire-eSATA2
| Brand | ASRock |
|---|---|
| Model | ALiveXFire-eSATA2 |
| CPU Socket Type | AM2 |
|---|---|
| CPU Type | Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
| FSB | 1000 MHz |
| Chipset | ATI CrossFire Radeon Xpress 1600 |
|---|---|
| South Bridge | ATI SB600 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 slot with PCIE Switch card or 2 x PCI Express Graphics slots for ATI CrossFire |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA RAID | SATAIIRAID 0/1/10 eSATAII RAID 0/1 |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC888 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8211B |
|---|---|
| Max LAN Speed | 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 headers support 8 ports |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 8.2" |
| Power Pin | 20 Pin |
| Features | Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows XP and Windows Vista. For Windows XP 64-bit and Windows Vista 64-bit with 64-bit CPU, there is no such limitation |
|---|

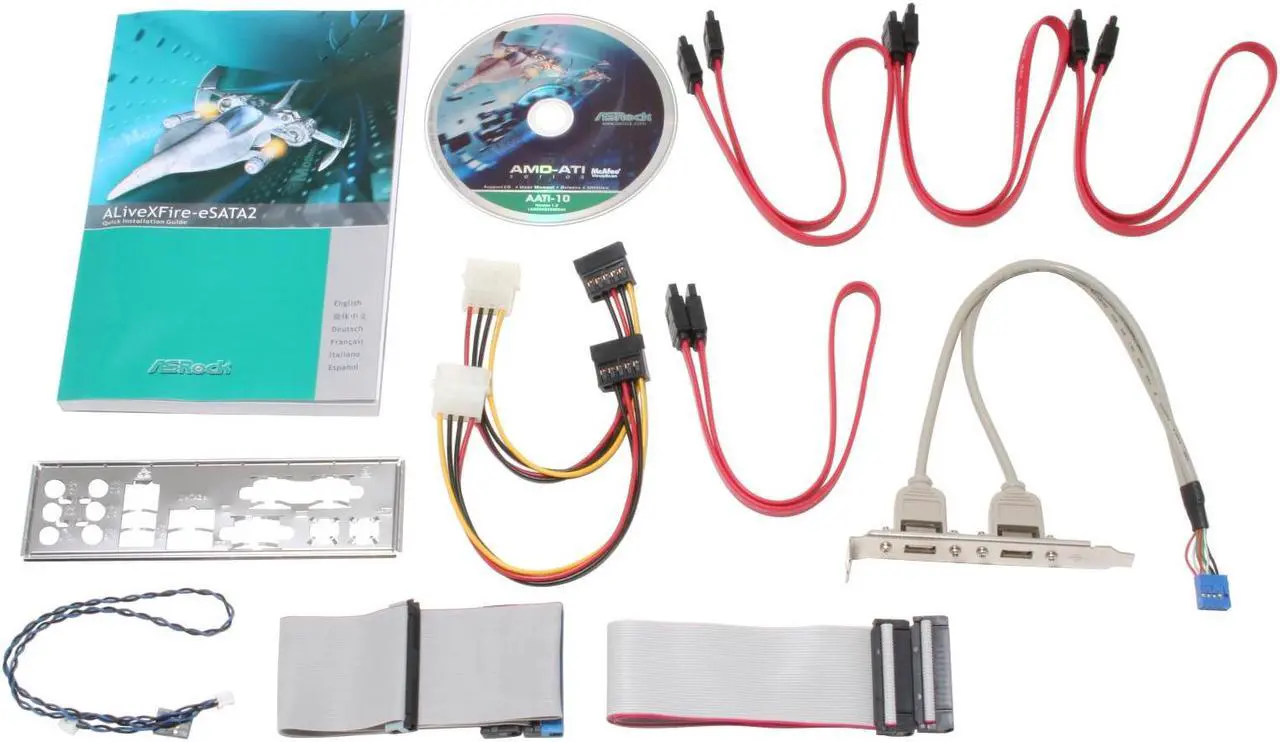

| Package Contents | ALiveXFire-eSATA2 Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable 4 x SATA Cable 2 x Power Cable USB Bracket Cable |
|---|
| Windows Vista | Certified for Windows Vista |
|---|
| Date First Available | November 06, 2006 |
|---|
