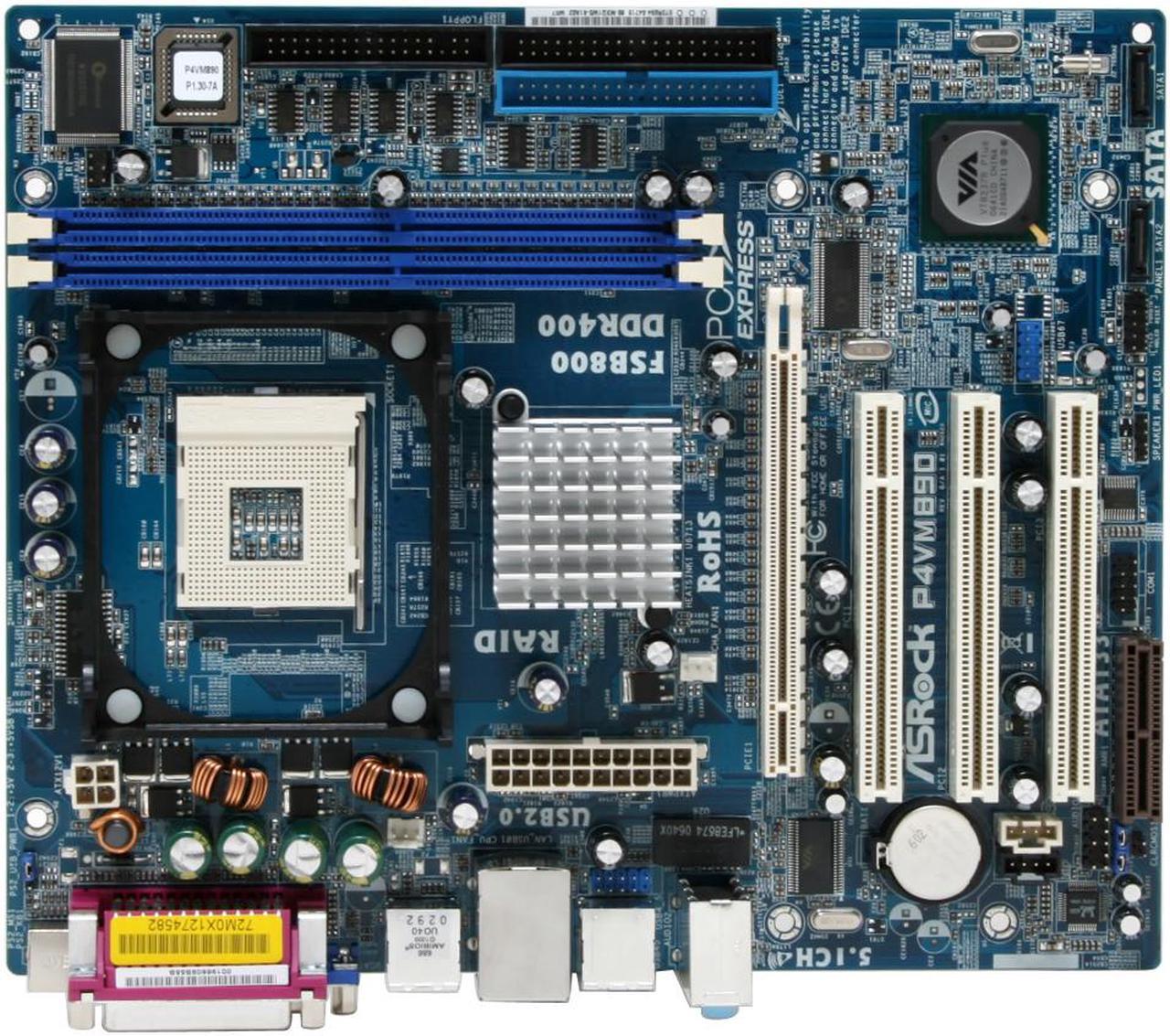

ASRock P4VM890 Socket 478 VIA P4M890 Micro ATX Intel Motherboard

(63) Write a Review
  • VIA P4M890
  • Pentium 4 Prescott / Celeron D
  • DDR 400
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (63)

Learn more about the ASRock P4VM890

Model
Brand ASRock
Model P4VM890
Supported CPU
CPU Socket Type Socket 478
CPU Type Pentium 4 Prescott / Celeron D
FSB FSB 800/533/400 MHz
Untied Overclocking : During Overclocking, FSB enjoys better margin due to fixed PCIE/ PCI Buses
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset VIA P4M890
South Bridge VIA VT8237R Plus
Onboard Video
Onboard Video Chipset S3 Graphics UniChrome Pro IGP
Memory
Number of Memory Slots 2x184pin
Memory Standard DDR 400
Maximum Memory Supported 2GB
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Slots 3 x PCI Slots
Other Slots 1 x AMR
Storage Devices
PATA 2 x ATA100 4 Dev. Max
SATA 1.5Gb/s 2 x SATA 1.5 Gb/s
SATA RAID 0/1/JBOD
Onboard Audio
Audio Chipset Realtek ALC653
Audio Channels 6 Channels
Onboard LAN
LAN Chipset VIA VT6103
Max LAN Speed 100Mbps

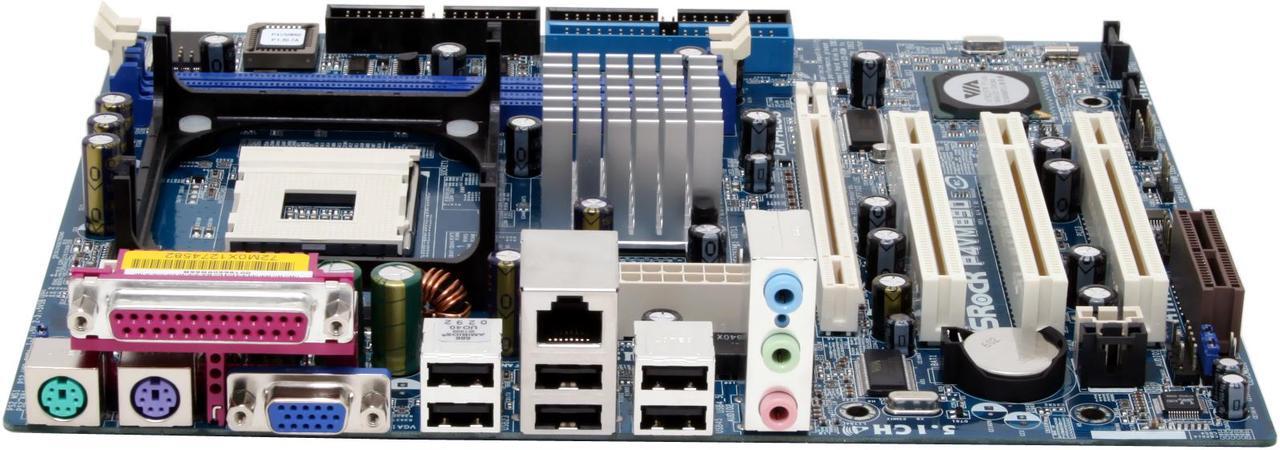

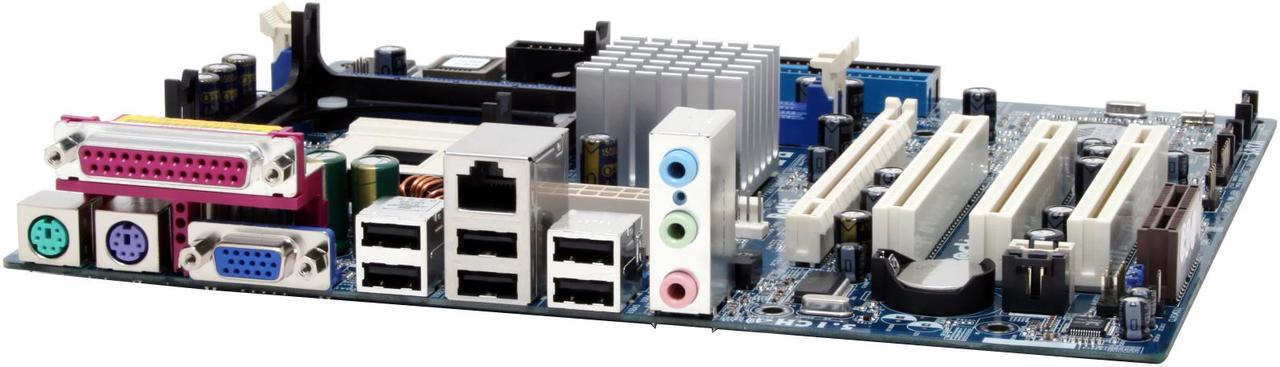

Rear Panel Ports
Back I/O Ports 2 x PS/2 / 6 x USB 2.0/1.1
PS/2 2
LPT 1
Video Ports D-Sub
USB 1.1/2.0 6 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 8.0"
Power Pin 20 Pin

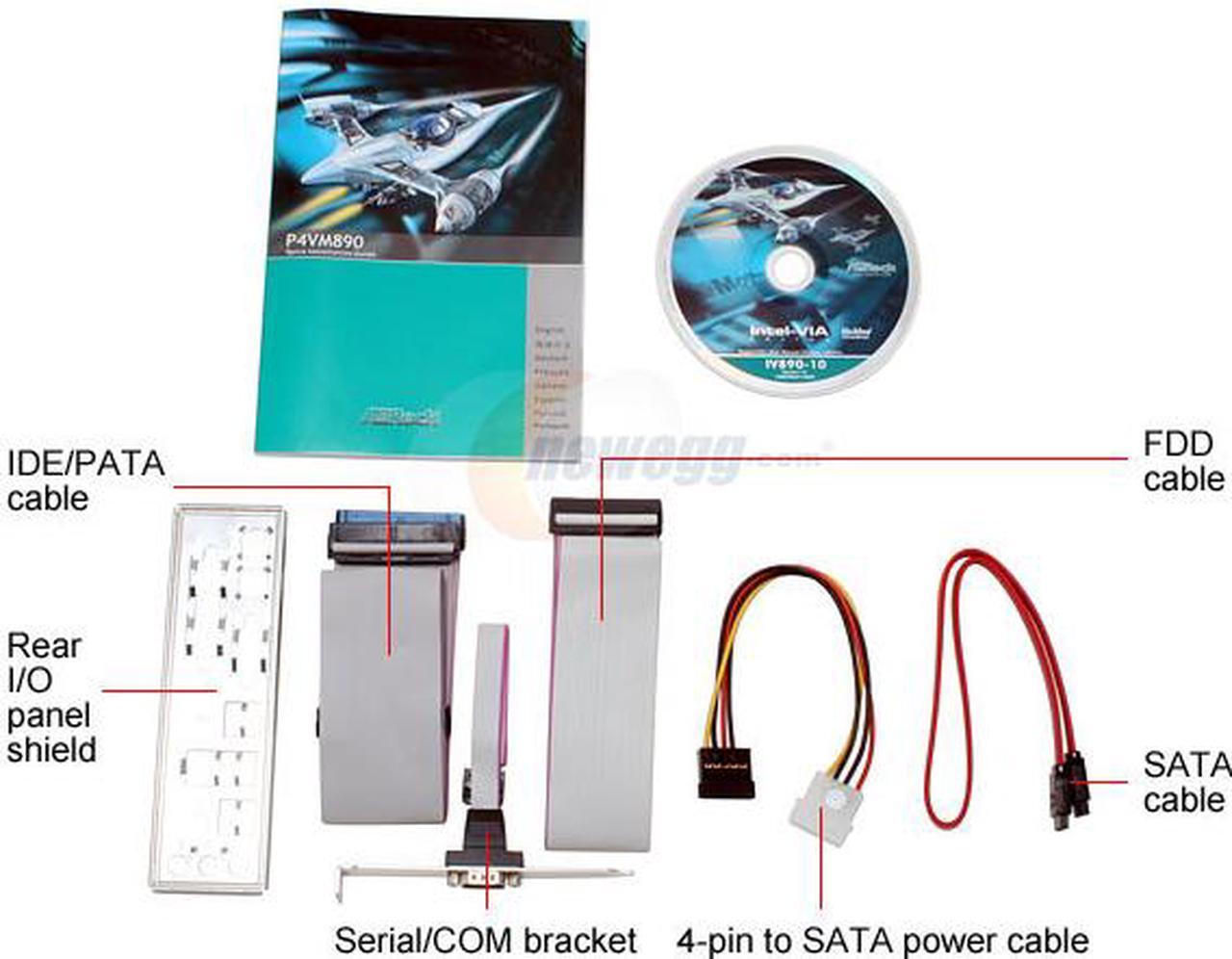

Packaging
Package Contents P4VM890
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
4-pin to SATA Power Cable
Serial/COM Bracket
Additional Information
Date First Available March 15, 2007
