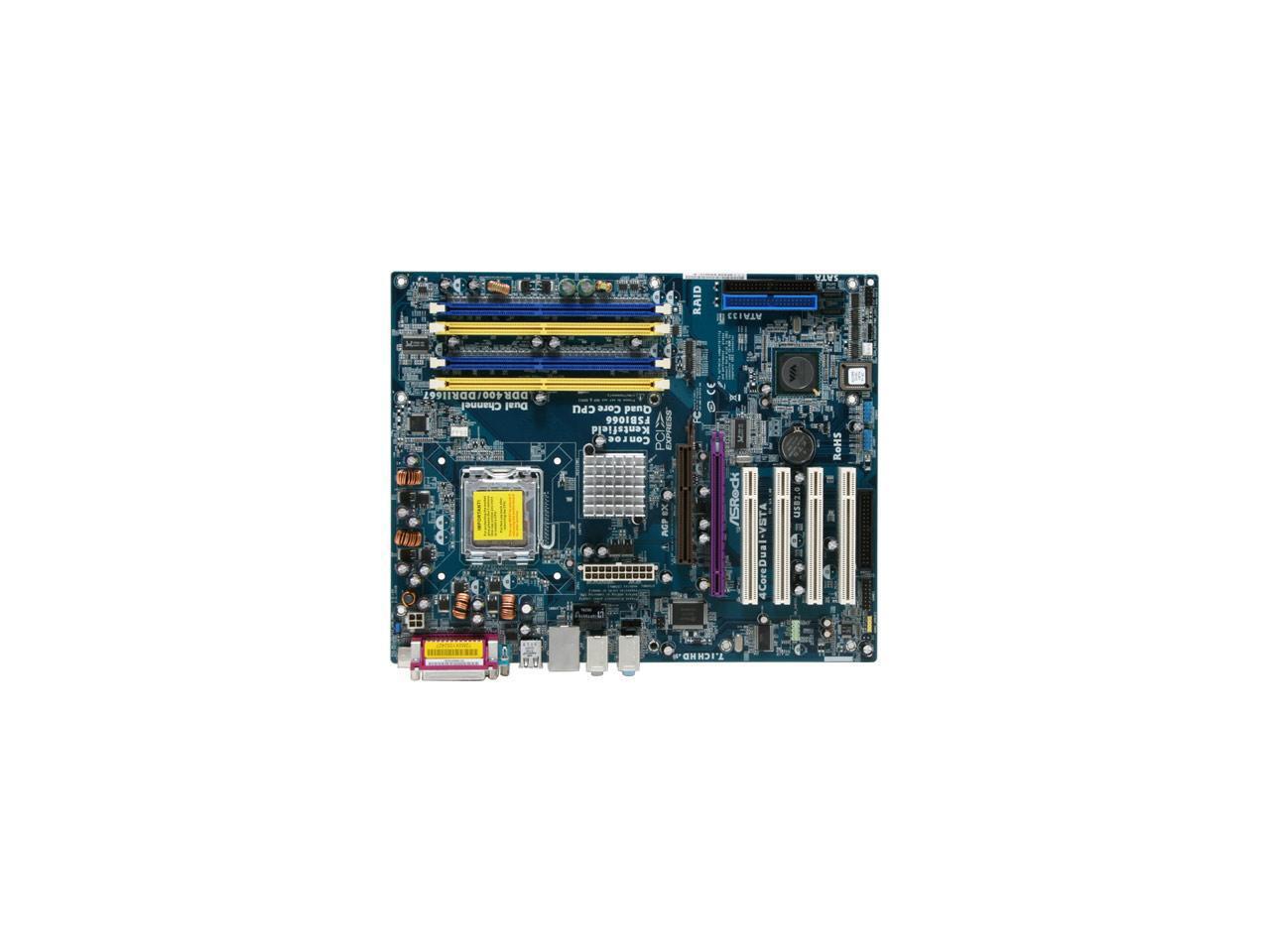

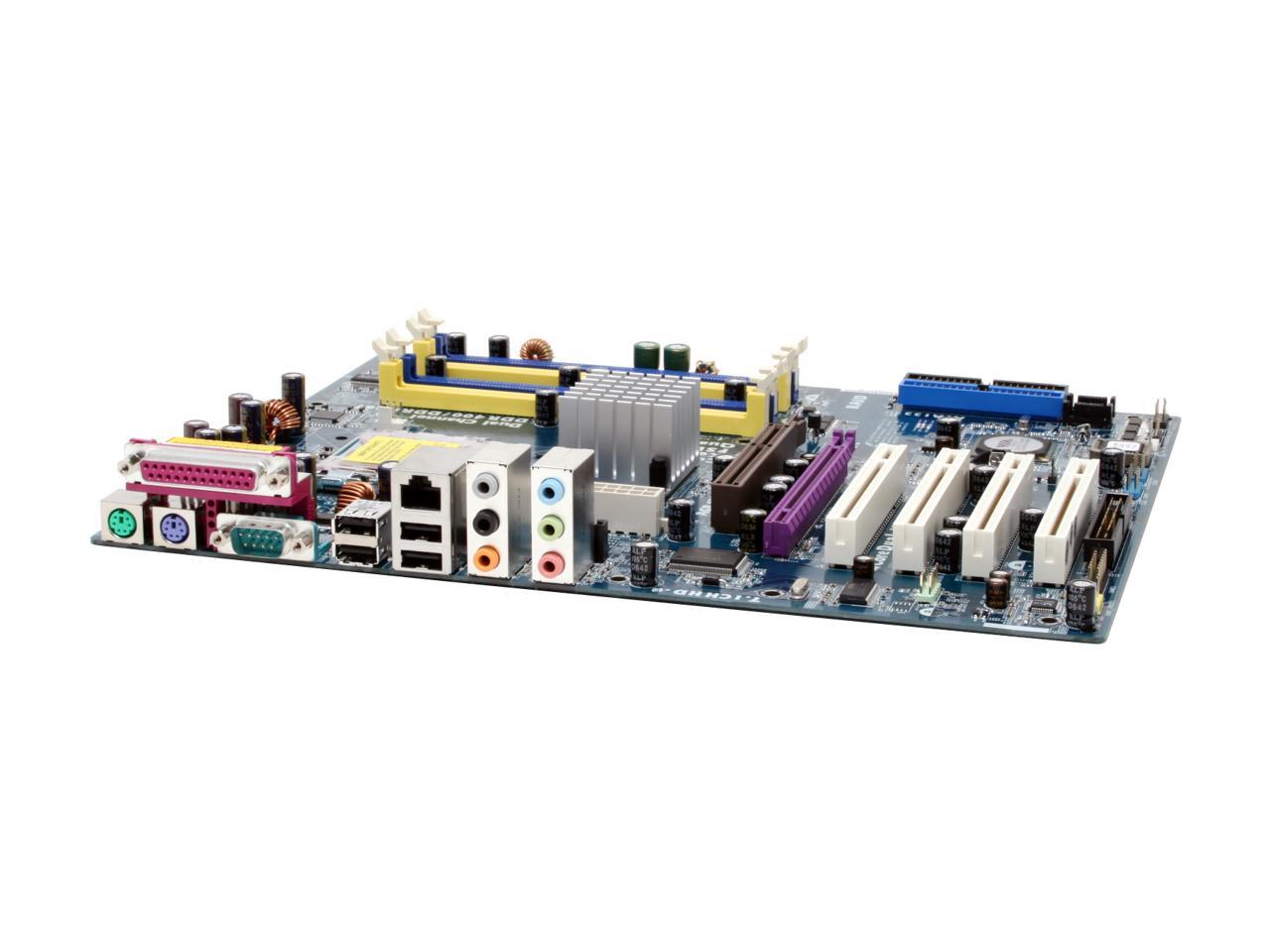

ASRock 4CoreDual-VSTA LGA 775 VIA PT880 Ultra ATX Intel Motherboard

(174) Write a Review
  • VIA PT880 Ultra
  • Quad-core / Core 2 Extreme / Core 2 Duo / Pentium XE / Pentium D / Pentium 4 / Celeron D
  • DDR2 667 / DDR 400
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (174)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ASRock 4CoreDual-VSTA

Model
Brand ASRock
Model 4CoreDual-VSTA
Supported CPU
CPU Socket Type LGA 775
CPU Type Quad-core / Core 2 Extreme / Core 2 Duo / Pentium XE / Pentium D / Pentium 4 / Celeron D
FSB 1066/800 MHz
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset VIA PT880 Ultra
South Bridge VIA VT8237A
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 2x184pin + 2x240pin
Memory Standard DDR2 667 / DDR 400
Maximum Memory Supported 2GB
Channel Supported Dual Channel
Expansion Slots
AGP Slots 1 x AGP 4X / 8X
PCI Slots 4 x PCI Slots
Other Slots 1 x PCI Express Graphics slot
Storage Devices
PATA 2 x ATA100 4 Dev. Max
SATA RAID 0/1/JBOD
Onboard Audio
Audio Chipset Realtek ALC888
Audio Channels 8 Channels
Onboard LAN
LAN Chipset VIA VT6103
Max LAN Speed 100Mbps
Rear Panel Ports
Back I/O Ports 2 x PS/2 / 4 x USB 2.0/1.1
PS/2 2
COM 1
LPT 1
USB 1.1/2.0 4 x USB 2.0
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 20 Pin
Packaging

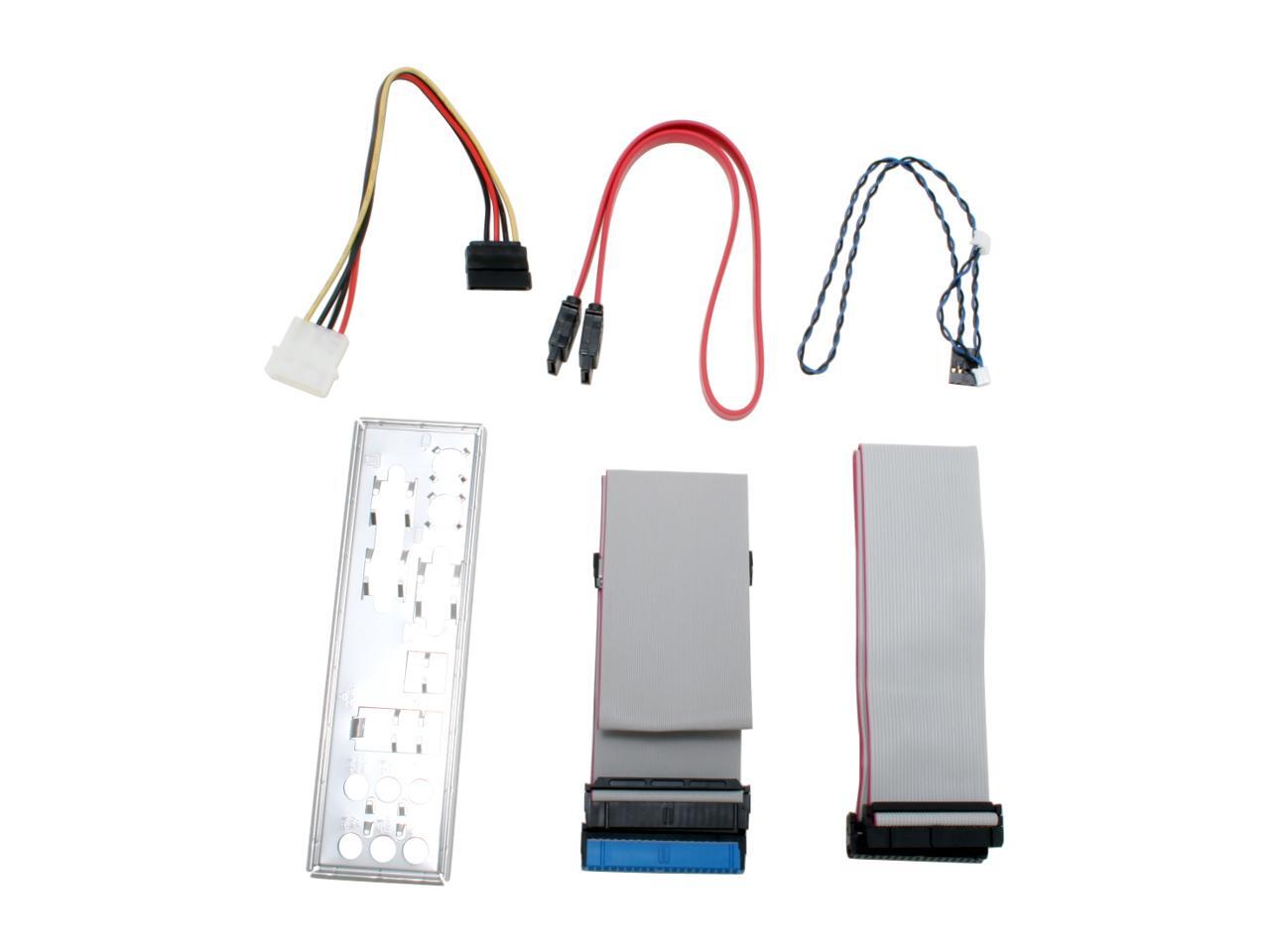

Package Contents 4CoreDual-VSTA
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
4-pin to SATA Power Cable
Cable
Details
Windows Vista Certified for Windows Vista
Additional Information
First Listed on Newegg March 15, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
