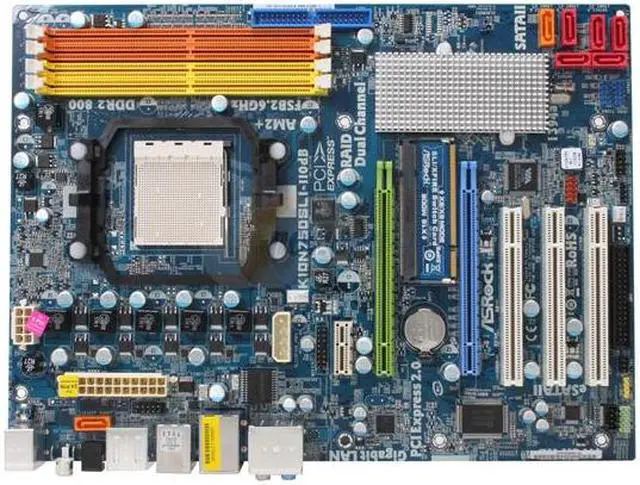

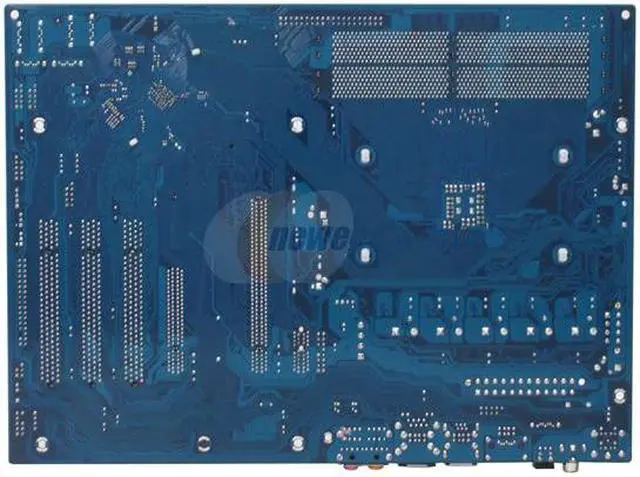

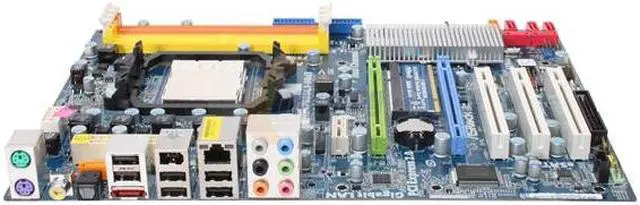

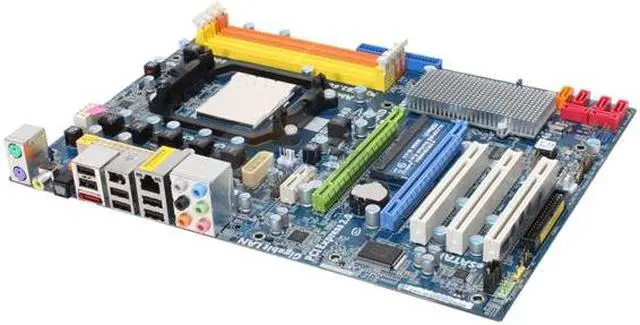

ASRock K10N750SLI-110dB AM2+/AM2 NVIDIA nForce 750a SLI ATX AMD Motherboard
- NVIDIA nForce 750a SLI
- Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
- DDR2 1066
Specs
Reviews (9)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock K10N750SLI-110dB
| Brand | ASRock |
|---|---|
| Model | K10N750SLI-110dB |
| CPU Socket Type | AM2+/AM2 |
|---|---|
| CPU Type | Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2 |
| Chipset | NVIDIA nForce 750a SLI |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 1066 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 2 x PCI Express 2.0 x16 slots (green @ x16 mode, blue @ x8 mode) |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| SATA RAID | 0/1/0+1/5/JBOD |
|---|
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC890 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8211B |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 6 x Audio Jacks / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| USB 1.1/2.0 | 6 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| eSATA | 1 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 2.0 headers (support 4 USB 2.0 ports) |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 8.8" |
| Power Pin | 24 Pin |

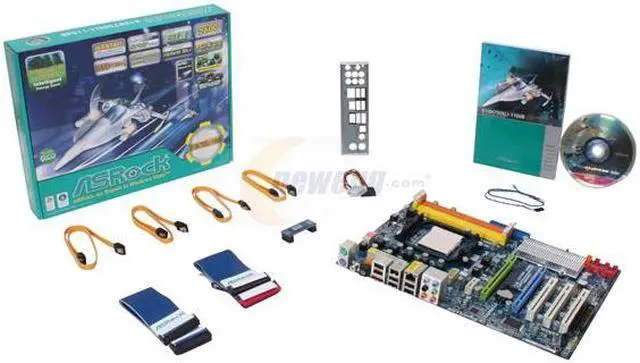

| Package Contents | K10N750SLI-110dB User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable SLI Bridge |
|---|
| First Listed on Newegg | July 14, 2008 |
|---|
