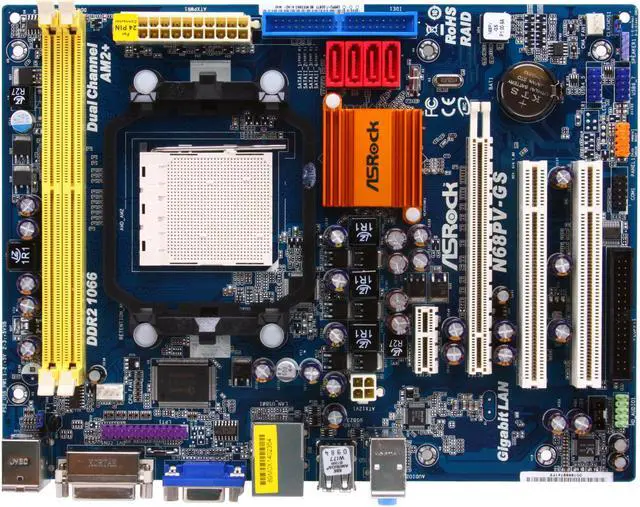

ASRock N68PV-GS AM2+/AM2 NVIDIA GeForce 7050 Micro ATX AMD Motherboard

(37) Write a Review
  • NVIDIA GeForce 7050
  • Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
  • DDR2 1066 with AM2+ CPU DDR2 800/667/533 with AM2 CPU
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (37)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ASRock N68PV-GS

Model
Brand ASRock
Model N68PV-GS
Supported CPU
CPU Socket Type AM2+/AM2
CPU Type Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
FSB 1000 MHz
Chipsets
Chipset NVIDIA GeForce 7050
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR2 1066 with AM2+ CPU
DDR2 800/667/533 with AM2 CPU
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1/0+1/5/JBOD
Onboard Video
Onboard Video Chipset NVIDIA GeForce 7050
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8211CL
Max LAN Speed 1Gbps

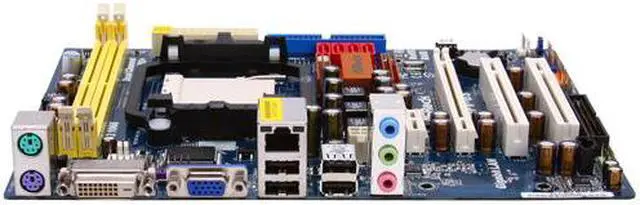

Rear Panel Ports
Back I/O Ports 1 x D-Sub / 1 x DVI / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2 2
Video Ports D-Sub + DVI
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0 headers support 4 x USB 2.0 ports
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 7.2"
Power Pin 24 Pin
Physical Spec
Windows Vista Certified for Windows Vista
Additional Information
First Listed on Newegg December 10, 2008

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
