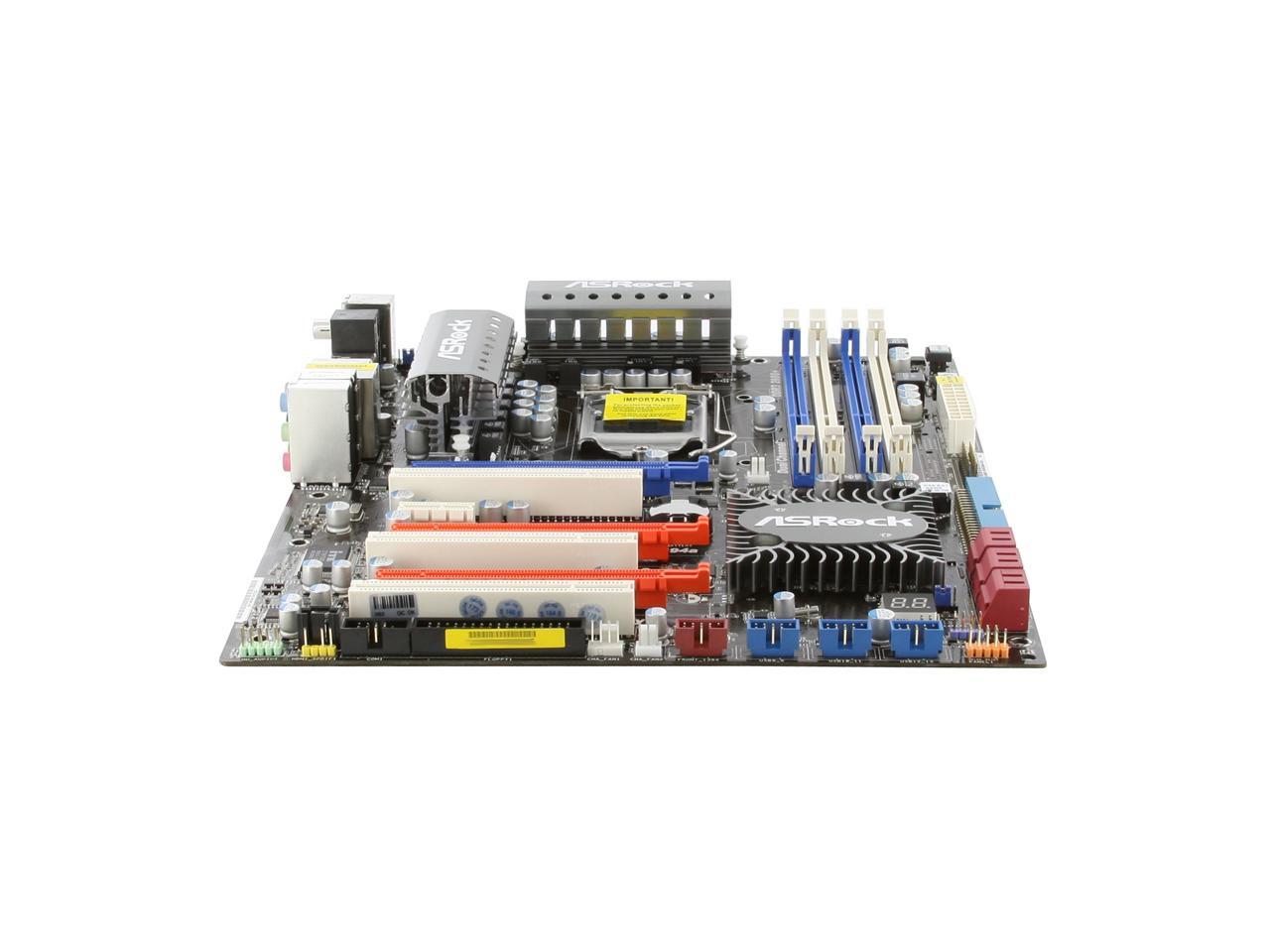

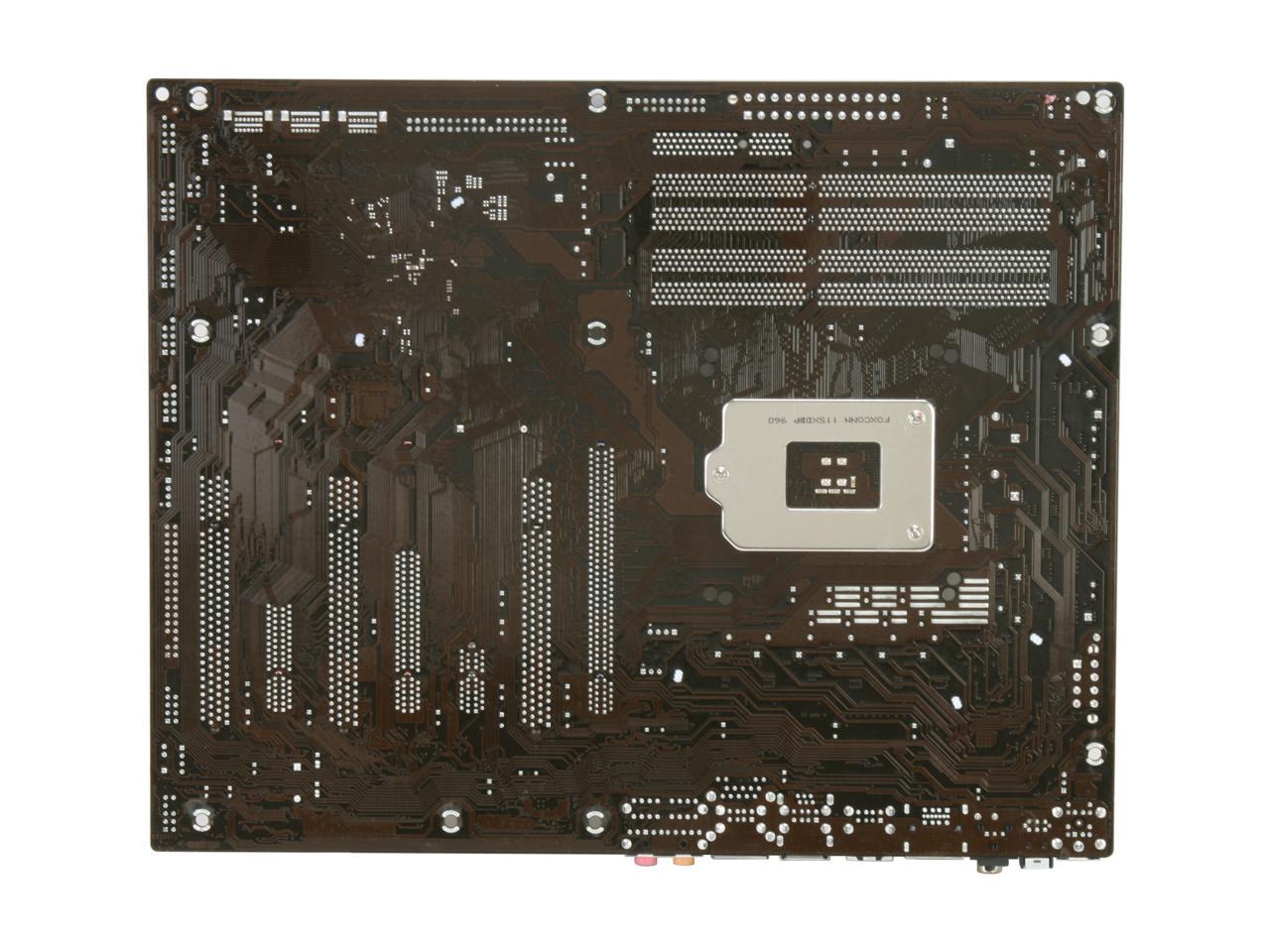

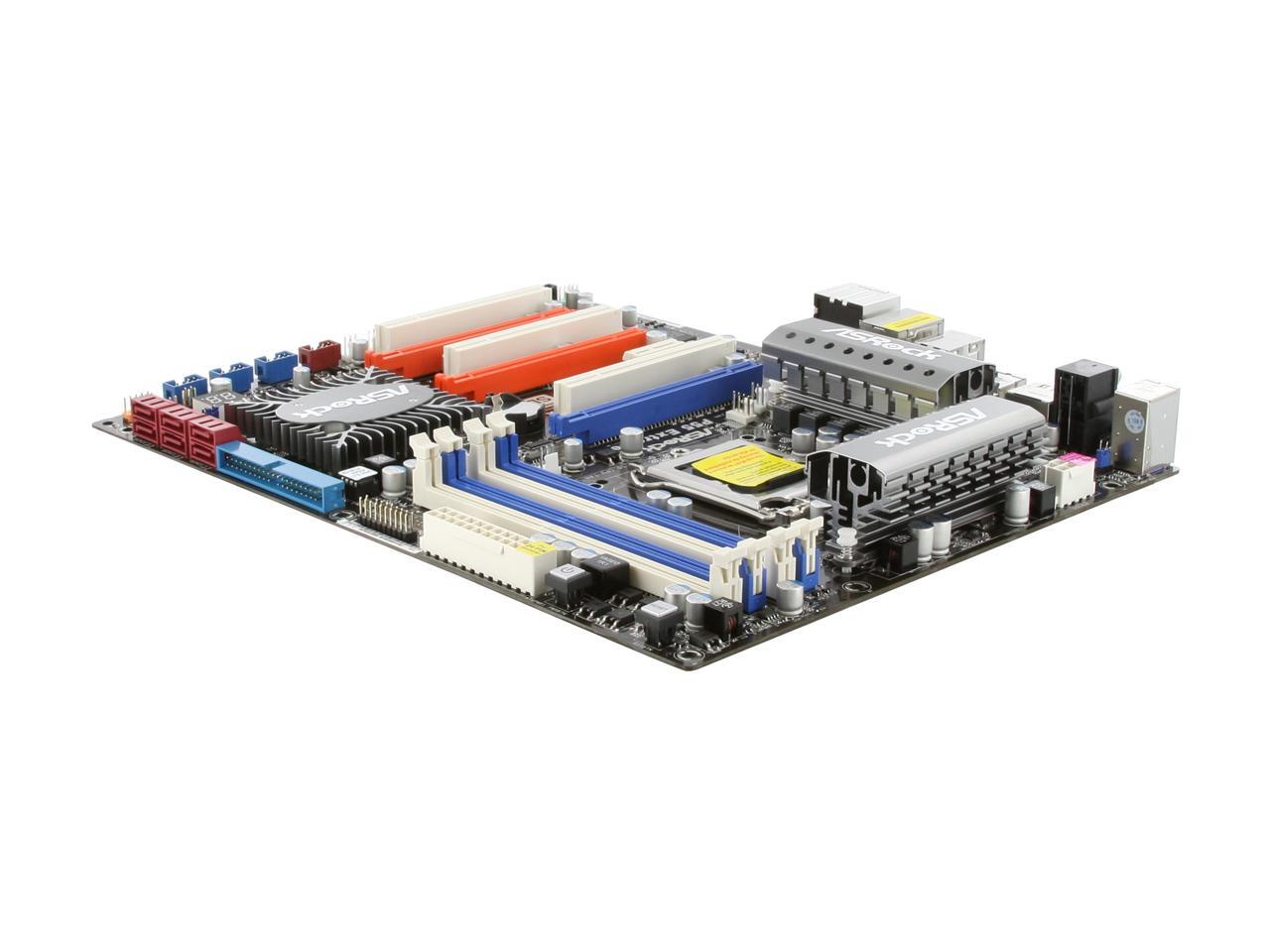

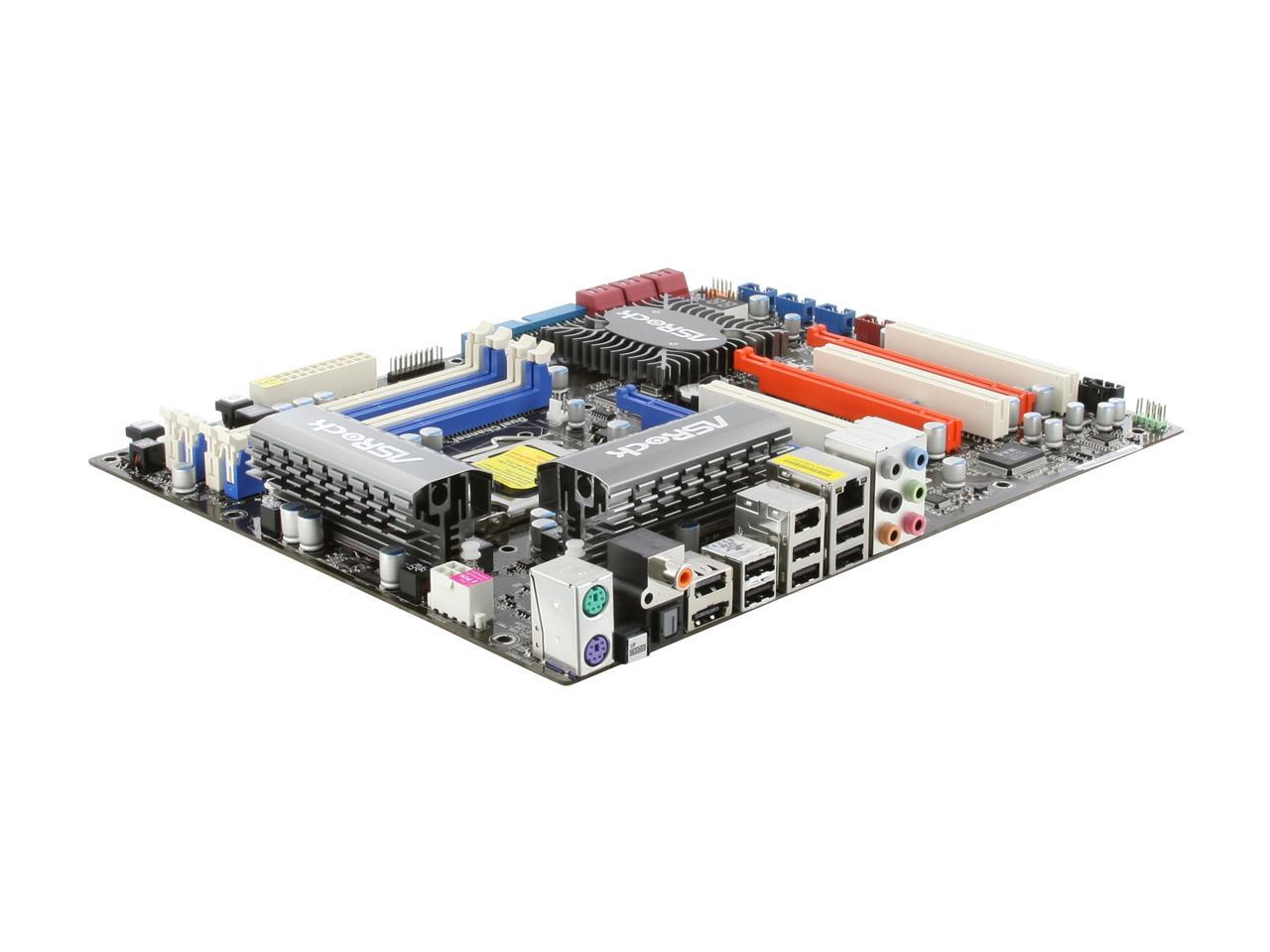

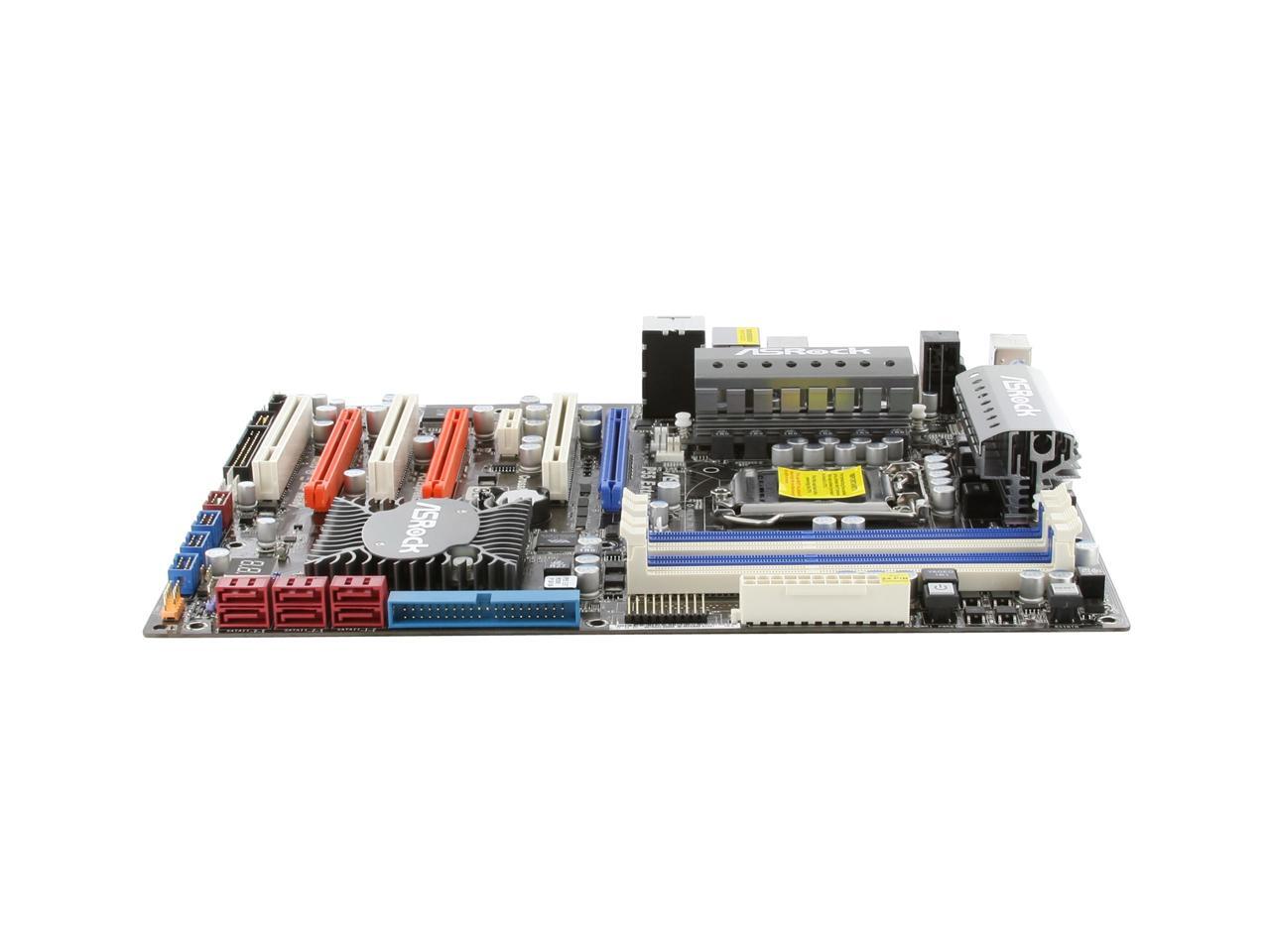

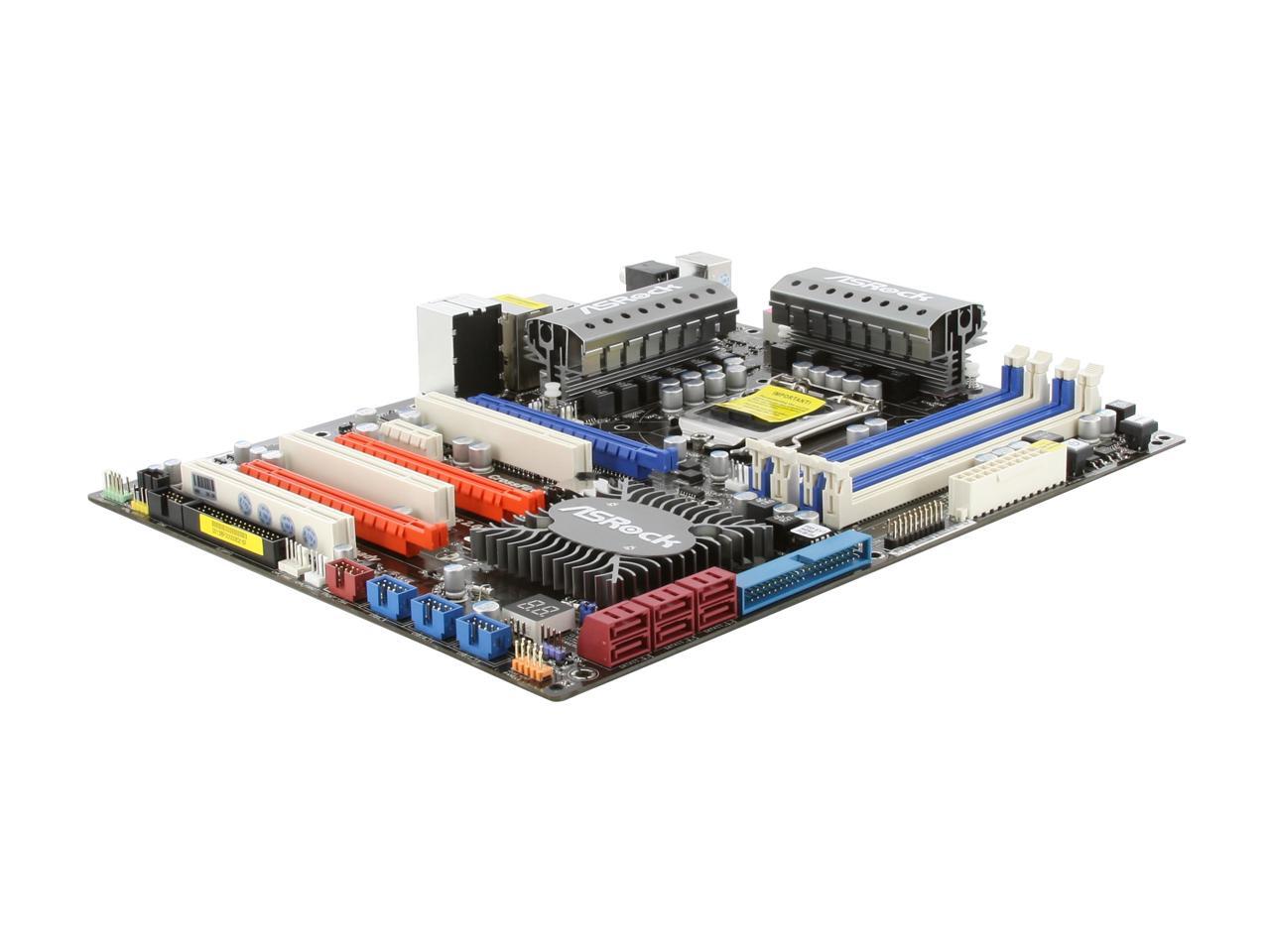

Brand | ASRock |
---|---|
Model | P55 Extreme |
CPU Socket Type | LGA 1156 |
---|---|
CPU Type | Core i7 / i5 / i3 and Pentium G6950 Processors in LGA1156 Package |
Supported CPU Technologies | Supports Intel Turbo Boost Technology Supports Hyper-Threading Technology Supports Untied Overclocking Technology Supports EM64T CPU |
Chipset | Intel P55 |
---|
Onboard Video Chipset | None |
---|
Number of Memory Slots | 4x240pin |
---|---|
Memory Standard | DDR3 2600+(OC)/2133(OC)/1866(OC)/1600/1333/1066 |
Maximum Memory Supported | 16GB |
Channel Supported | Dual Channel |
PCI Express 2.0 x16 | 2 x PCI Express 2.0 x16 slots (Single at x16 or Dual at x8/x8 mode) 1 x PCI Express 2.0 x16 slot (at x4 mode, 2.5GT/s) |
---|---|
PCI Express x1 | 1 x PCI Express 2.0 x1 slot (2.5GT/s) |
PCI Slots | 3 x PCI Slots |
PATA | 1 x ATA133 2 Dev. Max |
---|---|
SATA 3Gb/s | 6 x SATA 3Gb/s |
SATA RAID | 0/1/5/10 Matrix RAID |
Audio Chipset | Realtek ALC890 |
---|---|
Audio Channels | 8 Channels |
LAN Chipset | Realtek 8111DL |
---|---|
Max LAN Speed | 10/100/1000Mbps |
PS/2 | 2 |
---|---|
USB 1.1/2.0 | 7 x USB 2.0 |
IEEE 1394 | 1 x 1394 |
eSATA | 1 x Powered eSATAII/USB Connector |
S/PDIF Out | 1 x Optical, 1 x Coaxial |
Audio Ports | 6 Ports |
Onboard USB | 3 x USB 2.0 headers (support 6 USB 2.0 ports) |
---|---|
Onboard 1394 | 1 x 1394 |
Form Factor | ATX |
---|---|
Dimensions (W x L) | 12.0" x 9.6" |
Power Pin | 24 Pin |
Features | Advanced V8 Power Phase Design Supports Dual Channel DDR3 2600+ (OC) Supports ATI CrossFireX , 3-Way CrossFireX and Quad CrossFireX Supports NVIDIA Quad SLI and SLI 3 x PCI Express 2.0 x16 slots, 1 x Powered eSATAII/USB Connector EuP Ready, Smart Switch Design, Combo Cooler Option (C.C.O.) 7.1 CH, ALC890 Audio Codec, Premium Blu-ray audio support Supports ASRock Instant Boot, Instant Flash, Smart BIOS, ASRock OC Tuner, Intelligent Energy Saver 1 x TPM header |
---|
Date First Available | September 15, 2009 |
---|
