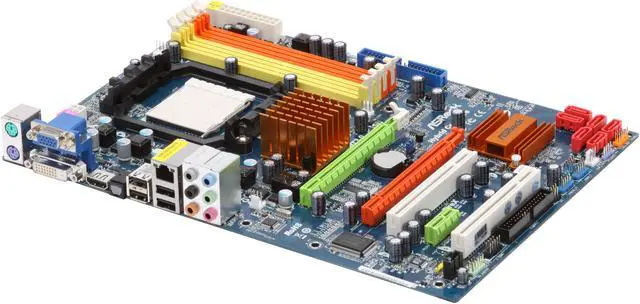

ASRock A785GXH/128M AM3/AM2+/AM2 AMD 785G HDMI ATX AMD Motherboard
- AMD 785G
- Athlon 64 / Athlon II / Phenom / Phenom II / Sempron
- DDR2 1066*/800/667/533 *Support with AM3 / AM2+ CPU.
Specs
Reviews (74)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock A785GXH/128M
| Brand | ASRock |
|---|---|
| Model | A785GXH/128M |
| CPU Socket Type | AM3/AM2+/AM2 |
|---|---|
| CPU Type | Athlon 64 / Athlon II / Phenom / Phenom II / Sempron |
| FSB | 2600 MHz |
| Chipset | AMD 785G |
|---|---|
| South Bridge | AMD SB710 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 1066*/800/667/533 *Support with AM3 / AM2+ CPU. |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 2 x PCI Express 2.0 x16 slots (green @ x16 mode, orange @ x4 mode) |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA133 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/10/JBOD |
| Onboard Video Chipset | ATI Radeon HD 4200 |
|---|
| Audio Chipset | VIA VT1708S |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111DL |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x D-Sub / 1 x DVI / 1 x HDMI / 1 x Optical S/PDIF Out / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks |
|---|---|
| PS/2 | 2 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 6 Ports |
| Onboard USB | 3 x USB 2.0 headers (support 6 USB 2.0 ports) |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12" x 8.4" |
| Power Pin | 24 Pin |
| Features | Supports AMD OverDrive with ACC feature (Advanced Clock Calibration) Supports CPU up to 140W Integrated AMD Radeon HD 4200 graphics, DX10.1 class iGPU, Shader Model 4.1, Max. shared memory 512MB Integrated 128MB side port memory for iGPU Supports ATI CrossFireX and Hybrid CrossFireX Supports HDCP function Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback Supports ASRock Instant Boot, Instant Flash, OC DNA Supports Smart BIOS, ASRock OC Tuner, Intelligent Energy Saver EuP Ready 7.1 CH Windows Vista Premium Level HD Audio (VIA VT1708S Audio Codec with QSound) Windows Vista Premium 2008 Logo Ready |
|---|
| First Listed on Newegg | December 23, 2009 |
|---|
