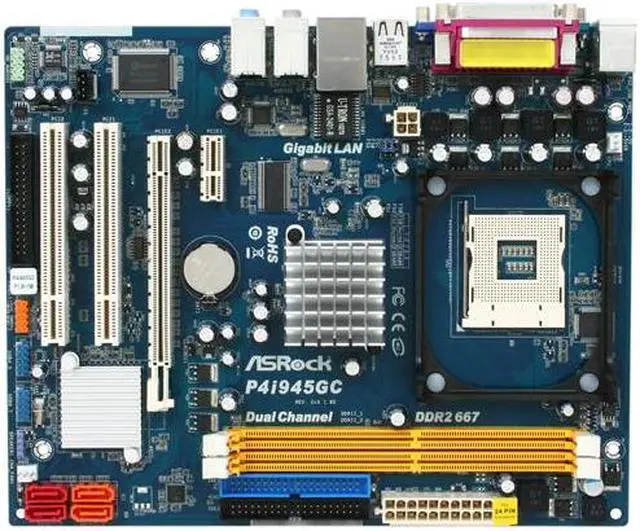

ASRock P4i945GC Socket 478 Intel 945GC Micro ATX Intel Motherboard
- Intel 945GC
- Pentium 4 Prescott / Celeron D
- DDR2 667
Specs
Reviews (7)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock P4i945GC
| Brand | ASRock |
|---|---|
| Model | P4i945GC |
| CPU Socket Type | Socket 478 |
|---|---|
| CPU Type | Pentium 4 Prescott / Celeron D |
| FSB | 800/533 MHz |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | Intel 945GC |
|---|---|
| South Bridge | Intel ICH7 |
| Onboard Video Chipset | Intel GMA 950 |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 667 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 IDE connector by Intel ICH7 (supports 2 x IDE devices) 1 x ATA133 IDE connector by VIA VT6415 (supports 2 x IDE devices) |
|---|
| Audio Chipset | Realtek ALC888 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111DL |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 7.7" |
| Power Pin | 24 Pin |
| Features | ASRock Instant Boot 10 Times Faster, Only 4 Secs to Boot Up to Windows! Pro and Cons of various shut down modes ASRock Instant Flash |
|---|
| First Listed on Newegg | November 26, 2010 |
|---|
