ASRock H67M (B3) LGA 1155 Intel H67 HDMI SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard

OUT OF STOCK.
  • Intel H67
  • Core i7 / i5 / i3 / Pentium / Celeron (LGA1155)
  • DDR3 1333/1066
Specs
Reviews

Learn more about the ASRock H67M (B3)

Model
Brand ASRock
Model H67M (B3)
Supported CPU
CPU Socket Type LGA 1155
CPU Type Core i7 / i5 / i3 (LGA1155)
Supported CPU Technologies Supports Intel Turbo Boost 2.0 Technology
Supports Intel K-Series unlocked CPU
Supports Hyper-Threading Technology
Chipsets
Chipset Intel H67
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR3 1333/1066
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 2 x PCI Express x1
PCI Slots 1 x PCI Slot
Storage Devices
SATA 3Gb/s 4 x SATA 3Gb/s
SATA 6Gb/s 2 x SATA 6Gb/s
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111E
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 1 x PS/2 Keyboard Port
Video Ports D-Sub + DVI
HDMI 1 x HDMI
USB 3.0 2 x USB 3.0 by Etron EJ168A
USB 1.1/2.0 4 x USB 2.0
S/PDIF Out 1 x Optical
Audio Ports 5 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Other Connectors 1 x Floppy connector
1 x IR header
1 x CIR header
1 x Print Port header
1 x COM port header
1 x HDMI_SPDIF header
1 x Power LED header
CPU/Chassis/Power FAN connector
24 pin ATX power connector
8 pin 12V power connector
Front panel audio connector
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 8.6"
Power Pin 24 Pin
Features
Features 100% All Solid Capacitor design

Supports Intel K-Series unlocked CPU

Supports Dual Channel DDR3 1333

Intel HD Graphics 2000/3000 and new Visual Features, DX10.1, Pixel Shader 4.1

Supports Blu-ray Stereoscopic 3D with HDMI 1.4a

Supports ASRock Extreme Tuning Utility (AXTU), Instant Boot, Instant Flash, Good Night LED, Multi-Fan Speed Control, AIWI, APP Charger, SmartView

Combo Cooler Option (C.C.O.)

7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), Premium Blu-ray audio suppport

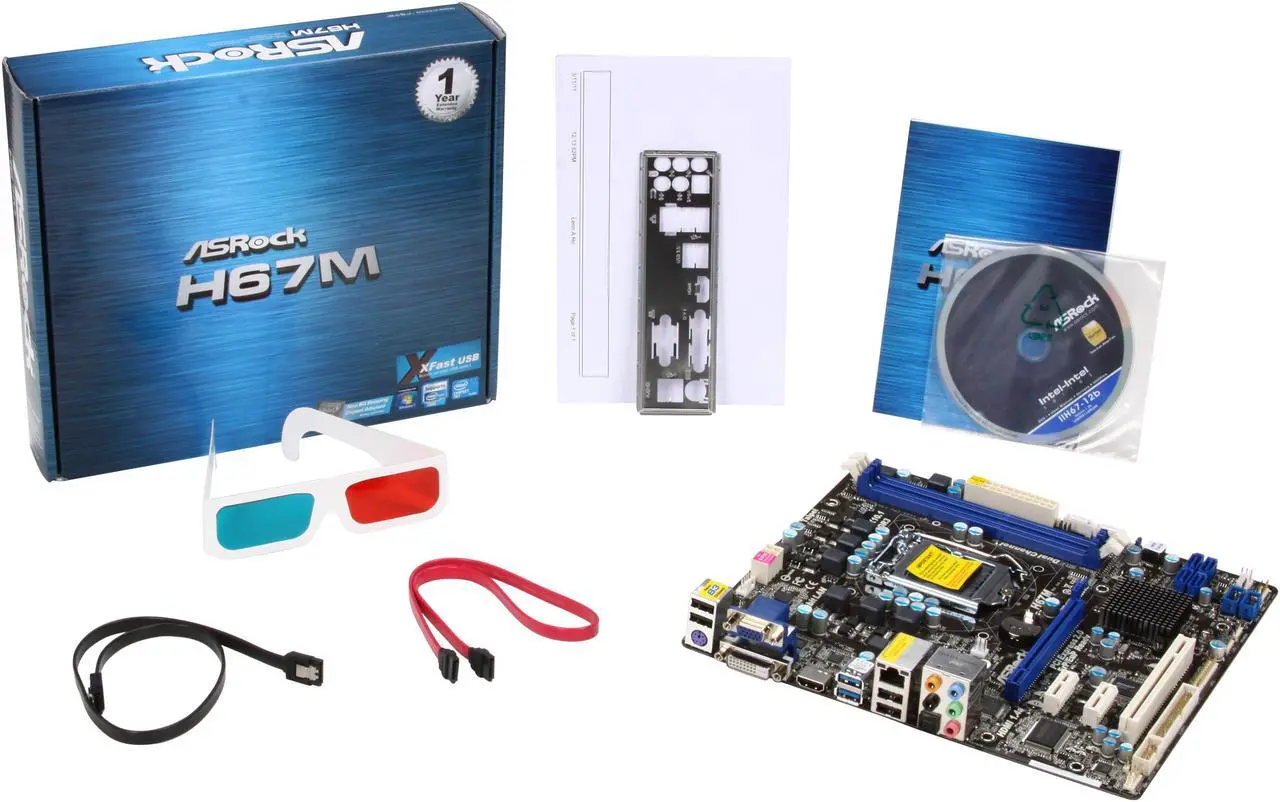

Free Gift: 1 x 3D Red/Cyan Anaglyph Glasses

Free Software : CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial
Additional Information
Date First Available March 22, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
