ASRock Z68 Extreme4 LGA 1155 Intel Z68 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard

OUT OF STOCK.
  • Intel Z68
  • Core i7 / i5 / i3 (LGA1155)
  • DDR3 2133(OC)/1866(OC)/1600/1333/1066
Specs
Reviews

Learn more about the ASRock Z68 Extreme4

Model
Brand ASRock
Model Z68 Extreme4
Supported CPU
CPU Socket Type LGA 1155
CPU Type Core i7 / i5 / i3 (LGA1155)
Supported CPU Technologies Supports Intel Turbo Boost 2.0 Technology
Supports Intel K-Series unlocked CPU
Supports Hyper-Threading Technology
Chipsets
Chipset Intel Z68
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 2133(OC)/1866(OC)/1600/1333/1066
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 3 x PCI Express 2.0 x16 slots (PCIE2/PCIE4: single at x16 or dual at x8/x8 mode; PCIE5: x4 mode)
PCI Express x1 2 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
SATA 3Gb/s 4 x SATA 3Gb/s
SATA 6Gb/s 2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5, Intel Rapid Storage and Intel Smart Response Technology), NCQ, AHCI and "Hot Plug" functions

2 x SATA3 6.0 Gb/s connectors by Marvell SE9120, support NCQ, AHCI and "Hot Plug" functions (SATA3_M2 connector is shared with eSATA3 port)
SATA RAID 2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5, Intel Rapid Storage and Intel Smart Response Technology), NCQ, AHCI and Hot Plug functions

4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5, Intel Rapid Storage and Intel Smart Response Technology), NCQ, AHCI and Hot Plug functions
Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Broadcom BCM57781
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 1
Video Ports D-Sub + DVI
HDMI 1 x HDMI
DisplayPort 1 x DisplayPort
USB 3.0 2 x USB 3.0
USB 1.1/2.0 4 x USB 2.0
IEEE 1394 1 x IEEE 1394
eSATA 1 x eSATA 6Gb/s
S/PDIF Out 1 x Optical
Audio Ports 5 Ports
Internal I/O Connectors
Onboard USB 2 x USB 3.0 + 6 x USB 2.0
Onboard 1394 1 x 1394
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features ASRock DuraCaps (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors

Digi Power, Advanced V8 Power Phase Design

Supports Intel K-Series unlocked CPU

Supports Intel Smart Response Technology

Supports Dual Channel DDR3 2133(OC)

Integrated PLX PEX8608 chip onboard to offer sufficient PCI-E lanes

Supports ATI Quad CrossFireX , 3-Way CrossFireX and CrossFireX

Supports NVIDIA Quad SLI and SLI

Supports Intel HD Graphics with Built-in Visuals

Multi VGA Output options: D-Sub, DVI-D, HDMI and DisplayPort

2 x Front USB 3.0 ports, 2 x Rear USB 3.0 ports, 4 x SATA3 connectors, 1 x eSATA3 connector

Supports ASRock XFast USB Technology, Graphical UEFI, Lucid Virtu

Supports ASRock Extreme Tuning Utility (AXTU), On/Off Play, Instant Boot, Instant Flash, Good Night LED, APP Charger, SmartView

Combo Cooler Option (C.C.O.)

7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), THX TruStudio PRO

Free Software: Cyberlink MediaEspresso 6.5 Trial

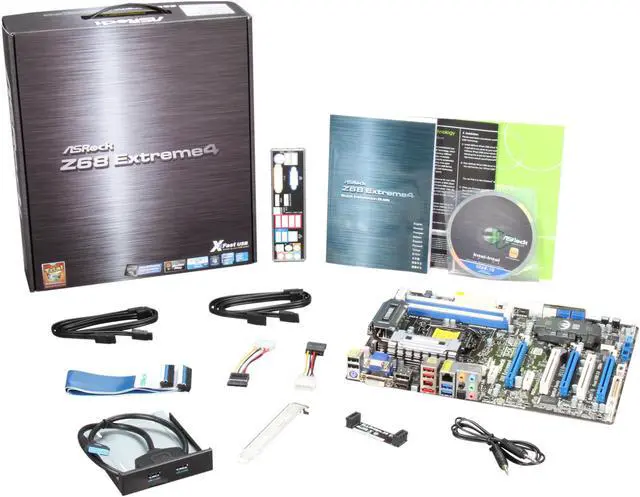

Free Bundle : 1 x Front USB 3.0 Panel, 1 x Rear USB 3.0 Bracket, 1 x 3.5mm Audio Cable
Additional Information
Date First Available May 10, 2011
