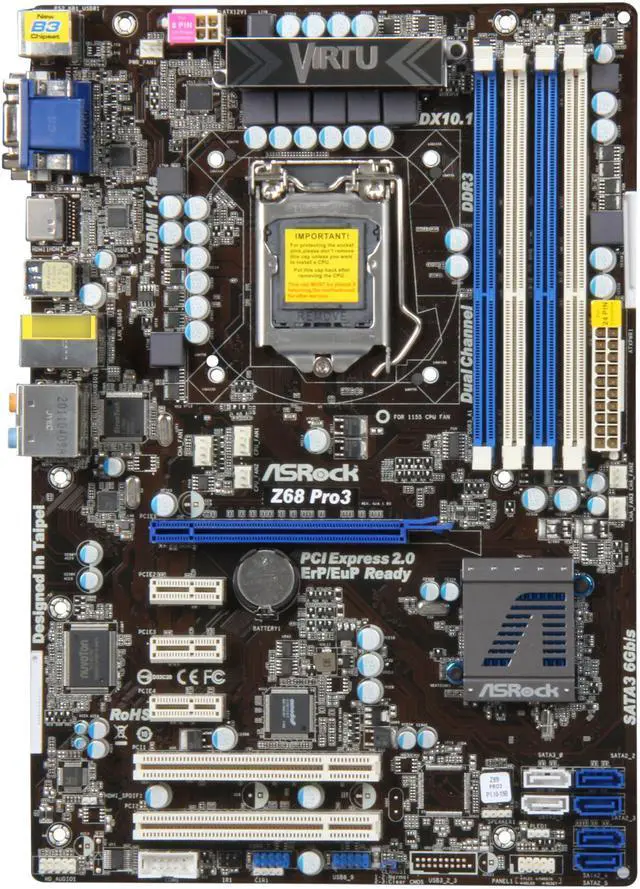

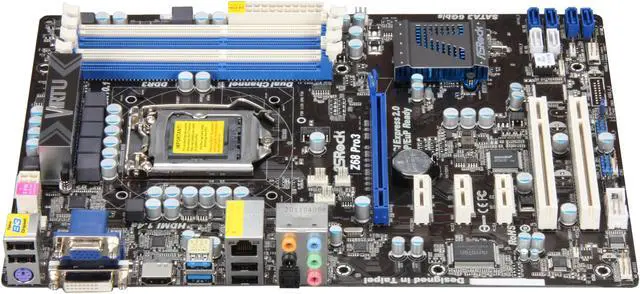

ASRock Z68 PRO3 LGA 1155 Intel Z68 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard

OUT OF STOCK.
  • Intel Z68
  • Core i7 / i5 / i3 (LGA1155)
  • DDR3 2133(OC)/1866(OC)/1600/1333/1066
Specs
Reviews

Learn more about the ASRock Z68 PRO3

Model
Brand ASRock
Model Z68 PRO3
Supported CPU
CPU Socket Type LGA 1155
CPU Type Core i7 / i5 / i3 (LGA1155)
Supported CPU Technologies Supports Intel Turbo Boost 2.0 Technology
Supports Intel K-Series unlocked CPU
Supports Hyper-Threading Technology
Chipsets
Chipset Intel Z68
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 4×240pin
Memory Standard DDR3 2133(OC)/1866(OC)/1600/1333/1066
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 3 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
SATA 3Gb/s 4 x SATA 3Gb/s
SATA 6Gb/s 2 x SATA 6Gb/s
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111E
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 1
Video Ports D-Sub + DVI
HDMI 1 x HDMI
USB 3.0 2 x USB 3.0
USB 1.1/2.0 4 x USB 2.0
S/PDIF Out 1 x Optical
Audio Ports 5 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor ATX
Dimensions (W x L) 12" x 8.3"
Power Pin 24 Pin
Features
Features ASRock DuraCaps (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors

Supports Intel K-Series unlocked CPU

Supports Intel Smart Response Technology

Supports Dual Channel DDR3 2133(OC)

Supports Intel HD Graphics with Built-in Visuals

Multi VGA Output options: D-Sub, DVI-D and HDMI

2 x USB 3.0 ports, 4 x SATA2 connectors

Supports ASRock XFast USB Technology, Graphical UEFI, Lucid Virtu

Combo Cooler Option (C.C.O.)

7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)

Supports ASRock Extreme Tuning Utility (AXTU), Instant Boot, Instant Flash, Good Night LED, APP Charger, SmartView

Free Software: Cyberlink MediaEspresso 6.5 Trial
Additional Information
Date First Available May 10, 2011
