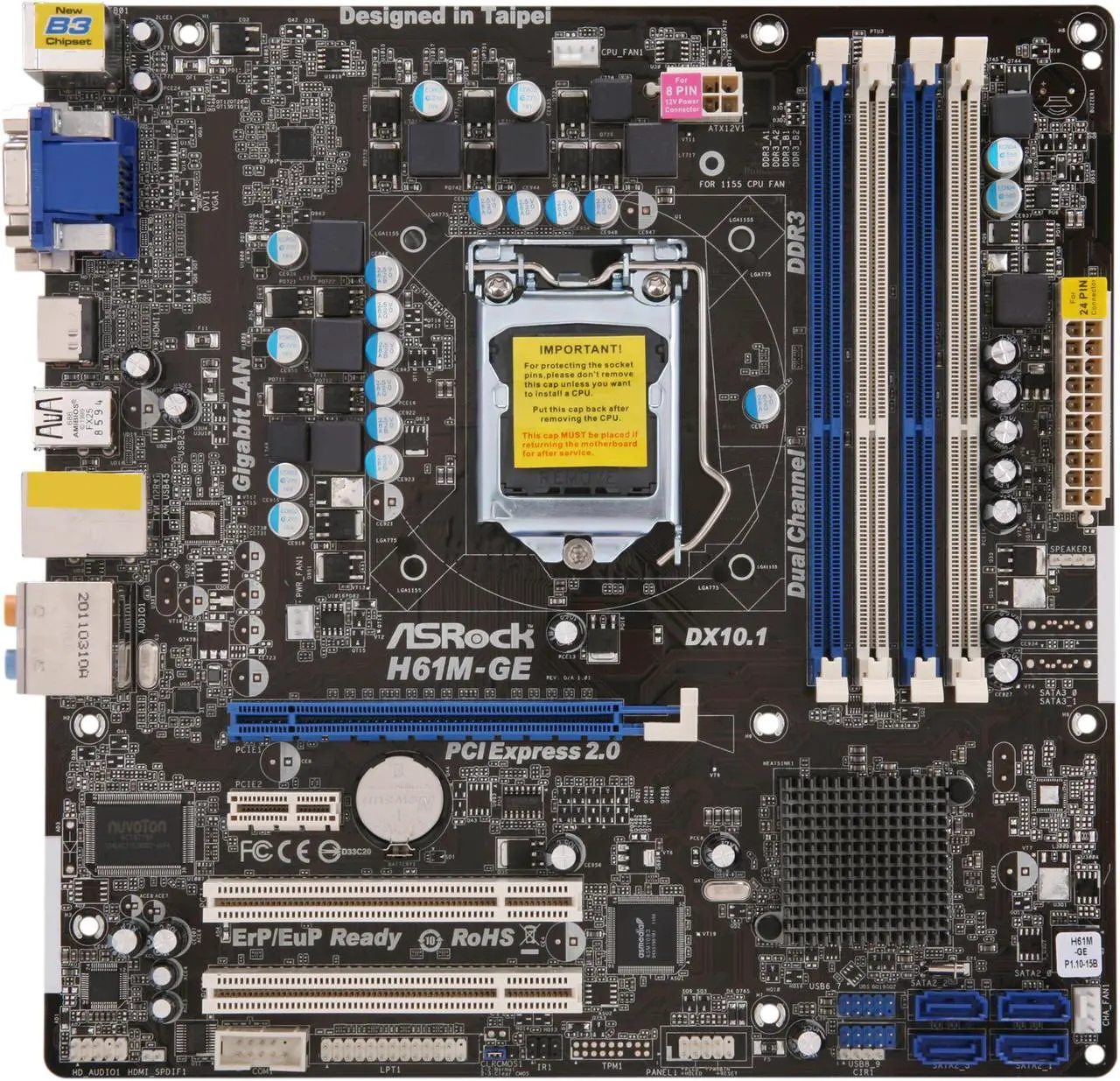

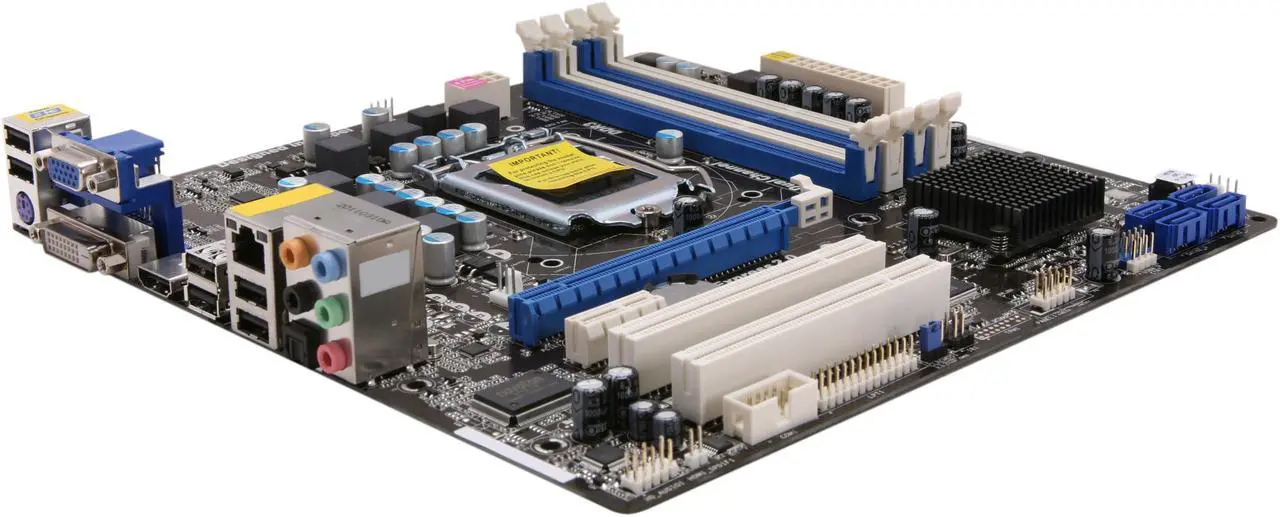

ASRock H61M-GE LGA 1155 Intel H61 HDMI Micro ATX Intel Motherboard
- Intel H61
- Core i7 / i5 / i3 (LGA1155)
- DDR3 1333/1066
Specs
Reviews (20)
Learn more about the ASRock H61M-GE
| Brand | ASRock |
|---|---|
| Model | H61M-GE |
| CPU Socket Type | LGA 1155 |
|---|---|
| CPU Type | Core i7 / i5 / i3 (LGA1155) |
| Chipset | Intel H61 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | Note: 1. Before you install memory module on this motherboard, please read below message to avoid any improper installation: - Due to chipset limitation, if you plan to install three or four memory modules on this motherboard, please install only single-sided memory modules. - To install two memory modules on this motherboard, please install them on DDR3_A1 and DDR3_B1 DIMM sockets. 2. For the detailed installation information, please refer to the user manual or quick installation guide. - Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. |
|---|---|
| Memory Standard | DDR3 1333/1066 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Atheros AR8151 |
|---|---|
| Max LAN Speed | 1Gbps |

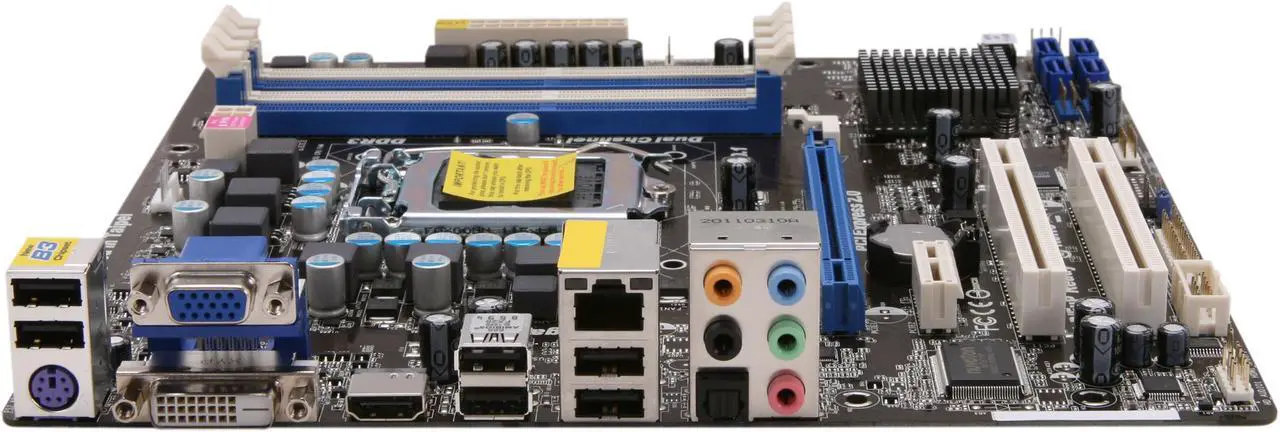

| Back I/O Ports | 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 6 x USB 2.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 x IR header 1 x CIR header 1 x Print Port header 1 x COM port header 1 x HDMI_SPDIF header CPU/Chassis/Power FAN connector 24 pin ATX power connector 8 pin 12V power connector Front panel audio connector |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 24 Pin |
| Features | Solid Capacitor for CPU power Supports Intel K-Series CPU Supports Dual Channel DDR3 1333 Supports Intel HD Graphics 2000/3000 Multi VGA Output options: D-Sub, DVI-D and HDMI Supports XFast USB, AXTU, Graphical UEFI, Instant Boot, Instant Flash, APP Charger, SmartView Combo Cooler Option (C.C.O.) |
|---|
| Date First Available | June 20, 2011 |
|---|
