ASRock Z68M-ITX/HT LGA 1155 Intel Z68 HDMI USB 3.0 Mini ITX Intel Motherboard
- Intel Z68
- Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Pentium / Xeon (LGA1155)
- DDR3 2133(OC) / 1866(OC) / 1600 / 1333 / 1066
Specs
Reviews (40)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock Z68M-ITX/HT
| Brand | ASRock |
|---|---|
| Model | Z68M-ITX/HT |
| CPU Socket Type | LGA 1155 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Pentium / Xeon (LGA1155) |
| Supported CPU Technologies | Supports Intel Turbo Boost 2.0 Technology Supports Intel K-Series unlocked CPU Supports Hyper-Threading Technology |
| Chipset | Intel Z68 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 2133(OC) / 1866(OC) / 1600 / 1333 / 1066 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|
| Serial ATA (SATA) | 2 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111E |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x eSATA 3GB/S / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 / 2 x USB 3.0 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| eSATA | 1 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 x CIR header 1 x Power LED header CPU/Chassis FAN connector 24 pin ATX power connector 4 pin 12V power connector Front panel audio connector |
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 24 Pin |

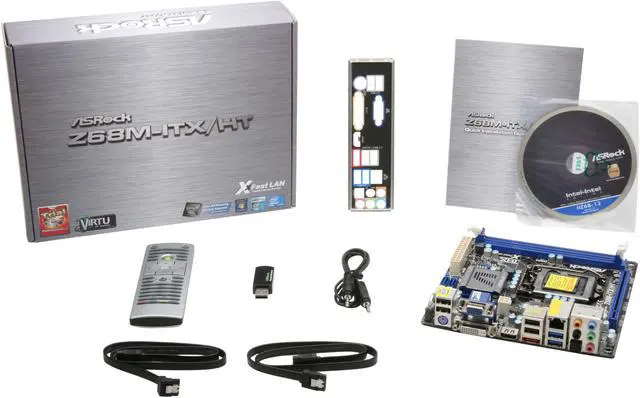

| Features | ASRock DuraCap (2.5 x longer life time, 100% Japan-made high-quality Conductive Polymer Capacitors) Supports Intel K-Series unlocked CPU Supports Dual Channel DDR3 2133(OC) Supports Intel HD Graphics with Built-in Visuals Multi VGA Output : D-Sub, DVI-D, HDMI Support Intel Smart Response, Lucid Virtu Switchable Graphics Supports ASRock XFast USB, XFast LAN Technologies Supports ASRock On/Off Play, Graphical UEFI, ASRock Extreme Tuning Utility (AXTU) 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), Supports THX TruStudio Free Bundle : 1 x MCE Remote Controller, 1 x Multi-Angle CIR Remote Receiver, 1 x 3.5mm Audio Cable, CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite |
|---|
| First Listed on Newegg | August 18, 2011 |
|---|
