ASRock X79 Extreme9 LGA 2011 Intel X79 USB 3.0 ATX Intel Motherboard
- Intel X79
- Core i7 (LGA2011)
- DDR3 2400+(OC) / 2133(OC)
Specs
Reviews (60)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock X79 Extreme9
| Brand | ASRock |
|---|---|
| Model | X79 Extreme9 |
| CPU Socket Type | LGA 2011 |
|---|---|
| CPU Type | Core i7 (LGA2011) / Xeon (LGA2011) |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel X79 |
|---|
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 8x240pin |
|---|---|
| Memory Standard | DDR3 2400+(OC) / 2133(OC) / 1866(OC) / 1600 / 1333 / 1066 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Quad Channel |
| PCI Express 3.0 x16 | 4 (x8, x8, x8, x8 or x16, 0, x16, 0) 1 (x8) |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| Serial ATA (SATA) | 8 x SATA 6Gb/s |
|---|---|
| SATA RAID | 2 x SATA3 6.0 Gb/s connectors and 4 x SATA2 3.0 Gb/s connectors by Intel X79 support RAID 0, 1, 5, 10 2 x SATA3 6.0 Gb/s connectors by Marvell SE9220 support RAID 0 and 1 4 x SATA3 6.0 Gb/s connectors by Marvell SE9172 support RAID 0 and 1 |
| Audio Chipset | Creative Sound Core3D quad-core sound and voice processor |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Broadcom BCM57781 |
|---|---|
| Max LAN Speed | 1Gbps |
| PS/2 | 1 |
|---|---|
| USB 3.0 | 4 x USB 3.0 |
| USB 1.1/2.0 | 6 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394 |
| eSATA | 2 x eSATA 6Gb/s |
| Onboard USB | 4 x USB 3.0 + 6 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394 |
| Other Connectors | 1 x IR header 1 x CIR header 1 x COM port header 1 x Power LED header CPU/Chassis/Power/SB FAN connector 24 pin ATX power connector 2 x 8 pin 12V power connectors SLI/XFire power connector 1 x Dr. Debug with LED |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |

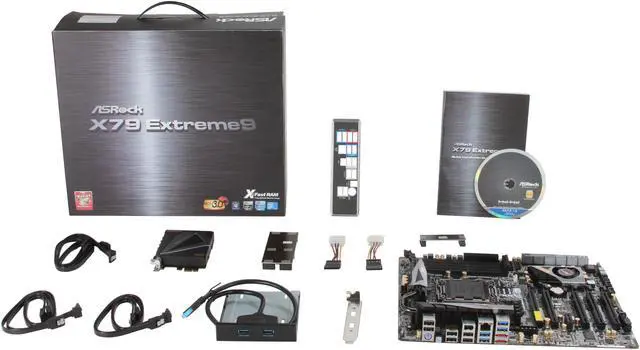

| Features | Premium Gold Caps (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors Intel Core i7 processor family for the LGA 2011 Socket Supports Quad Channel DDR3 2400+(OC), 8 DIMM slots, Max. capacity up to 64GB Digi Power Design, Advanced 16 + 2 Power Phase Design 5 x PCIe 3.0 x16 Slots, Supports AMD 3-Way CrossFireX and NVIDIA 3-Way SLI Broadcom Dual LAN with Teaming Function Supports ASRock X-FAN, XFast RAM, XFast LAN, XFast USB, XFast Charger, Graphical UEFI, UEFI System Browser, AXTU Creative Sound Core3D 7.1 CH, Supports THX TruStudio PRO Free Bundle : ASRock Game Blaster, Front USB 3.0 Panel, CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suit |
|---|
| First Listed on Newegg | November 17, 2011 |
|---|
