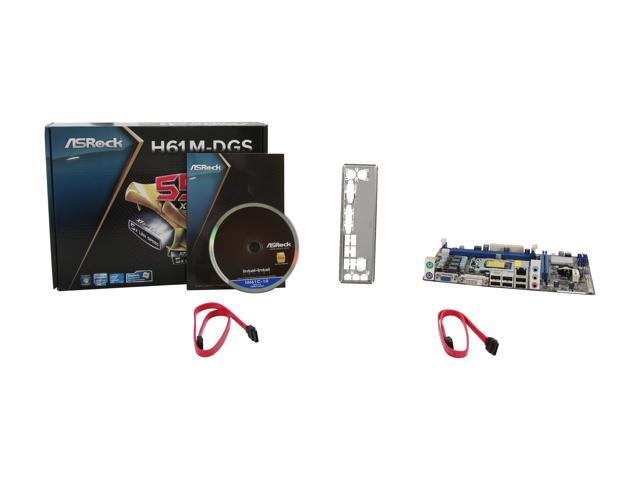

ASRock H61M-DGS LGA 1155 Intel H61 Micro ATX Intel Motherboard

OUT OF STOCK.
  • Intel H61
  • Core i7 / i5 / i3 / Pentium / Celeron (LGA1155)
  • DDR3 1600/1333
Specs
Reviews

Learn more about the ASRock H61M-DGS

Model
Brand ASRock
Model H61M-DGS
Supported CPU
CPU Socket Type LGA 1155
CPU Type Core i7 / i5 / i3 (LGA1155)
Supported CPU Technologies Supports Intel Turbo Boost 2.0 Technology
Supports Intel K-Series unlocked CPU
Supports Hyper-Threading Technology
Chipsets
Chipset Intel H61
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 2×240pin
Memory Standard DDR3 1600/1333/1066
DDR3 1600 with Intel 22nm CPU, DDR3 1333 with Intel Sandy Bridge CPU.
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express 3.0 x16
PCI Express x1 1 x PCI Express x1
Storage Devices
SATA 3Gb/s 4 x SATA 3Gb/s
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8111C
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 2
Video Ports D-Sub + DVI
USB 1.1/2.0 6 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Other Connectors 1 x Print port header
1 x COM port header
CPU/Chassis/Power FAN connector
24 pin ATX power connector
4 pin 12V power connector
Front panel audio connector
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 8.9" x 6.8"
Power Pin 24 Pin
Features
Features Solid Capacitor for CPU Power

Supports Intel K-Series CPU

Supports Dual Channel DDR3 1600

PCIE Gigabit LAN

Supports Intel HD Graphics with Built-in Visuals

Dual VGA Output options : DVI-D and D-Sub

Combo Cooler Option (C.C.O.)

5.1 CH HD Audio (Realtek ALC662 Audio Codec)

Supports ASRock XFast RAM, XFast LAN, XFast USB Technologies

Supports Intel Smart Connect, Intel Rapid Start, ASRock Graphical UEFI, AXTU

Free Bundle : CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite
Additional Information
Date First Available April 26, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: 30 days
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy
