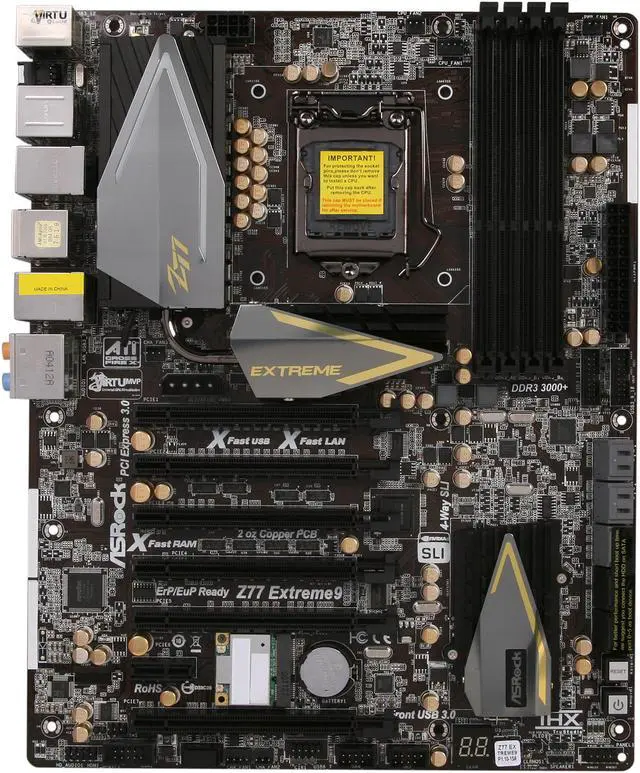

ASRock Z77 Extreme9 LGA 1155 Intel Z77 HDMI USB 3.0 ATX Intel Motherboard
- Intel Z77
- Core i7 / i5 / i3 (LGA1155)
- DDR3 3000+(OC)/2400(OC)
Learn more about the ASRock Z77 Extreme9
| Brand | ASRock |
|---|---|
| Model | Z77 Extreme9 |
| CPU Socket Type | LGA 1155 |
|---|---|
| CPU Type | Core i7 / i5 / i3 (LGA1155) |
| Supported CPU Technologies | Intel Turbo Boost 2.0 Technology Intel K-Series unlocked CPU Hyper-Threading Technology |
| Chipset | Intel Z77 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 3000+(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 5 (PCIE2: x16 mode or PCIE1/PCIE3/PCIE5/PCIE7: x16/0/16/0 or x8/8/8/8 mode) |
|---|---|
| PCI Express 2.0 x16 | 1 @x4 |
| PCI Express x1 | 1 x PCI Express x1 |
| Mini Card Slots | 1 x mini-PCI Express: For WiFi + BT module |
| Serial ATA (SATA) | 2 x SATA3 6.0 Gb/s connectors by Intel Z77, 4 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061 (SATA3_A4 connector is shared with eSATA3 port) |
|---|---|
| SATA RAID | 4 x SATA2 3.0 Gb/s and 2 x SATA3 6.0 Gb/s by Intel Z77, support RAID 0, 1, 10, 5 |
| Audio Chipset | Realtek ALC898 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Broadcom BCM57781 |
|---|---|
| Second LAN Chipset | Broadcom BCM57781 |
| Max LAN Speed | 2 x 1Gbps |
| Wireless LAN | WiFi IEEE 802.11 a / b / g / n |
| Bluetooth | Bluetooth 4.0 Class II |
| PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| HDMI | 1 x HDMI |
| USB 3.0 | 8 x USB 3.0 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394 |
| eSATA | 1 x eSATA 6Gb/s |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 4 x USB 3.0 + 6 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394 |
| Other Connectors | 1 x IR header 1 x CIR header 1 x COM port header 1 x HDMI_SPDIF header 1 x Power LED header 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin) 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin) 1 x Power Fan connector (3-pin) 24 pin ATX power connector 8 pin 12V power connector SLI/XFire power connector Front panel audio connector 1 x Dr. Debug with LED 1 x Power Switch with LED 1 x Reset Switch with LED 1 x Clear CMOS Switch with LED |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |

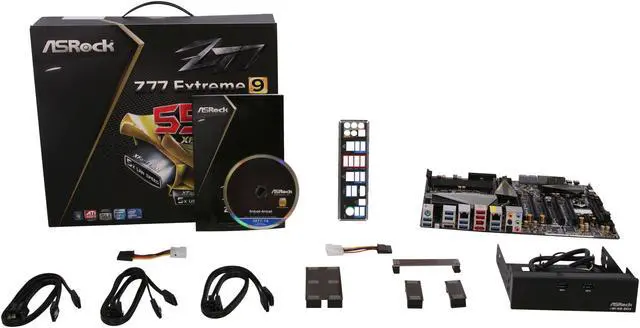

| Features | Premium Gold Caps Digi Power Design / 8 + 4 Power Phase Design Supports Dual Channel DDR3 3000+(OC) 5 x PCIe 3.0 x16 Slots, 1 x PCIe 2.0 x16 Slot, 1 x mini-PCI Express slot Supports AMD 4-Way CrossFireX and NVIDIA 4-Way SLI PCIE Dual Gigabit LAN with Teaming Function Supports Intel HD Graphics with Built-in Visuals 12 USB 3.0 (4 Front, 8 Rear) + 6 SATA3 7.1 CH HD Audio with Content Protection (Realtek ALC898 Audio Codec), Supports THX TruStudio Supports ASRock XFast RAM, XFast LAN, XFast USB, OMG, Internet Flash, Dehumidifier, UEFI System Browser Supports Intel Smart Connect, Intel Rapid Start, Lucid Virtu Universal MVP Free Bundle : 1 x WiFi + BT Module, 1 x ASRock Wi-SB Box, 1 x Rear USB 3.0 Bracket, CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite |
|---|
| First Listed on Newegg | May 30, 2012 |
|---|
