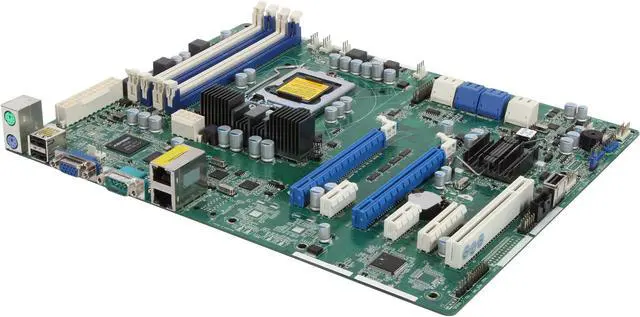

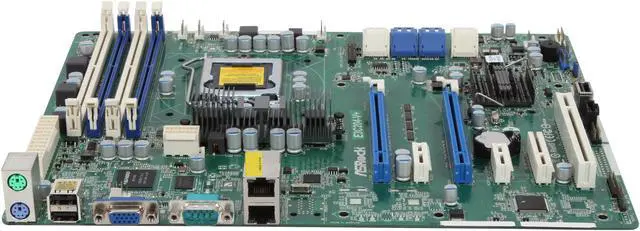

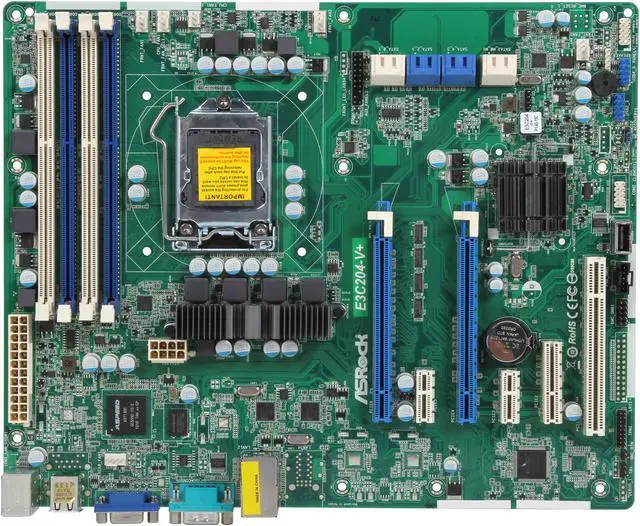

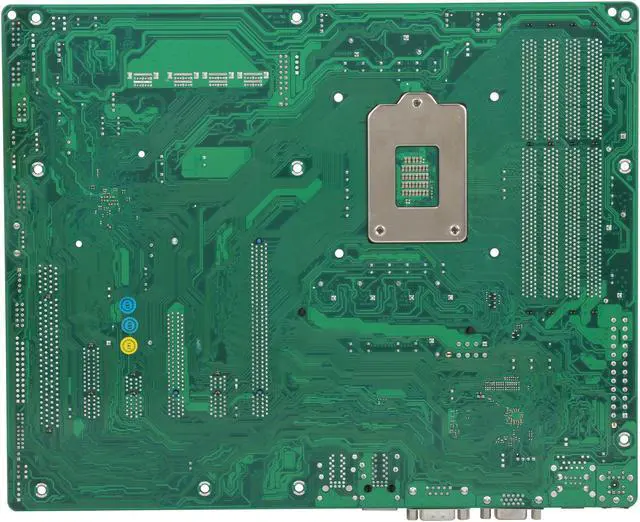

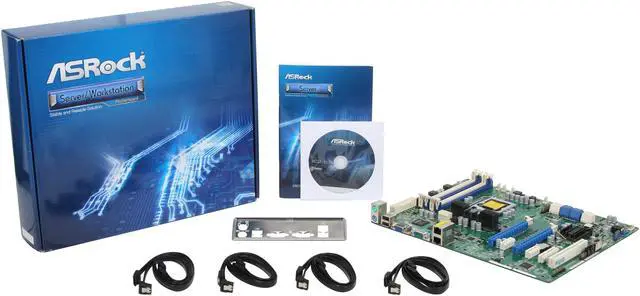

ASRock E3C204-V+ ATX Server Motherboard LGA 1155 Intel C204 DDR3 1600/1333/1066

MB Physical Stats

Form Factor	ATX
Dimensions	12 x 9.6" (30.5 x 24.4cm)

Processor System

CPU	Single socket H2 (LGA 1155) supports Intel® Xeon E3-1200 & E3-1200 v2 series, 2nd and 3rd Gen Core i3, Pentium, Celeron processors Supports Hyper-Threading Technology
Socket	Single Socket H2 (LGA1155)
Power Design	4 Power Phase Design
Chipset	Intel® C204

System Memory

Capacity	4 x 240-pin DDR3 DIMM slots Support up to 32GB DDR3 ECC UDIMM
Type	Dual Channel DDR3 memory technology Supports DDR3 1600*/1333/1066* ECC DIMM *DDR3 1600 can only be supported with Intel® Xeon E3-1200 v2 Processor *DDR3 1066 can only be supported with Intel® 2nd Generation Core™ i3 Processors
Voltage	1.5V, 1.35V

Expansion Slots

PCIe 3.0 x 16	2 slots (PCIE6/PCIE4: x16/x0 mode or x8/x8 mode) *PCIE4 slot shares lanes with PCIE6 slot. When PCIE4 slot is populated, PCIE6 slot will operate at up to x8 mode. *PCIE 3.0 can only be supported with Intel® Xeon E3-1200 v2 Processor.
PCIe 2.0 x 4	1 slot (PCIE2: x4 mode)
PCIe 2.0 x 1	2 slots
PCI	1 slot

Storage

SATA Controller	Intel® C204: 2 x SATA3 6.0Gbps, 4 x SATA2 3.0Gbps | Supports RAID 0, 1, 10 and Intel® Rapid Storage
Additional Storage Controller	Marvell SE9172: 2 x SATA3 6.0Gbps, support RAID 0, 1, NCQ, AHCI and "Hot Plug" functions *Marvell SE9172 RAID is supported with Windows OS only.

Ethernet

Interface	Gigabit LAN 10/100/1000Mbps
LAN Controller	2 x Intel® 82574L Supports Wake-On-LAN Supports Energy Efficient Ethernet 802.3az Supports Dual LAN with Teaming function Supports PXE

Graphics

Controller	ASPEED AST1300
VRAM	DDR3 16MB
Output	Supports D-Sub with max. resolution up to 1920 x 1200 @ 60Hz

Rear Panel I/O

PS/2 KB/Mouse	1
VGA Port	D-sub x 1
USB 2.0 Port	2
Lan Port	2 x RJ45 Gigabit Ethernet LAN ports LAN Ports with LED (ACT/LINK LED and SPEED LED)
Serial Port	1 (COM1)

Internal Connector

COM Port Header	1 (COM2)
Front Lan LED Connector	1
Auxiliary Panel Header	1 (include chassis intrusion, location button & LED, front LAN LED)
Thermal Sensor Header	1
Buzzer	1
Fan Header	6 (5 x 4-pin, 1 x 3-pin)
ATX Power	1 (24-pin) + 1 (8-pin)
USB 2.0 Header	2 (each support 2 USB 2.0)
Type A USB 2.0 Port	1

System BIOS

BIOS Type	64Mb AMI UEFI Legal BIOS
BIOS Features	Plug and Play (PnP) ACPI 1.1 Compliance Wake Up Events SMBIOS 2.3.1 Support DRAM Voltage Multi-adjustment ASRock Instant Flash

Hardware Monitor

Temperature	CPU Temperature Sensing Chassis Temperature Sensing
Fan	CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control
Voltage	Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VTT, 1.05V_PCH, +BAT, 3VSB, 5VSB

Operating Systems Supported

Operating Systems	Microsoft Windows Server 2008 R2 (x64) Server 2012 (x64) Linux RedHat Enterprise Linux Server 5.5/6.4 (x32 and x64) CentOS 5.5 / 6.4 (x32 and x64) SUSE Enterprise Linux Server 11 SP1 (x32 and x64) FreeBSD 9.1 (x32/x64) Fedora core 18 (x64) UBuntu 12.04/12.10 (x64) Virtual VMWare ESXi 5.1 (Marvell SE9230 and Marvell SE9172 has no driver can support VMWare)

Environment

Temperature	Operating temperature: 40 - 95°F (10 - 35°C) / Non operating temperature: -40 - 158°F (-40 - 70°C)
