Does this include the I/O shield or any other accessories?

It does come with an I/O shield and a few other accessories, like any other motherboard I suppose.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Sold by Newegg

Shipped by Newegg

Add to Wish List

Get Educated

Make informed decisions with expert advice. Learn More

Main image of ASRock H77M LGA 1155 Intel H77 HDMI USB 3.0 Micro ATX Intel Motherboard

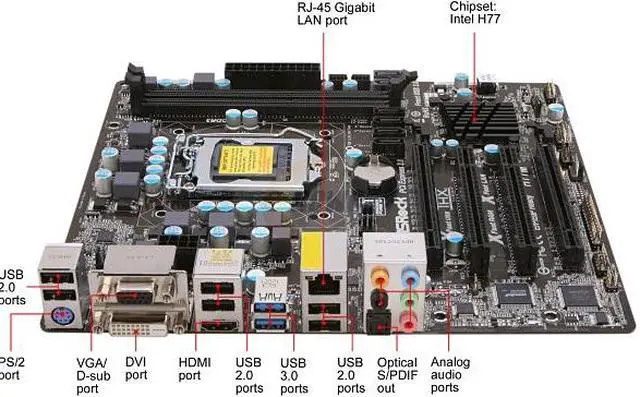

Alt view image 2 of 4 - ASRock H77M LGA 1155 Intel H77 HDMI USB 3.0 Micro ATX Intel Motherboard

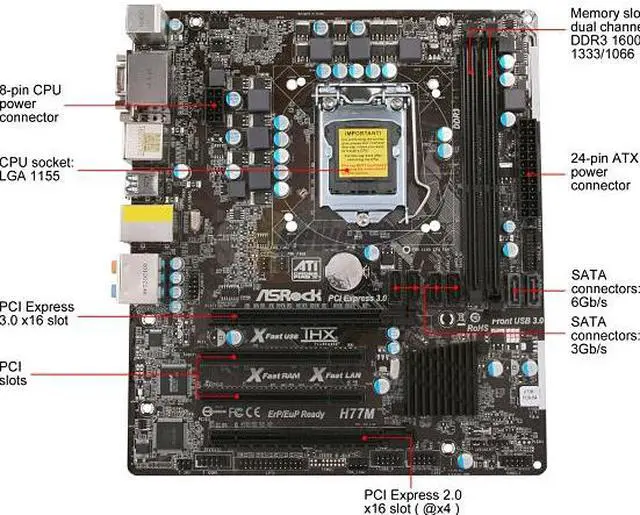

Alt view image 3 of 4 - ASRock H77M LGA 1155 Intel H77 HDMI USB 3.0 Micro ATX Intel Motherboard

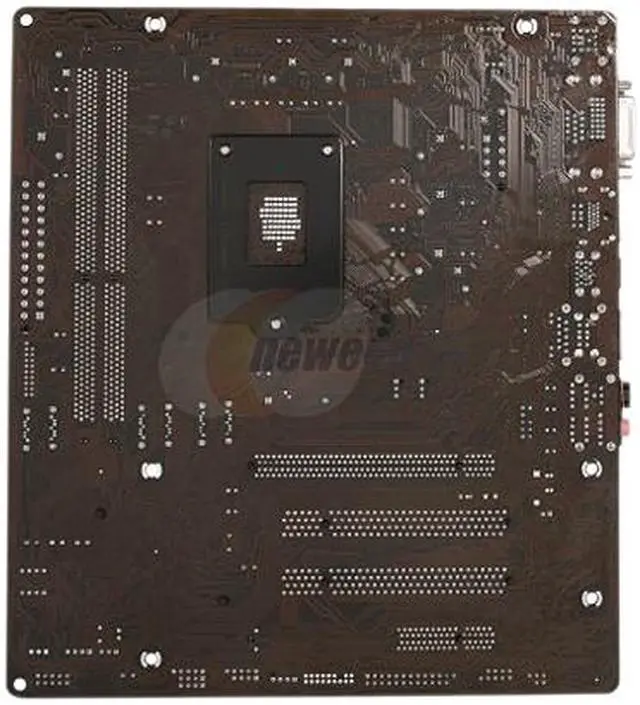

Alt view image 4 of 4 - ASRock H77M LGA 1155 Intel H77 HDMI USB 3.0 Micro ATX Intel Motherboard

Shop All ASRock Products

ASRock H77M LGA 1155 Intel H77 HDMI USB 3.0 Micro ATX Intel Motherboard

REFURBISHED

(1) Write a Review

Intel H77
Core i7 / i5 / i3 (LGA1155)
DDR3 1600/1333

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (1)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Embrace the evolved power of Intel 3rd generation Core processor with the H77M motherboard, based on the latest Intel H77 chipset which firstly integrates native USB 3.0 connectivity on Intel platform. Exclusive XFast 555 technology, including XFast RAM / XFast LAN / XFast USB, works behind the scenes to improve overall system efficiency and throughput. Digi Power design provides more precise, more efficient power delivery to CPU and 100% solid capacitors ensure unmatched reliability, durability and overclocking potential.

Intel Smart Connect Technology keeps you always up to date with social networking even when system is asleep, while Intel Rapid Start Technology allows your PC to resume from deepest sleep in a flash. CrossFireX support in combination with the PCIe 3.0 capabilities pushes the graphics performance to a new level to bring you a brand new gaming experience.

Model
Brand	ASRock
Model	H77M

Supported CPU
CPU Socket Type	LGA 1155
CPU Type	Core i7 / i5 / i3 (LGA1155)
Supported CPU Technologies	Turbo Boost Technology 2.0

Chipsets
Chipset	Intel H77

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	2x240pin
Memory Standard	DDR3 1600/1333/1066
Maximum Memory Supported	16GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express 2.0 x16	1 @x4
PCI Slots	2 x PCI Slots

Storage Devices
Serial ATA (SATA)	2 x SATA 6Gb/s
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC892
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Realtek 8111E
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.0 / 6 x USB 2.0/1.1
PS/2	1
Video Ports	D-Sub + DVI
HDMI	1 x HDMI
USB 3.0	2 x USB 3.0
USB 1.1/2.0	6 x USB 2.0
S/PDIF Out	1 x Optical
Audio Ports	5 Ports

Internal I/O Connectors
Onboard USB	2 x USB 3.0 + 4 x USB 2.0
Other Connectors	1 x IR header 1 x CIR header 1 x Print Port header 1 x COM port header 1 x HDMI_SPDIF header CPU/Chassis/Power FAN connector 24 pin ATX power connector 8 pin 12V power connector Front panel audio connector

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 8.5"
Power Pin	24 Pin

Features
Features	100% All Solid Capacitor Design Digi Power Design Supports Dual Channel DDR3 1600 1 x PCIe 3.0 x16 Slot, Supports AMD Quad CrossFireX and CrossFireX PCIE Gigabit LAN Supports Intel HD Graphics with Built-in Visuals Multi VGA Output Options : DVI-D, D-Sub, HDMI Combo Cooler Option (C.C.O.) 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), Supports THX TruStudio Supports ASRock XFast RAM, XFast LAN, XFast USB, OMG, Internet Flash, On/Off Play, UEFI System Browser Supports Intel Smart Connect, Intel Rapid Start Free Bundle : CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite

Additional Information
First Listed on Newegg	August 05, 2013

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 30 days
Limited Warranty period (labor): 30 days
Read full details

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.
