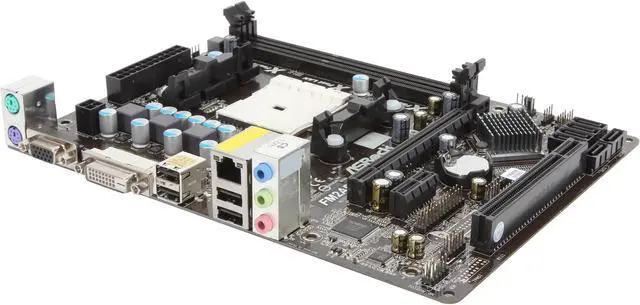

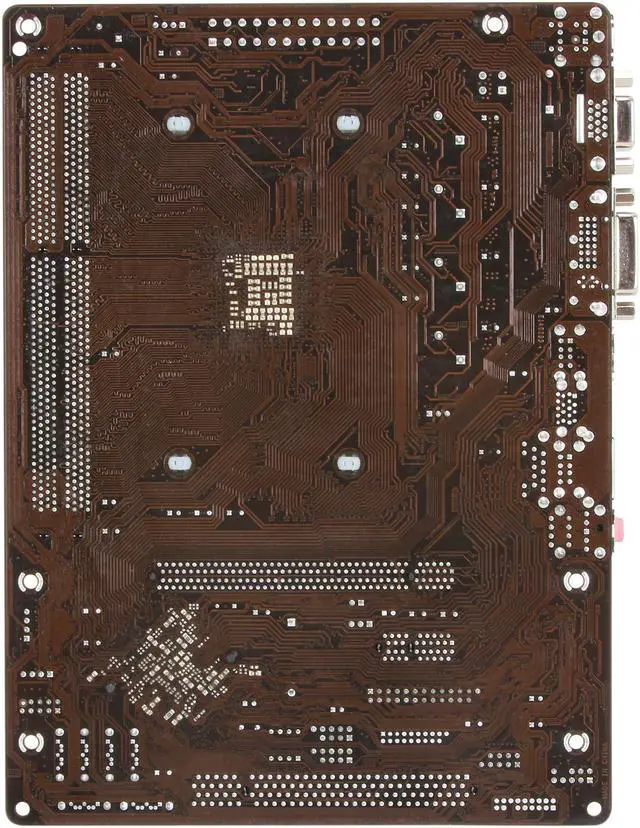

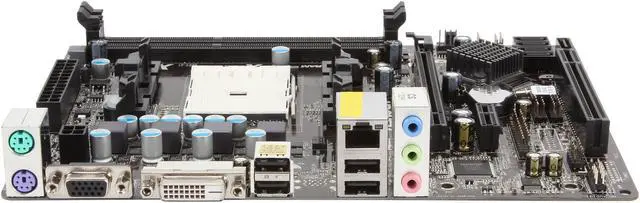

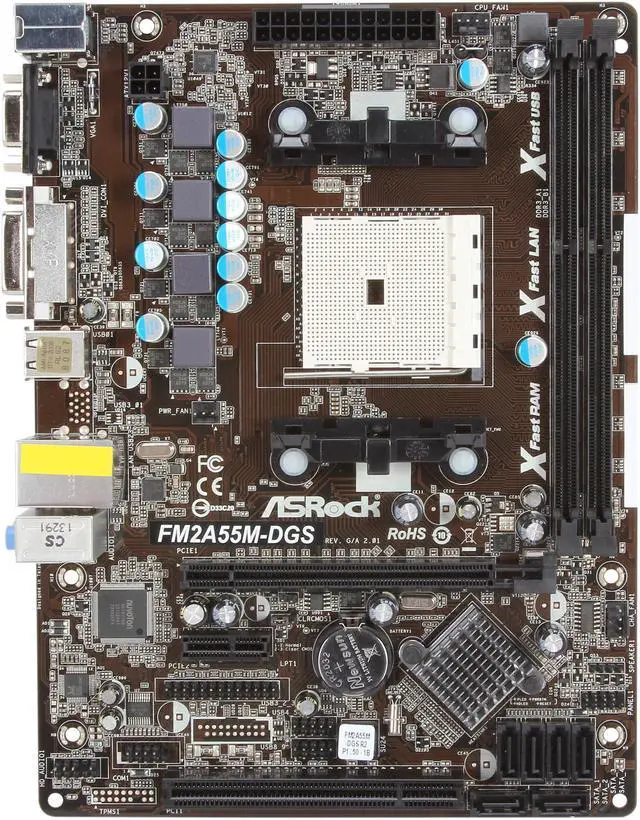

ASRock FM2A55M-DGS R2.0 FM2 AMD A55 (Hudson D2) Micro ATX AMD Motherboard
- AMD A55 (Hudson D2)
- APU (FM2 Socket)
- DDR3 1866/1600/1333/1066
Learn more about the ASRock FM2A55M-DGS R2.0
| Brand | ASRock |
|---|---|
| Model | FM2A55M-DGS R2.0 |
| CPU Socket Type | FM2 |
|---|---|
| CPU Type | APU (FM2 Socket) |
| Chipset | AMD A55 (Hudson D2) |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 1866/1600/1333/1066 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 1 x PCI Slot |
| SATA RAID | 0/1/10 |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 5.1 Channels |
| LAN Chipset | Realtek 8111E |
|---|---|
| Max LAN Speed | 1Gbps |
| PS/2 | 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port |
|---|---|
| Video Ports | 1 x D-Sub 1 x DVI-D |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 x Print port header 1 x COM port header 1 x Chassis Intrusion header 1 x CPU Fan connector (4-pin) 1 x Chassis Fan connector (4-pin) 1 x Power Fan connector (3-pin) 24 pin ATX power connector 4 pin 12V power connector Front panel audio connector |
| Form Factor | Micro ATX |
|---|---|
| Power Pin | 24 Pin |
| Features | Support for Socket FM2 100W processors Solid Capacitor for CPU power Supports Intel XMP 1.3/1.2 and AMD Memory Profile Supports AMD Dual Graphics Integrated AMD Radeon HD 7000 series graphics in A-series APU Supports ASRock X-Boost, XFast 555, Fast Boot, Restart to UEFI, OMG, Dehumidifier, Interactive UEFI Supports AMD Steady Video 2.0 Free Bundle : CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar |
|---|
| First Listed on Newegg | September 26, 2013 |
|---|
