Question 1

onboard audio and video?

Accepted Answer

Yes, video is: Intel Graphics Media Accelerator X4500 DX10, and audio is 5.1 CH HD Audio

Question 2

What type graphics card fits this ddr2 or ddr3?

Accepted Answer

I installed the Nvidia Geforce GT 730 2GB DDR3 PCI Expressx16 graphics card and it is working very well.  No problems.

Question 3

what size cpu fan?

Accepted Answer

Hello CrazyPlayer 55.  I used the stock fan that came with the the CPU.  Intel E8400 Duel Core

Question 4

I can get this motherboard to work with two  1 gig sticks of DDR2 800, but not with one 4 gig stick of DDR3 1066. Yes, I switched over the FSB jumper just to make sure. Do I have a faulty board, or is there something I might be missing?

Accepted Answer

Because, Justin H, The problem is that the first Bank of memory is for DDR2`s and the second bank is for DDR3 Memory, It`s not your fault, that`s something that we both missed, Using One may cause a problem in post up reading. So, use two 2GB sticks in ether DDR2 or DDR3, depending on your processor, and it should be fine.

Question 5

Does this work with Windows 10 ?

Accepted Answer

Motherboard is being used with dual boot set up with Windows XP and Windows 10 with no issues.

Question 6

Does anyone know which DDR3 memory will work with this motherboard?  I bought G.Skill DDR-1333 PC3-10666 4096MB X2 per the instruction and it will not boot up.

Accepted Answer

CORSAIR XMS3 8GB (2 x 4GB) 240-Pin DDR3 SDRAM DDR3 1333 (PC3 10600) Desktop Memory Model CMX8GX3M2A1333C9

This is what i bought in person because every set of modules I ordered online had high density chips on them and they wouldnt post and had to be returned.....if ddr3 modules are used with this motherboard they can not have any higher than a 256mb chip on the modules which means the modules must have 8 chips on either side for a total of 16 chips x 256=4096mb per memory module. I bought 2 sets online and was guaranteed that they were dual sided and both were only one sided so I said screw this and went to the store to confirm they had 16chips before purchasing this set. I used an exact part number from asrock website both times and got screwed so I know exactly what you are going through. I looked it up on neweggs app selling for $43.99 thats better than what I paid in person at microcenter for $56.99 so since I did the hard work for you now all you have to do is buy them.

Question 7

How is the bios? Are a lot of features unlocked, mainly those pertaining to overclocking?

Accepted Answer

I am not the best person to answer your question as I do not overclock any of my pc builds. I can tell you that you can adjust the memory & CPU voltage in the BIOS. There is also a program that is included on the cd that comes with the motherboard, that allows you to overclock the pc.

Question 8

can this work with 64 bit windows 10?

Accepted Answer

Yes works just fine just make sure your bios is updated follow the updates of the mother board

Question 9

Did anyone install this motherboard having already Windows 7 on their Hard Drive from your old motherboard, and did NOT have to clean install Windows 7?   (in other words, I get the Blue Screen of Death trying to use my Hard Drive), and no repair options will work, and today, I do not have my disc with me, but I find most of the time, even a repair from disc will not work.    I had no issues at all booting to Windows XP and installing all the necessary drivers, and is working great.  I have no issues with XP, it is Windows 7 that is the problem.  Were you able to boot up with Windows 10 right away from a previously installed version of the OS on your Hard Drive?

Accepted Answer

I have not tried this with this motherboard -- that approach can be very problematic in my experience, although I have gotten it to work with some systems. I always recommend a clean Windows install when changing to a different motherboard line. Can you boot in to safe mode on Windows 7 without problem? if so, your BSOD may be caused by mismatched hardware drivers.

Question 10

does this motherboard support solid state drives ?

Accepted Answer

Yes, I have an Intel SSD hooked up to it no problem. Obviously much slower on this board than it could be but it's still faster than a mechanical drive.

Brand	ASRock
Model	G41C-GS R2.0

CPU Socket Type	LGA 775
CPU Type	LGA 775 for Intel Core 2 Extreme / Core 2 Quad / Core 2 Duo / Pentium Dual Core / Celeron Dual Core / Celeron, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale Processors
FSB	Supports FSB 1333/ 1066/ 800/ 533 MHz
Supported CPU Technologies	Hyper-Threading Technology

Chipset	Intel G41
South Bridge	Intel ICH7

Number of Memory Slots	2 x DDR3 DIMM Slots 2 x DDR2 DIMM Slots
Memory Standard	2 x DDR3 DIMM Slots - Supports DDR3 1333(OC)/ 1066/ 800 non-ECC, un-buffered memory 2 x DDR2 DIMM Slots - Supports DDR2 800/ 667/ 533 non-ECC, un-buffered memory * DDR3 and DDR2 are supported separately.
Maximum Memory Supported	8GB* * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel Supported	Dual Channel

PCI Express x16	1 x PCI Express x16
PCI Express x1	1 x PCI Express x1
PCI Slots	2 x PCI Slots

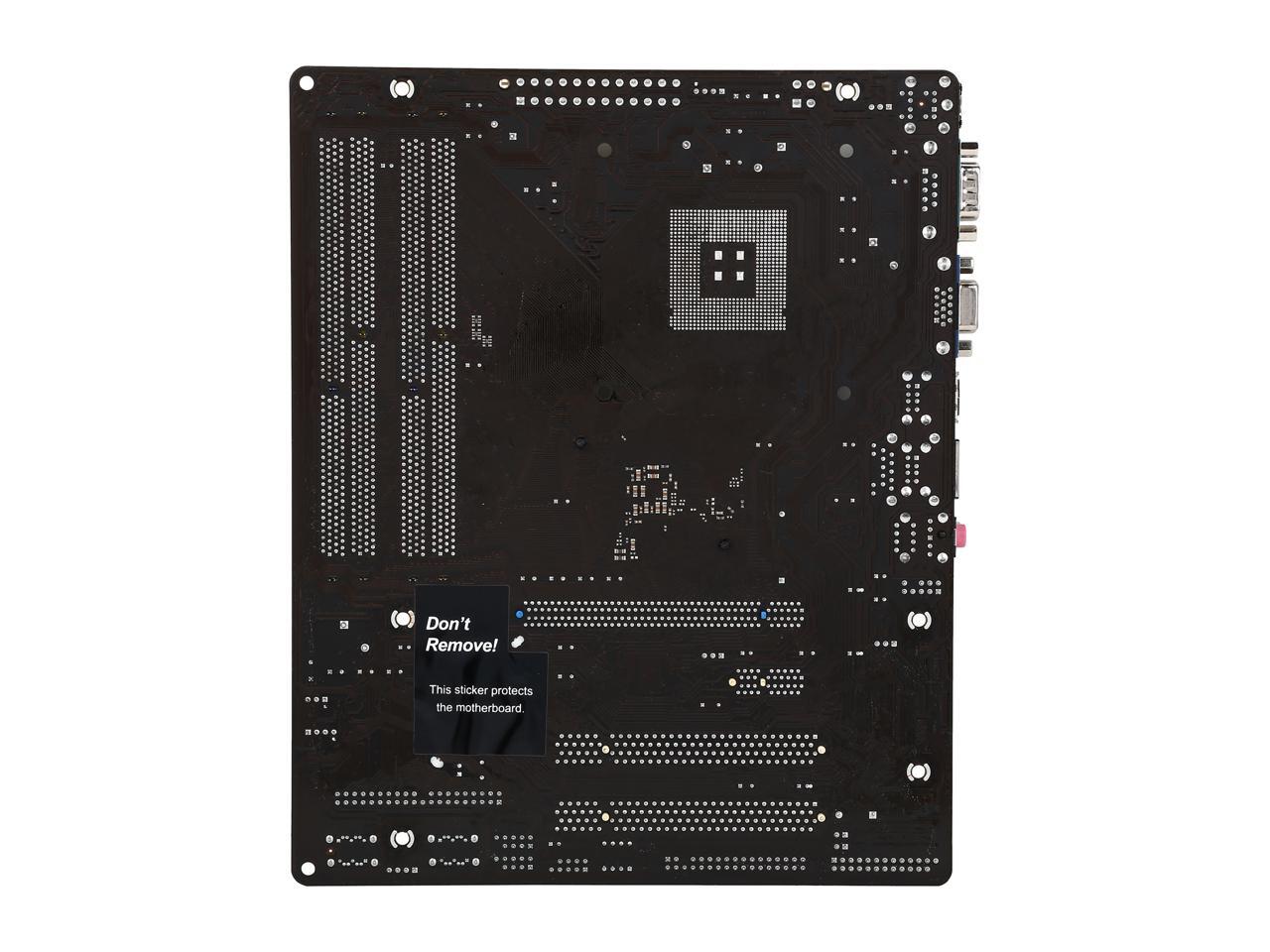

ASRock G41C-GS R2.0 LGA 775 Intel G41 Micro ATX Intel Motherboard

Learn more about the ASRock G41C-GS R2.0

Customer Reviews of the ASRock G41C-GS R2.0

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Back I/O Ports	2 x PS/2 / 4 x USB 2.0/1.1
PS/2	1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port
COM	1
Video Ports	1 x D-Sub
RJ45	1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 1.1/2.0	4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
Audio Ports	HD Audio Jacks: Line in / Front Speaker / Microphone

Onboard USB	2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Other Connectors	1 x ATA100 IDE Connector (Supports 2 x IDE devices) 1 x Floppy Connector 1 x Print Port Header 1 x Chassis Intrusion Header 1 x CPU Fan Connector (4-pin) 1 x Chassis Fan Connector (4-pin) 1 x Power Fan Connector (3-pin) 1 x Front Panel Audio Connector

Form Factor	Micro ATX
Power Pin	1 x 24-pin ATX Power Connector 1 x 4-pin 12V Power Connector

Onboard Audio
Audio Chipset	Realtek ALC662
Audio Channels	5.1 Channels

Onboard LAN
LAN Chipset	Realtek RTL8111GR
Max LAN Speed	1Gbps

Item#: N82E16813157499
