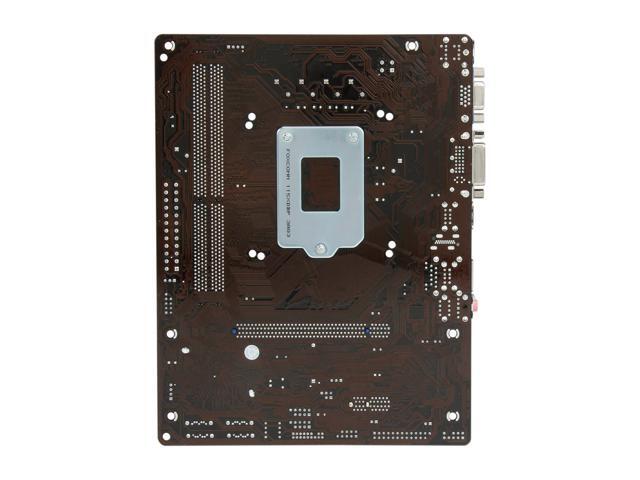

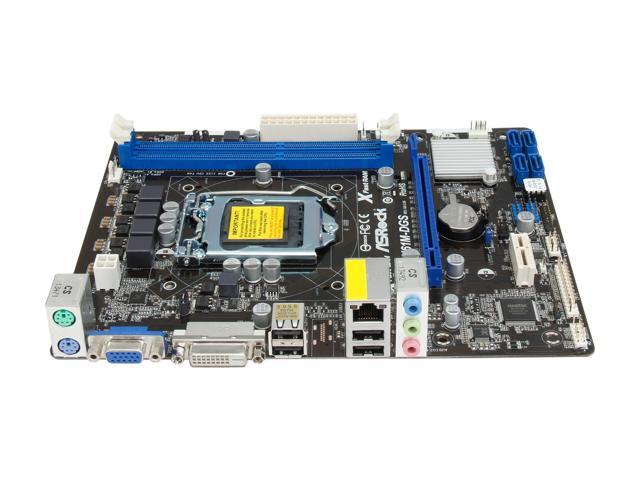

ASRock H61M-DGS R2.0 LGA 1155 Intel H61 Micro ATX Intel Motherboard

OUT OF STOCK.
  • Intel H61
  • Core i7 / i5 / i3 (LGA1155)
  • DDR3 1600/1333/1066
Specs
Reviews

Learn more about the ASRock H61M-DGS R2.0

Model
Brand ASRock
Model H61M-DGS R2.0
Supported CPU
CPU Socket Type LGA 1155
CPU Type Core i7 / i5 / i3 (LGA1155)
Supported CPU Technologies Supports Intel Turbo Boost 2.0 Technology
Supports Intel K-Series unlocked CPU
Supports Hyper-Threading Technology
Chipsets
Chipset Intel H61
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR3 1600/1333/1066
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express 3.0 x16
PCI Express x1 1 x PCI Express x1
Storage Devices
SATA 3Gb/s 4 x SATA 3Gb/s
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 5.1 Channels
Onboard LAN
LAN Chipset Realtek 8111C
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 1 x PS/2 Mouse
1 x PS/2 Keyboard
Video Ports 1 x D-Sub
1 x DVI-D
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Other Connectors 1 x IR Header
1 x Print Port Header
1 x COM Port Header
1 x Power LED Header
1 x Chassis Intrusion Header
1 x TPM Header
1 x CPU Fan Connector (4-pin)
1 x Chassis Fan Connector (4-pin)
1 x 24 pin ATX Power Connector
1 x 4 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x SPDIF Out Connector
Physical Spec
Form Factor Micro ATX
Power Pin 24 Pin
Features
Features 100% All Solid Capacitor design

Supports XFast 555, Dehumidifier, OMG, Fast Boot, Restart to UEFI

ASRock Extreme Tuning Utility (AXTU)

ASRock Instant Boot

ASRock Instant Flash

ASRock APP Charger

ASRock XFast USB

ASRock XFast LAN

ASRock XFast RAM

ASRock Crashless BIOS

ASRock OMG (Online Management Guard)

ASRock Internet Flash

ASRock Dehumidifier Function

ASRock Fast Boot

ASRock Restart to UEFI

Hybrid Booster:
ASRock U-COP
Boot Failure Guard (B.F.G.)

Combo Cooler Option (C.C.O.)

Good Night LED
Additional Information
Date First Available May 06, 2014

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
