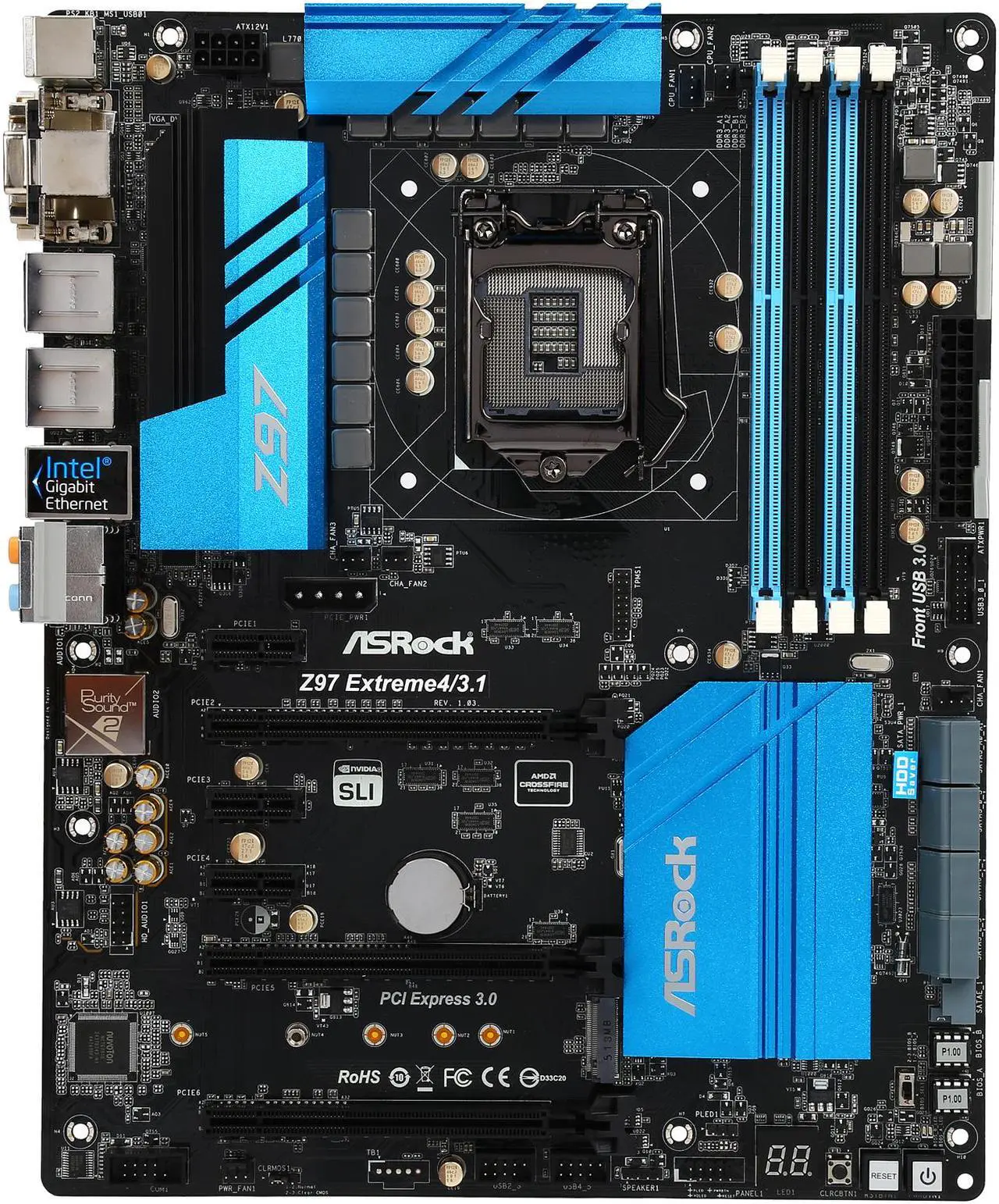

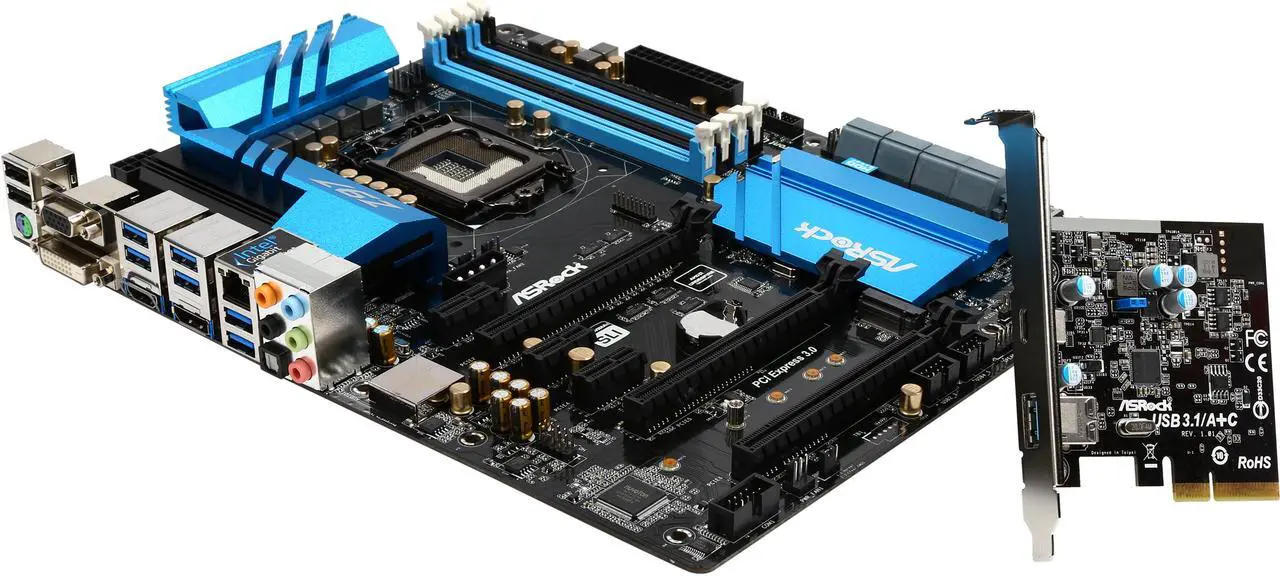

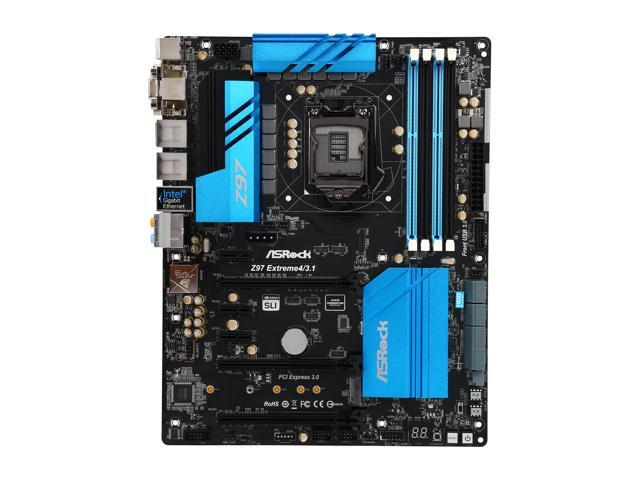

ASRock Z97 Extreme4/3.1 LGA 1150 Intel Z97 HDMI USB 3.1 USB 3.0 ATX Intel Motherboard
- Intel Z97
- Xeon / Core i7 / i5 / i3 / Pentium / Celeron (LGA1150)
- DDR3 3200+*(*OC)/ 2933*/ 2800*/ 2400*/ 2133*/ 1866*/ 1600/ 1333/ 1066
Specs
Reviews (10)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock Z97 Extreme4/3.1
| Brand | ASRock |
|---|---|
| Model | Z97 Extreme4/3.1 |
| CPU Socket Type | LGA 1150 |
|---|---|
| CPU Type | Xeon / Core i7 / i5 / i3 / Pentium / Celeron (LGA1150) |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel Z97 |
|---|
| Onboard Video Chipset | - Supports Intel HD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 4400/4600 - Pixel Shader 5.0, DirectX 11.1 - Max. shared memory 1792MB - Four graphics output options: D-Sub, DVI-D, HDMI and DisplayPort 1.2 - Supports Triple Monitor - Supports HDMI with max. resolution up to 4K x 2K (4096x2304) @ 24Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 24Hz or 4K x 2K (3840x2160) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP with DVI-D, HDMI and DisplayPort 1.2 Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI and DisplayPort 1.2 Ports *Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. **Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit. ***Intel InTru 3D is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 3200+*(*OC)/ 2933*/ 2800*/ 2400*/ 2133*/ 1866*/ 1600/ 1333/ 1066 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE5/PCIE6: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE5); triple at x8 (PCIE2) / x4 (PCIE5) / x4 (PCIE6) |
|---|---|
| PCI Express x1 | 3 x PCI Express 2.0 x1 Slots |
| Serial ATA (SATA) | 6 x SATA3 6.0 Gb/s Connectors by Intel Z97, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 13 and Intel Smart Response Technology), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology |
|---|---|
| SATA Express | 1 x SATA Express 10 Gb/s Connector (shared with SATA3_4, SATA3_5 and M.2 Socket)* *Support to be announced. The M.2 Socket, SATA3_4, SATA3_5 and SATA Express share lanes. If either one of them is in use, the others will be disabled. |
| M.2 | 1 x M.2_SSD (NGFF) Socket 3, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s) |
| Audio Chipset | Realtek ALC1150 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I218V |
|---|---|
| Max LAN Speed | 1Gbps |

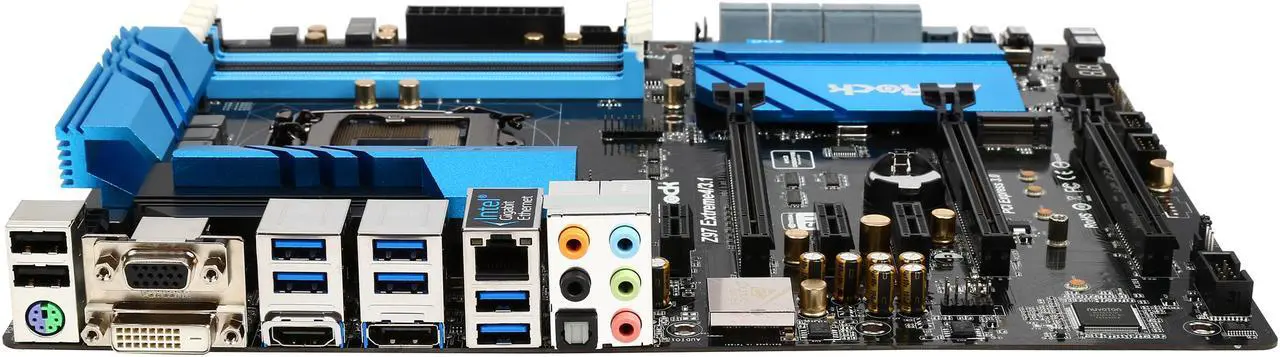

| PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|

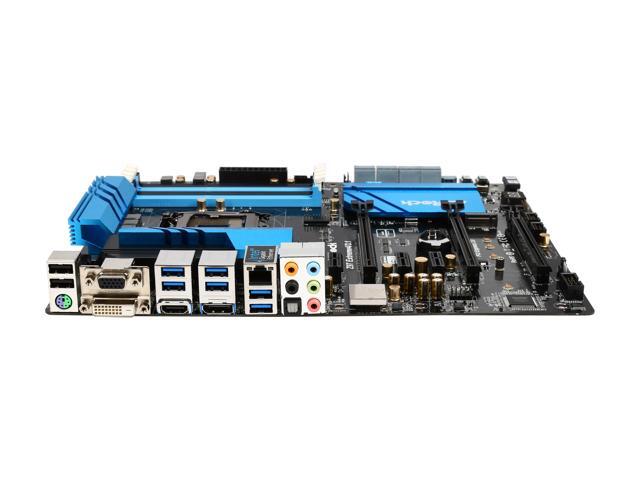

| Video Ports | 1 x D-Sub Port 1 x DVI-D Port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| DisplayPort | 1 x DisplayPort 1.2 |

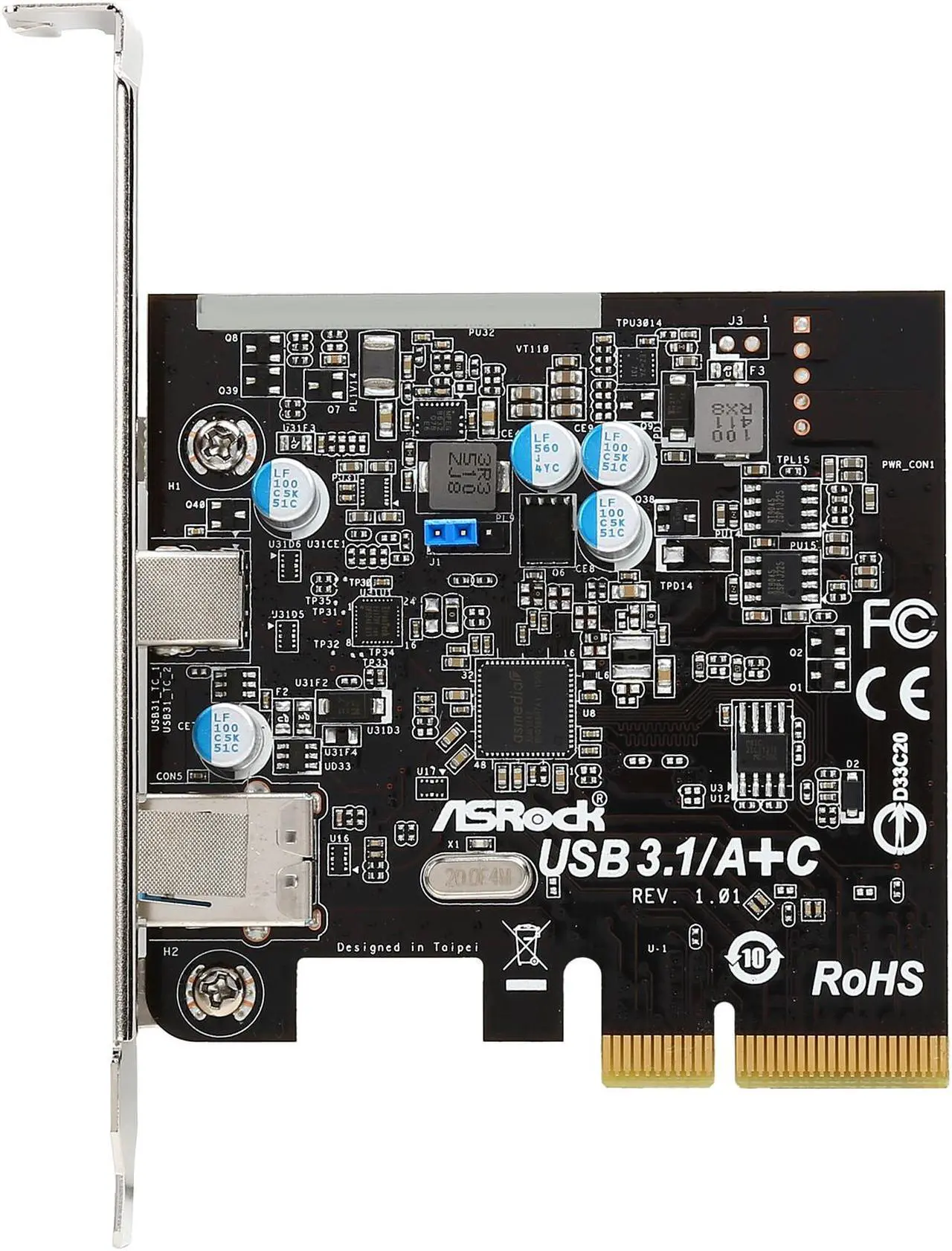

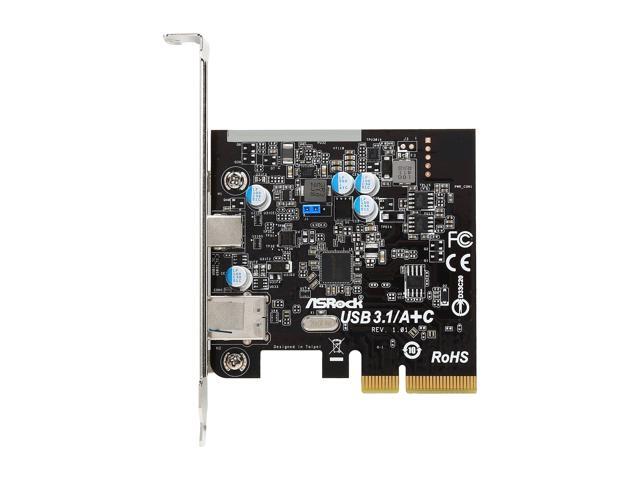

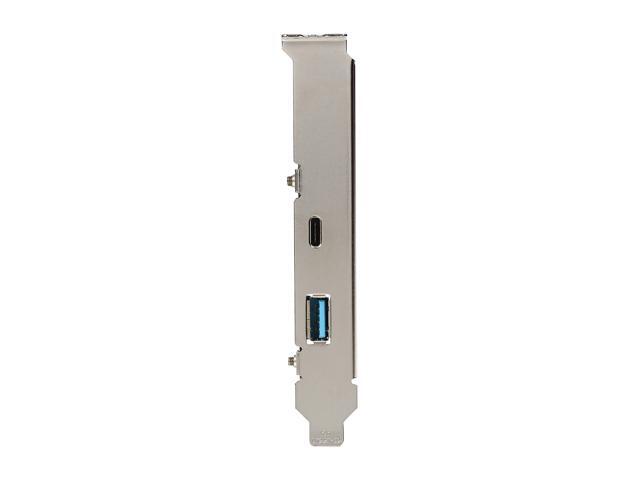

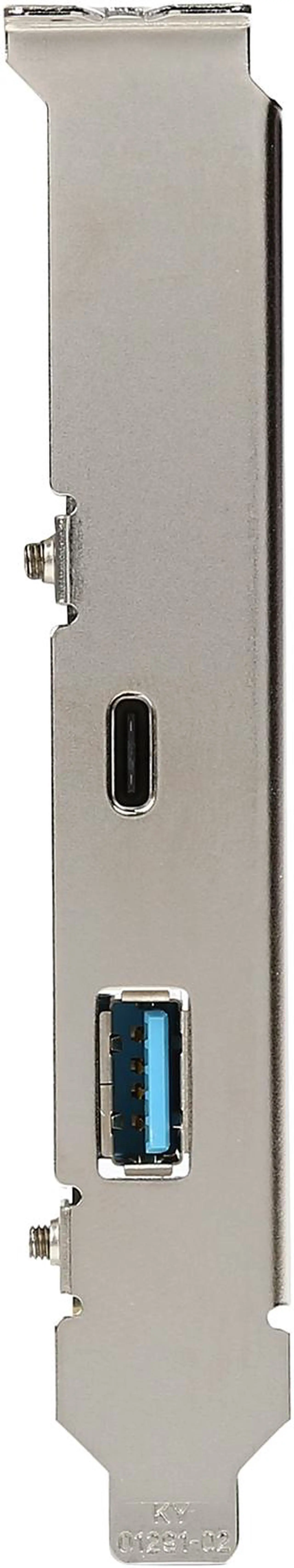

| USB 3.1 | ASRock USB 3.1/A+C: 1 x USB 3.1 Type-A Port (10 Gb/s) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB 3.1 Type-C Port (10 Gb/s) (Supports ESD Protection (ASRock Full Spike Protection)) |
| USB 3.0 | 2 x USB 3.0 Ports (ASMedia ASM1042AE) (Supports ESD Protection (ASRock Full Spike Protection)) 4 x USB 3.0 Ports (Intel Z97) (Supports ESD Protection (ASRock Full Spike Protection)) |
| USB 1.1/2.0 | 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) |
| S/PDIF Out | 1 x Optical |
| Audio Ports | HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
| Onboard USB | 2 x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB 3.0 Header (support 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) |
|---|---|
| Other Connectors | 1 x COM Port Header 1 x TPM Header 1 x Power LED Header 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin) 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin) 1 x Power Fan Connector (3-pin) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x HDD Saver Connector 1 x PCIe Power Connector 1 x Front Panel Audio Connector 1 x Dr. Debug with LED 1 x Power Switch with LED 1 x Reset Switch with LED 1 x BIOS Selection Switch |
| Form Factor | ATX |
|---|---|
| Power Pin | 24 Pin |
| Features | ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium Alloy Choke - Dual-Stack MOSFET (DSM) - NexFET MOSFET - Nichicon 12K Platinum Caps - Sapphire Black PCB Supports 5th Generation, New 4th and 4th Generation Intel Processors (Socket 1150) Digi Power, 12 Power Phase design Supports Dual Channel DDR3 3200+(OC) 3 PCIe 3.0 x16, 3 PCIe 2.0 x1 Supports AMD 3-Way CrossFireX and NVIDIA Quad SLI Graphics Output Options: D-Sub, DVI-D, HDMI, DisplayPort 1.2 7.1 CH HD Audio (Realtek ALC1150 Audio Codec), Supports Purity Sound 2 & DTS Connect Intel Gigabit LAN 1 SATA Express, 8 SATA3, 1 M.2 (Gen2 x2 & SATA3) 2 USB 3.1 10Gb/s (1 Type-A + 1 Type-C) (Supported by the bundled ASRock USB 3.1/A+C), 8 USB 3.0 (2 Front, 6 Rear), 6 USB 2.0 (4 Front, 2 Rear) 1 COM Port Header, 1 TPM Header Supports ASRock HDD Saver Technology, Full Spike Protection, APP Shop Unique Feature ASRock USB 3.1 - ASRock USB 3.1/A+C (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke) - Dual-Stack MOSFET (DSM) - NexFET MOSFET - Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors) - Sapphire Black PCB ASRock HDD Saver Technology ASRock Full Spike Protection ASRock APP Shop BIOS - 2 x 64Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) - Supports Secure Backup UEFI Technology - ACPI 1.1 Compliant wake up events - SMBIOS 2.3.1 Support - CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment |
|---|

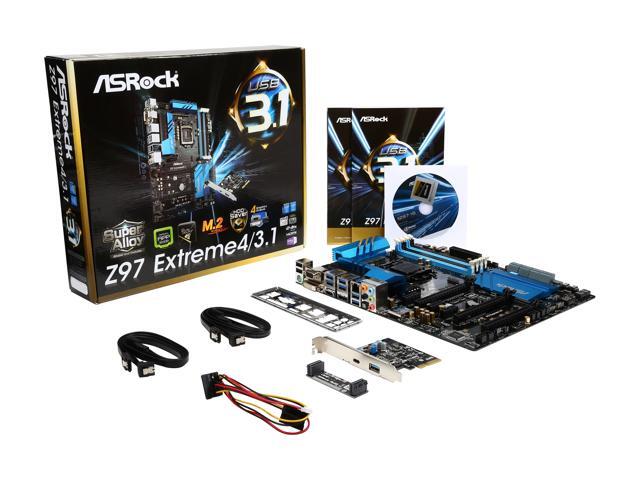

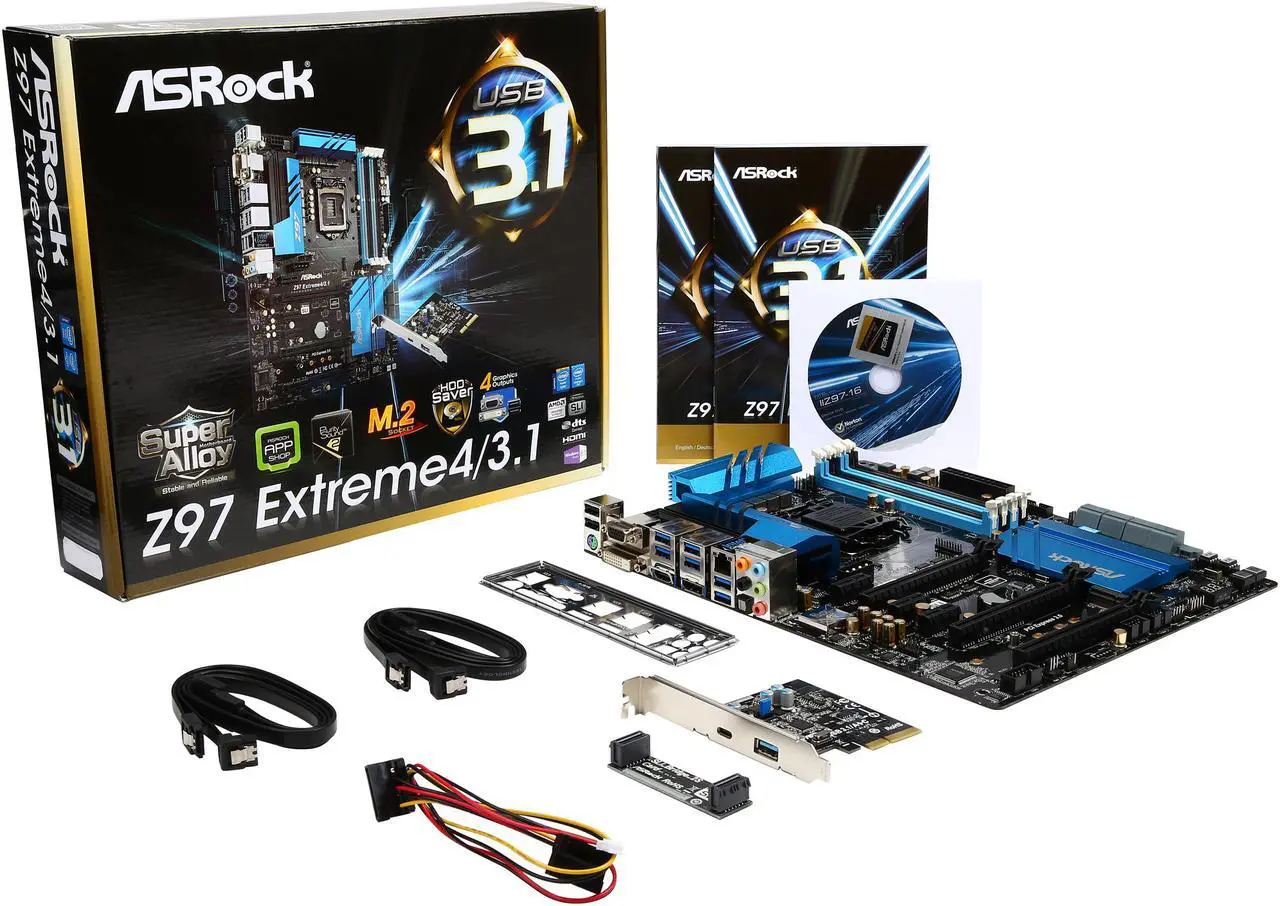

| Package Contents | Accessories - 1 x ASRock USB 3.1/A+C - 1 x ASRock SLI_Bridge_2S Card - Quick Installation Guide, Support CD, I/O Shield - 4 x SATA Data Cables - 1 x HDD Saver Cable - 1 x Screw for M.2_SSD (NGFF) Socket 3 |
|---|
| Date First Available | April 24, 2015 |
|---|
