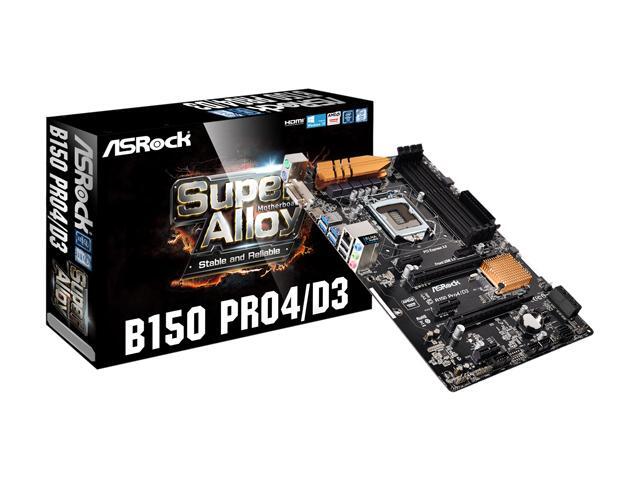

ASRock B150 PRO4/D3 LGA 1151 Intel B150 HDMI USB 3.0 ATX Intel Motherboard
- Intel B150
- Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
- DDR3/DDR3L 1866(OC)/ 1600/ 1333/ 1066
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock B150 PRO4/D3
| Brand | ASRock |
|---|---|
| Model | B150 PRO4/D3 |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Core i7 / i5 / i3 / Pentium / Celeron (LGA1151) |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel B150 |
|---|
| Onboard Video Chipset | * Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. - Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 510/530 - Pixel Shader 5.0, DirectX 12 - Max. shared memory 1792MB - Dual graphics output: Support DVI-D and HDMI ports by independent display controllers - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports Accelerated Media Codecs: HEVC, VP8, VP9 - Supports HDCP with DVI-D and HDMI Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3/DDR3L 1866(OC)/ 1600/ 1333/ 1066 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)* * Supports NVMe SSD as boot disks |
|---|---|
| PCI Express x1 | 3 x PCI Express 3.0 x1 Slots (Flexible PCIe) |
| Serial ATA (SATA) | 6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug |
|---|
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8111GR |
|---|---|
| Max LAN Speed | 1Gbps |

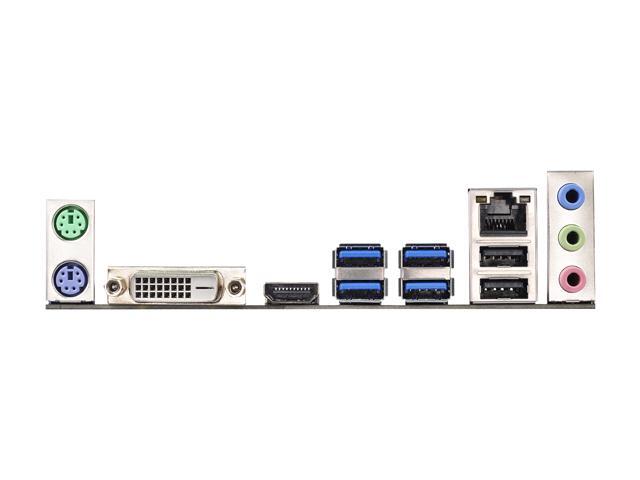

| Back I/O Ports | 1 x HDMI / 2 x PS/2 / 2 x USB 2.0/1.1 / 4 x USB 3.0 |
|---|---|
| PS/2 | 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port |
| Video Ports | 1 x DVI-D |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| USB 3.0 | 4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) |
| USB 1.1/2.0 | 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) |
| Audio Ports | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) |
|---|---|
| Other Connectors | 1 x COM Port Header 1 x TPM Header 1 x Power LED and Speaker Header 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed Control) 1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector 1 x Front Panel Audio Connector |
| Form Factor | ATX |
|---|---|
| Power Pin | 24 Pin |
| Features | Unique Feature: ASRock Super Alloy - High Density Glass Fabric PCB ASRock Full Spike Protection ASRock Live Update & APP Shop BIOS Feature: - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 5.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA Voltage Multi-adjustment Support CD: - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Software - ASRock Disk Health Report - ASRock USB Key - ASRock APP Charger - ASRock XFast LAN - ASRock XFast RAM - ASRock Fast Boot (Fast Boot, Restart to UEFI) * These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock OMG (Online Management Guard) - ASRock UEFI Tech Service - ASRock Easy Driver Installer Hardware Monitor: - CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore OS: - Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit * To install Windows 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions. * For the updated Windows 10 driver, please visit ASRock's website for details: http://www.asrock.com Certifications: - FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required) |
|---|
| Package Contents | Accessories - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables |
|---|
| First Listed on Newegg | October 21, 2015 |
|---|
