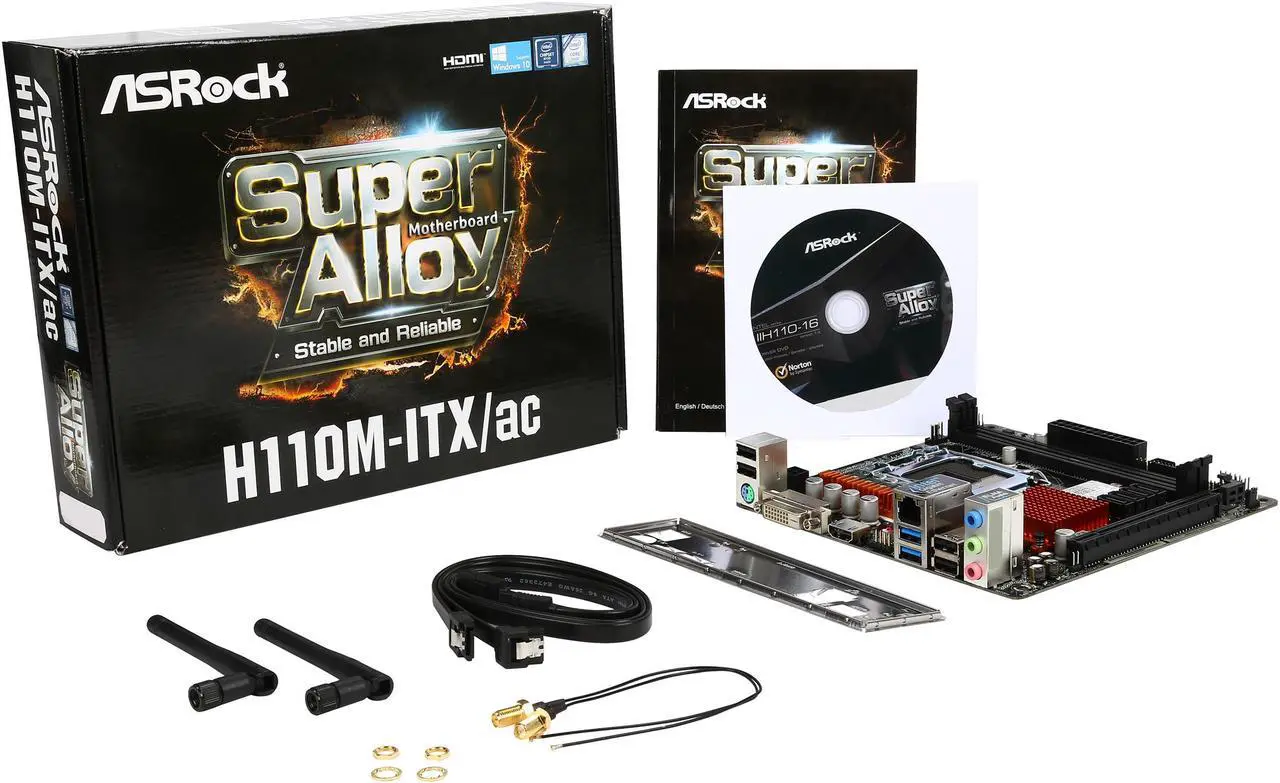

Images from RETAIL item, box contents may vary.

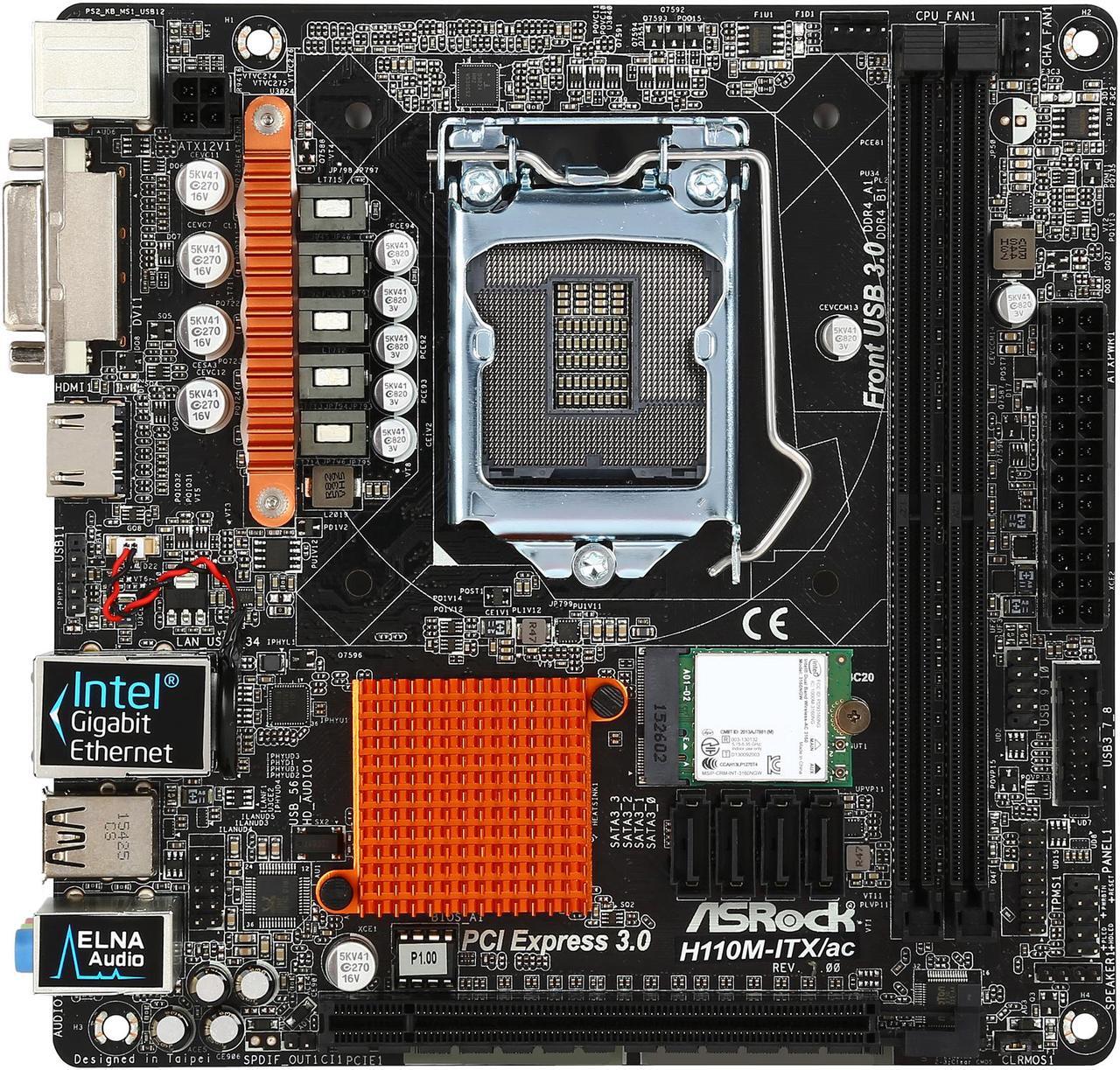

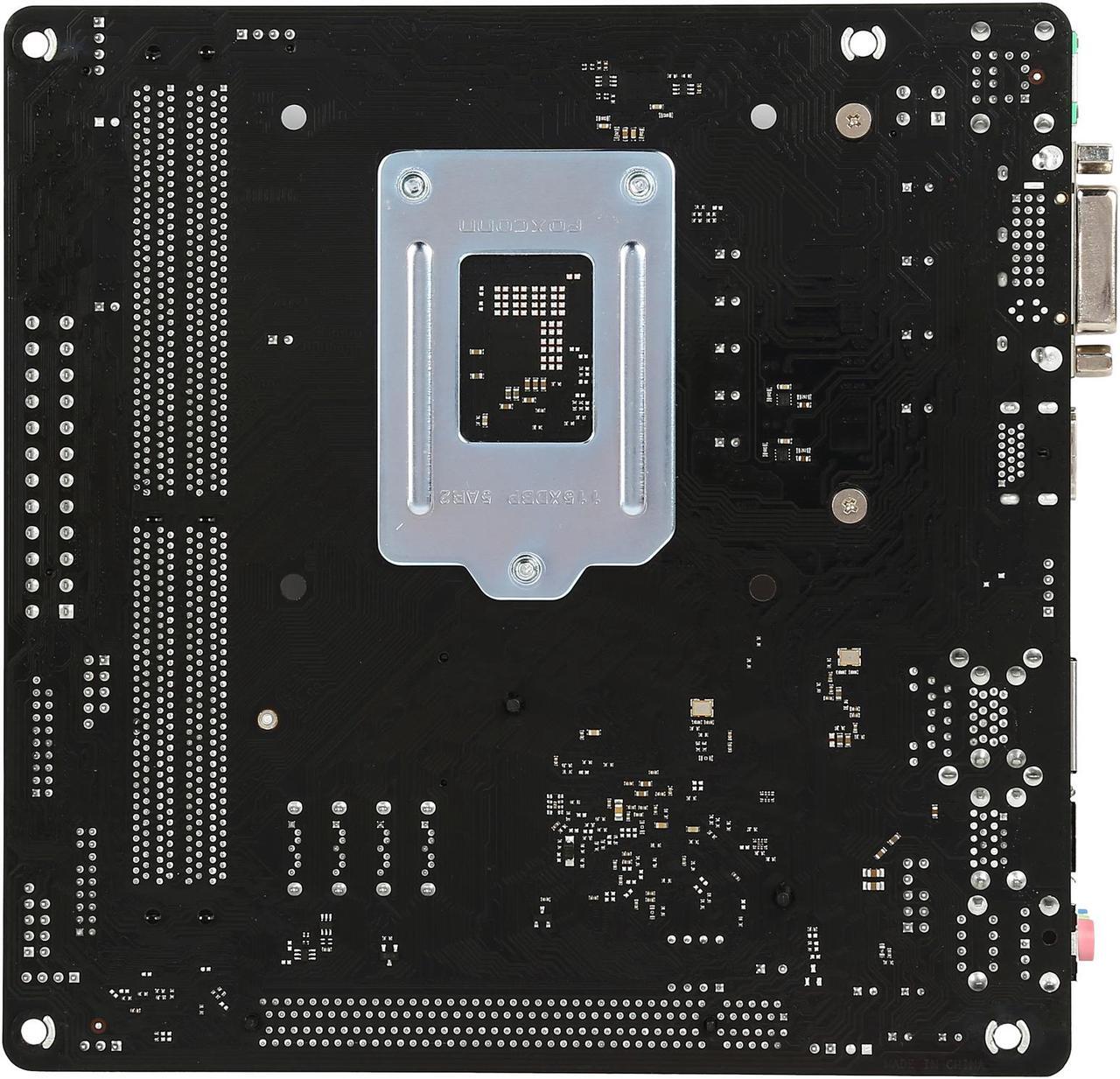

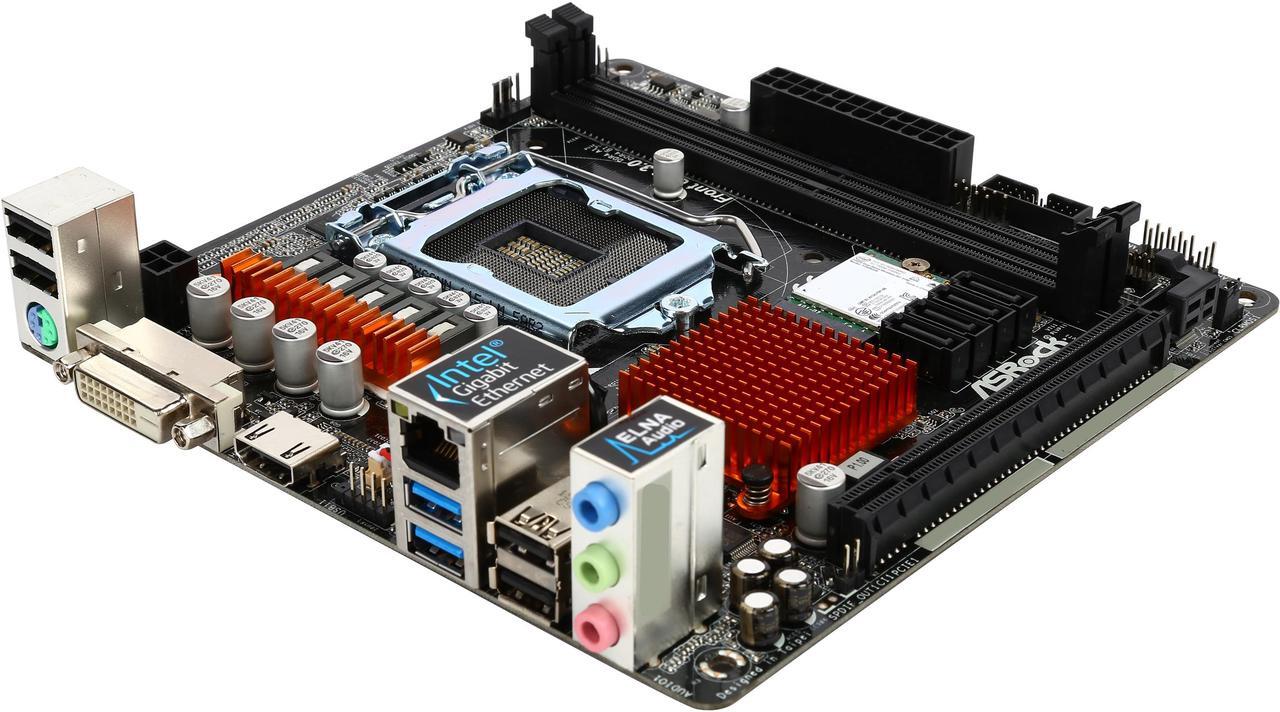

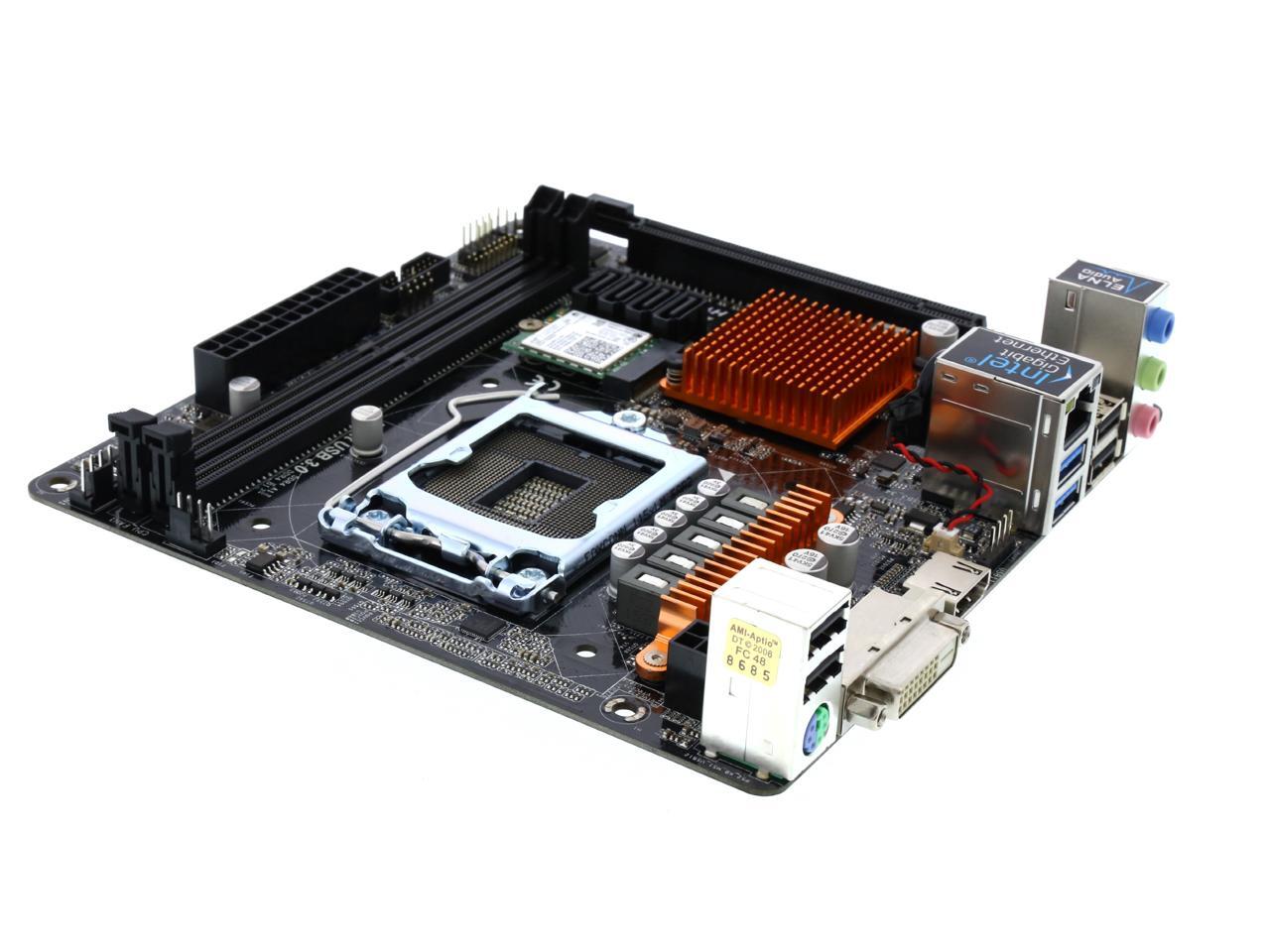

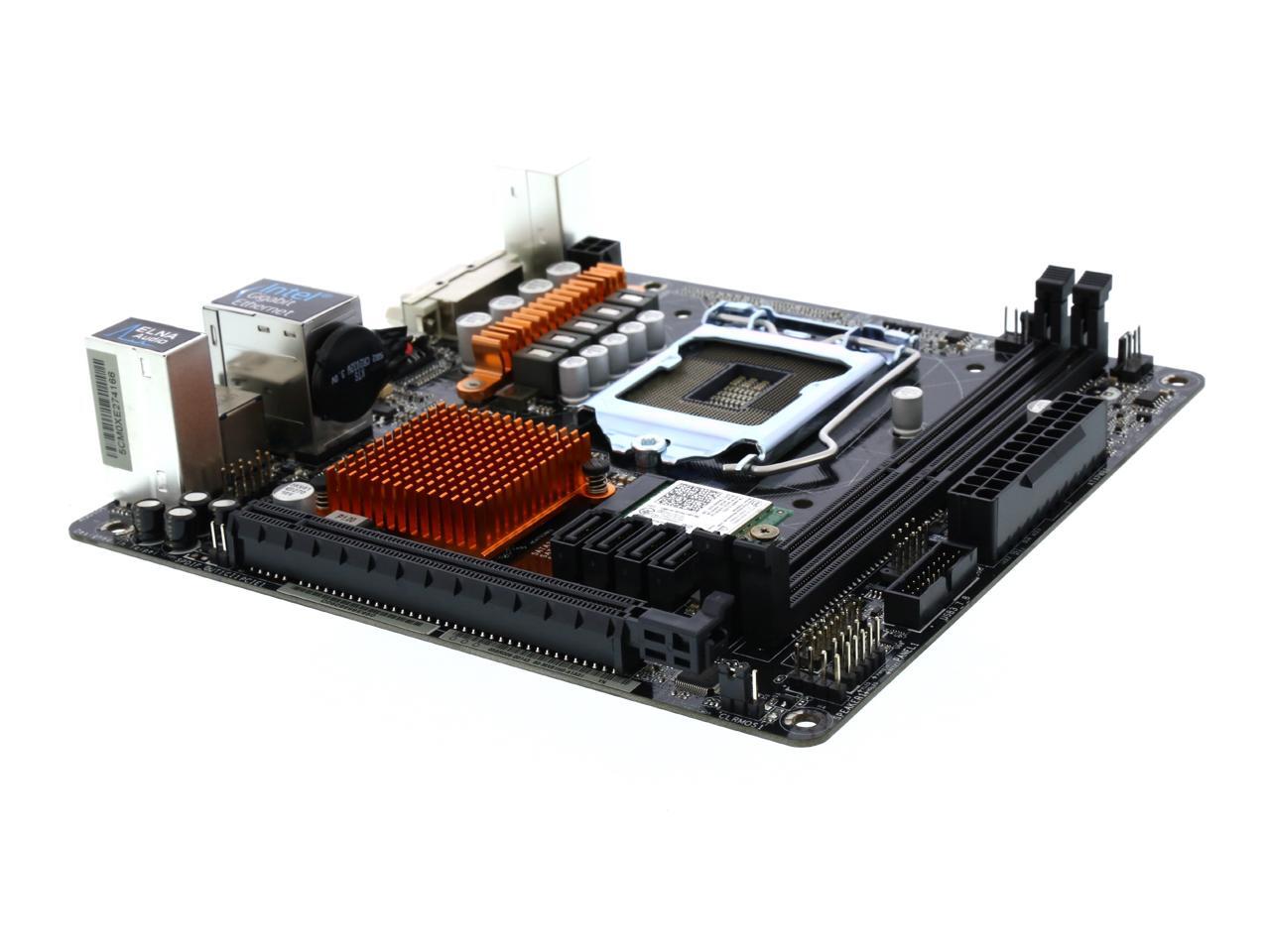

ASRock H110M-ITX/ac LGA 1151 Intel H110 HDMI SATA 6Gb/s USB 3.1 Mini ITX Intel Motherboard
OPEN BOX Product Type
- Intel H110
- Supports 7th and 6th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron Processors (Socket 1151)
- * Not Compatible with Intel 8th Gen CPUs
- DDR4 2133
Specs
Learn more about the ASRock H110M-ITX/ac
| Brand | ASRock |
|---|---|
| Model | H110M-ITX/ac |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Supports 7th and 6th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron Processors (Socket 1151) * Not Compatible with Intel 8th Gen CPUs |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel H110 |
|---|
| Onboard Video Chipset | Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 510/530/630 Pixel Shader 5.0, DirectX 12 Max. shared memory 1024MB* Dual graphics output: Support DVI-D and HDMI ports by independent display controllers Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports Accelerated Media Codecs: HEVC, VP8, VP9 Supports HDCP with DVI-D and HDMI Ports Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports *The size of maximum shared memory may vary from different operating systems. **Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. ***Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit. ****Intel InTru 3D is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit. |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 2133 |
| Maximum Memory Supported | 32GB *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode) * *Supports NVMe SSD as boot disks |
|---|---|
| Other Slots | 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module** **The M.2 socket does not support SATA M.2 SSDs. |
| SATA 6Gb/s | 4 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot Plug |
|---|
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 7.1 Channels *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| LAN Chipset | Intel I219-V |
|---|---|
| Max LAN Speed | 1Gbps |
| Wireless LAN | Supports IEEE 802.11 a/b/g/n/ac Supports Dual-Band (2.4/5 GHz) Supports high speed wireless connections up to 433 Mbps |
| Bluetooth | Bluetooth 4.0 / 3.0 + High speed class II |

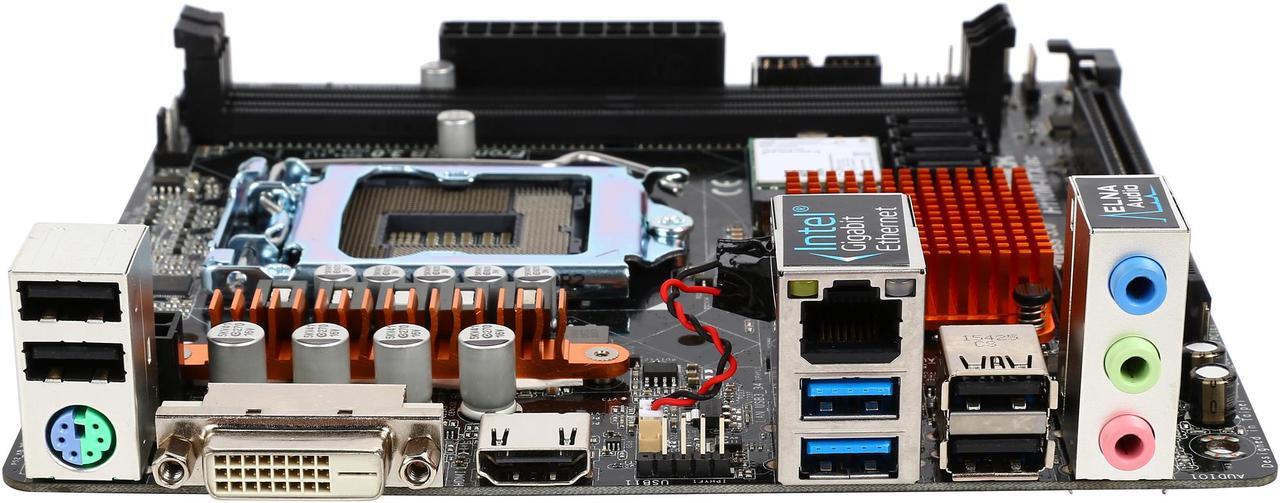

| Back I/O Ports | 1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.1 Gen 2 Type-A / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x DVI-D Port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| USB 3.1 | 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection)) |
| USB 1.1/2.0 | 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) |
| Audio Ports | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Onboard USB | 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))* *USB3_7_8 is shared with USB_9_10. |
|---|---|
| Other Connectors | 1 x TPM Header 1 x Chassis Intrusion Header 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)* 1 x Front Panel Audio Connector *All CPU/Chassis Fan Connectors can auto detect if 3-pin or 4-pin fan is in use. *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. |
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 1 x 24-pin ATX Power Connector 1 x 4-pin 12V Power Connector |
| Features | Unique Feature: ASRock Super Alloy - Premium 60A Power Choke - Dual-Stack MOSFET (DSM) - High Density Glass Fabric PCB ASRock 802.11 ac Wi-Fi ASRock Full Spike Protection ASRock Live Update & APP Shop BIOS: - 64MB AMI UEFI Legal BIOS with multilingual GUI support - ACPI 5.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, GT_CPU, DRAM, PCH 1.0V, VCCSA Voltage Multi-adjustment Software and BIOS: Software - ASRock Disk Health Report - ASRock USB Key - ASRock APP Charger - ASRock XFast LAN - ASRock XFast RAM - ASRock Fast Boot (Fast Boot, Restart to UEFI) UEFI - ASRock EZ Mode - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock OMG (Online Management Guard) - ASRock UEFI Tech Service - ASRock Easy Driver Installer *These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD: - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Hardware Monitor: - CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore OS: - Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit* *To install Windows 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please see ASRock's online tutorial or check User Manual for more detailed instructions. *For the updated Windows 10 driver, please visit ASRock's website for details. Certifications: - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
|---|
| Date First Available | September 15, 2018 |
|---|
