ASRock H110M-STX LGA 1151 Intel H110 HDMI SATA 6Gb/s USB 3.0 Mini STX Motherboards - Intel

OUT OF STOCK.
  • Intel H110
  • Core i7 / i5 / i3 (LGA1151)
  • DDR4 2133
Overview
Specs
Reviews

H110M-STX

  • Supports 7th and 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Supports Socket 1151 CPU up to TDP 65W)
  • Supports Dual Channel DDR4 SO-DIMM 2133
  • Graphics output options: D-Sub, HDMI, DisplayPort
  • ALC283 Audio Codec
  • 2 SATA3, 1 M.2 (PCIe Gen3 x4)
  • 3 USB 3.0 (Type-A & Type-C from front I/O; 1 from rear I/O) ; 3 USB 2.0 (2 from onboard header; 1 from rear I/O)
  • Intel® Gigabit LAN
  • 1 M.2 (Key E for WiFi + BT module)
  • Supported Chassis Models: SilverStone VT01S, Akasa A-STX04-A1B, Akasa A-STX04-M1B

New Mini-STX Form Factor


Supports 5x5 Building Block ChassisThe world's first mini-STX building block for choosing your own Intel® 6th gen CPU and standard Intel® box fan.

H110M-STX The soon-to-be-launched mini-STX chassis list.
Brand Supported Chassis Models
SilverStone VT01S
Akasa A-STX04-A1B
A-STX04-M1B
*Support to be announced.
H110M-STX

Two SATA3 Headers

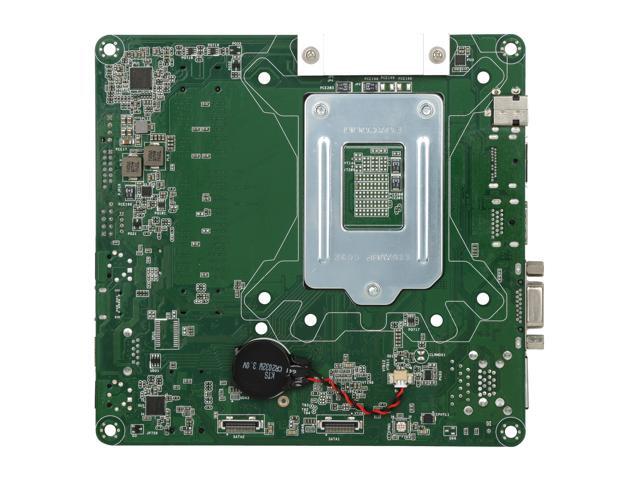

There are two SATA3 headers on the opposite side of the motherboard, which supports 2.5" HDDs/SSDs.

Three Graphics Outputs


This motherboard supports all three kinds of graphics D-Sub, HDMI and DP.
* Supports up to 2 displays simultaneously

USB 3.0 Type-C


A Type-C USB 3.0 connector for fast charging and delivering up to 5Gbps data transfer rates. A reversible design that ts the connector either way.

Two M.2 Slots


An M.2 slot for supporting a Wi-Fi + BT module, and a second one for supporting PCIe Gen3 x4 M.2 SSDs which is directly powered by the CPU, thus boasting 7% better performance. * SATA type M.2 module is not supported.

DC Jack


Compatible with 19V power adapters. This unique design allows this motherboard to t in compact chassis and saves more power consumption.
* It is recommended to use 120W power adaptor. 90W power adapter only supports CPU with a maximum of 51W TDP.

Supports DDR4 SO-DIMMs


Supports the latest DDR4 SO-DIMM memory modules and most extreme memory performance!

Intel® LAN


Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Full Spike Protection


Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

H110M-STX
H110M-STX USB Key

In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!


H110M-STX Restart to UEFI

Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.


H110M-STX ASRock OMG (Online Management Guard)

Limit and control your children's time spent on the internet. ASRock OMG (Online Management Guard) technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users.


H110M-STX UEFI Tech Service

Contact ASRock Tech Service by sending a support request from the UEFI setup utility if you are having trouble with your personal computer. Users may try to choose the category of the issue they have encountered, describe the problem in detail, and then attach an optional picture or log file for our technical support team.


H110M-STX Easy Driver Installer

For users that don't have an optical disk drive to install the drivers from our support CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver to your system via an USB storage device, then downloads and installs the other required drivers automatically through the internet. Completely no CD or optical disk drive required!


H110M-STX H110M-STX

ASRock XFast RAM fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. It shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.


H110M-STX H110M-STX

When Internet Explorer loads very slowly for no clear reason, it's usually due to inefficient management. ASRock is rolling out super efficient web management in the motherboard industry. XFast LAN is a convenient tool that controls internet related applications easily and efficiently. Creating a perfect Internet environment, all you need is a smart manager. ASRock XFast LAN allows you to enjoy more speed, easier multitasking, enhanced multimedia experience, and more – all without weighing you down.


H110M-STX

This motherboard supports HDMI™ (High-Definition Multimedia Interface) which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMI™ interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds.

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
