ASRock B360M-ITX/ac LGA 1151 (300 Series) Intel B360 HDMI SATA 6Gb/s USB 3.1 Mini ITX Intel Motherboard

Ships from United States.

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • Intel B360
  • Supports 8th Generation Intel Core Processors (Socket 1151)
  • DDR4 2666/ 2400/ 2133

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews
B360M-ITX/ac

B360M-ITX/ac

Power, Stability, and Connectivity

Based on Intel B360 chipset, the ASRock B360M-ITX/ac Mini ITX motherboard lets you build a small yet powerful PC that is ready for VR. It supports 9th and 8th Gen Intel Core processors, making even the most demanding of tasks feel a piece of cake. The combination of super alloy VRM and digital phase provides efficient and stable vcore voltage to the motherboard and CPU. Stability will be guaranteed at extreme frequencies. Big data won’t be a problem anymore. The M.2 PCI-E Gen3 x4 SSD slot, Intel Gigabit LAN and Intel 802.11ac WiFi + Bluetooth 4.2 eliminate data bottlenecks in app loading, teaming up in multi-player mode and data sharing.

M.2

Ultra M.2 32 Gb/s (PCI-E Gen3 x4 & SATA3)

The PCI-E Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCI-E Gen3 x4 SSDs.

Intel LAN

Intel LAN

Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Wi-Fi

Dual Band 802.11ac Wi-Fi

No one has time for weak Wi-Fi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G Wi-Fi) module which supports wireless networks and Bluetooth v4.2.

Supper Alloy Motherboard

Power Choke

Premium 60A Power Choke

Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

DSM

Dual-Stack MOSFET (DSM)

Dual-Stack MOSFET (DSM) is another innovative MOSFETs design by ASRock. The silicon die area is increased by stacking two dies into one MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, DSM with larger die area provides extreme lower Rds(on) 1.2 mO, so the power supply for the CPU Vcore is more efficient.

Sapphire PCB

Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

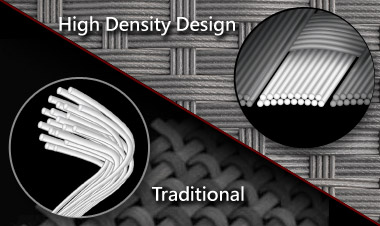

Fabric PCB

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Triple Monitors

Triple Monitors

Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear I/O to connect monitors and use them simultaneously without installing another graphics card.

PWM

Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

ELNA

ELNA Audio Caps

Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

A-Tuning

A-Tuning

A-Tuning is ASRock's multi-purpose software suite with a new interface, more new features and improved utilities.

Full Spike Protection

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, and the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

Shop

Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.


Learn more about the ASRock B360M-ITX/ac

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
Ownership: 1 month to 1 year
Verified Owner
5/ 5
ALMOST a year in and no issues

Pros: Booted properly and the ASRock site is easy to navigate for drivers.

Cons: Definitely a little pricey based on what you actually get but that seems to be the case with most ITX boards.

Overall Review: If you have the chance to grab it on sale got for it, otherwise it at least stands the width of time from what I have seen and used.

Did you find this review helpful?
Ownership: 1 month to 1 year
Verified Owner
1/ 5
Was good until it died after 6 months of light use

Pros: Worked good, easy setup. Wifi works great.

Cons: Died after 6 months use, no response from ASRock tech support.

Overall Review: I have been building computers since 1991, first time I tried ASRock mother board, and first time I have ever had a mother board die. Will never buy again. Buyer beware

0 out of 6 people found this review helpful. Did you?
Manufacturer Response:
Dear Phillip,

We sincerely apologize for any inconvenience this may have caused you.
Please trouble shoot the mainboard whether the issue is resolved.
• Unplug the ATX power.
• Clear the CMOS.
• Test with single memory module, switching another memory if problem still persist..

If you have any technical support inquiry, please contact us at http://event.asrock.com/tsd.asp
We will assist you shortly.

Thank you

ASRock Support
Tech Support Email: http://event.asrock.com/tsd.asp
Ownership: 1 week to 1 month
Verified Owner
5/ 5
No problems!

Pros: +Booted up first try
+Nice bios interface
+Overclock worked and was stable (tested for 1 day)
+looks nice in a windowed case

Cons: Not a negative so much but be careful with the USB 3 header. I used a low profile be quiet CPU cooler and it didn't work easily with the case USB header.

Overall Review: The manual is meh and there is very little silk screen to label case headers.

Only 2 case fan headers (it's advertised and a mini so that's ok)

Been going strong for a few weeks. All said, worth the 90 I paid. Would definitely buy again.

1 out of 1 people found this review helpful. Did you?
5/ 5
Great Price for a Basic Motherboard for Coffee Lake!

Pros: - price with rebate was $110 for a basic coffee lake mini-ITX MB.
- have no problems so far

Cons: - none

2 out of 2 people found this review helpful. Did you?
Ownership: 1 month to 1 year
Verified Owner
5/ 5
Works as expected

Pros: No problems with any features. Very good so far

Cons: None

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
3/ 5
A solid motherboard overall

Pros: - no bulky vrm heatsink (important when fitting into a small case)
- came with a 90deg SATA cable

Cons: - even before mounting the CPU cooler the board already warp from the CPU retention bracket pressure
- mail in rebate must be submitted within 10 days of the invoice date (shipping for me alone took 10 days :()
- CPU EPS12v connector is hard to reach if you have a non stock cooler

0 out of 2 people found this review helpful. Did you?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Affordable not overclocked mobo

Pros: Affordable. Fast wifi (reached 300/300). Cool fan customize features in the bios.

Cons: Stock bios settings limit the power to 65 watt. For the i7-8700 it limited performance since this CPU can reach > 100 watt. I increased power to 85 watt (not more cause the VRM Rad was getting too hot for me). Total power will not be an issue with the i5-8400.

Overall Review: Apart from the issue in the cons section, I would recommend this mobo. Bought this for a mini itx build for my son 2 weeks ago with a Raijintek Metis plus and a short GTX 1060 6GB. This thing flies! And it is quiet thanks to the Criorig H7.


Works fine. I would recommend this mobo for an not overclocked mini itx build.

5 out of 6 people found this review helpful. Did you?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Works with my i3 8100, has everything I need

Pros: -Price: Lowest for LGA1151 (300 Series) in ITX as of April 2018.
-Has 3 different kinds of display ports
-USB 3.1 Gen 2, some other ASRock boards only have Gen 1. I'm not using at the moment though
- Nice dark color
-Fan control for case fans
-Bluetooth

Cons: - Price is a little high for cheaper chipset on 300 series

8 out of 8 people found this review helpful. Did you?
