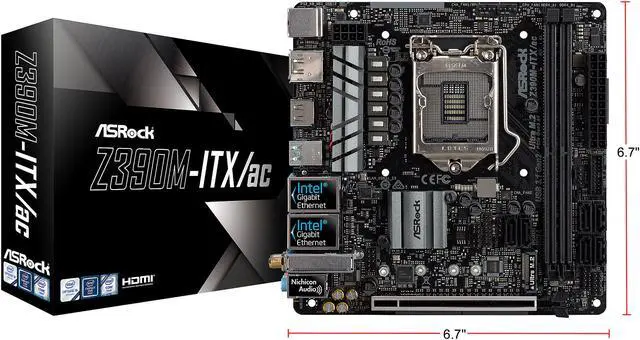

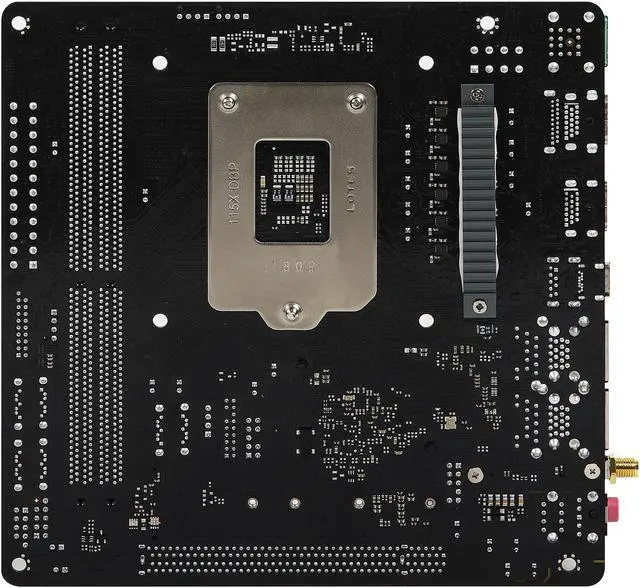

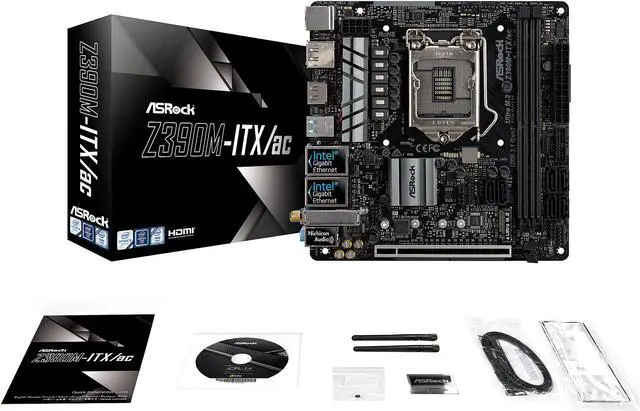

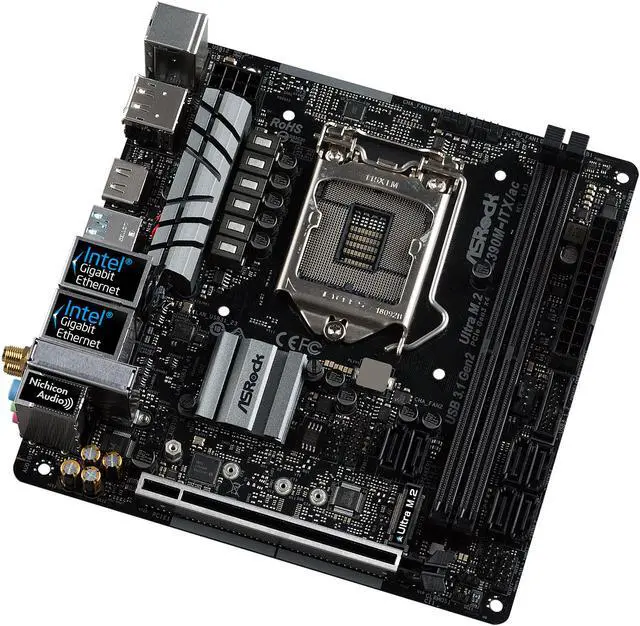

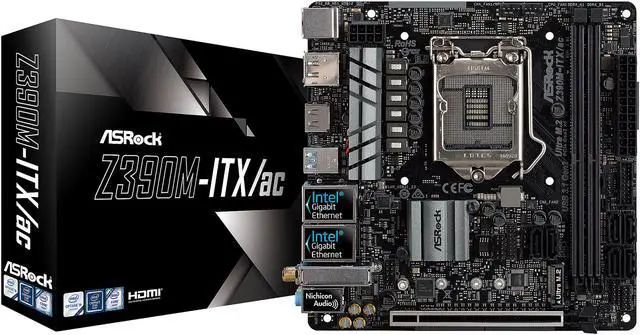

ASRock Z390M-ITX/ac LGA 1151 (300 Series) Intel Z390 HDMI SATA 6Gb/s USB 3.1 Mini ITX Intel Motherboard

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • Intel Z390
  • Supports 9th and 8th Gen Intel Core processors (Socket 1151)
  • On board LAN support Dual 10/100/1000Mbps
  • DDR4 4000+(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews
B450 B450
Z390M-ITX/ac
Fast Track Everything

ASRock Z390M-ITX/ac is a compact motherboard with no data bottlenecks. Wired networking bandwidth can double via Teaming function. Wireless networking will comply with the fast speed of 802.11ac standard when connected with compatible routers. Intel Optane Memory ready, it allows you to access frequently used apps in the blink of an eye. As a super alloy motherboard with advanced components, interruption-free data flow will be guaranteed from day one to the last.

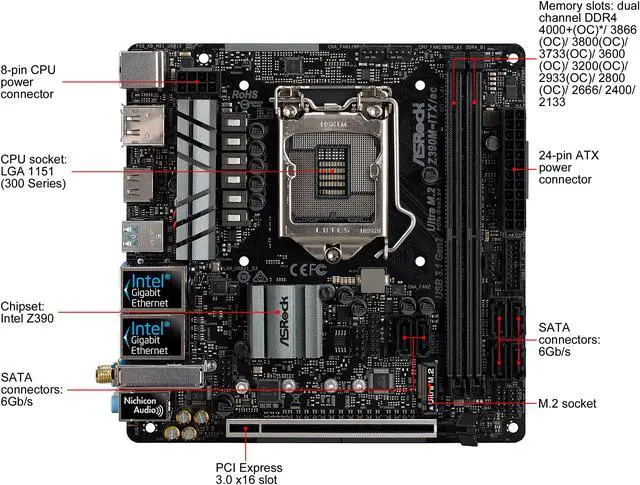

  • Supports 9th and 8th Gen Intel Core™ processors (Socket 1151)
  • Supports DDR4 4000MHz+ (OC)
  • 1 PCIe 3.0 x16

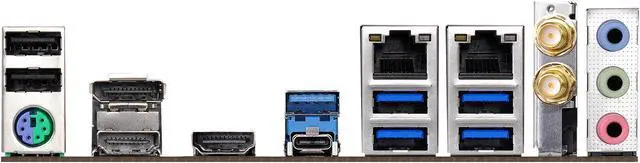

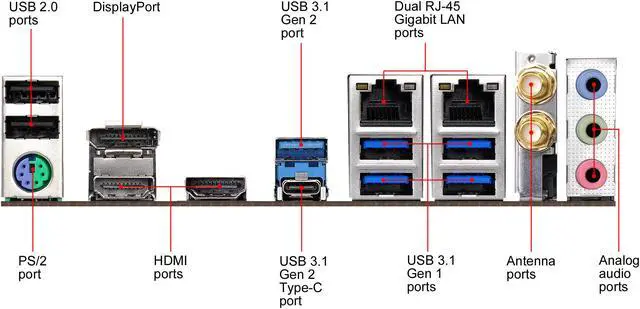

  • Graphics Output Options: 2 x HDMI, DisplayPort
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), Nichicon Fine Gold Series Audio Caps
  • 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 6 USB 3.1 Gen2 10Gb/s (5 Rear Type-A, 1 Rear Type-C)
  • 2 USB 3.1 Gen1 (2 Front)
  • Dual Intel Gigabit LAN

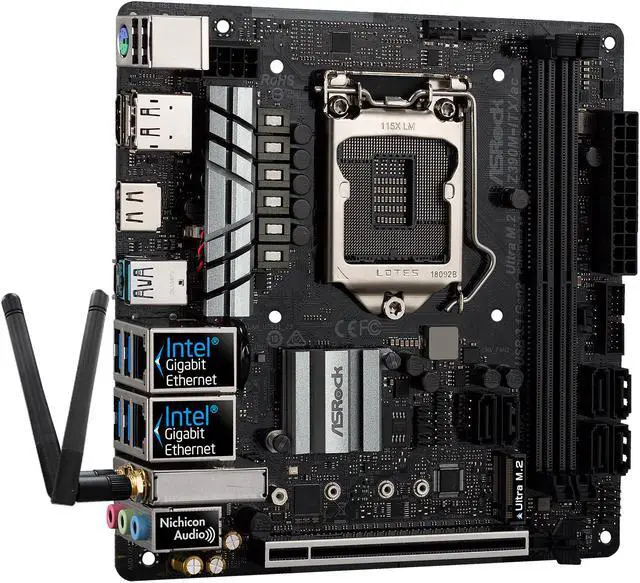

  • Intel 802.11ac WiFi + BT 4.2
B450
Dual Intel® LAN

Users are able to connect two LAN cables to this motherboard's rear I/O. Dual LAN with Teaming function enabled on this motherboard allows two single connections to act as one single connection for twice the transmission bandwidth, making data transmission more effective.

B450
Dual Band 802.11ac WiFi

No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.

B450
Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock's U.2 Kit for installing some of the world's fastest U.2 PCIe Gen3 x4 SSDs.

B450
Intel Optane Memory Ready

Supports Intel Optane memory technology and Intel Optane storage technology that redefines a new standard of high performance and responsiveness.

B450
Premium 60A Power Choke
B450

Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Nichicon 12K Black Caps
B450

Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

Sapphire Black PCB
B450

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
B450

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

B450
Triple Monitor

Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.

B450
3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.

B450
A-Tuning

A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.

B450
Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

B450
Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.


Learn more about the ASRock Z390M-ITX/ac

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details
  • Return Policies
    • Return for refund within: Non-refundable
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy.
Ownership: 1 month to 1 year
Verified Owner
5/ 5
Good budget OC board

Pros: Comprehensive and intuitive BIOS
Lots of features for the price.
Capable of a decent I7 overclock if you spend the time to find the lowest stable voltage settings.
Built in AC wireless.

Cons: BIOS caps turbo boost to 130w/140w
Default voltage settings are rather high, especially given the limited VRM capacity.

Overall Review: Good ITX board in general, great at the price point.

It can handle a mild overclock on an i7-9700k. The BIOS only allows up to 140w Turbo Short Max Power, and 130w Long Max Power. It's capable of stable overclocks, but will throttle often with i7 CPUs as it bumps into the wattage limit. This is exacerbated by the default voltage profiles, which are overly aggressive. Lower TDP i3 and i5 chips would probably work more eaily within the VRM limits.

With my specific samples, it's managing 5.0 on 4 cores and 4.8 all-core on non-AVX loads, and 4.7 all-core AVX without throttling. Higher values were stable, but throttle fairly frequently due to the wattage caps.

Did you find this review helpful?
Ownership: 1 month to 1 year
Verified Owner
5/ 5
My favorite go-to board

Pros: Small but powerful
Two Ehernet ports
Built-in ac wirelless
Highly expandable
Excellent BIOS
No electrolytic capacitors except in the audio amplifier.
I believe motherboard reliability increases as they become compacter and computer chip integration becomes more dense which decreases the number of parts and solder junctions. I throttled the 120mm case fan way down which increases fan longevity. The case remains cool with the low power 65W CPU.

Cons: None if your goal is to build a small put powerful computer.

Overall Review: I'm a system builder who formerly used only mATX boards but later realized that this Mini-ITX board provided all the power I needed. I've built about 10 computers using the Asrock Mini-ITX format (Z270, Z370, Z390) and couldn't be happier:

iStarUSA S-35 Case

Coboc 5.25FP-2U3-A Motherboard USB 20pin to 2 Ports USB 3.0 5.25 inch Optical Drive Bay Front Panel (tight fit)

StarTech BRACKETFDBK 3.5in Hard Drive to 5.25in Front Bay Bracket Adapter

Kingwin KF-251-BK Dual Bay 2.5 in. Internal Sata, Tray-Less, Hot Swap Rack With Key Lock

120mm Computer Case Cooling Fan LP4 Adapter Blue LED Silent Rosewill

Intel Core i7-8700 CPU (65 Watt generates very little heat - good for longevity)

ASUS DRW-24B1ST/BLK/B/AS Black SATA 24X DVD Burner - Bulk - OEM

G.SKILL TridentZ Series 32GB (2 x 16GB) 288-Pin DDR4 SDRAM DDR4 3200 Model F4-3200C16D-32GTZKW

(2) Samsung 860 Pro Solid State Drives

WD Red 4TB NAS Hard Disk Drive - 5400 RPM Class SATA 6Gb/s 64MB Cache 3.5 Inch - WD40EFRX

Seasonic SSP-300SUG Active PFC, 300W Flex/Mini 1U Power Supply

Did you find this review helpful?
Ownership: 1 month to 1 year
Verified Owner
5/ 5
Great for the price!

Pros: The all black design has been much appreciated and thus far I haven't experienced any issues with the drivers, heat dissipation, or ports not working.

Cons: None

Overall Review: ITX pc's can be a hassle to build but this MOBO made it a little easier.

Did you find this review helpful?
Ownership: 1 month to 1 year
Verified Owner
4/ 5
Impressive Features inside tiny board

Pros: -Can handle lots of mid-grade and top tier CPUs
-CPU socket is very well placed and oriented
-I/O hardware is pleasantly minimalist without sacrificing versatility. ESD/bump guards are very well designed
-Interesting multi-use m.2 slot. Very well placed despite lack of room once a PCIe card is installed. Easy enough to access even if you have a full size or larger graphics card
-Reinforced PCIe slot is a big plus (old ASUS Z97 had one slot go bad from graphics card weight)
-Nice looking and functional heat sinks installed on most heat generating areas of the board
-UEFI setup/maintenance is quite user friendly

Cons: -Manual leaves a lot to be desired in regards to helping builder hookup various case cables
-Connections for SATA drives and other internal components are awkwardly spread out, some are hard to reach even with minimal obstructions
-WiFi module seems to pick up interference when more than one USB3 device is connected. Easiest solution was to buy antenna extension

Overall Review: -Possible incompatibility issues when combining use of SSD and HDD drives. Have been experiencing occasional system freeze ups if one of my HDDs goes idle and is called back online by Windows after a few minutes. Can't say it's been a problem, not a single blue screen but it is very aggravating.

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
1/ 5
Broken unit, garbage support

Pros: none

Cons: Was sold a broken unit, ASRock won't do anything about it, can't return it cause I filed for an MIR

4 out of 9 people found this review helpful. Did you?
Manufacturer Response:
Dear Valued ASRock Customer,

We sincerely apologize for any inconvenience this may have caused you.
Please trouble shoot the mainboard whether the issue is resolved.
• Unplug the ATX power, remove all components from mainboard.
• Remove the mainboard from chassis, place it on mainboard’s box.
• Clear the CMOS.
• Reseat the CPU and heatsink fan.
• Test with single memory module (un-buffered).
• Test with onboard video.
• Connect the monitor.
• Plug the 24 + 8 or 4 pins ATX power.
• Connect the chassis power switch to mainboard.
• Turn on the power to check if its post.

If you have any technical support inquiry, please contact us at http://event.asrock.com/tsd.asp
We will assist you shortly.

Thank you

ASRock Support
Tech Support Email: http://event.asrock.com/tsd.asp
Ownership: 1 week to 1 month
Verified Owner
4/ 5
Pretty good for the $$

Pros: Well-rounded Mini-ITX Z390 m/b
gotta like black
boots macOS 10.14.3 (with a DSDT patch to fix an AsRock-specific BIOS issue)
two ethernet ports if that is your thing
cheap!

Cons: No optical audio out and cheaper audio chip (but not a big deal for me since I prefer USB sound interface instead)
Onboard BT4 not BT5
Only 1 m.2 slot for SSDs

Overall Review: Unlike with my AsRock Z170 board that had some BIOS display issues (boot picker had garbage characters instead of ASCII) no issues encountered installing Windows 10 & macos 10.14 (latter requires a certain AsRock-specific DSDT patch in Clover's config.plist)

Did you find this review helpful?
Ownership: 1 day to 1 week
Verified Owner
5/ 5
This review for ASRock review rebate program.

Pros: This motherboard has amazing features: native support for video - up to 3 monitors with 2 HDMI ports and 1 Display port; USB 3.1 1X type C and 5X Type A; Ultra M.2 port that accommodates 4 different lengths of M.2 boards.; native dual mode Wi-Fi; 8th and 9th Generation Intel CPU support; All this and more in an ITX size. I love it.

Cons: None

Overall Review: I needed a small computer - SFF form factor; this is just perfect for my needs. I am not a gamer, but this motherboard can accommodate a video card should you desire one. This board is just perfect for my requirements. Another great product competitively priced from ASRock.

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Worked great out of the box, no problems!

Pros: This board looks great and installed easily into my Node 202 case. It's been running for about a week now with no problems. BIOS wasn't hard to navigate and enable RAM XMP profile. I like the black coated board.

Cons: None that I've found so far. I'm not a huge fan of the Windows-based tuning utility, but it's not something I would normally use anyway.

Overall Review: This review for ASRock review rebate program.

Did you find this review helpful?
