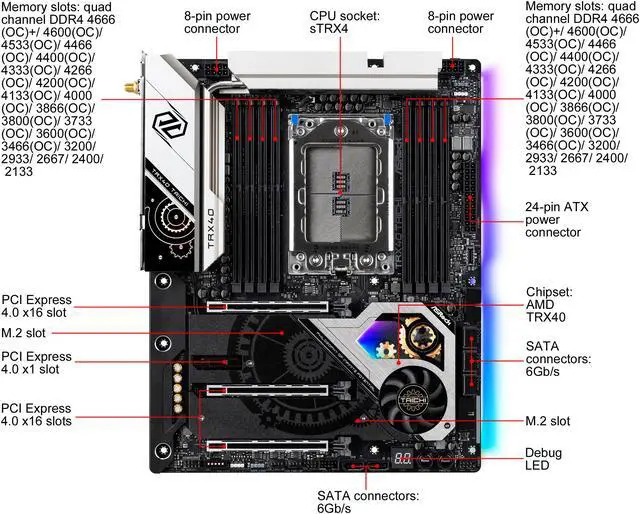

- Supports 3rd Gen AMD Ryzen™ Threadripper™ Processors
- 16 Power Phase Design, 90A Dr. MOS & Power Choke
- XXL Aluminum Alloy Heatsink & Heatpipe Design
- Supports DDR4 4666+(OC)
- 3 PCIe 4.0 x16, 1 PCIe 4.0 x1
- NVIDIA® NVLINK™, 3-Way SLI™, AMD 3-Way CrossFireX™
- 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)

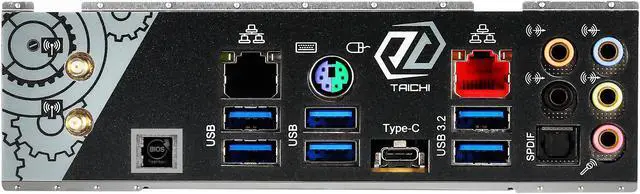

- 1 Rear USB 3.2 Gen2 x2 20Gb/s Type-C
- 3 USB 3.2 Gen2 (1 Front Type-C, 2 Rear)
- 8 USB 3.2 Gen1 (4 Front, 4 Rear)
- 7.1 CH HD Audio (Realtek ALC4050H+ALC1220), Supports Purity Sound™ 4 & DTS Connect
- Realtek 2.5G LAN, Intel® Gigabit LAN
- Intel® Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.0
Style . More reliable. Design that delivers.
Extra-large aluminum alloy heatsink with cooling fan is able to effectively take away heat from the MOSFET, giving better performance and OC capability.
The longer lifespan EBR bearing fan were used to ensure the best durability. Compares with normal sleeve bearing fan, EBR bearing fan has lifespan up to 50,000 hours, equivalent to 5.7 years of working under full speed.
Welcome to the new Wi-Fi standard! ASRock's motherboard equipped with next generation Intel® Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.
Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

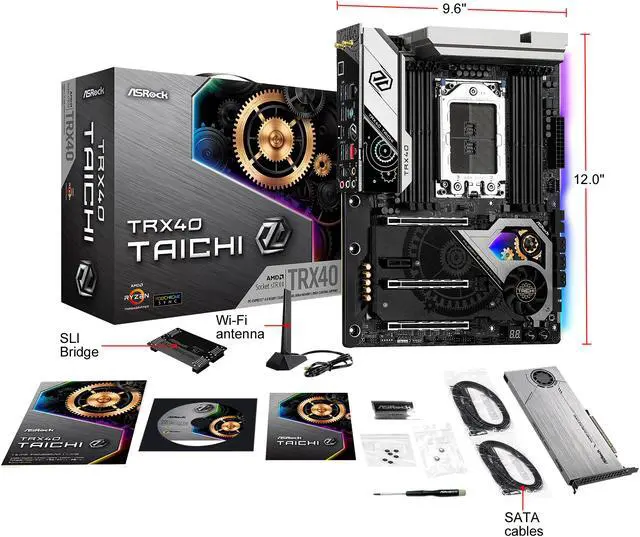

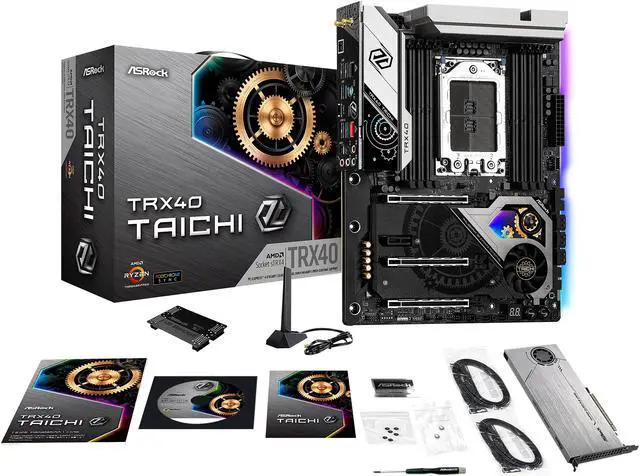

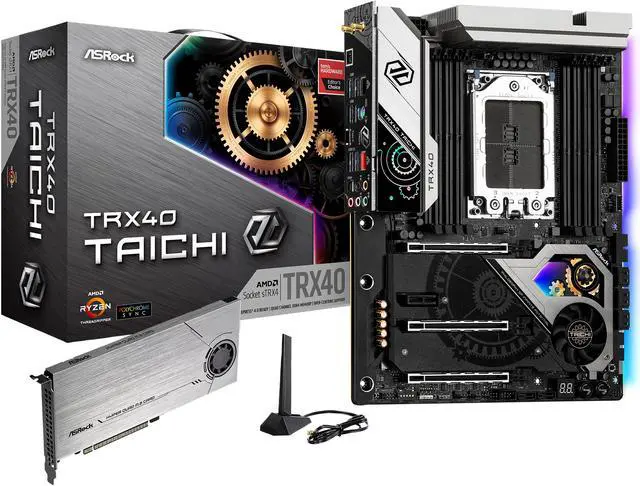

Extreme gamers and PC enthusiasts can never have too much high-speed storage devices to support their gaming cravings. The TRX40 Taichi comes bundled with m.2 cards which supports an additional 4 more PCIe Gen4x4 NVMe M.2 storage. It offers premium cooling solutions to ensure SSD's always perform at its best.
The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock's exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely.
The server grade PCB prevents PCB bending and improves signal integrity, giving higher PCIe 4.0 and memory performance as well as system stability, giving a reliable and long-lasting system without any compromise.
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 90A continuous current for each phase, thus providing improved thermal result and superior performance.
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Unlike traditional dual CPU power connectors which are located closely together at the same side, ASRock separates them to either side of motherboard in order to create wider trace for CPU VRM. This design brings better power delivery efficiency and lower temperature, thus improving system stability and increasing overclocking potential.

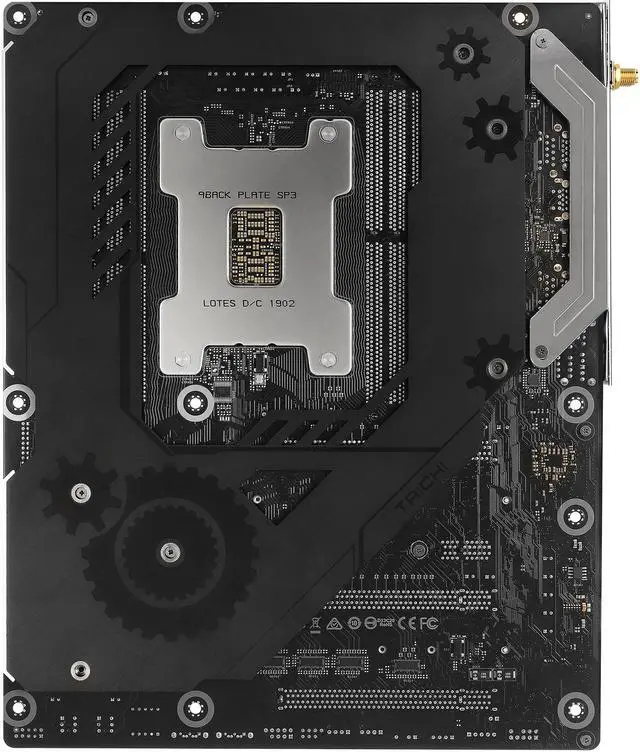

Strengthens the motherboard to prevent bending caused by heavy coolers or graphics cards with better airflow and enhanced stability. In addition, in the high temperature area on the back of the VRM, we use a thermal pad to fit the metal backplate, which can further transfer heat to the backplate, making the VRM cooler.

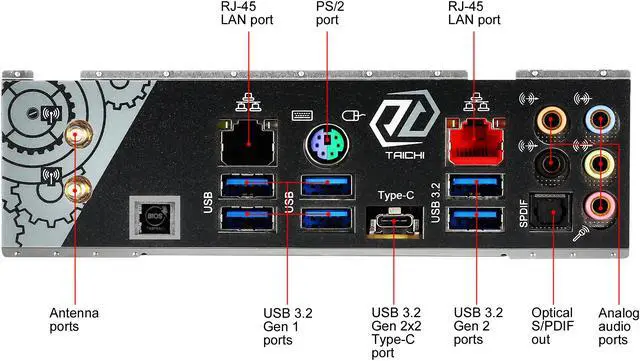

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.
Compared to traditional chokes, ASRock's premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 90A continuous current for each phase, thus providing improved thermal result and superior performance.
Specifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.
A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores.
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
The 8 Layer PCB comes with 4 sets of 2 ounce copper inner layers, providing stable signal traces and power shapes and delivering lower temperature and higher energy efficiency for overclocking! Thus, it's able to support the latest DDR4 memory modules with most extreme memory performance!
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
