ASRock Z490M-ITX/ac LGA 1200 Intel Z490 SATA 6Gb/s Mini ITX Intel Motherboard

Ships from United States.

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • Intel Z490
  • Supports 10th Gen Intel Core Processors (Socket 1200)
  • Supports DDR4 4400+(OC)/ 4333(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 non-ECC, un-buffered memory

  • Overview
  • Specs
  • Warranty & Returns
  • Reviews

ASRock Z490M-ITX/ac

This mini ITX motherboard is based on the Intel Z490 chipset, and thus fully supports the latest 10th generation Intel Core processors including overclockable models. Although coming in a mini ITX form factor, this board offers a rich variety of ports and slots needed to build a full-featured powerhouse. As the name denotes, 802.11ac dual-band Wi-Fi is built onboard, for fast, stable wireless connection without additional Wi-Fi adapter. 8 power phase enables ample power delivery to your unlocked processor to push its performance to limit. And addressable lighting lets you create and synchronize gorgeous lighting show across a growing ecosystem of ASRock Polychrome RGB compatible accessories and peripherals.

  • Supports 10th Gen Intel Core processors (Socket 1200)
  • Supports DDR4 4400MHz+ (OC)
  • 1 PCIe 3.0 x16
  • Graphics Output Options: HDMI and DisplayPort
  • 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
  • 4 SATA 3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 Ultra M.2 (PCIe Gen3 x4)
  • 4 USB 3.2 Gen2 Type-A (Rear)
  • 4 USB 3.2 Gen1 (Rear Type A+C, 2 Front)
  • Dragon 2.5 Gigabit LAN, Intel Gigabit LAN
  • Intel 802.11ac WiFi + BT 4.2
IT’S TIME FOR Z490 MOTHERBOARDS

Compact. Blazing Speed. Easy-to-Use

Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Base Frequency Boost (BFB) Technology

Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Boost Frequency Boost) Technology, users may install their non K series CPUs to ASRock’s selected 400 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.

While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.

** BFB frequency performance results may vary between different CPUs and hardware configurations. Frequency shown in this chart is for reference only.

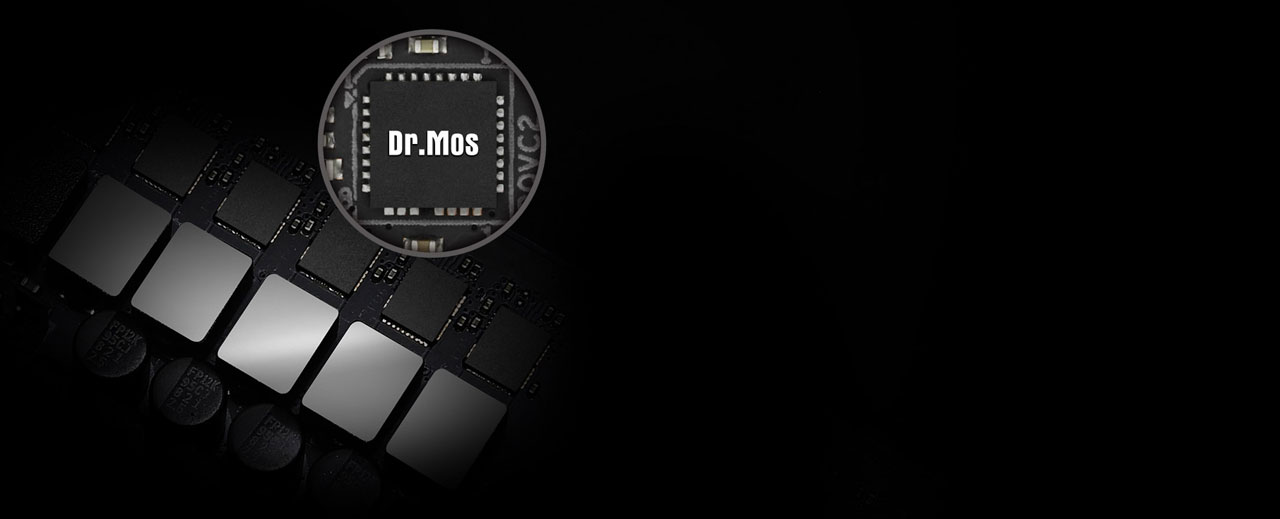

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Premium 60A Power Choke

Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

8 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Variety CPU Coolers Support

ASRock engineers took enormous effort to make the CPU backplate area big enough to accommodate the wide variety of CPU coolers.

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.

*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

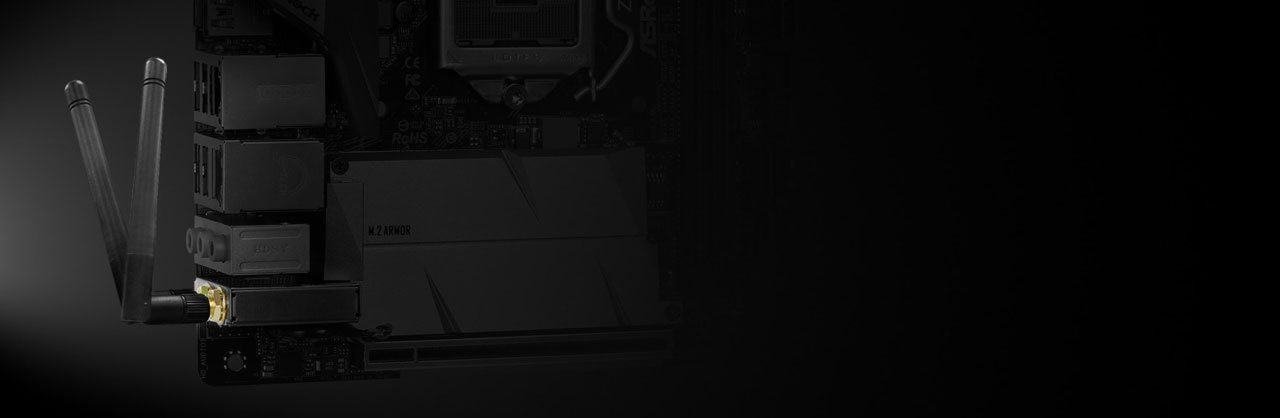

Dual Band 802.11ac WiFi

No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with an 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.

Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.

A SOLID M.2-SOLUTION PERFORMER

Dual M.2 For SSD

Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Two Ultra M.2 sockets that support both SATA3 6Gb/s and PCIe Gen3 x4 modes, pushing data transfer speeds up to 32Gb/s.

M.2 Armors

Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature.

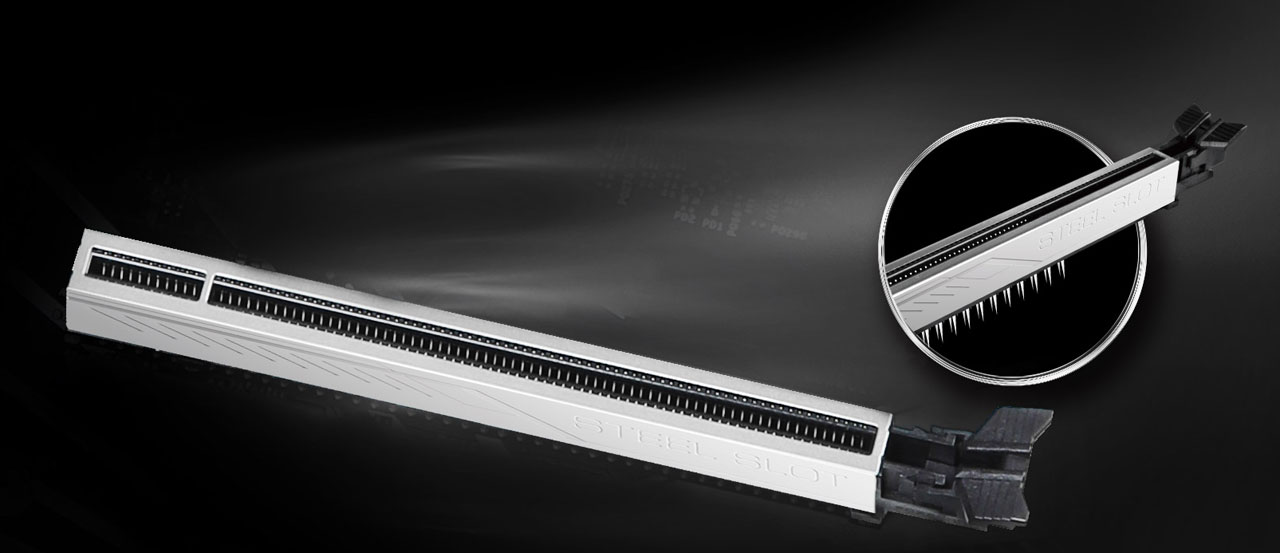

PCI-E STEEL SLOT

The advanced PCI-E Steel Slot packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely.

Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.


Learn more about the ASRock Z490M-ITX/ac

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
Ownership: 1 day to 1 week
Verified Owner
5/ 5
Great Board. Priced right. 8/2/2020 3:08:47 PM

Pros: BIOS is well laid out with only one problem, see below. I love that both NVME's are accessible on the front of board. On my last ITX board the NVME died and I had to take apart the entire computer to get to it because the drive was on the back. (FIRST WORLD ITX PROBLEMS). Seems stable with no problems so far. Cooler fitment was tight. I am using a True Spirit 140 Direct and it pushes up against the gskill RGB memory. It fits but only barely. Next time around low profile RAM would be a better idea. Paired with non K 10700 this was an easy build. Cranked the base frequency boost to 125W and it will do all core 4.6ghz with no drama. Temps are mid to low 70's in cinebench.

Cons: Where is the bus speed in the BIOS? I know you cant go far with it but the option to mess around would of been nice. Uninstalled the motherboard software. Seemed useless.

Overall Review: Best bang for the buck z490 imo

Did you find this review helpful?
5/ 5
Good overall 7/15/2020 1:48:59 PM

Pros: -Price.
-Good features.

Cons: -One of the chassis fan headers is blocked by the M.2 Armor shield.
-AC Audio header is too close to the PCI-e slot. Cable management is tight.

Overall Review: -Good overall.

Did you find this review helpful?
Anonymous
Ownership: 1 week to 1 month
Verified Owner
4/ 5
Great board, little, built in heat spreader for M.2 slots. 7/7/2020 1:08:12 PM

Pros: - Benchmarks for CPU on userbenchmark.com 103% at stock configuration 10700 CPU (no K)
- Everything just works. XMP memory profile kicked in for 3200 low latency memory perfectly.
- Great Integrated Wifi
- Nice improvement on ports and interfaces USB 3.2 for example

Cons: - Noticed some USB 3.2 ports are operating at USB 2.0 speeds. Although they are "blue", the back panel ports integrated into the mobo on one side are running extremely slow speeds. I moved the two external drives over to the other two blue ports on the back plane and speeds increased substantially.

Overall Review: In general, I am happy with the board. The performance seems above par. The BIOS is OK. I expected it to be more configurable. The board does come with some "in OS" performance tools. I ran A-Tuning and it really didn't have a lot of configurable options. I did not see a way to increase the bus speed for overclocking my 10700 in the BIOS. Also, it seemed fairly generic and only shows Performance Mode, Standard Mode, and Power Saving. It does not really explain what changes it will make. This is a bummer as I would like to know what I am changing.

1 out of 1 people found this review helpful. Did you?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Works well, solid MB 6/30/2020 7:19:34 AM

Pros: - Feels fairly sturdy, reasonably thick, decent heatsinks
- Wifi works well
- Fits ID Cooling IS-60 cooler (just barely, only in certain orientation due to heatsinks)
- Two case fan headers

Cons: - None yet

Overall Review: Using this MB with:
- Fractal Design Node 202 Case w/ 450W SFX PSU
- Intel i5-10400 CPU
- ID Cooling IS-60 CPU cooler
- GTX 1660 Super
- 2x8gb GSkill RAM (low profile heat spreaders)
- Samsung 860 EVO SSD
- Noctua NH-A12x15 case fan x2

1 out of 1 people found this review helpful. Did you?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
With managed expectations, this is a great board. 6/19/2020 3:08:05 PM

Pros: - Price vs. other ITX options
- Memory overclocking
- ASRock's Base Frequency Boost

Cons: - Built to a budget so expect weak OC capabilities on K processors
- Note I/O options before you buy it, it may be lacking in your case
- Offset CPU socket may cause issues with some case/cooler combos (Noctua L12S & NCase M1 incompatible in recommended orientation)

Overall Review: I paired this with a 10700 Non-K because it was the most reasonably priced ITX option that would allow the use of factory overclocked memory. Base frequency boost was a pleasant surprise (required BIOS update) that really wakes up this locked processor (see i7-10700 TechPowerUp review for substantial performance gains), you can set your TDP limit to match your cooling capacity. It's not going to be breaking any overclocking records with K processors or have all of the latest I/O and if you don't need that then this board is solid for the price. If you do need more I/O or a stronger VRM then you'll need to seek higher end options that cost nearly double.

2 out of 2 people found this review helpful. Did you?
Anonymous
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Simple process 6/15/2020 8:25:50 AM

Pros: Shipped quick and was well packaged

Overall Review: Great product quick shio

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
I love it! 6/4/2020 3:14:43 PM

Pros: Works! 2 m.2 slots on the front of the board are super handy, built in bluetooth is awesome, and plenty of ports on the back!

Cons: The only con is that there's no USB c front panel port.

Overall Review: Love it.

1 out of 1 people found this review helpful. Did you?
Anonymous
Ownership: 1 day to 1 week
Verified Owner
4/ 5
"This review for ASRock review rebate program." 6/2/2020 9:20:46 PM

Pros: Looks nice, so far happy with build.

Cons: The GPU slot holding tab snap upon installing GPU. Also a fan termination connector tab not flexible and stayed open.

Overall Review: Happy with the xmp overclocking mode, nice rgb lighting. I wish it had more options for the rgb lighting.

0 out of 2 people found this review helpful. Did you?
