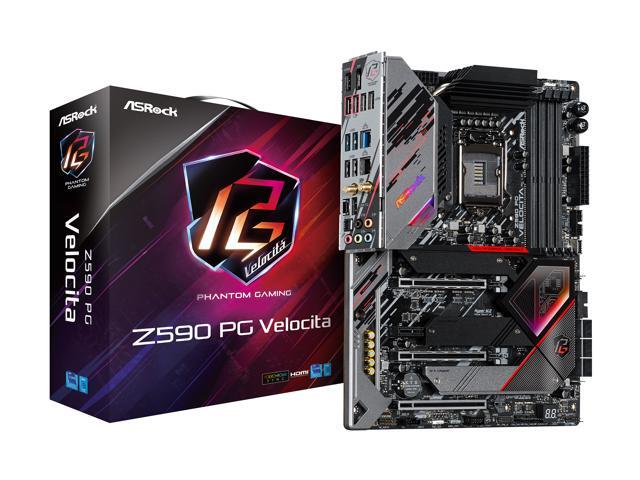

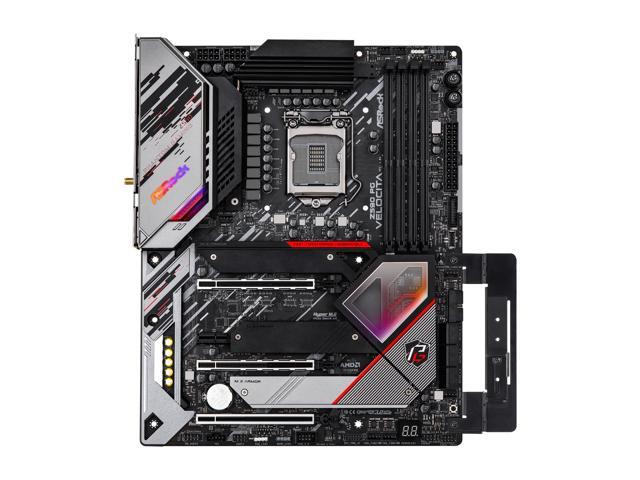

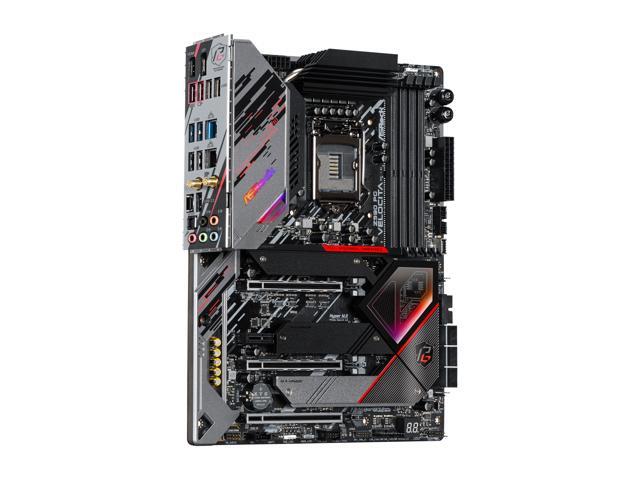

Brand | ASRock |
---|---|
Model | Z590 PG VELOCITA |
CPU Socket Type | LGA 1200 |
---|---|
CPU Type | Supports 10th Gen Intel Core Processors Supports 11th Gen Intel Core Processors |
Supported CPU Technologies | Turbo Boost Technology 3.0 |
Chipset | Intel Z590 |
---|
Onboard Video Chipset | 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.4 Ports** * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. ** 11th Gen Intel Core Processors support HDMI 2.0. 10th Gen Intel Core Processors support HDMI 1.4. |
---|
Number of Memory Slots | 4x288pin (DDR4) |
---|---|
Memory Standard | 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)* 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)* * 11th Gen Intel Core (i9/i7/i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666. * 10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666. |
Maximum Memory Supported | 128GB ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. |
Channel Supported | Dual Channel |
PCI Express 4.0 x16 | 11th Gen Intel Core Processors - 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE4: single at Gen4x16 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE3); triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE3) / Gen3x4 (PCIE4))* 10th Gen Intel Core Processors - 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE4: single at Gen3x16 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE3); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE3) / Gen3x4 (PCIE4))* * Supports NVMe SSD as boot disks |
---|---|
PCI Express x1 | 1 x PCI Express 3.0 x1 Slot |
Other Slots | 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O) 15µ Gold Contact in VGA PCIe Slot (PCIE1) |
SATA 6Gb/s | 6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug* * If M2_2 is occupied, SATA3_0 and SATA3_1 will be disabled. * If M2_3 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled. |
---|---|
M.2 | 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64Gb/s) (Only supported with 11th Gen Intel Core Processors)** 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)** 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)** ** Supports Intel Optane Technology (M2_2 and M2_3 only) ** Supports NVMe SSD as boot disks ** Supports ASRock U.2 Kit |
Intel Optane Ready | Yes |
SATA RAID | 0/1/5/10 |
Audio Chipset | Realtek ALC1220 |
---|---|
Audio Channels | 7.1 Channels |
LAN Chipset | Killer E3100G |
---|---|
Second LAN Chipset | Intel I219V |
Max LAN Speed | 10/100/1000/2500Mbps + 10/100/1000Mbps |

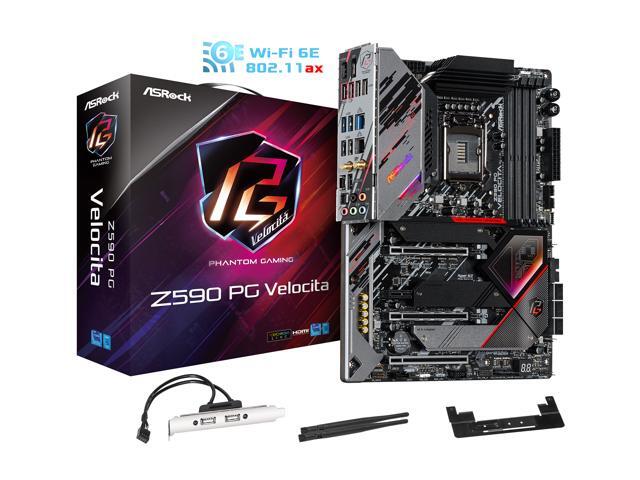

Wireless LAN | Killer AX1675x 802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ax Supports Dual-Band 2x2 160MHz with extended 6GHz band support* 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports MU-MIMO Supports Killer LAN Software Supports Killer DoubleShot™ Pro * Wi-Fi 6E (6GHz band) is not currently enabled by default due to the different regulation status of each country. It will be activated (for supported countries) through Windows Update and software update once available. The update is expected to be in the middle of 2021. |
Bluetooth | Supports Bluetooth 5.2 + High speed class II |

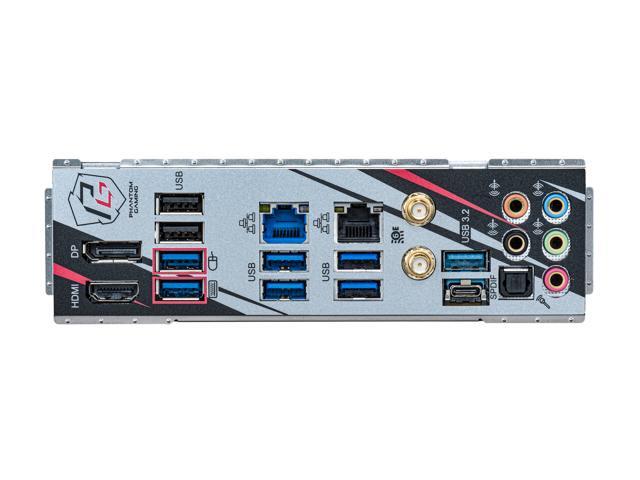

Back I/O Ports | 2 x Antenna Ports 1 x HDMI Port 1 x DisplayPort 1.4 1 x Optical SPDIF Out Port 1 x USB 3.2 Gen2 Type-A Port (10Gb/s) (ReDriver) (Supports ESD Protection)* 1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (ReDriver) (Supports ESD Protection)* 2 x USB 3.2 Gen1 Type-A Ports (ASMedia ASM1042A) (Supports ESD Protection)* 4 x USB 3.2 Gen1 Type-A Ports (Intel Z590) (Supports ESD Protection)* 2 x USB 2.0 Ports (Supports ESD Protection) 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) * Ultra USB Power is supported on USB3_12 ports. * ACPI wake-up function is not supported on USB3_12 ports. |
---|
Onboard USB | 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20Gb/s) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) |
---|---|
Other Connectors | 1 x SPI TPM Header 1 x Power LED and Speaker Header 2 x RGB LED Headers* 2 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** 1 x VRM Fan Connector (4-pin)***** 1 x Front Panel Audio Connector (15µ Gold Audio Connector) 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) 1 x Clear CMOS Button 1 x Dr. Debug with LED 1 x Power Button with LED 1 x Reset Button with LED * Support in total up to 12V/3A, 36W LED Strip. ** Support in total up to 5V/3A, 15W LED Strip. *** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. **** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ****** The VRM Fan Connector supports the VRM fan of maximum 1A (12W) fan power. ****** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use. |
Form Factor | ATX |
---|---|
LED Lighting | RGB |
Date First Available | February 16, 2021 |
---|

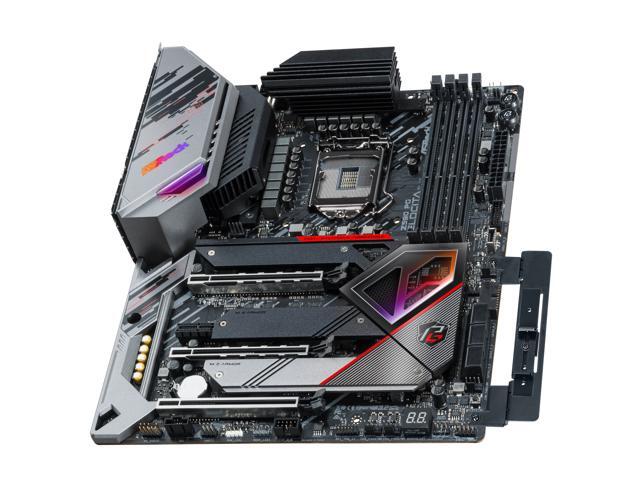

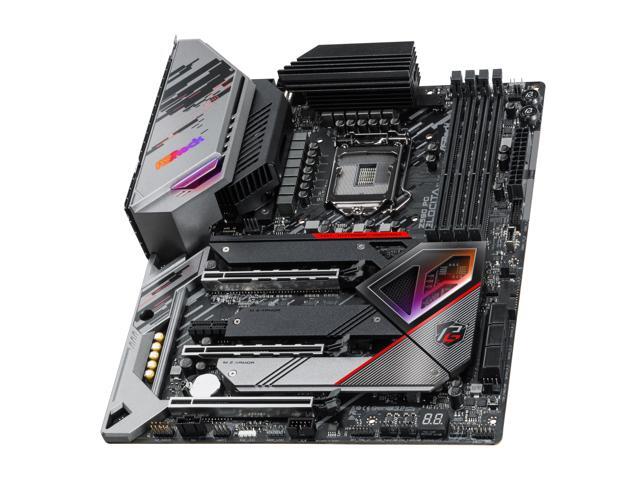

Pros: - Graphics Card Holder - 2.5G LAN port - Hyper M.2 - Front and rear USB 3.2 Gen2 - Did I mentioned the Graphics Card Holder?
Overall Review: My first Velocita, really liking the design for the phantom gaming series in general. The build quality is great, as expected from the ASRock brand. Having a 2.5G LAN port for the first time, VERY noticeable when accessing my NAS. Personally, I dont feel any difference with the Lightning Gaming Ports myself for the mouse and keyboard, but hey its there. Also, this Graphics Card Holder needs to be standard on every MB, its very simple and it just works. I dont know why no one came up with this design until now, but I am not getting another board without this. Anyways, you just cant go wrong with ASRock boards.
