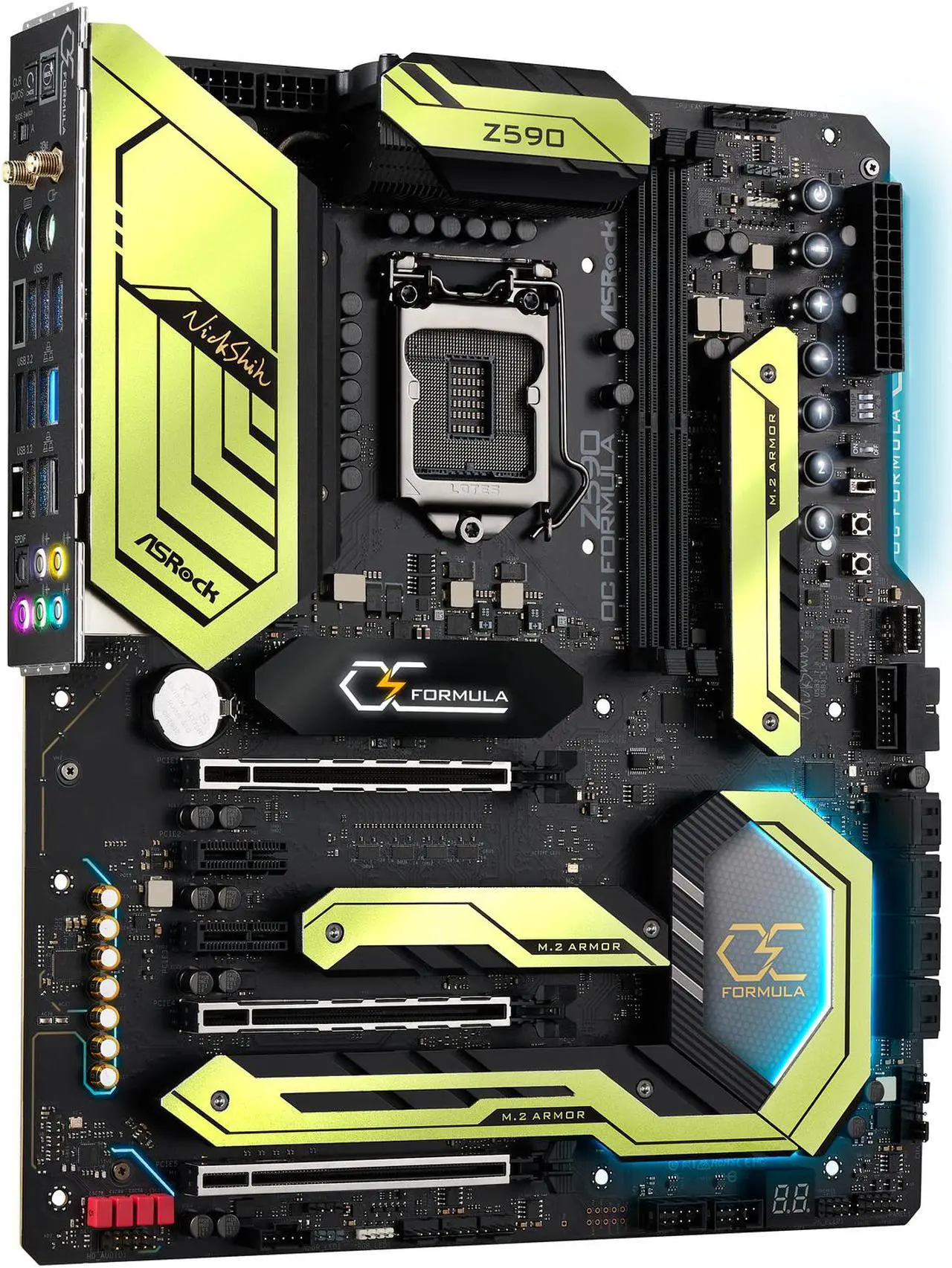

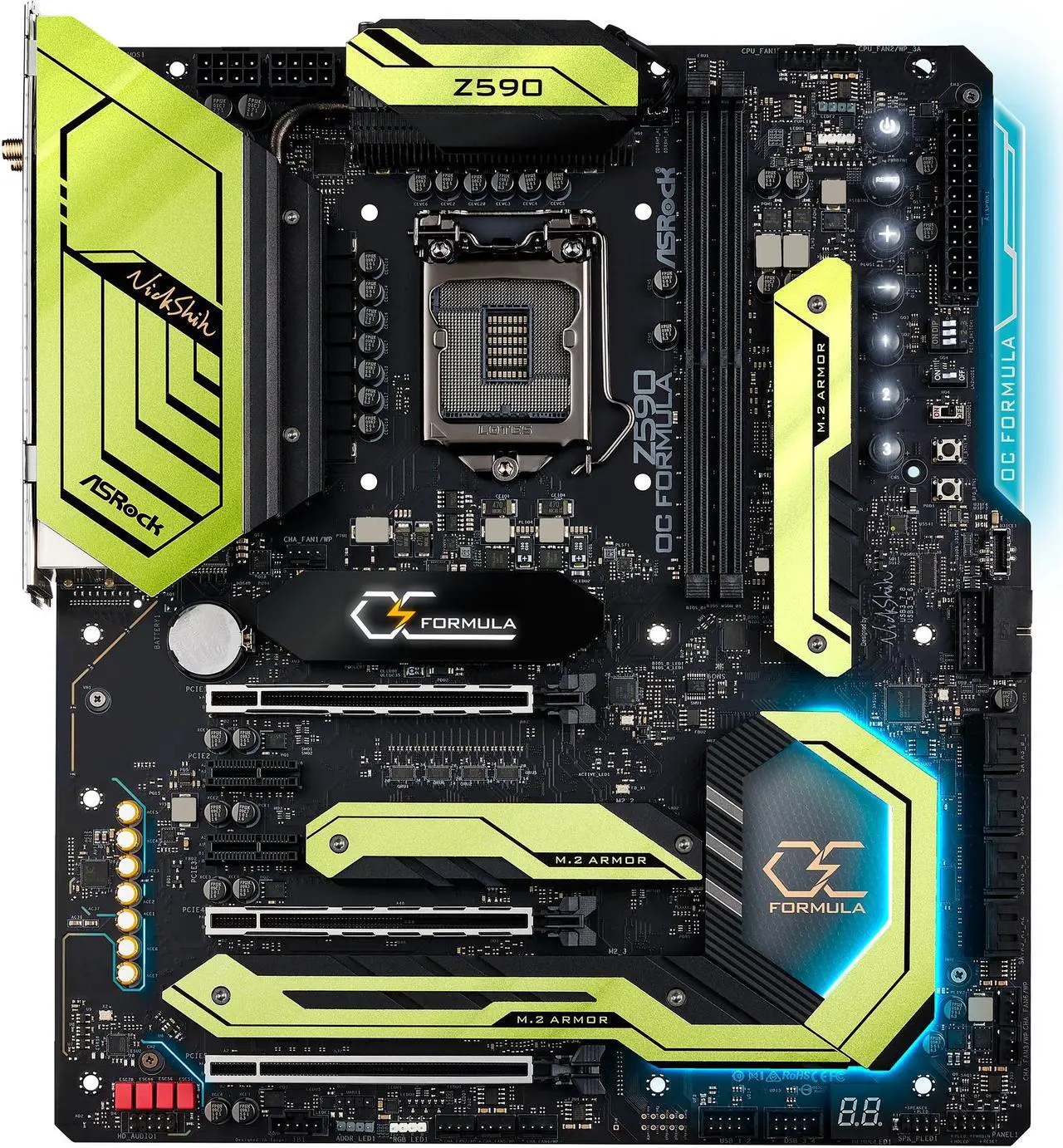

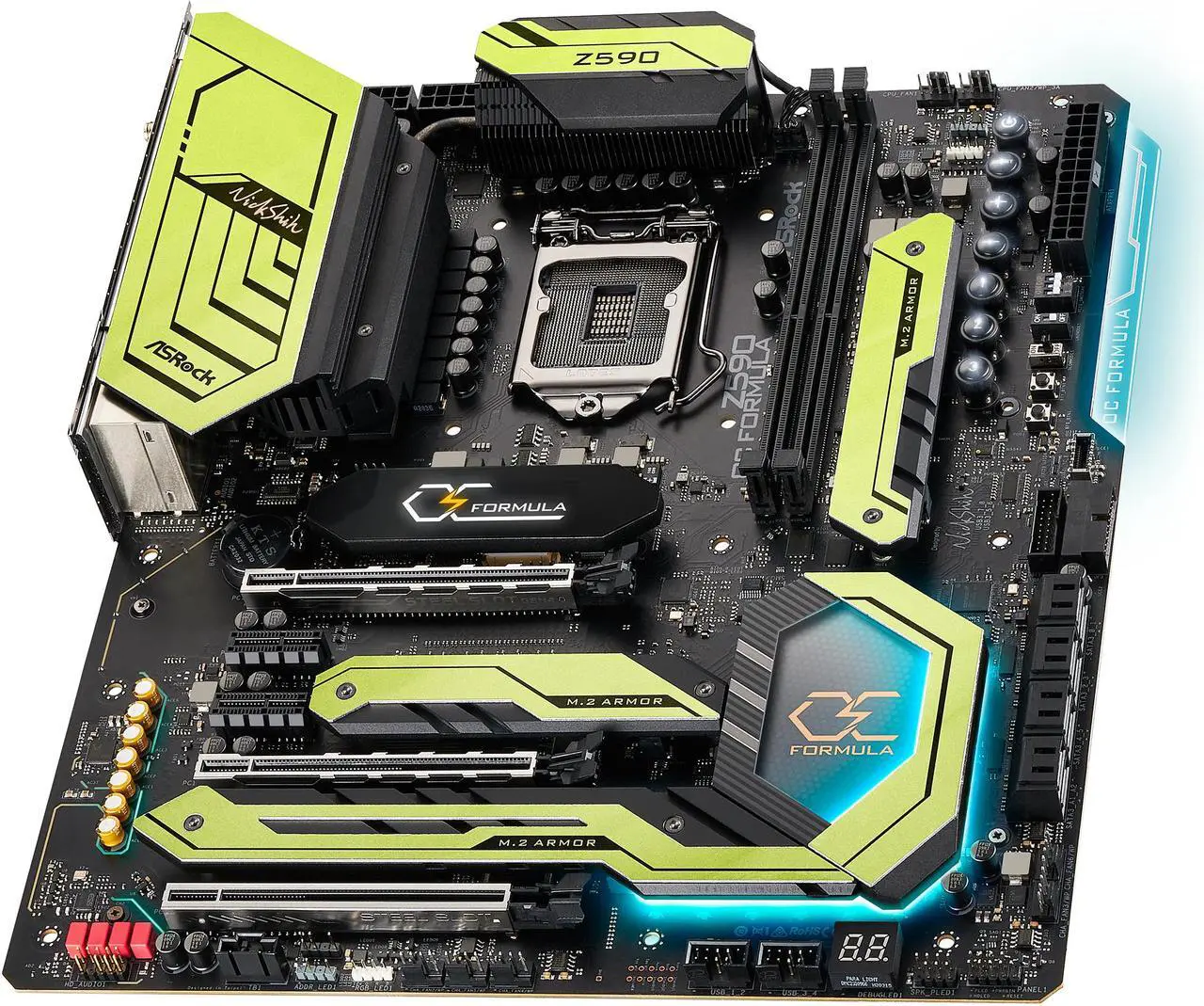

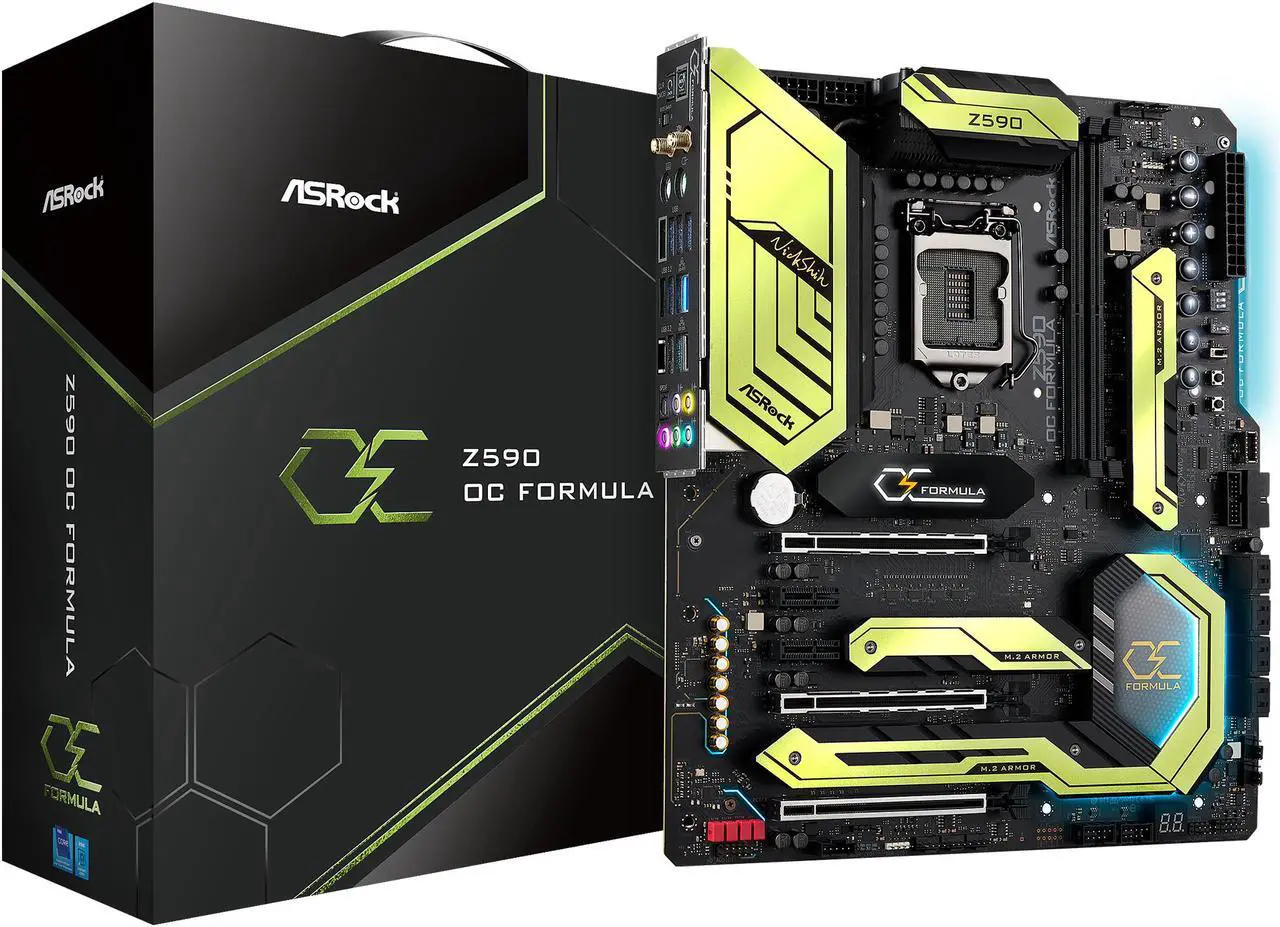

ASRock Z590 OC FORMULA LGA 1200 Intel Z590 Extended ATX Intel Motherboard

  • Intel Z590
  • Supports 11th / 10th Gen Intel Core Processors
  • DDR4 6000(OC)+ (11th Gen Intel Core Processors)
  • DDR4 5000(OC)+ (10th Gen Intel Core Processors)
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (4)

Learn more about the ASRock Z590 OC FORMULA

Model
Brand ASRock
Model Z590 OC FORMULA
Supported CPU
CPU Socket Type LGA 1200
CPU Type Supports 11th / 10th Gen Intel Core Processors
Supported CPU Technologies Turbo Boost Technology 3.0
Chipsets
Chipset Intel Z590
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 2x288pin (DDR4)
Memory Standard DDR4 6000(OC)+ (11th Gen Intel Core Processors)*
DDR4 5000(OC)+ (10th Gen Intel Core Processors)*

* 11th Gen Intel Core (i9 / i7 / i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666 natively.
* 10th Gen Intel Core (i9 / i7) support DDR4 up to 2933; Core (i5 / i3), Pentium and Celeron support DDR4 up to 2666 natively.
Maximum Memory Supported 64GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 4.0 x16 2 x PCI Express 4.0 x16*

* Actual support may vary by CPU.
* Supports NVMe SSD as boot disks.
PCI Express 3.0 x16 1 x PCI Express 3.0 x16
PCI Express x1 2 x PCI Express 2.0 x1
Other Slots 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module (on the rear I/O)
15µ Gold Contact in VGA PCIe Slot (PCIE1)
Storage Devices
Serial ATA (SATA) 8 x SATA 6Gb/s*

* M2_2, SATA3_0 and SATA3_1 share lanes. If either one of them is in use, the others will be disabled.
* M2_3, SATA3_4 and SATA3_5 share lanes. If either one of them is in use, the others will be disabled.
M.2 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4 x4 (64Gb/s) (with 11th Gen Intel Core Processors) or Gen3 x4 (32Gb/s) (with 10th Gen Intel Core Processors)*

1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)*

1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)*

* Supports Intel Optane Technology.
* M2_1 supports Intel Optane Technology only with 10th Gen Intel Core Processors.
* Supports NVMe SSD as boot disks.
* Supports ASRock U.2 Kit.
Intel Optane Ready Yes
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC1220
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Intel I225-V
Second LAN Chipset Intel I219V
Max LAN Speed 2.5Gbps + 1Gbps
Wireless LAN Intel 802.11ax Wi-Fi 6E Module
IEEE802.11a/b/g/n/ax
Bluetooth Bluetooth 5.2

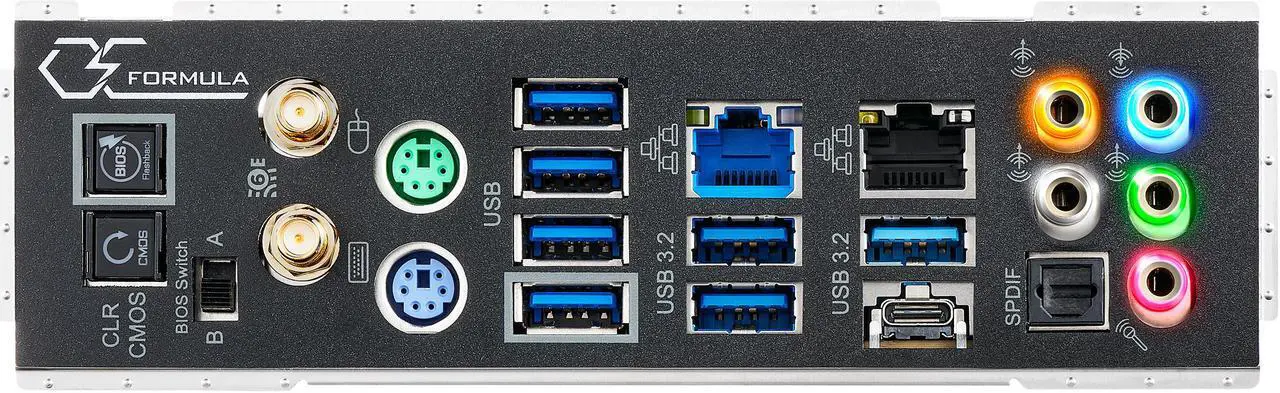

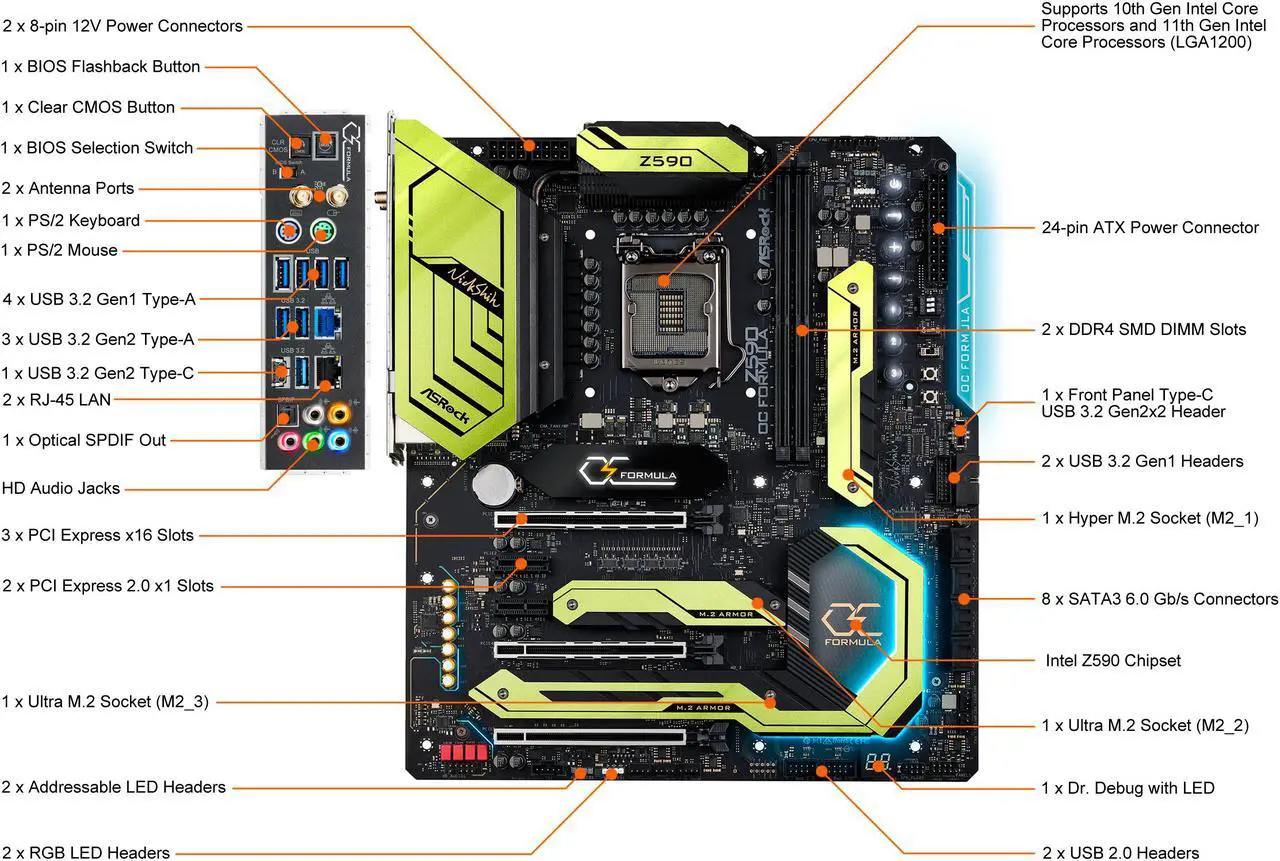

Rear Panel Ports
Back I/O Ports 2 x Antenna Ports
1 x PS/2 Keyboard Port
1 x PS/2 Mouse Port
1 x Optical SPDIF Out Port
3 x USB 3.2 Gen2 Type-A Ports (10Gb/s) (ReDriver) (Supports ESD Protection)*
1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (ReDriver) (Supports ESD Protection)*
4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)*
2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
1 x BIOS Flashback Button
1 x BIOS Selection Switch
1 x Clear CMOS Button
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks with LED)

* USB3_1 is from Intel Z590; USB3_234 are from ASMedia ASM1074 hub.
* Ultra USB Power is supported on USB3_234 port.
* ACPI wake-up function is not supported on USB3_234 port.
** This motherboard does not support integrated graphics.
Internal I/O Connectors
Onboard USB 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)*
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
1 x Front Panel Type-C USB 3.2 Gen2x2 Header (20Gb/s) (Supports ESD Protection)

* USB_1 is from ASMedia ASM1074 hub; USB_234 are Intel Z590.
Other Connectors 1 x Power LED and Speaker Header
2 x RGB LED Headers*
2 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector (15µ Gold Audio Connector)
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED
1 x Retry Button
1 x Safe Boot Button
V-Probe: 2 x 5-set of onboard voltage measurement points laid
Rapid OC Buttons: +/buttons to adjust OC frequency
1 x PCIe ON/OFF Switch
1 x Post Status Checker (PSC)
1 x Slow Mode Switch
1 x LN2 Mode Switch
1 x NickShih's OC Profile 1 Button with LED
1 x NickShih's OC Profile 2 Button with LED
1 x NickShih's OC Profile 3 Button with LED

* Support in total up to 12V/3A, 36W LED Strip.
** Support in total up to 5V/3A, 15W LED Strip.
*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**** CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power.
***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***** CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP, CHA_FAN5/WP and CHA_FAN6/WP can auto detect if 3-pin or 4-pin fan is in use.
Software Feature
Windows 11 Supported
Physical Spec
Form Factor Extended ATX
LED Lighting RGB

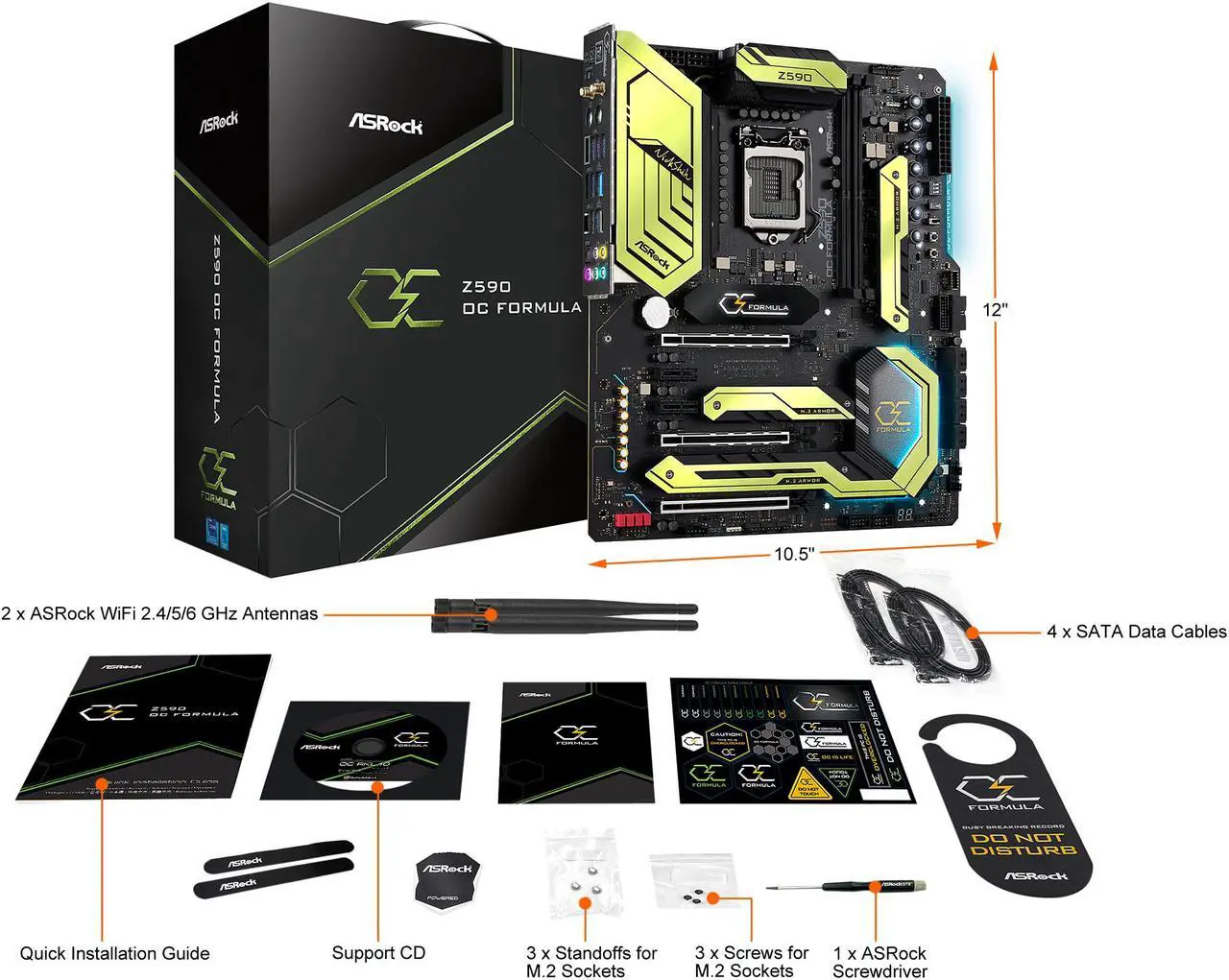

Dimensions (W x L) 12.0" x 10.5"
Power Pin 1 x 24-pin ATX Power Connector (Hi-Density Power Connector)
2 x 8-pin 12V Power Connectors (Hi-Density Power Connector)
Additional Information
Date First Available June 04, 2021
