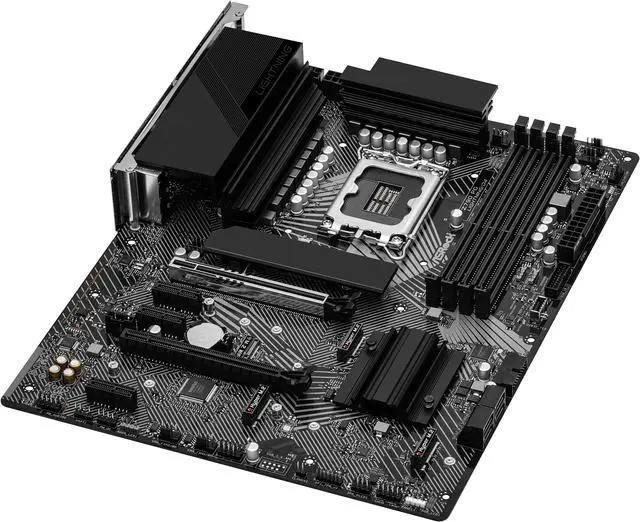

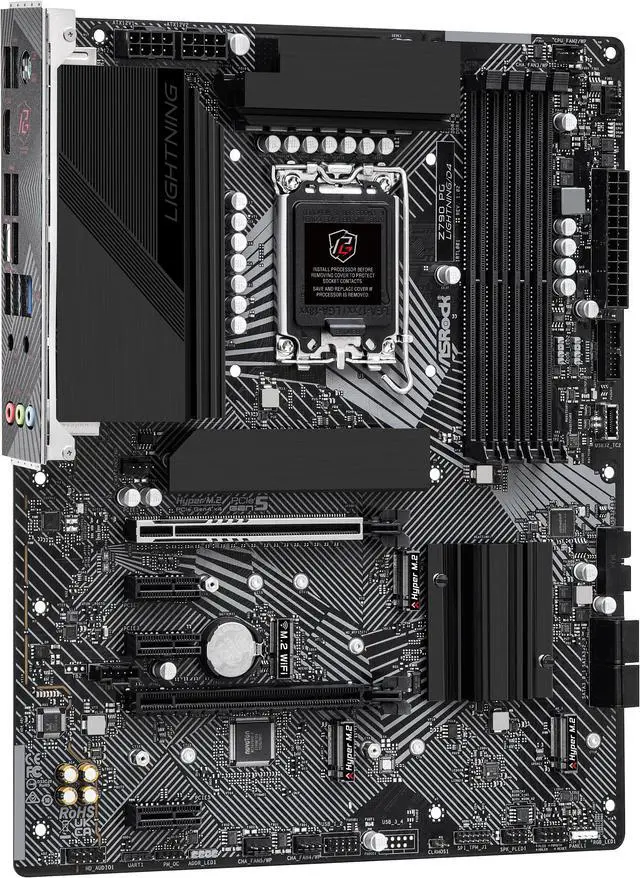

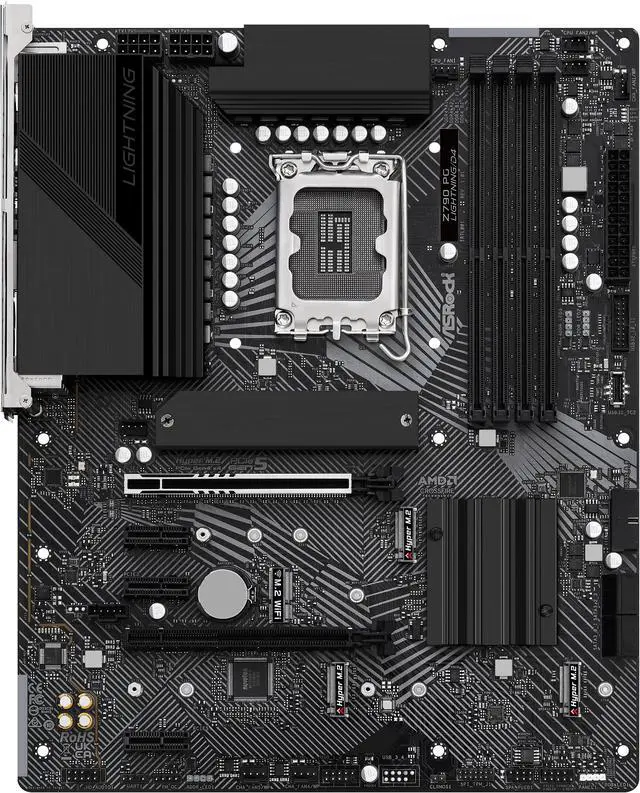

ASRock Z790 PG LIGHTNING/D4 Intel LGA1700 (14th,13th,12th Gen) ATX Mainboard, 4 slots DDR4, PCIE 5.0 x16, Quad M.2 slots 7.1 Nahimic Audio, USB3.2 Gen2 Type-c, 14+1+1 Power Phase

(440)(101) Write a Review
  • BIOS update may be required when used with some 14th generation Intel Core processors.
  • Supports 14th / 13th / 12th Gen Intel Core Processors (LGA1700).
  • Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC).
  • 14+1+1 Power Phase, Dr.MOS for VCore+GT.
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1: 1 M.2 Key E.
  • Graphics Output Options: HDMI, eDP.
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio.
  • 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4):1 Hyper M.2 (SATA3 & PCIe Gen4x4).
  • 1 USB 3.2 Gen2x2 Rear Type-C: 1 USB 3.2 Gen2 Rear Type-A,1 USB 3.2 Gen1 Front Type-C.
  • 9 USB 3.2 Gen1 Type-A (5 Rear, 4 Front): 3 USB 2.0 (1 Rear, 2 Front).
  • Dragon 2.5G LAN.
  • Supports ASRock Auto Driver Installer.
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (440)
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ASRock Z790 PG LIGHTNING/D4

Model
Brand ASRock
Model Z790 PG LIGHTNING/D4
Supported CPU
CPU Socket Type LGA 1700
CPU Type Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors
Chipsets
Chipset Intel Z790
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.
1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.
2DPC 1R Up to 4533+ MHz (OC), 3200 MHz Natively.
2DPC 2R Up to 4266+ MHz (OC), 3200 MHz Natively.

Supports Intel Extreme Memory Profile (XMP) 2.0
* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
Maximum Memory Supported 128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 5.0 x16 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
PCI Express 4.0 x16 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode*
PCI Express x1 3 x PCIe 3.0 x1 Slots (PCIE2, PCIE3 and PCIE5)*

* Supports NVMe SSD as boot disks
Storage Devices
Serial ATA (SATA) 4 x SATA 6Gb/s
M.2 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

* Supports Intel Volume Management Device (VMD)
* Supports NVMe SSD as boot disks
SATA RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Additional RAID Controller Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Onboard Audio
Audio Chipset Realtek ALC897
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Dragon RTL8125BG
Max LAN Speed 2.5Gbps

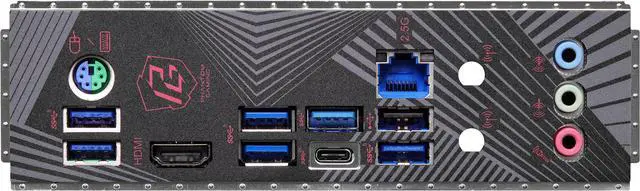

Rear Panel Ports
Back I/O Ports 2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
5 x USB 3.2 Gen1 Ports
1 x USB 2.0 Port
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Connectors
Onboard USB 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header
Other Connectors 1 x eDP Signal Connector
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)

* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
***** CHA_FAN1~5/WP support the fan power up to 2A (24W).
***** CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.
Software Feature
Windows 11 Supported
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 1 x 24 pin ATX Power Connector
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
Additional Information
First Listed on Newegg September 27, 2022

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
