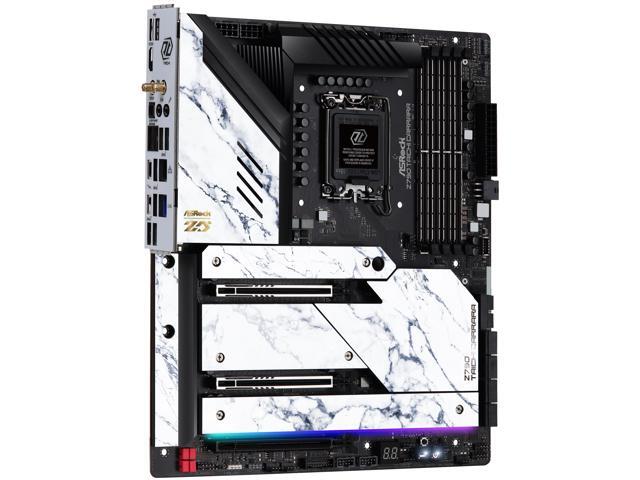

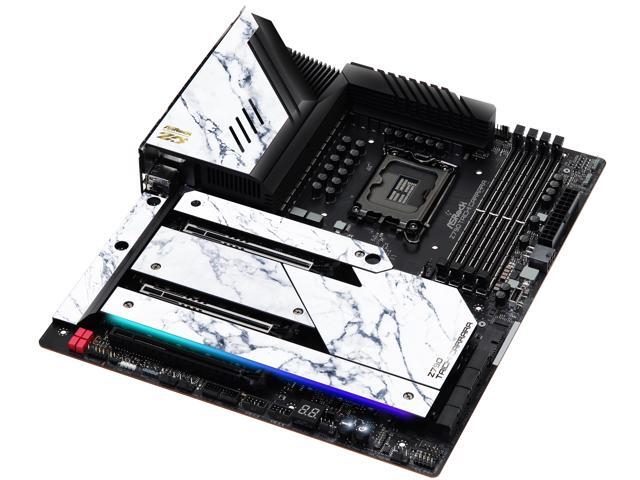

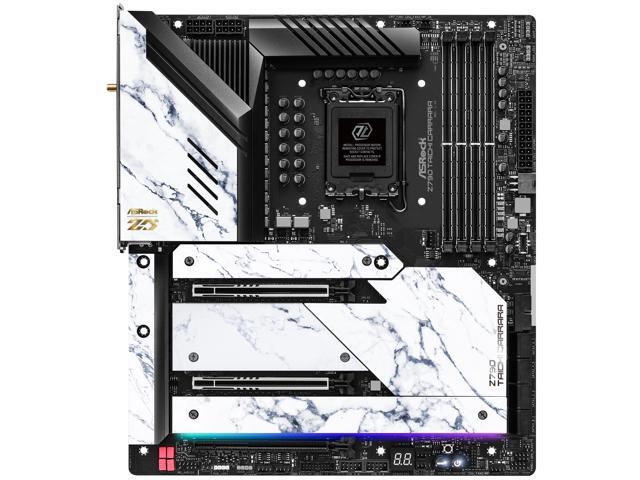

ASRock Z790 TAICHI CARRARA Intel LGA1700 EATX Mainboard , 4 slots DDR5, 2 PCIE 5.0 x16, 5 M.2 slots, 2.5Gb Lan,WIFI 6E, 5.1 audio ALC4082, Optical SPDIF port, 2 USB4 Thunderbolt Type-C 24+1+2 Power Phase, 2oz Copper PCB, EZ update.

In stock. Limit 2 per customer.
Ships from United States.
  • Z790 PG LIGHTNING
  • Z790 PRO RS
  • Z790M-ITX WIFI
  • Z790 STEEL LEGEND WIFI
  • Z790 PG RIPTIDE
  • Z790 PG-ITX/TB4
  • Z790 TAICHI
  • Z790 PRO RS/D4
  • Z790 TAICHI CARRARA
  • Z790M PG LIGHTNING/D4
  • Supports 13th Gen & 12th Gen Intel CoreTM Processors (LGA1700).
  • Supports DDR5 7000MHz (OC).
  • 24+1+2 Power Phase, 105A SPS for VCore+GT with Enlarged Heatsink Armor.
  • 2 PCIe 5.0 x16, 1 PCIe 4.0 x16.
  • Graphics Output Options: HDMI, 2 Thunderbolt™ Type-C.
  • Realtek ALC4082 5.1 CH HD Audio Codec, ESS SABRE 9218 DAC, WIMA Audio Caps, Nahimic Audio.
  • 8 SATA3, 1 Blazing M.2 (PCIe Gen5 x4) : 4 Hyper M.2 (PCIe Gen4 x4).
  • 2 Thunderbolt™ 4/USB4 Type-C: 1 USB 3.2 Gen2x2 Front Type-C (Supports 60W Fast Charging 20V/3A), 2 Rear USB 3.2 Gen2 Type A ,10 USB 3.2 Gen1 (6 Rear, 4 Front).
  • Killer E3100G 2.5G LAN, Intel 1G LAN, Killer 802.11ax (WiFi 6E) + Bluetooth.
  • Killer DoubleShotTM Pro.
  • Supports ASRock Auto Driver Installer, Lightning Gaming Ports, Ultra USB Power.

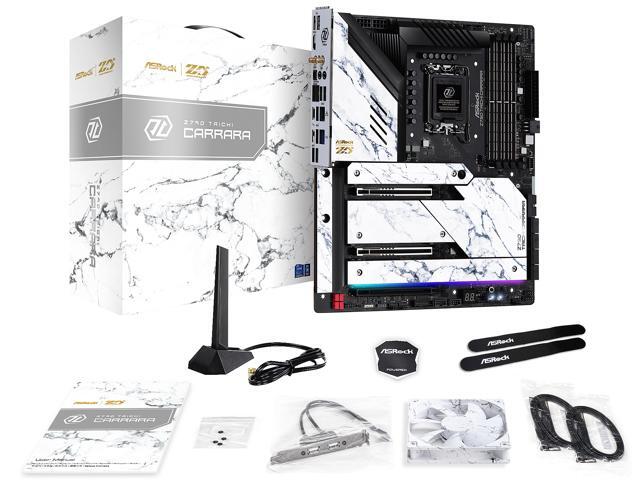

  • Bundled with12CM Carrara Edition Cooling FAN.
Specs
Reviews

Learn more about the ASRock Z790 TAICHI CARRARA

Model
Brand ASRock
Model Z790 TAICHI CARRARA
Supported CPU
CPU Socket Type LGA 1700
CPU Type Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors
Chipsets
Chipset Intel Z790
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard DDR5 4800
Maximum Memory Supported 128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 5.0 x16 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes*
PCI Express 4.0 x16 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*

* If PCIE2 is occupied, M2_1 will be disabled.
* If PCIE3 is occupied, SATA3_0~4 will be disabled.
* Supports NVMe SSD as boot disks
Storage Devices
SATA 6Gb/s 8 x SATA 6Gb/s **

** If PCIE3 is occupied, SATA3_0~4 will be disabled.
M.2 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

* Supports Intel Volume Management Device (VMD)
* Supports NVMe SSD as boot disks
* If PCIE2 is occupied, M2_1 will be disabled.
* Either M2_1 or M2_2 can be used at a time
SATA RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Additional RAID Controller Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Onboard Audio
Audio Chipset Realtek ALC4082
Audio Channels 5.1 Channels
Onboard LAN
LAN Chipset Killer E3100G
Max LAN Speed 2.5Gbps
Wireless LAN 802.11ax Wi-Fi 6E Module
Bluetooth Yes

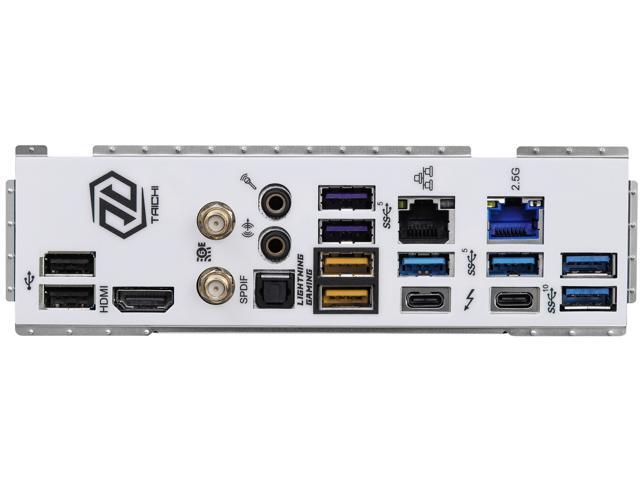

Rear Panel Ports
Back I/O Ports 2 x Antenna Ports
1 x HDMI Port
1 x Optical SPDIF Out Port
2 x USB4 Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)*
2 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
6 x USB 3.2 Gen1 Ports (USB32_12 are Lightning Gaming Ports. USB32_34 support Ultra USB Power.)
2 x USB 2.0 Ports
2 x RJ-45 LAN Ports
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack (Gold Audio Jack)
* Supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging
Internal I/O Connectors
Onboard USB 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)******
Other Connectors 1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector (15µ Gold Audio Connector)
1 x Clear CMOS Button
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED

* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP_3A supports the fan power up to 3A (36W).
***** CHA_FAN1~6/WP support the fan power up to 2A (24W).
***** CPU_FAN2/WP_3A and CHA_FAN1~6/WP can auto detect if 3-pin or 4-pin fan is in use.
****** Supports USB PD 3.0 up to 20V@3A (60W) fast charging when you install PSU's power cable to the 12V 6 pin Power Connector.
If the 12V 6 pin Power Connector is not plugged, this header supports USB PD 3.0 up to 9V@3A (27W) fast charging.
Physical Spec
Form Factor Enhanced Extended ATX
Dimensions (W x L) 12.0" x 10.5"
Power Pin 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x 12V 6 pin Power Connector for Fast Charging (Hi-Density Power Connector)
Windows Compatibility
Windows 11 Supported
Additional Information
Date First Available September 27, 2022
