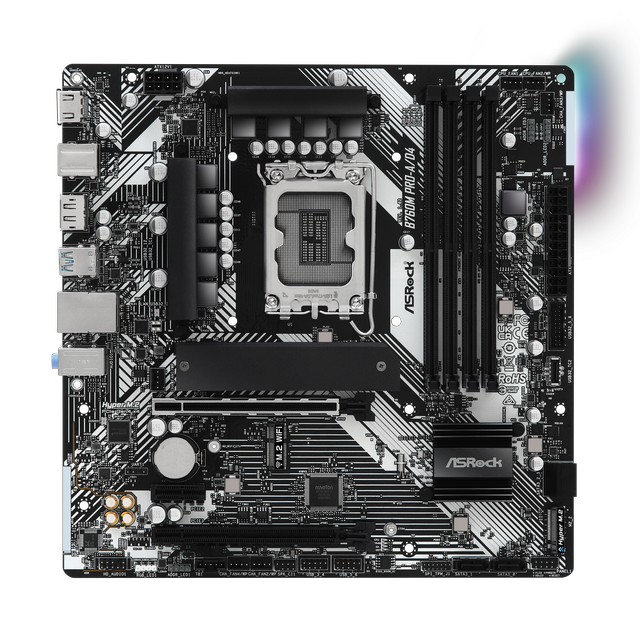

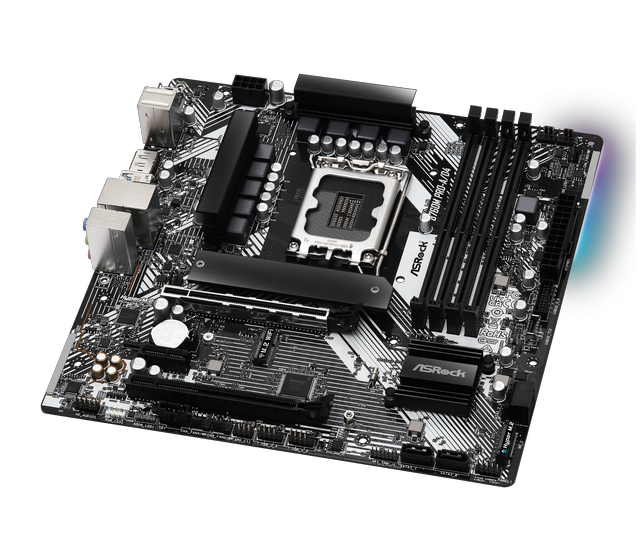

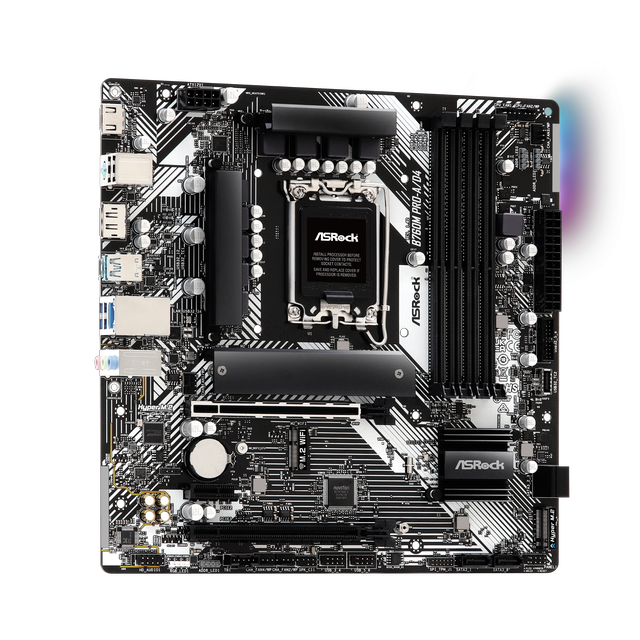

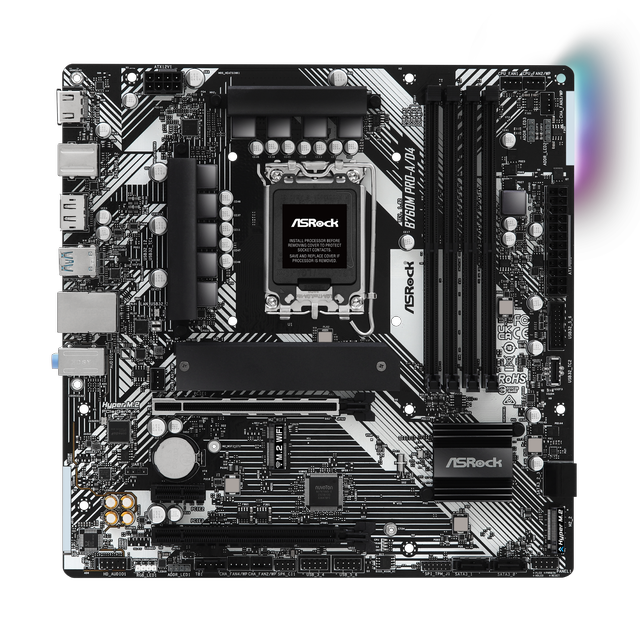

ASRock B760M Pro-A/D4 LGA 1700 Intel B760 Micro ATX Motherboard, DDR4, PCIe 4.0 M.2, 2.5Gb LAN, HDMI 2.1, DisplayPort 1.4, Supports Intel Core 14th / 13th / 12th Gen
- Socket LGA 1700, supports 14th, 13th and 12th Gen Intel Core processors
- Intel B760 chipset
- 7+1+1 power phase design with Dr.MOS
- 4 x DDR4 DIMM slots, dual channel, up to 128GB, up to 5333+ MHz (OC), supports Intel XMP 2.0
- 2 x PCIe 4.0 x16 slots (x16 and x4 modes), 1 x PCIe 4.0 x1 slot
- 2 x M.2 slots, both PCIe Gen4 x4 with NVMe support
- 1 x M.2 Key E slot for an optional Wi-Fi/Bluetooth module
- 4 x SATA 6Gb/s ports, supports RAID 0, 1, 5 and 10
- 2.5 Gigabit LAN (Realtek RTL8125BG)
- 7.1-channel HD audio (Realtek ALC897)

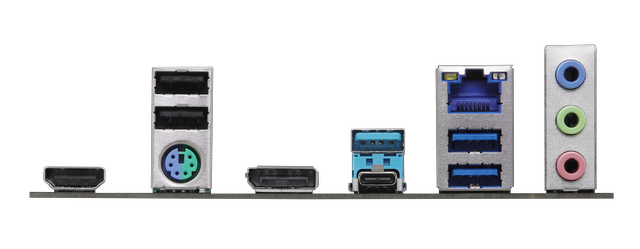

- Rear I/O: 1 x USB 3.2 Gen1 Type-C, 3 x USB 3.2 Gen1 Type-A, 2 x USB 2.0, 1 x HDMI 2.1 (up to 4K 60Hz), 1 x DisplayPort 1.4 (up to 8K 60Hz), 1 x PS/2, 1 x RJ-45, 3 x audio jacks
- Internal headers: 1 x USB 3.2 Gen1 Type-C, 1 x USB 3.2 Gen1 (2 ports), 2 x USB 2.0 (4 ports)
- 1 x RGB header and 3 x addressable RGB headers
- 6 x 4-pin fan headers, including a CPU/water pump header
- Micro ATX form factor, 9.6 x 9.6 in (24.4 x 24.4 cm)
+
+
