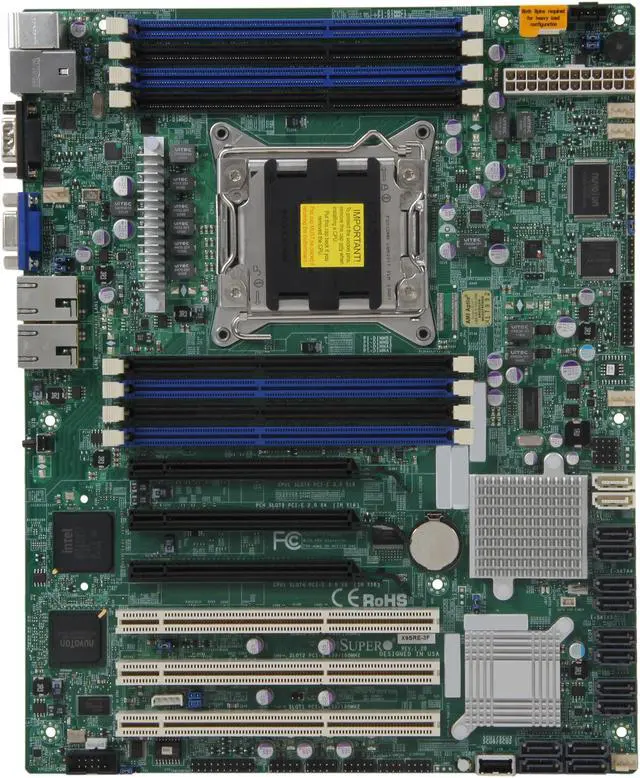

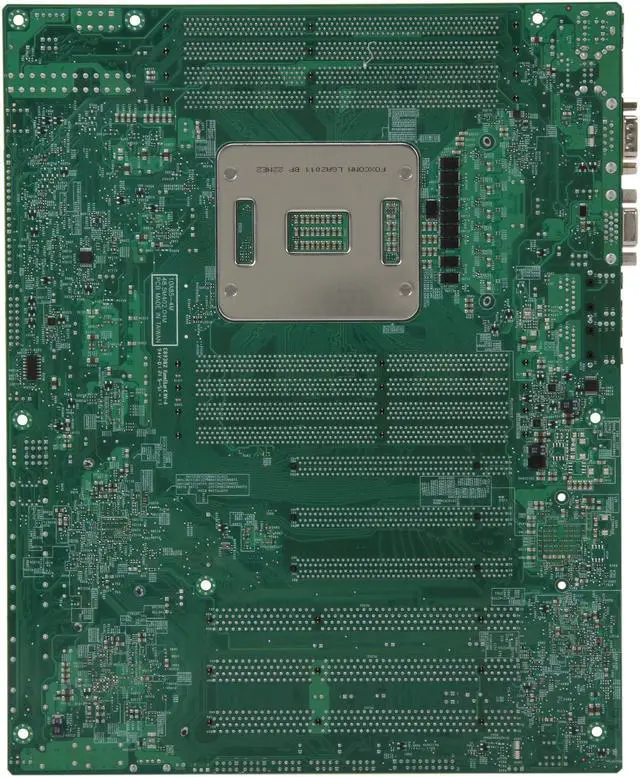

SUPERMICRO X9SRE-3F ATX Server Motherboard LGA 2011 DDR3 1600/1333/1066
- LGA 2011
- Intel C606 chipset
- 8 x 240pin
Specs
Reviews (4)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro X9SRE-3F
| Brand | SUPERMICRO |
|---|---|
| Model | X9SRE-3F |
| CPU Socket Type | LGA 2011 |
|---|---|
| CPU Type | Intel Xeon E5-2600/E5-1600 Series (up to 8 cores and up to 130W) |
| Other Chipset | Intel C606 chipset |
|---|
| Number of DDR3 Slots | 8 x 240pin |
|---|---|
| DDR3 Standard | DDR3 1600/1333/1066 |
| Maximum Memory Supported | 256GB |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express 3.0 x16 | 1 (x16) PCI-E 3.0 slot |
|---|---|
| PCI Express x8 | 1 (x8) PCI-E 3.0 (in x16) slot |
| PCI Express x4 | 1 (x4) PCI-E 2.0 (in x16) slot |
| Other Slots | 3 PCI-X 64bit 133/100 slots |
| SATA | 4 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | RAID 0/1/5/10 support (Windows) RAID 0/1/10 support (Linux) |
| Additional SATA | 8 x SATA 3Gb/s from SCU |
| Onboard Video Chipset | Matrox G200eW 16MB DDR2 graphics |
|---|
| LAN Chipset | Intel I350-AM2 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Onboard USB | 6 by headers, 1 Type-A |
|---|
| Features | Memory Capacity: Supports up to 256 GB DDR3 ECC Registered memory (RDIMM) Supports up to 64 GB DDR3 ECC and non-ECC UDIMM IPMI with dedicated LAN DOM (Disk on Module) Power Connector Support. |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| First Listed on Newegg | May 04, 2012 |
|---|
