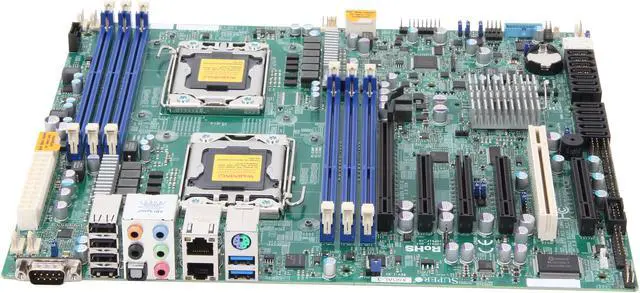

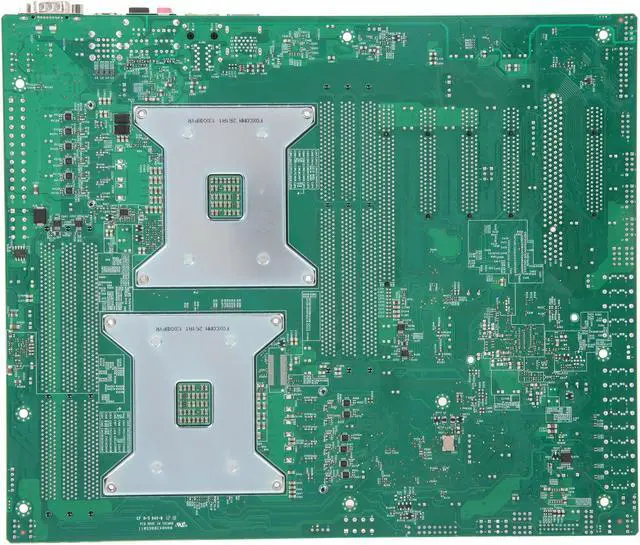

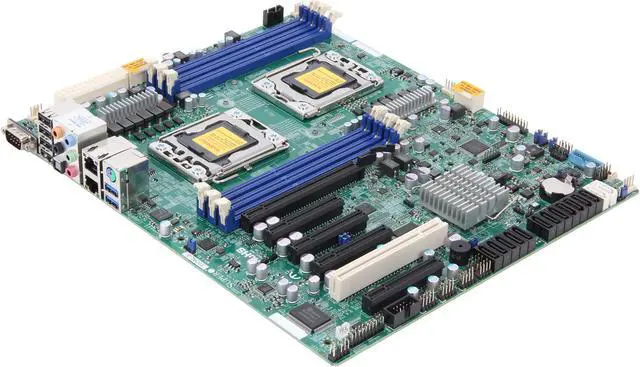

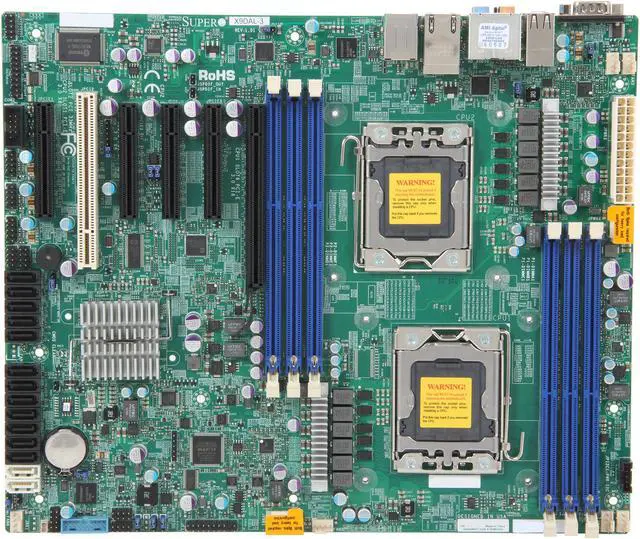

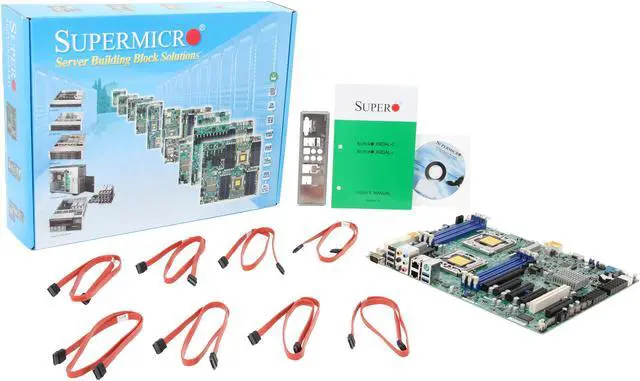

SUPERMICRO MBD-X9DAL-3-O Server Motherboard Dual LGA 1356 (Socket B2) DDR3 1600
- Dual LGA 1356
- Intel C606 chipset
- 6 x 240pin
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro MBD-X9DAL-3-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X9DAL-3-O |
| CPU Socket Type | Dual LGA 1356 |
|---|---|
| CPU Type | Dual Intel Xeon E5-2400 Series (Up to 95W TDP) |
| QPI | Up to 8.0GT/s |
| Other Chipset | Intel C606 chipset |
|---|
| Number of DDR3 Slots | 6 x 240pin |
|---|---|
| DDR3 Standard | DDR3 1600/1333/1066/800 |
| Maximum Memory Supported | 192GB |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express 3.0 x16 | 1x PCI-E 3.0 x16 |
|---|---|
| PCI Express x8 | 3x PCI-E 3.0 x8 (1 allows a x16 card) |
| PCI Express x4 | 1x PCI-E 3.0 x4 (in x8) |
| PCI Slots | 1x PCI-32 |
| SATA | 4 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| SAS | 8 port SAS/SATA2 from C606 |
| SAS RAID | RAID 0/1/10 |
| Audio Chipset | Realtek ALC889 |
|---|---|
| Audio Channels | 7.1 High Definition Audio with S/PDIF header |
| LAN Chipset | Intel 82574L |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel 82574L |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| COM | 1 |
| USB 1.1/2.0 | 2 x USB 3.0 + 4 x USB 2.0 |
| Audio Ports | 7.1 HD Audio with optical S/PDIF |
| Onboard USB | USB 3.0 x 2 via header USB 2.0 x 6 via header |
|---|
| Features | 4 pin PWM Fan Speed control 1 DOM (Disk on Module) power connector |
|---|
| Dimensions (W x L) | 12" x 10" |
|---|
| First Listed on Newegg | August 24, 2012 |
|---|
