What 8GB RAM DIMM would you use with this motherboard?

I think Crucial CT102472BF1339 is the only 8GB ECC DDR3 SO-DIMM currently available that will work with this motherboard.

Does the Sata controller support RAID 5?

No. It's a Marvell controller of some model and only supports RAID levels 0 and 1 in firmware. However, my model is about 18 months old and there could conceivably be an updated firmware.

Does the onboard Sata controller support RAID? If so, which levels? I am looking at using RAID 5

Raid 0 and 1; as per the spec on the Supermicro site. (Would link if newegg allowed me, apologies)

On the Newegg specification page it says that there are 4x SATA 3.0gb/s ports. On the SuperMicro site for this board, it says that there are 4x SATA 3 (6.0gb/s) ports. Which is it?

Supermicro states in the user manual, that it is 3.0, (AKA SATA II). However the disk controller is a Marvell 88SE9230 and the specs on the chip says that it is 6.0, (AKA SATA III). I do not have any SATA III drives to test the validity of the higher speeds. Due to the disparity in claims, I would contact SM directly for clarification. For me this has been a terrific board. i now have 2 - 1 as a web server and 1 as a Windows 7 workstation both performing flawlessly. And with the phenomenally low power draw, (and lack of heat and noise), I can run them 24x7.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

Main image of SUPERMICRO MBD-X9SBAA-F-O Mini ITX Server Motherboard FCBGA1283 DDR3 1333/1066/800

100%

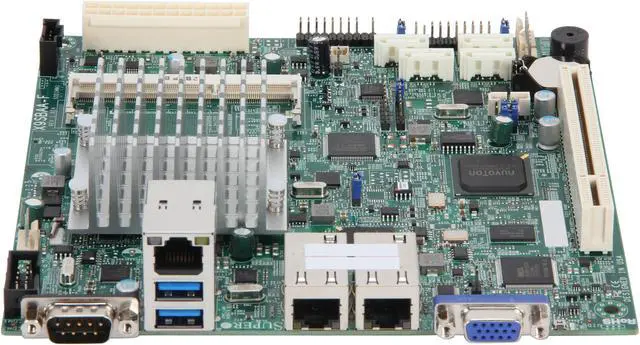

Alt view image 2 of 5 - SUPERMICRO MBD-X9SBAA-F-O Mini ITX Server Motherboard FCBGA1283 DDR3 1333/1066/800

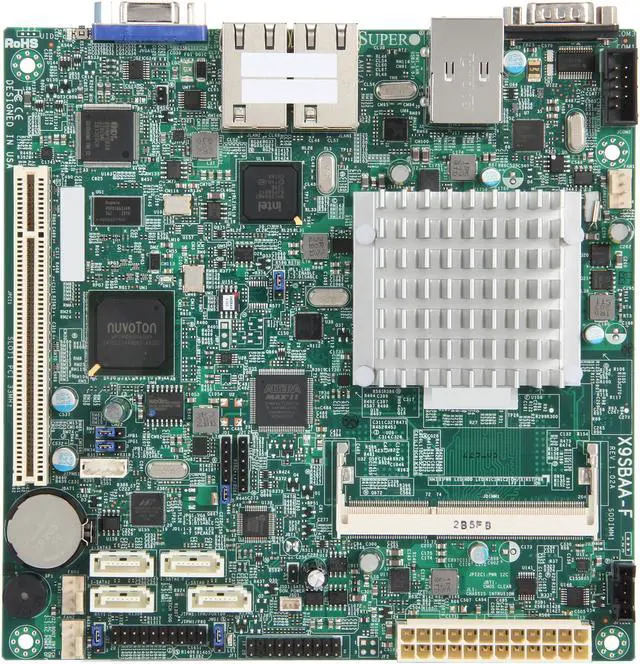

Alt view image 3 of 5 - SUPERMICRO MBD-X9SBAA-F-O Mini ITX Server Motherboard FCBGA1283 DDR3 1333/1066/800

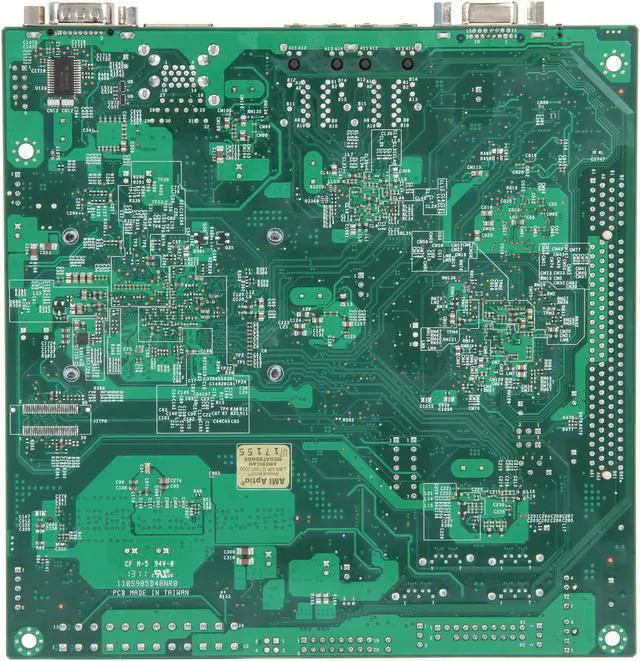

Alt view image 4 of 5 - SUPERMICRO MBD-X9SBAA-F-O Mini ITX Server Motherboard FCBGA1283 DDR3 1333/1066/800

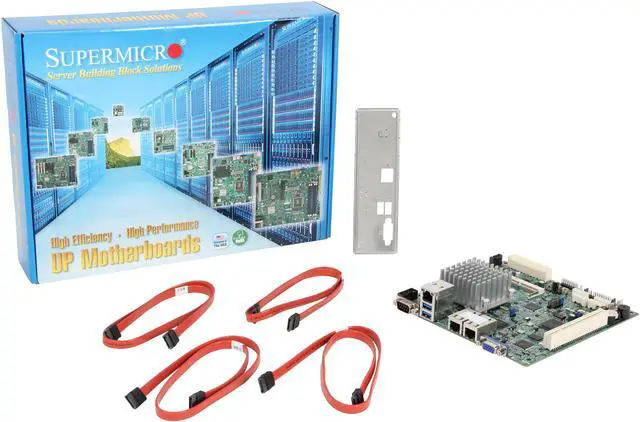

Alt view image 5 of 5 - SUPERMICRO MBD-X9SBAA-F-O Mini ITX Server Motherboard FCBGA1283 DDR3 1333/1066/800

360^°

Shop All Supermicro Products

SUPERMICRO MBD-X9SBAA-F-O Mini ITX Server Motherboard FCBGA1283 DDR3 1333/1066/800

(4) Write a Review

FCBGA1283
1 x 204pin

Overview

Specs

Reviews (4)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

SUPERMICRO MBD-X9SBAA-F-O Mini ITX Server Motherboard

Key Features

1. Intel® Atom™ Processor S1260; 2.0GHz 8.5W, VT-x, 64-bit, Dual-Core, Hyper-Threading
2. System-on-Chip
3. Up to 8GB DDR3-1333 ECC SO-DIMM in single socket
4. 4x SATA3 (6Gb) ports with RAID 0, 1
5. 2x USB 3.0 ports
6. Integrated Matrox G200eW video
7. Intel i350AM2 Dual Gigabit LAN Ports
8. IPMI 2.0 with KVM and dedicated LAN
9. 1x PCI 32-bit slot (3.3V)
10. Operating Temperature: 0°C - 60°C

Specifications

Product SKUs
MBD-X9SBAA-F -O	X9SBAA-F (Retail Pack)
MBD-X9SBAA-F -B	X9SBAA-F (Bulk Pack)
Physical Stats
Form Factor	Mini-ITX
Dimensions	6.7" x 6.7" (17cm x 17cm)
Processor/Cache
CPU	Intel® Atom™ S1260 (Centerton) System-on-Chip 2.0GHz 2C/4T, 64-bit, VT-x, HT
System Memory
Memory Capacity	1x 204-pin DDR3 SO-DIMM socket Supports up to 8GB DDR3 ECC memory
Memory Type	1333/1066/800MHz ECC DDR3 SDRAM, 204-pin gold-plated DIMMs
DIMM Sizes	8GB, 4GB, 2GB
Memory Voltage	1.5 V, 1.35 V
On-Board Devices
SATA	Marvell 88SE9230 SATA 3.0 (6Gb/s) Raid 0,1 support (Windows Only)
Network Controllers	Intel i350AM2 Gigabit Ethernet Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI)s
USB	Renesas uPD720201
IPMI	Nuvoton WPCM450 BMC
Video	Matrox G200eW
Input / Output
Serial ATA	4x SATA 3.0 ports
LAN	2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	2x USB 3.0 ports
Serial Port	2 Fast UART 16550 Serial Port (1 via header and 1 at rear)
DOM	DOM power connector support (Disk on Module)
VGA	1x VGA Port
Others	TPM 1.2 header

Gallery

What's in the Box

Model
Brand	SUPERMICRO
Model	MBD-X9SBAA-F-O

Supported CPU
CPU Socket Type	FCBGA1283
CPU Type	Intel Atom S1260 2GHz 2C/4T, 8.5W, 32nm

Memory
Number of DDR3 Slots	1 x 204pin
DDR3 Standard	DDR3 1333/1066/800
Maximum Memory Supported	8GB
ECC Supported	Yes

Expansion Slots
PCI Slots	1x 32-bit PCI slot (3.3V)

Storage Devices
SATA	4 x SATA 3.0Gb/s via Marvell 88SE9230
SATA RAID	0/1 support (Windows Only)

Onboard Video
Onboard Video Chipset	Matrox G200eW

Onboard LAN
LAN Chipset	Intel I350-AM2
Max LAN Speed	2 x 1Gbps

Rear Panel Ports
COM	1
Video Ports	D-Sub
USB 3.0	2 x USB 3.0

Features
Features	System-on-Chip IPMI 2.0 with KVM and dedicated LAN DOM power connector support (Disk on Module)

Dimensions
Form Factor	Mini ITX
Dimensions (W x L)	6.7" x 6.7"

Packaging
Package Contents	QR0908

Additional Information
First Listed on Newegg	May 13, 2013
