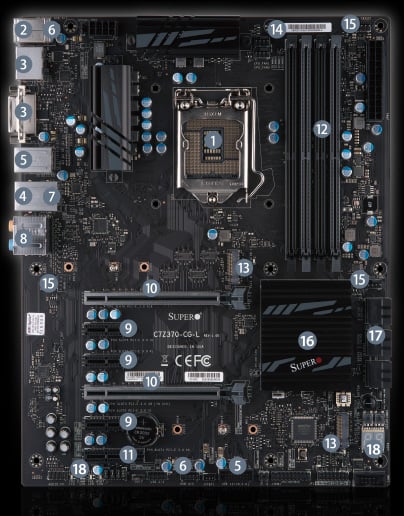

- 15 Gold Plated Single CPU socket(LGA 1151) supports Intel 8th Gen Intel Core i7/i5/i3 series Intel Celeron and Intel Pentium Processor (120Watt TDP)
- PS/2 Port for Keyboard or Mouse
- HDMI 1.4 b; Display Port 1.2;
DVI-D Triple Display Output and 4K Ultra HD Display Support - 2 x USB 3.1/3.0/2.0 port(Type A and Type C)via the latest PCI-E 3.0x2 ASM2142 chip
- 6 USB 3.0/2.0 ports(4 rear,2 via header)
- 6 USB 2.0 ports (2 rear,4 via header)
- 1 Intel Gbit Ethernet LAN port
- 7.1 HD Audio powered by Realtek ALC 888S
- 3 PCI-E 3.0 x1 Slots
- 2 PCI-E 3.0 x16 Slots(x16/NA or x8/x8)
- 1 PCI-E 3.0 x4 slot
- 4xDDR4 DIMM sockets support up to 64GB Non-ECC unbuffered memory(XMP 2.0 supported)
- 2xM.2 with M Key(PCI-E 3.0 x4 mode)
(2260/2280/22110 form factors) - 2 x 4pin CPU Fan conectors (4pin PWM Fan only)
- 3x4pin SYS Fan connectors (4pin PWM or 3pin DC fan)
- Intel Z370 Express Chipset
- 6 x SATA3 (6Gbps) ports (RAID 0,1,5,10 support)
- Status LED for troubleshooting

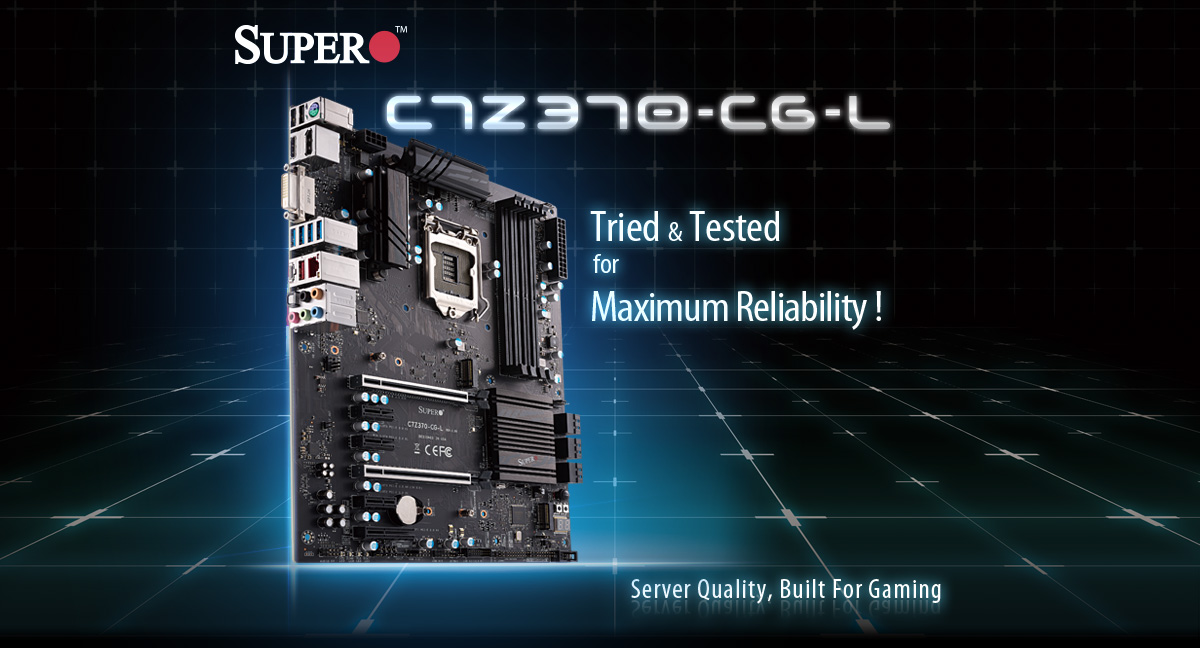

Running the latest Intel Z370 chipset we have put together a product that brings you the best of both worlds of reliability and performance. The C7Z370-CG-L allows you to have a solid, well-rounded, yet versatile motherboard which lets you focus on what is essential for your needs and still perform the way you want.

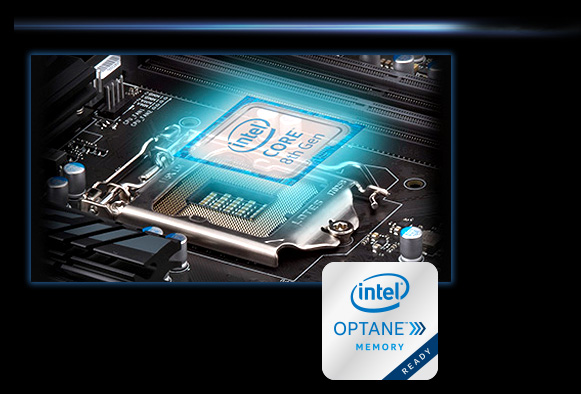

The new 8th generation Intel Core processors are here and ready to take on any and every task you can throw at it. Whether it is creating, editing, and sharing 4K, VR, and 360 degree content, playing your favorite video games, or streaming 4K movies and TV shows there is nothing this newest generation of CPUs can't handle.INTEL OPTANETM TECHNOLOGYIntel Optane technology takes performance to the next level by combining DRAM memory to boost storage up to 1000x faster than current NAND storage, and up to 100,000x faster than standard HDDs. Pair it with your slower storage media and enjoy faster and better gaming performance than ever before.

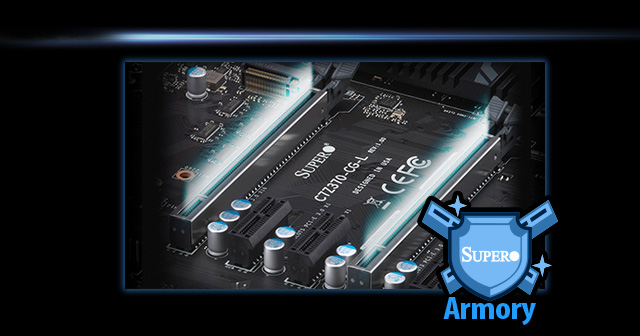

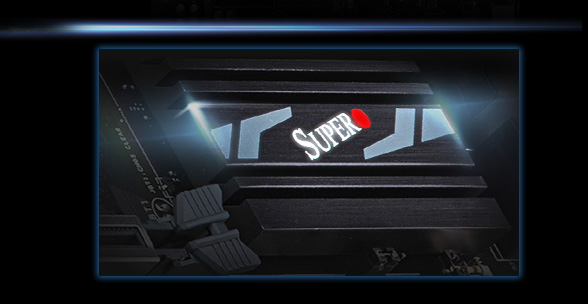

SUPERO motherboards are designed and tested similar to our world famous server motherboards. We continuously stress, tweak, restress, and retweak constantly until our products to be the most stable and power efficient so you get the best performance with the least heat generated. Using only the highest quality components such as our epoxy glass resin PCB, digital PWMs, Dr. MOS, and ferrite chokes you'll know that your motherboard is top of the line.

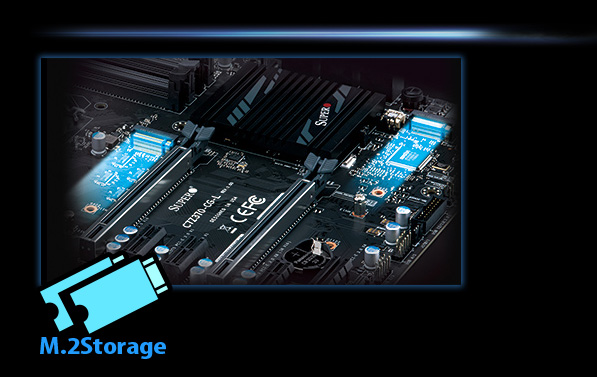

Storage speeds have come a long way in the hardware industry. Mechanical drives are still being used and for those who wanted a boost upgraded to solid state drives. Now we have PCIe M.2 the latest in storage technology with speeds not only surpassing double the speeds of a standard SATA 3.0 mechanical drive, but upwards of up to 3-5 times faster in overall speed. Latency are also improved vastly by up to 10x more efficient and up to 8-10 times faster when building a RAID with multiple M.2 drives. In addition to faster overall speeds and latency the drives themselves will also last longer because of the lack of moving parts vs. the traditional mechanical drive. What more can you ask for?

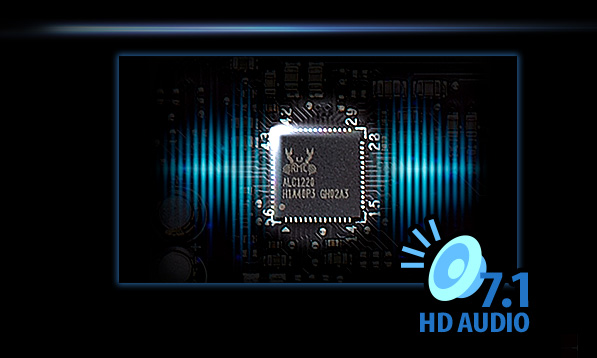

For the average listener of music to the gamer to the professional the Realtek ALC1220 will give you the clearest sound available for all your audio needs. Let the crystal clear quality sound immerse you whether it is rocking out to your favorite tune, listening to the enemy's footsteps from the next room in PUBG (PlayerUnknown's Battlegrounds video game), or lying back hearing every detail of your action packed movie. The 7.1 channel audio will give you all the options from a simple 2 speaker or headphone setup to a full home theatre system to give you the best audio experience available.

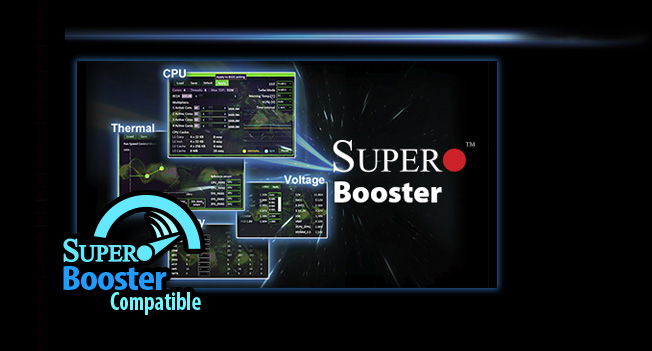

Running the latest Intel's CPU you'll want to use the best monitoring program for your SuperO motherboard. The SuperO Booster lets you sit in the driver seat to monitor, tweak, and fine tune every part of your system in your overclocking adventure. You'll be able to adjust CPU and memory speeds, voltages, and fan speeds on the fly and that isn't all. We have now included Load Line Calibration, a Fast Boot Option which allows you to boot into Windows 10 at a much higher speed while using a SSD, and multiple overclocking profiles to switch between different settings at any point to squeeze every bit of performance from your PC.
