What gpu is compatible

The motherboard supports up to 3 Single Width, 2 Double Width, or 2 Triple Width GPU cards.

What is the maximum memory capacity supported by the Supermicro X13SRA-TF motherboard?

The Supermicro X13SRA-TF motherboard supports up to 2TB of RDIMM 3DS memory and 512GB of ECC RDIMM memory.

The Supermicro X13SRA-TF motherboard is compatible with Intel® Xeon® W-3400 series, W-2400 series, W-3500 series, and W-2500 series processors.

double click image to zoom in

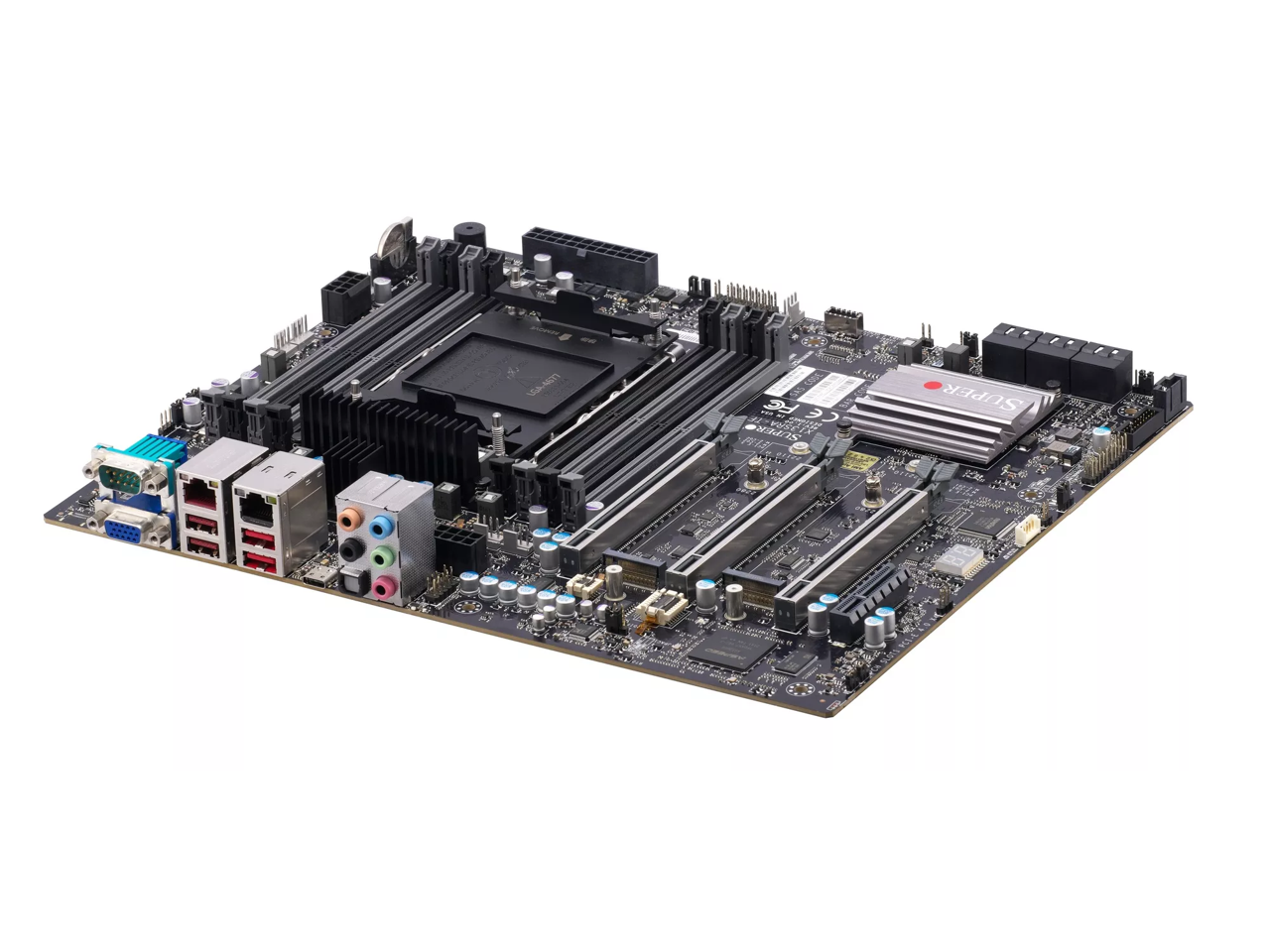

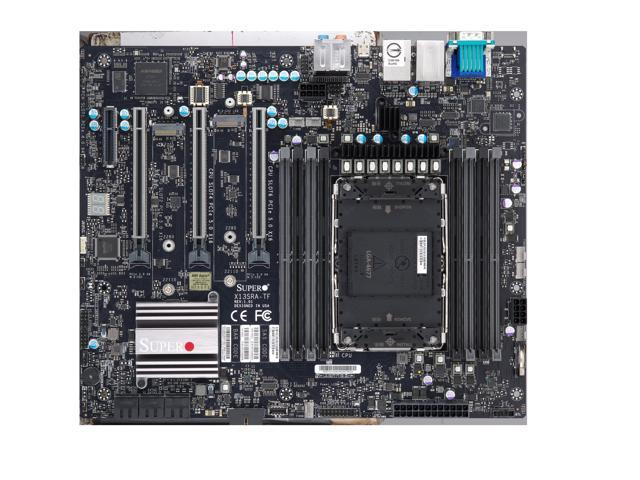

Supermicro X13SRA-TF Motherboard, Intel® Xeon® W-3400 series, W-2400 series, W-3500 series, W-2500 series . Intel W790.

Intel® Xeon® W-3400 series, W-2400 series, W-3500 series, W-2500 series processors, Single Socket Socket E (LGA-4677) supported, Up to 60 CPU cores and a thermal design power (TDP) of up to 385W.
Intel® W790
Up to 2TB RDIMM 3DS, 512GB ECC RDIMM; DDR5-4800MT/s (1DPC)/4400MT/s (2DPC), in 8 DIMM slots
3 PCIe 5.0 x16 Slots, support up to 3 Single Width/2 Double Width/2 Triple Width GPU cards
1 PCIe 4.0 x4 Slots
M.2 Interface: 2 PCIe 5.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Socket (w/o heat sink)
1GbE LAN port with Intel® Ethernet Controller I210-AT
10GbE LAN with Marvell AQC113
6 SATA 3 (6Gb, RAID 0, 1, 5, 10)
IPMI Supported
Overclocking Supported (optional)
