Brand | PC CHIPS |
---|---|

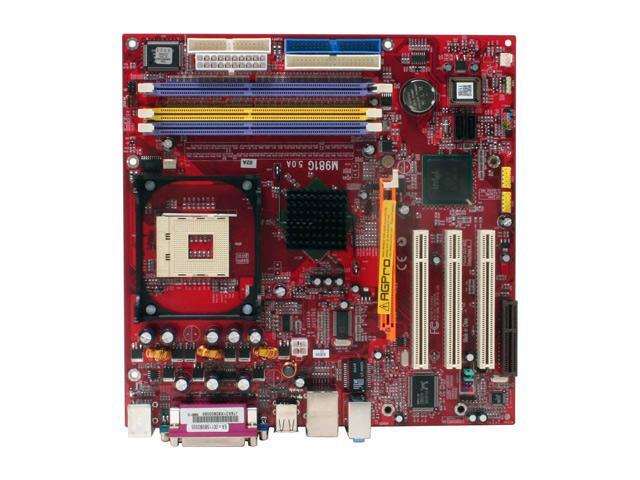

Model | M981G V5.0 |
CPU Socket Type | Socket 478 |
---|---|
CPU Type | Pentium 4 / Celeron |
FSB | 800/533 MHz |
Supported CPU Technologies | Hyper-Threading Technology |
Chipset | Intel 865GV |
---|---|
South Bridge | Intel ICH5 |
Onboard Video Chipset | Intel Extreme2 Graphics |
---|
Number of Memory Slots | 3x184pin |
---|---|
Memory Standard | DDR 400 |
Maximum Memory Supported | 3GB |
Channel Supported | Dual Channel |
AGP Slots | 1 x AGP Pro 4X / 8X |
---|---|
PCI Slots | 3 x PCI Slots |
Other Slots | 1 x CNR |
PATA | 2 x ATA100 4 Dev. Max |
---|---|
SATA 1.5Gb/s | 2 x SATA 1.5 Gb/s |
Audio Chipset | C-Media CMI9761A |
---|---|
Audio Channels | 6 Channels |
LAN Chipset | Realtek 8100C |
---|---|
Max LAN Speed | 10/100Mbps |
PS/2 | 2 |
---|---|
COM | 1 |
LPT | 1 |

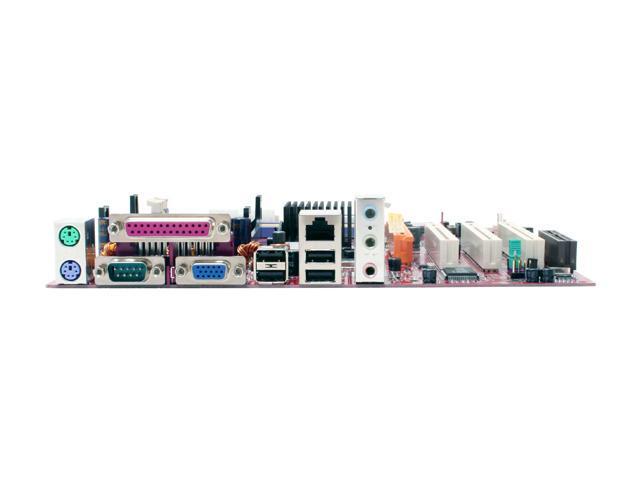

Video Ports | D-Sub |
USB 1.1/2.0 | 4 x USB 2.0 |
Audio Ports | 3 Ports |
Onboard USB | 4 x USB 2.0 |
---|
Form Factor | Micro ATX |
---|---|
Dimensions (W x L) | 9.6" x 9.6" |
Power Pin | 20 Pin |
Date First Available | August 24, 2006 |
---|
