Brand | PC CHIPS |
---|---|
Model | P23G (V3.0) |
CPU Socket Type | LGA 775 |
---|---|
CPU Type | Core 2 Duo / Pentium D / Celeron D |
FSB | 1066/800 MHz |
Supported CPU Technologies | Hyper-Threading Technology |
Chipset | VIA P4M800 PRO |
---|---|
South Bridge | VIA VT8237R |
Onboard Video Chipset | S3 Graphics UniChrome Pro IGP |
---|
Number of Memory Slots | 2x184pin + 2x240pin |
---|---|
Memory Standard | DDR2 533 / DDR 400 |
Maximum Memory Supported | 2GB |
AGP Slots | 1 x AGP 4X / 8X |
---|---|
PCI Express x16 | None |
PCI Slots | 3 x PCI Slots |
Other Slots | 1 x CNR |
PATA | 2 x ATA100 4 Dev. Max |
---|---|
SATA 1.5Gb/s | 2 x SATA 1.5 Gb/s |
SATA RAID | 0/1 |
Audio Chipset | Realtek ALC655 |
---|---|
Audio Channels | 6 Channels |
LAN Chipset | VIA VT6103L |
---|---|
Max LAN Speed | 10/100Mbps |
PS/2 | 2 |
---|---|
COM | 1 |
LPT | 1 |
Video Ports | D-Sub |
USB 1.1/2.0 | 4 x USB 2.0 |
Audio Ports | 3 Ports |
Onboard USB | 4 x USB 2.0 |
---|
Form Factor | Micro ATX |
---|---|
Dimensions (W x L) | 9.6" x 9.6" |
Power Pin | 20 Pin |

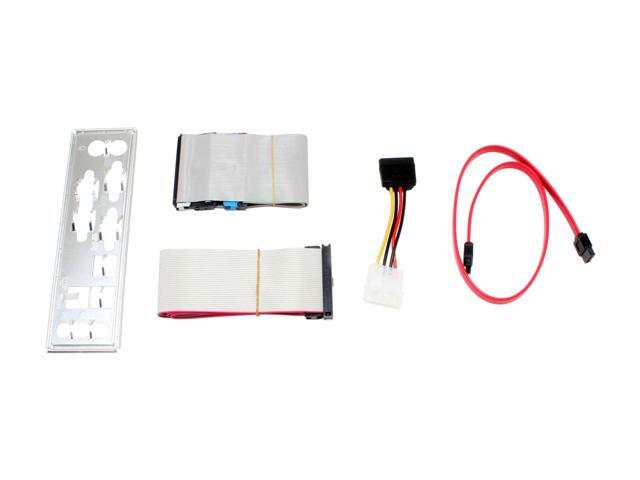

Package Contents | P23G (V3.0) User Manual Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable Power Cable |
---|
Date First Available | August 31, 2006 |
---|
Pros: All-in-one with sound/vid and even sata raid. Supports my "legacy" DDR400 2 gigs of Kingston RAM. Was a very simple swap out with an existing AMD based installation. (ie; Same "computer" I just upgraded to dual core with this new MB... bought a combo with a pentuim D 2.66 for $99... from New Egg) What else.... it has AGP so I get to keep my freak show AGP card. ($$$$, I'm glad it had AGP! Whew!) Bought and tested a second one for back-up. Get the picture?
Cons: Any bodys MB can be dead out of the box. I have had the best names come out the box dead as DEAD. And cheap (Chaintech, ECS) work perfectly from day 1 for years. I am persuaded somewhat, if it's a MB and it's out of Taiwan... it's just a gamble you take with DOA. Thier manufacturing must be... I'll bet it isn't ISO certified!
Overall Review: Buy it and roll the MotherBoard dice... you got New Egg backing you up.
