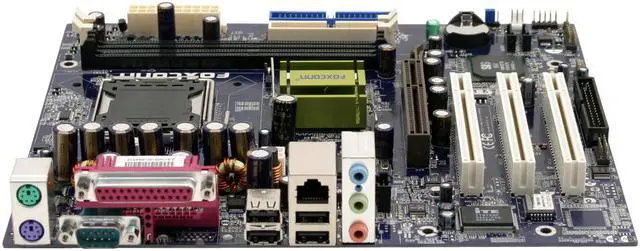

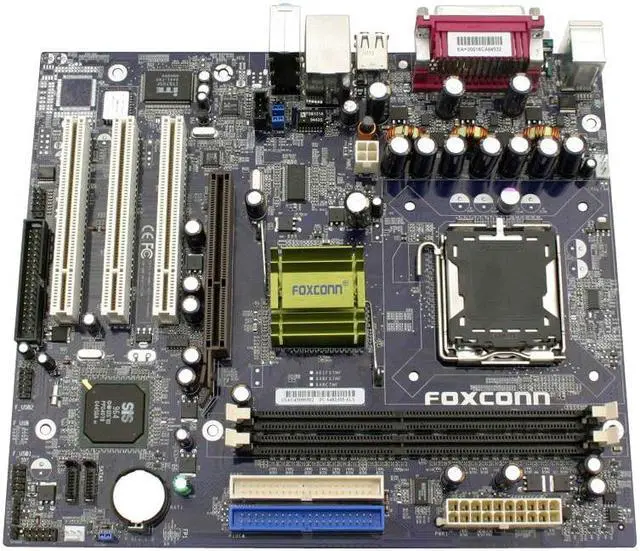

Foxconn 648FX7MF-S LGA 775 SiS 648FX Micro ATX Intel Motherboard
- SiS 648FX
- Pentium 4 Prescott / Celeron D
- DDR 400
Specs
Reviews (4)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Foxconn 648FX7MF-S
| Brand | Foxconn |
|---|---|
| Model | 648FX7MF-S |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Pentium 4 Prescott / Celeron D |
| FSB | 800/533 MHz |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | SiS 648FX |
|---|---|
| South Bridge | SiS 964 |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 2x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 2GB |
| AGP Slots | 1 x AGP 4X / 8X |
|---|---|
| PCI Express x16 | None |
| PCI Slots | 3 x PCI Slots |
| PATA | 2 x ATA100 4 Dev. Max |
|---|---|
| SATA RAID | 0/1 |
| Audio Chipset | AC97 Codec |
|---|---|
| Audio Channels | 6 Channels |
| Max LAN Speed | 100Mbps |
|---|
| Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Features | Wake-on-LAN (WOL), suspend-to-RAM (STR, S3), suspend-to-disk (STD, S4), SuperUtilities - SuperBoot, SuperBIOS-Protect, SuperRecovery, SuperSpeed, SuperStep, SuperLogo, and SuperUpdate 4Mb flash EEPROM w/ LAN boot, PnP, ACPI, WfM, DMI 2.0 |
|---|
| First Listed on Newegg | February 25, 2005 |
|---|
